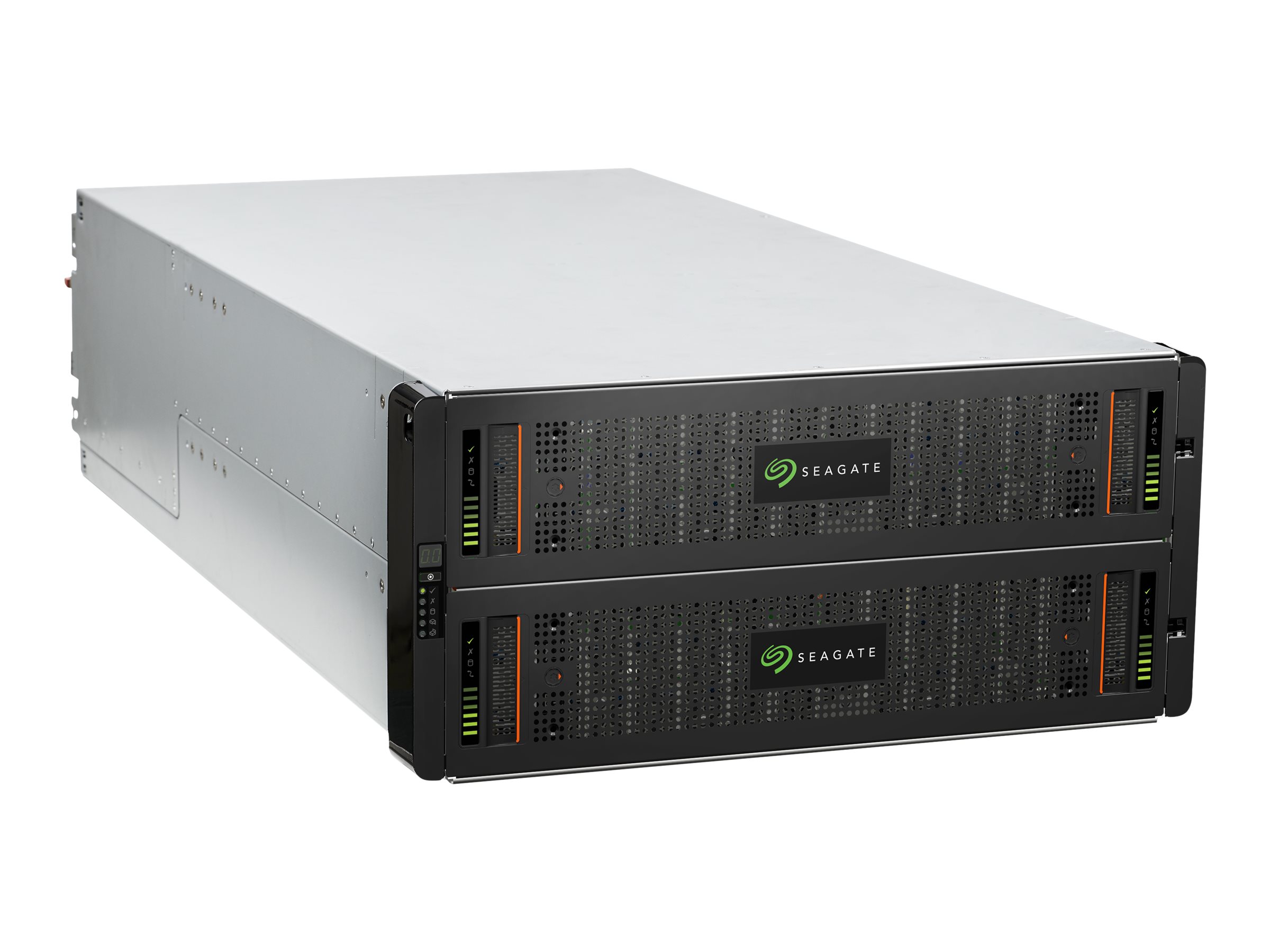

Seagate Exos X 5U84 - Solid state / hard drive array
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Seagate Exos X 5U84 - Solid state / hard drive array
- 84 bays (SAS-3)
- SAS 12Gb/s (external)
- rack-mountable
- 5U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | D4766X000000DA-02 |
| SHI Part #: | 48960923 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Seagate |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | Seagate Exos X 5U84 - Solid state / hard drive array - 84 bays (SAS-3) - SAS 12Gb/s (external) - rack-mountable - 5U |
| Manufacturer | Seagate |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 98.1 cm |
| Dimensions & Weight / Height | 22.23 cm |
| Dimensions & Weight / Weight | 82 kg |
| Dimensions & Weight / Width | 44.45 cm |
| Header / Brand | Seagate |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface | Serial Attached SCSI 3 |
| Storage / HDD Array External Interface Class | Serial Attached SCSI |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Type | Solid state / hard drive array |
| Chassis | |
| Supported Devices / Modules Qty | 84 |
| Supported Drives | SAS-3 |
| Dimensions & Weight | |
| Depth | 98.1 cm |
| Height | 22.23 cm |
| Weight | 82 kg |
| Width | 44.45 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 80% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Bays | 84 (total) / 84 (free) x hot-swap - 3.5" |
| Interfaces |
|
| General | |
| Device Type | Solid state / hard drive array |
| Enclosure Type | Rack-mountable - 5U |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07, EN 60950-1, IEC 60950-1, CCC, BIS, ASHRAE Class A2, Directive 2009/125/EC, FCC CFR47 Part 15 B Class A, EN55024, EN 61000-3-2, EN 61000-3-3, AS/NZS CISPR 32 Class A, VCCI Class A, KN35, KN24, Directive 2011/65/UE, RoHS 2011/65/EU, Directive 2012/19/UE, Directive 2006/66/CE, RCM, FCC, BSMI, KC, VCCI |
| Features | CNC Technology (Computer Numerical Control), SNMP support, SMTP support, Seagate ADAPT, hot-swappable controllers, hot-swappable fans, Snapshot function, software encryption |
| Included Accessories | Rail kit |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Power Provided | 2200 Watt |
| Voltage Required | AC 180-240 V 50/60 Hz |
| RAM | |
| Installed Size | 48 GB |
| Storage | |
| HDD Array External Interface | SAS 12Gb/s |
| Storage Controller | |
| Data Transfer Rate | 1.2 GBps |
| Installed Qty | 2 |
| Interface Type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| Type | RAID |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
