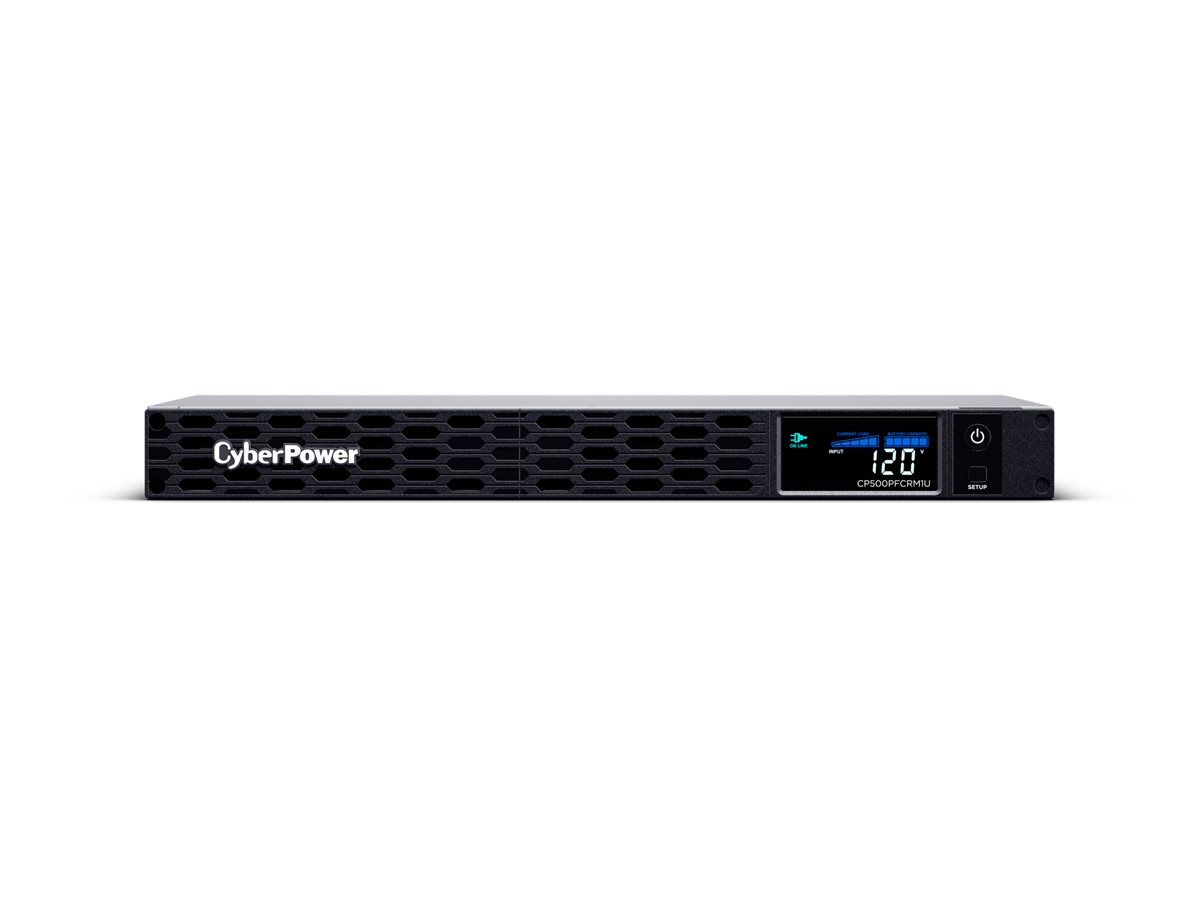

CyberPower PFC Sinewave Series CP500PFCRM1U
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
CyberPower PFC Sinewave Series CP500PFCRM1U
- UPS (rack-mountable)
- AC 120 V
- 300 Watt
- 500 VA
- 7 Ah
- USB, serial
- output connectors: 6
- active PFC
- 1U
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | CP500PFCRM1U |
| SHI Part #: | 48671791 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | CyberPower |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | CyberPower PFC Sinewave Series CP500PFCRM1U - UPS (rack-mountable) - AC 120 V - 300 Watt - 500 VA - 7 Ah - USB, serial - output connectors: 6 - active PFC - 1U - black |
| Manufacturer | CyberPower |
| MSRP | $408.87 |
| UNSPSC | 39121011 |
| Main Specifications | |

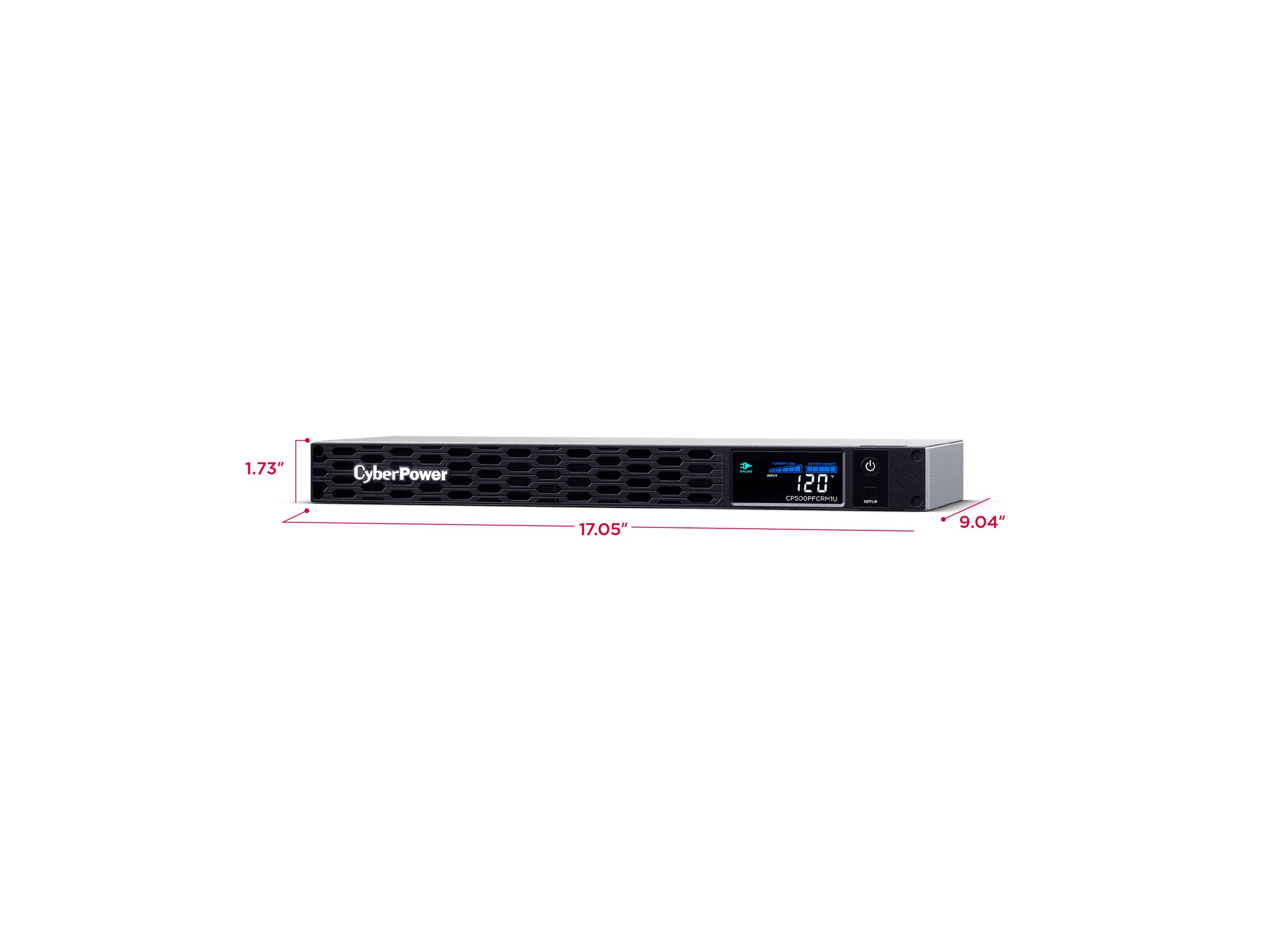

| Dimensions & Weight / Depth | 22.96 cm |
| Dimensions & Weight / Height | 4.39 cm |
| Dimensions & Weight / Weight | 8.15 kg |
| Dimensions & Weight / Width | 43.18 cm |
| Header / Brand | CyberPower |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |

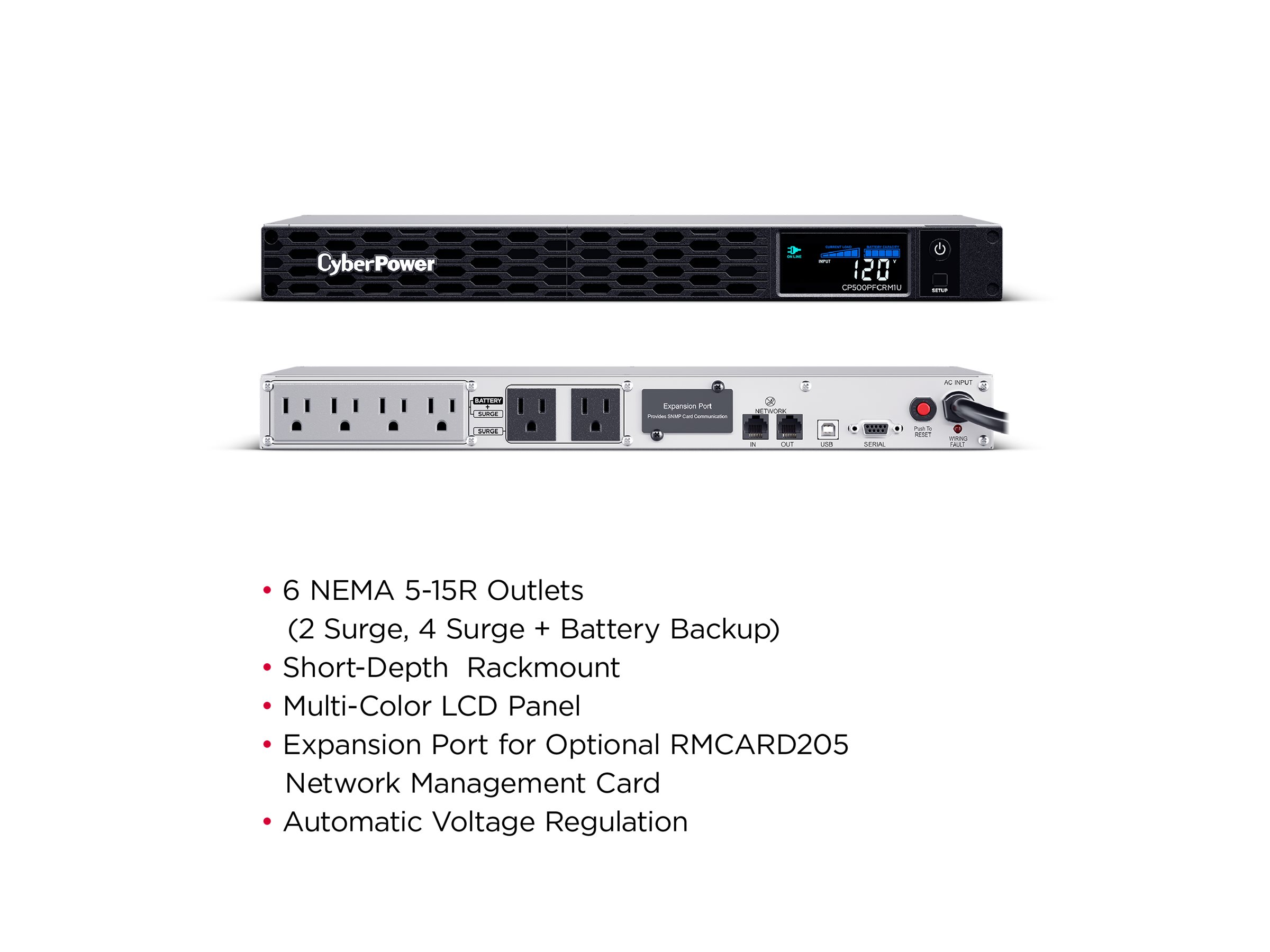

| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 500 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Capacity | 7 Ah |
| Features | Sealed |
| Quantity | 2 |
| Recharge Time | 8 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Transfer Time | 8 ms |
| Voltage Provided | 6 V |
| Dimensions & Weight | |
| Depth | 22.96 cm |
| Height | 4.39 cm |
| Weight | 8.15 kg |
| Width | 43.18 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 27.991 cm |
| Shipping Height | 15.494 cm |
| Shipping Weight | 8.87 kg |
| Shipping Width | 53.01 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - active Power Factor Correction (PFC) - rack-mountable |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | RoHS, UL 1778, CSA C22.2 No. 107.3, FCC Class B certified, DOE |
| Equipment Protection Value | 300000 US Dollars |
| Features | EMI filtering, RFI filtering, metal housing, GreenPower UPS Bypass Technology, hot-swappable batteries, user-replaceable batteries, audible alarm, LCD display, Human Interface Device (HID) support, LED indicators |
| Included Accessories | Rack mount brackets |
| Networking | |
| Remote Management Interface | USB, serial |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Dataline Surge Protection | Ethernet 10/100/1000Base-T - RJ-45 - 1 input line / 1 output line |
| Frequency Provided | 60 Hz ± 1% |
| Frequency Required | 57 - 63 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 88 - 144 V |
| Input Voltage Range (Adjustable) | AC 97 - 144 V |
| Output Voltage | AC 120 V ± 10% - 60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 300 Watt / 500 VA |
| Power Factor (PF) | 0.6 |
| Power Output Connectors Details |
|
| Surge Energy Rating | 1150 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | PowerPanel Business |
| Sustainability Information | |
| ENERGY STAR | Yes |
