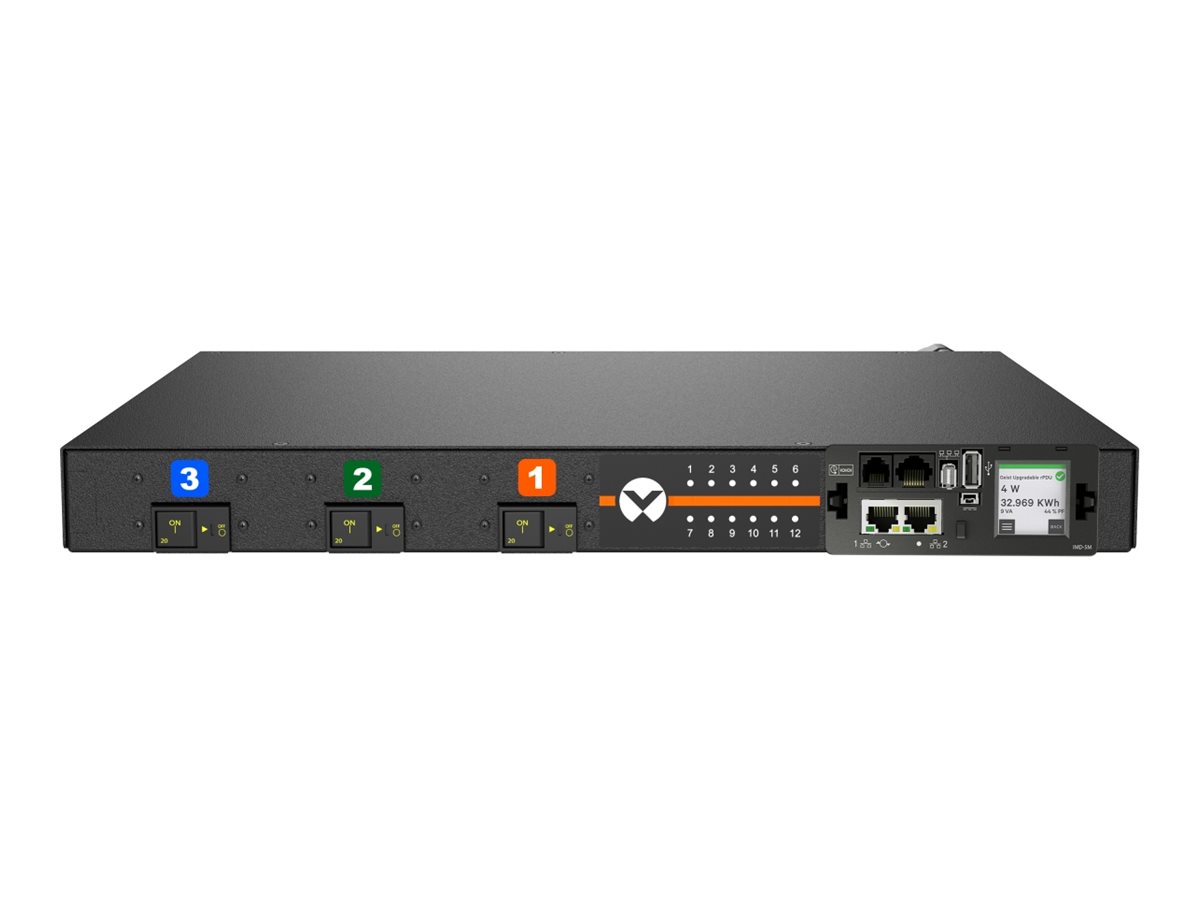

Geist Switched Unit Level Monitoring EC MNS5M1R6-12CF18-4CS15A0H10-S
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Geist Switched Unit Level Monitoring EC MNS5M1R6-12CF18-4CS15A0H10-S
- Power distribution unit (rack-mountable)
- AC 200-240 V
- 10 kW
- 3-phase delta
- Ethernet 10/100/1000, RS-232, USB
- input: IEC 60309 3P+E CA
- output connectors: 12 (IEC 60320 C13/C19)
- 1U
- 19"
- 3 m cord
- black powder coat
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VP5N41A0 |
| SHI Part #: | 48664979 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Geist Switched Unit Level Monitoring EC MNS5M1R6-12CF18-4CS15A0H10-S - Power distribution unit (rack-mountable) - AC 200-240 V - 10 kW - 3-phase delta - Ethernet 10/100/1000, RS-232, USB - input: IEC 60309 3P+E CA - output connectors: 12 (IEC 60320 C13/C19) - 1U - 19" - 3 m cord - black powder coat - TAA Compliant |
| Manufacturer | Vertiv |
| MSRP | $3,236.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.5 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Width | 43.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Power Device / Voltage Required | AC 200-240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty with product registration |
| Dimensions & Weight | |
| Depth | 30.5 cm |
| Height | 4.4 cm |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 8.16 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | RoHS, FCC Part 15 A, UL/CUL 62368-1, ANSI C12.1, IEC 62053-21 |
| Features | Horizontal mount, upgradeable, monitored, circuit/breaker current monitoring, daisy chain functionality, overcurrent protection, 3 x 20A double pole magnetic breakers, touch screen LCD display, LED indicators, twist lock plug, colored panel, IP reset button, hard reboot button |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, TACACS+, Modbus TCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60309 3P+E CA |
| Input Voltage | AC 200-240 V |
| Input Wiring | 3-phase delta |
| Max Electric Current | 35 A |
| Output Voltage | AC 208 V |
| Power Capacity | 10 kW |
| Power Output Connectors Details | 12 x power IEC 60320 C13/C19 |
