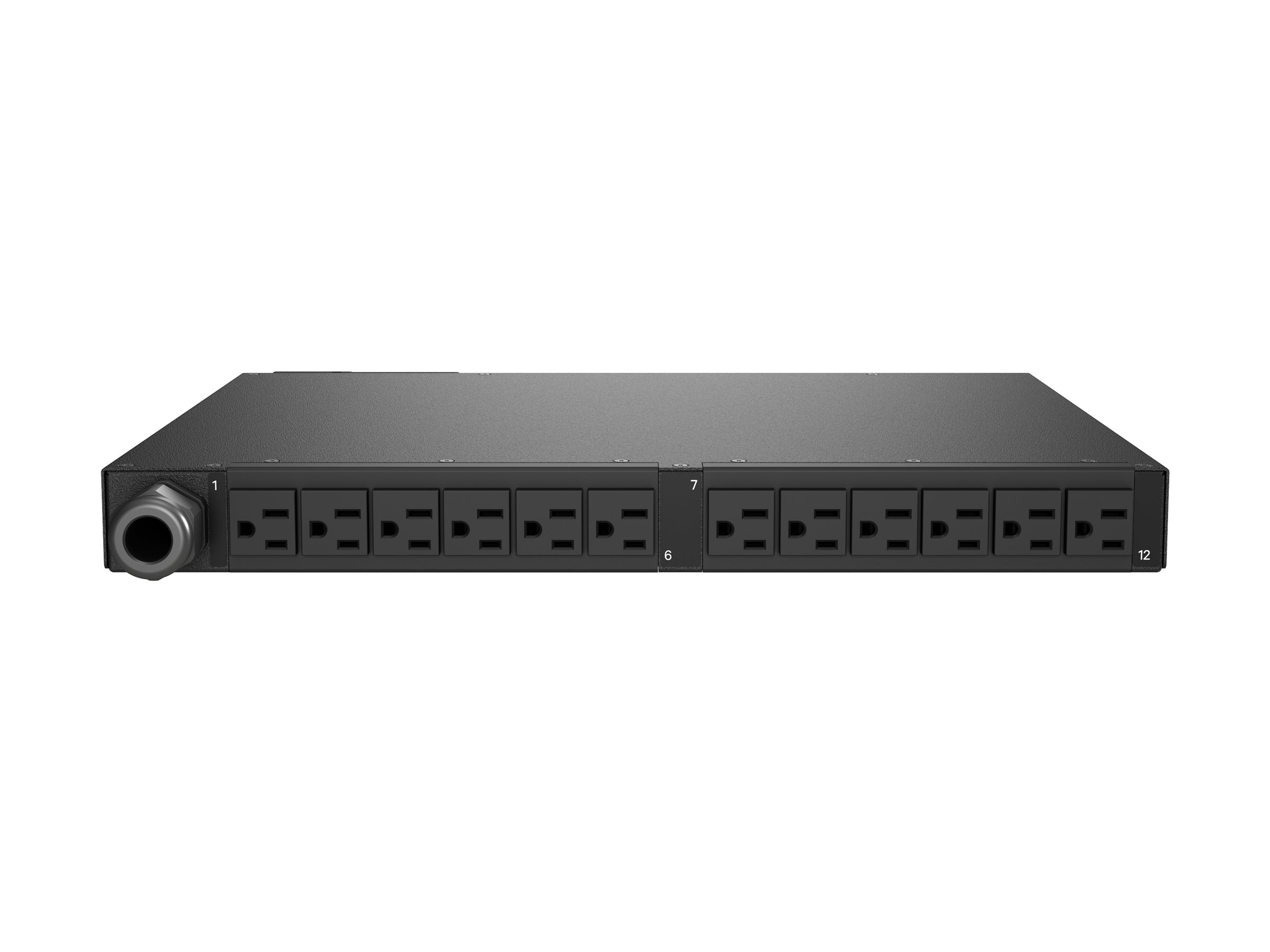

Geist Switched Unit Level Monitoring EC MNS5M1R5-12S203-2TL5A0H10-S
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Geist Switched Unit Level Monitoring EC MNS5M1R5-12S203-2TL5A0H10-S
- Power distribution unit (rack-mountable)
- AC 120 V
- 1.9 kW
- Ethernet 10/100/1000, RS-232, USB
- input: NEMA L5-20P
- output connectors: 12 (NEMA 5-20R)
- 1U
- 19"
- 3 m cord
- black powder coat
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VP5N21A1 |
| SHI Part #: | 48664967 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Geist Switched Unit Level Monitoring EC MNS5M1R5-12S203-2TL5A0H10-S - Power distribution unit (rack-mountable) - AC 120 V - 1.9 kW - Ethernet 10/100/1000, RS-232, USB - input: NEMA L5-20P - output connectors: 12 (NEMA 5-20R) - 1U - 19" - 3 m cord - black powder coat - TAA Compliant |
| Manufacturer | Vertiv |
| MSRP | $2,517.00 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.5 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty with product registration |
| Dimensions & Weight | |
| Depth | 30.5 cm |
| Height | 4.4 cm |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 4.54 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | ANSI C12.1, FCC Part 15 A, RoHS, UL/CUL 62368-1, IEC 62053-21 |
| Features | RJ45 port, horizontal mount, power monitoring, USB interface, integrated RS232, remote outlet switching, upgradeable, daisy chain functionality, touch screen LCD display, LED indicators, hard reboot button, IP reset button, twist lock plug |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, Syslog, TACACS+, SNMP 1, SNMP 2c, SNMP 3 |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-20P |
| Input Voltage | AC 120 V |
| Max Electric Current | 20 A |
| Output Voltage | 100-120 V 50/60 Hz |
| Power Capacity | 1.9 kW |
| Power Output Connectors Details | 12 x power NEMA 5-20R |
