Hardware Computer Components Motherboards
Add to My Favorites
Motherboards

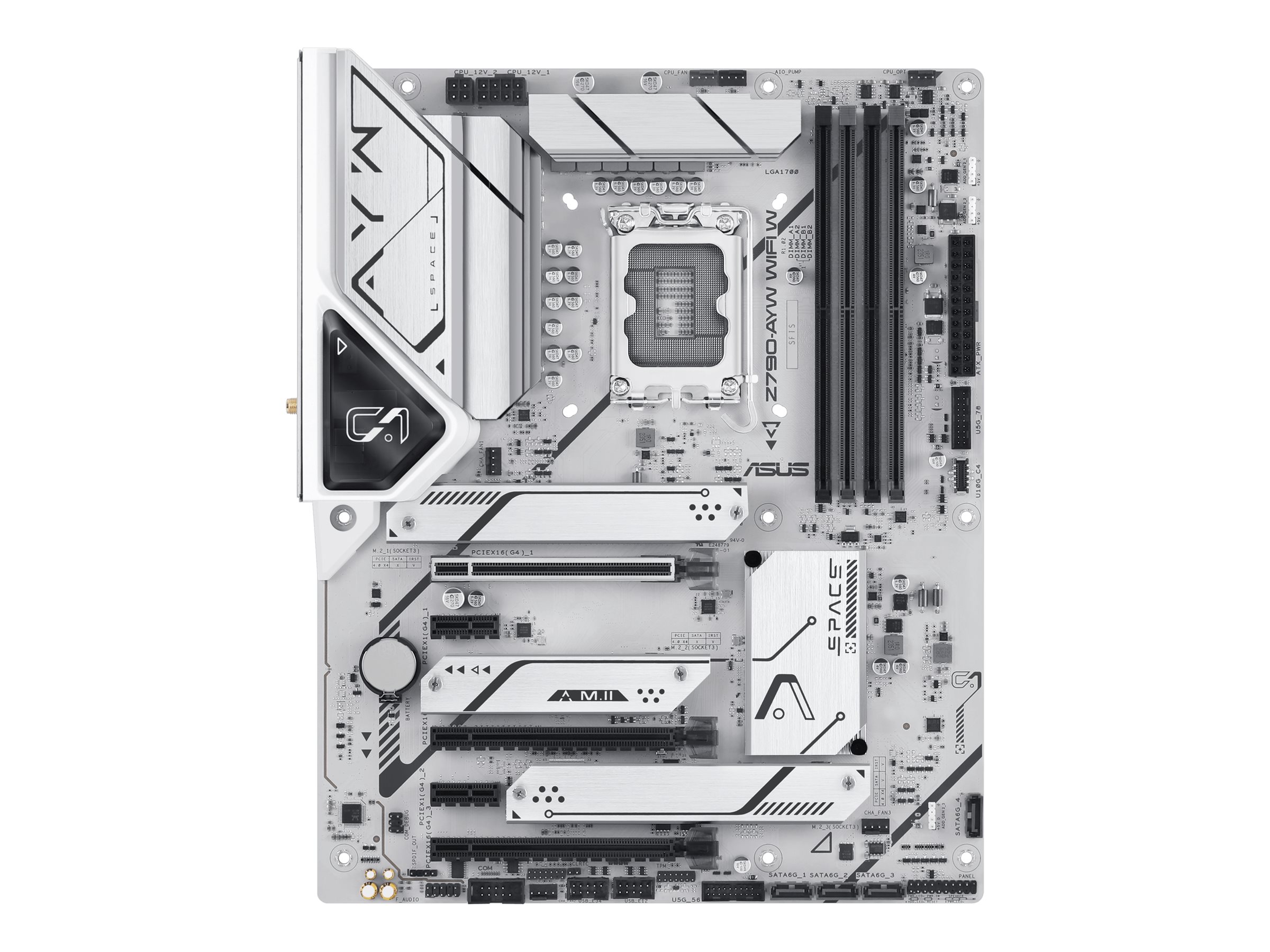

ASUS Z790-AYW WIFI W

$348.00
ASUS Z790-AYW WIFI W
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB4
ASUS Z790-AYW WIFI W
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB4
  • 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $348.00
Mfr Part #: Z790-AYW WIFI W
SHI Part #: 48664126
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS Z790-AYW WIFI W - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB4 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP$0.00
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel Z790
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.3
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 4.0 x16 (x4 mode)
  • 2 x PCIe 4.0 x1
  • 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
  • 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Interfaces
  • 1 x USB-C 3.2 Gen 2
  • 1 x USB 3.2 Gen 2
  • 2 x USB 3.2 Gen 1
  • 4 x USB 2.0
  • 1 x LAN (2.5Gigabit Ethernet)
  • 1 x HDMI
  • 2 x antenna
  • 1 x microphone - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
Internal Interfaces
  • 1 x USB-C 3.2 Gen 2 - header
  • 4 x USB 3.2 Gen 1 - header
  • 4 x USB 2.0 - header
  • 1 x Thunderbolt 4 - header
  • 1 x SPDIF out - header
  • 1 x SPI - header
  • 1 x serial - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • SATA-600 / PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
BIOS TypeAMI
Hardware FeaturesIntel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, BIOS FlashBack button, LANGuard, M.2 heatsink, M.2 Q-Latch, pre-mounted I/O shield, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, ASUS OptiMem II, AI Cooling II, 12+1+1 Phase Power Design, ASUS Enhanced Memory Profile (AEMP) II, chipset heatsink, RGB Lighting
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel Z790
Compatible Processors(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - ATX
LAN
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
Miscellaneous
Cables Included2 x Serial ATA cable
Depth24.4 cm
Included Accessories2 x M.2 rubber package, 2 x M.2 screw package, ASUS Wi-Fi moving antenna
Software IncludedArmoury Crate, ASUS Fan Xpert 4, ASUS DriverHub, ASUS AI Suite III, ASUS CPU-Z, ASUS TurboV EVO Utility, Norton 360 Deluxe (60 days trial), PC Cleaner, WinRAR (40 days trial)
Width30.5 cm
Supported RAM
Bus Clock7800 MT/s (O.C.), 7600 MT/s (O.C.), 7400 MT/s (O.C.), 7200 MT/s (O.C.), 7000 MT/s (O.C.), 6800 MT/s (O.C.), 6600 MT/s (O.C.), 6400 MT/s (O.C.), 6200 MT/s (O.C.), 6000 MT/s (O.C.), 5800 MT/s (O.C.), 5600 MT/s, 5400 MT/s, 5200 MT/s, 5000 MT/s, 4800 MT/s, 8000 MT/s (O.C.)
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size192 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC, on-die ECC
TechnologyDDR5
