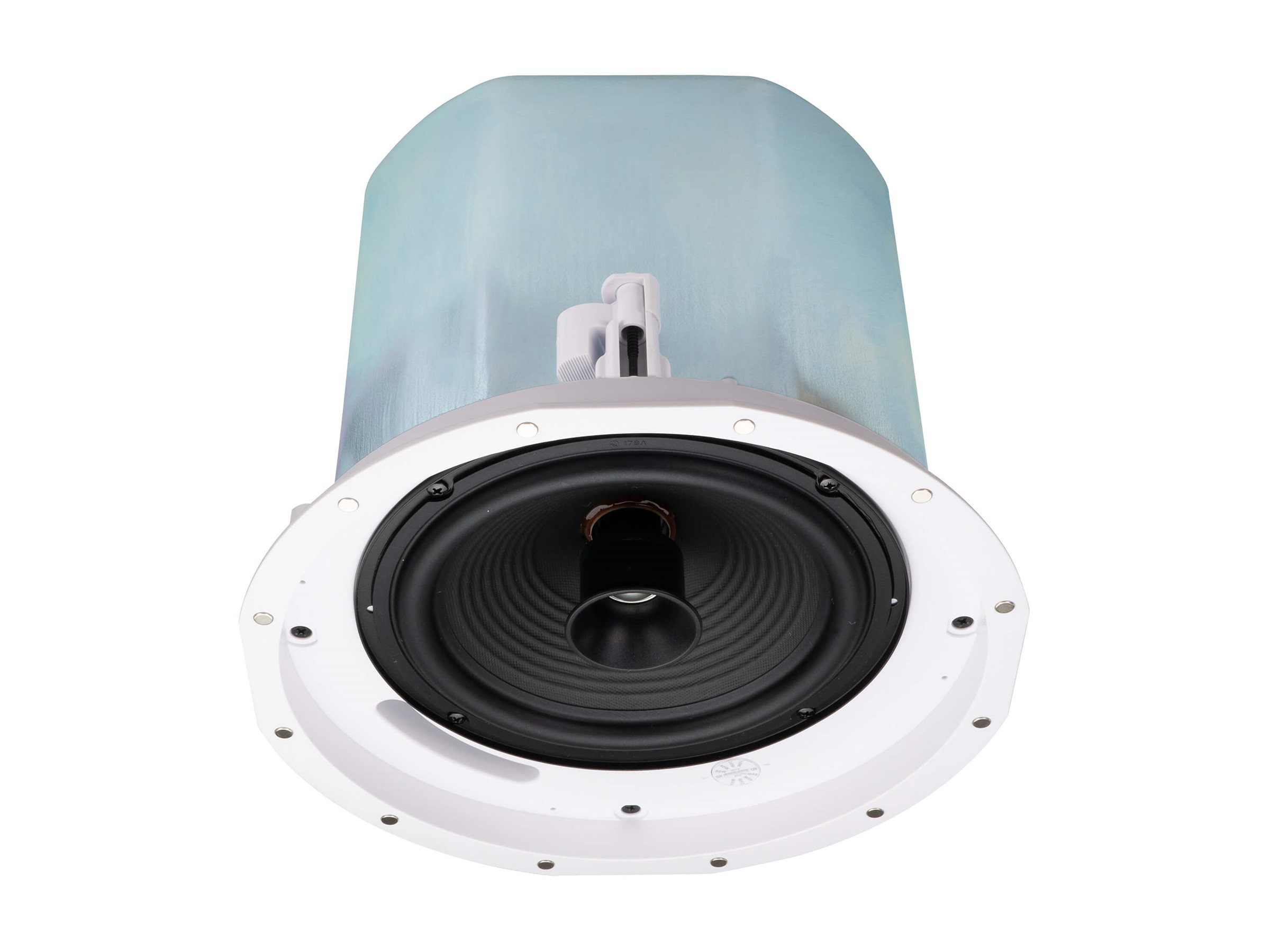

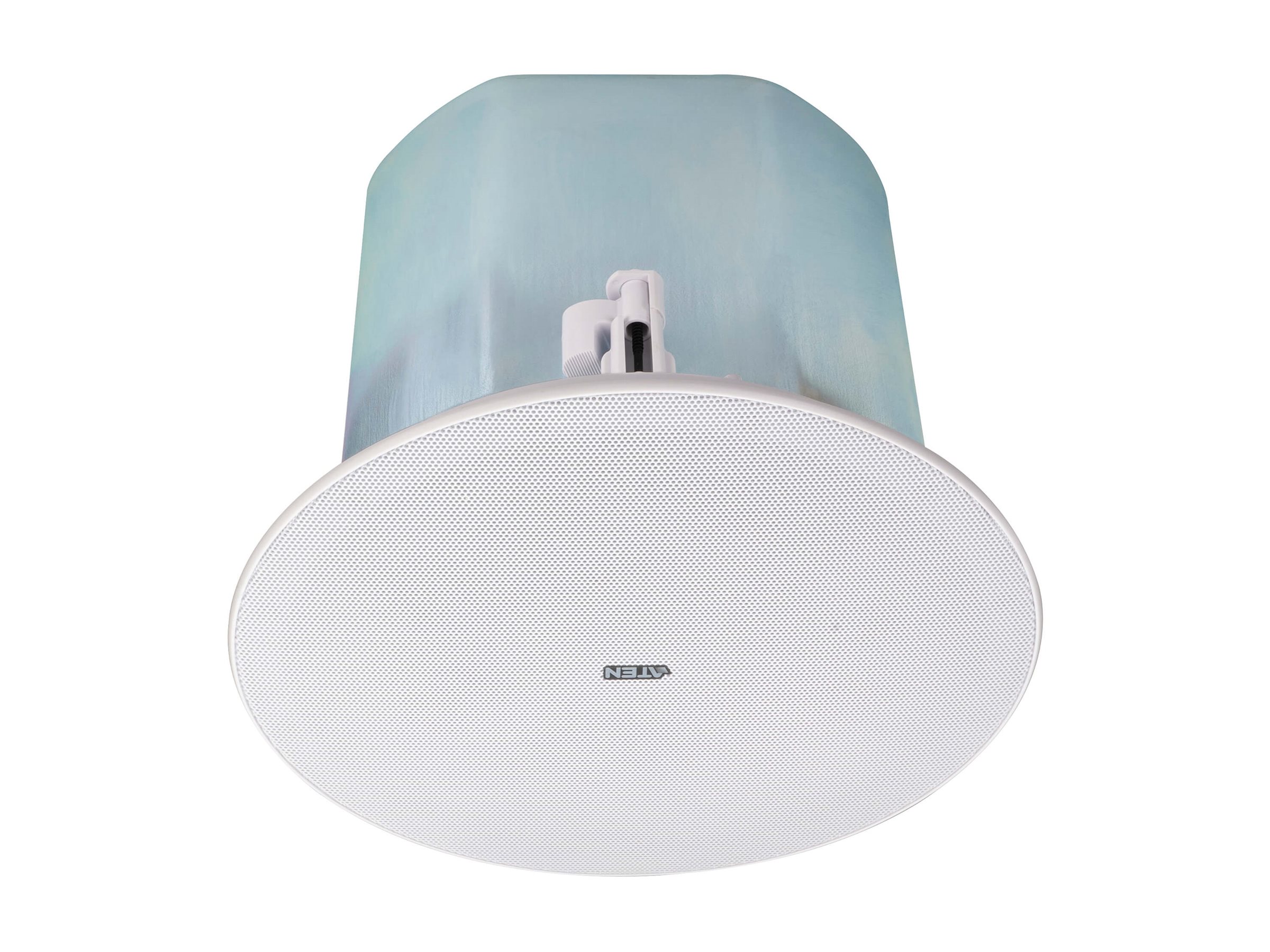

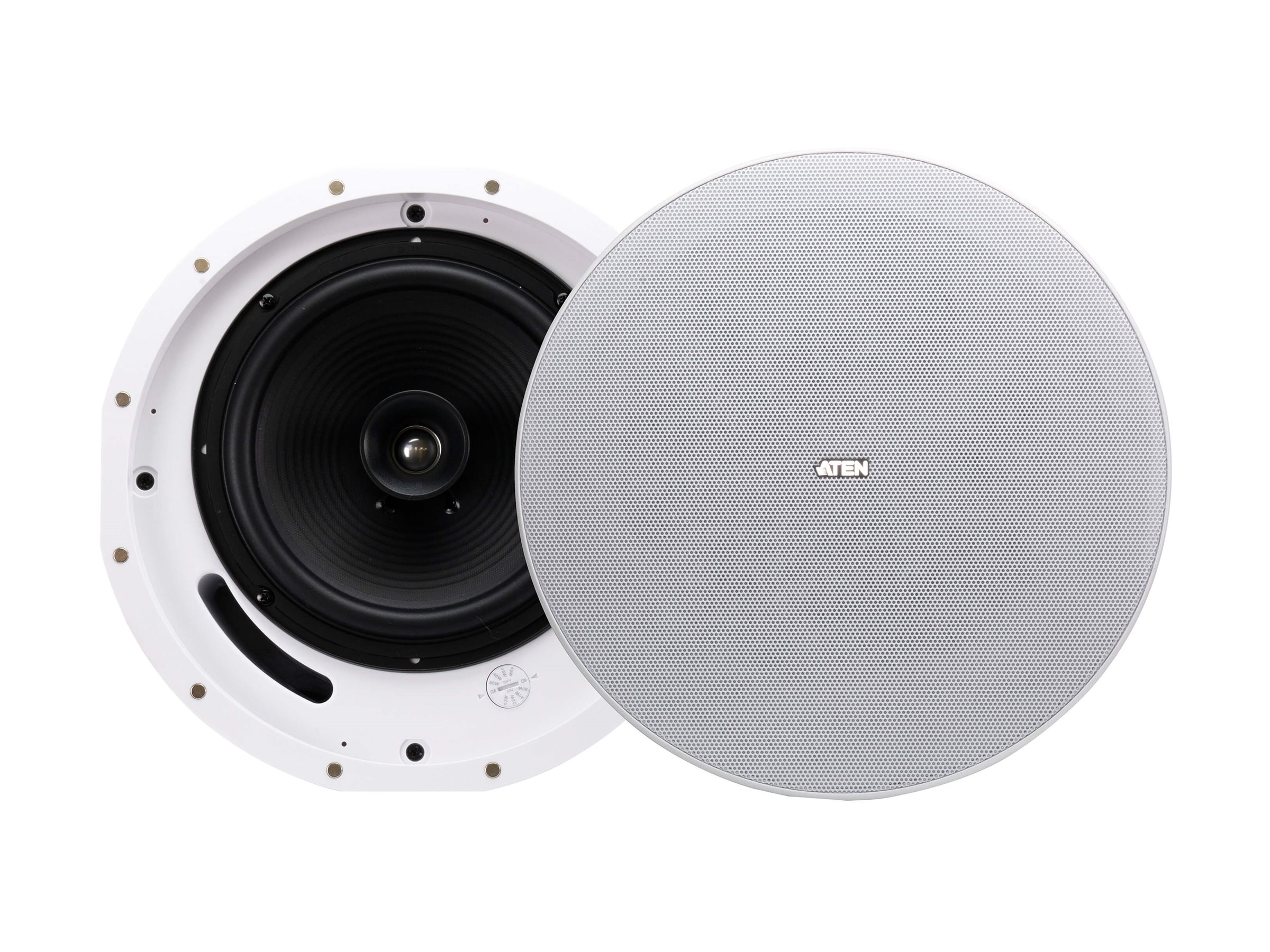

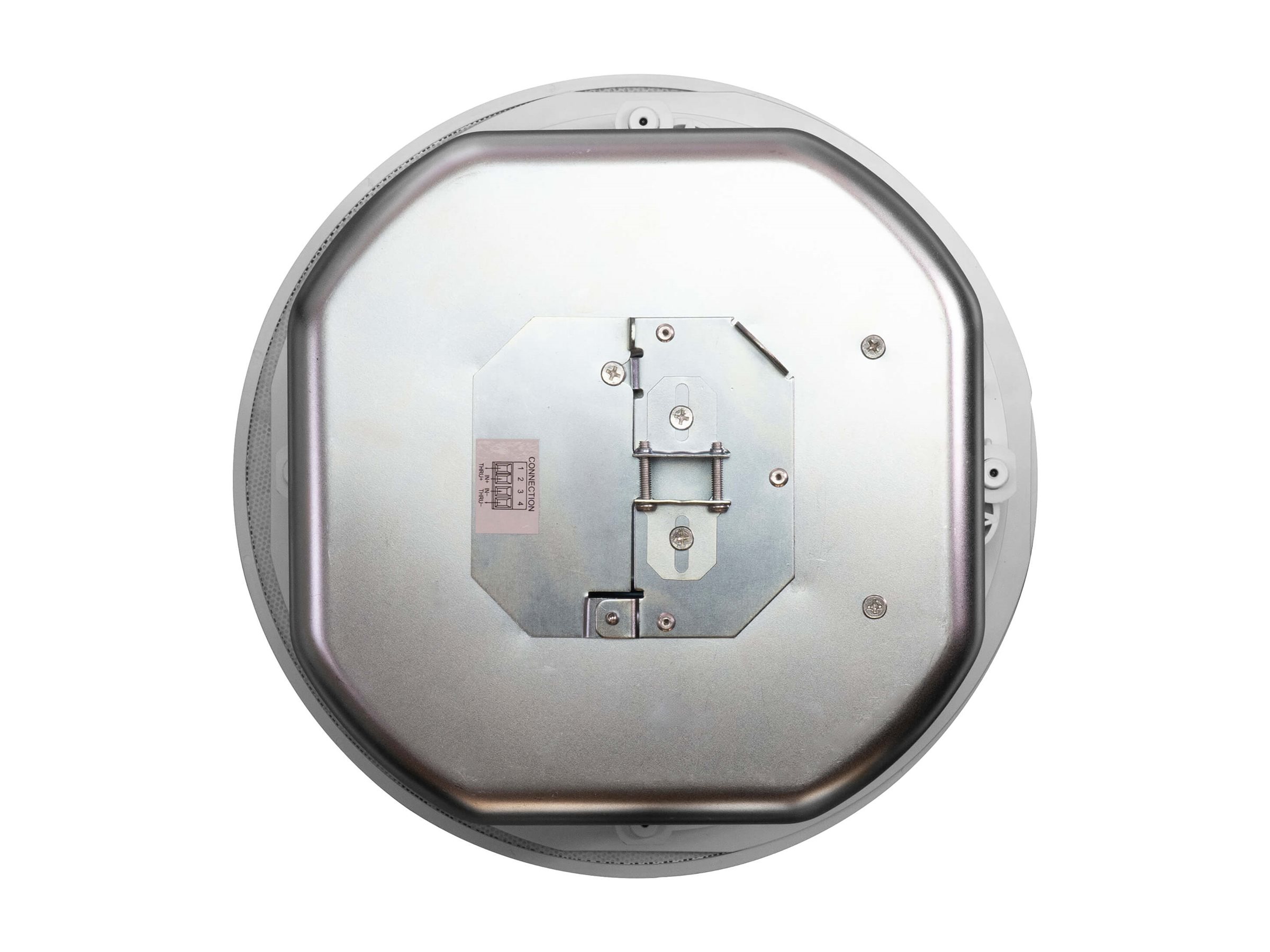

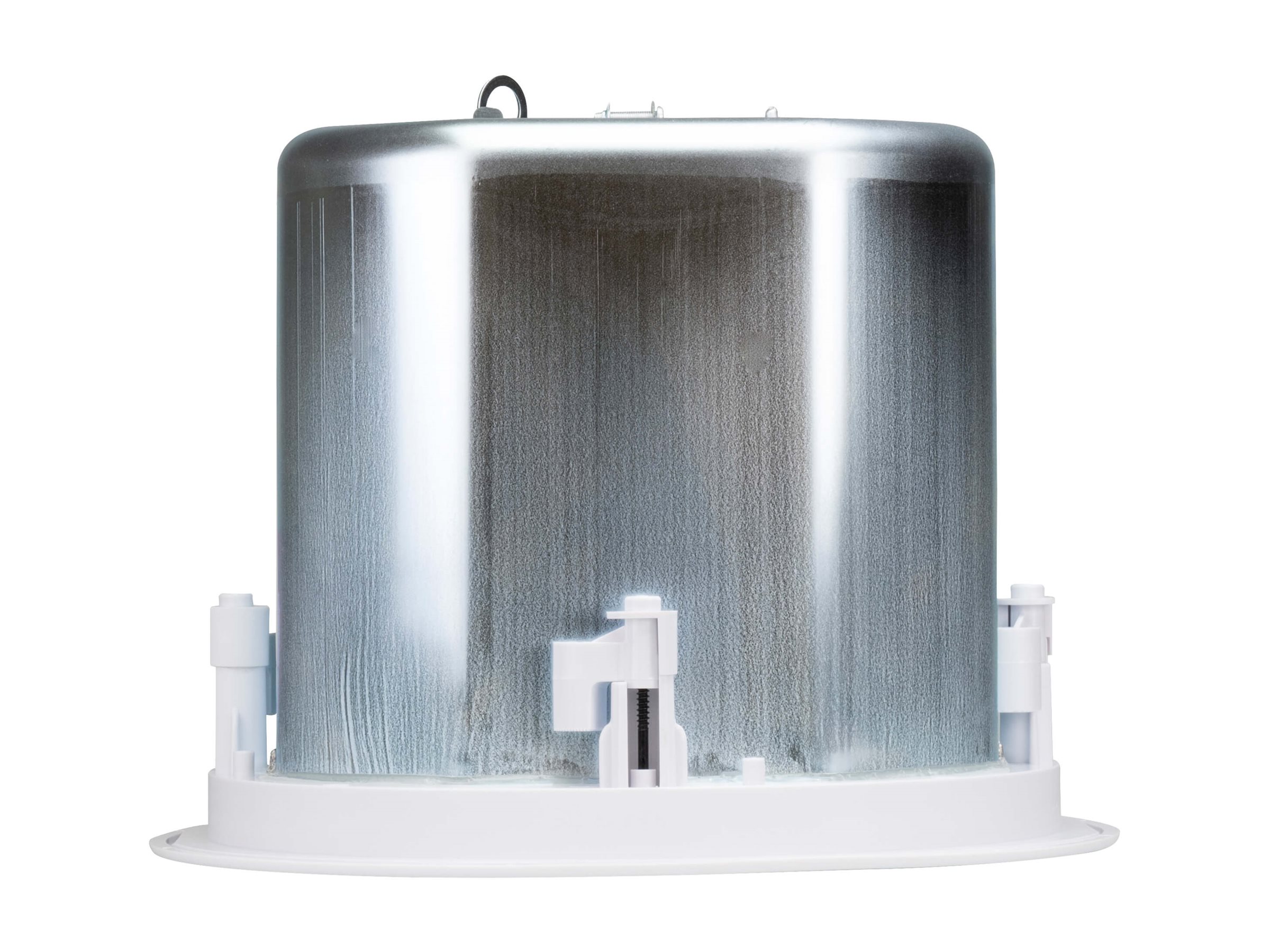

ATEN AS108 - Speaker
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN AS108 - Speaker
- 80 Watt
- 2-way
- coaxial
- 8"
- white (grille color
- white) (pack of 2)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | AS108 |
| SHI Part #: | 48461688 |
| Category: | Speakers |
| UNSPSC: | 52161512 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Speakers |
| Description | ATEN AS108 - Speaker - 80 Watt - 2-way - coaxial - 8" - white (grille color - white) (pack of 2) |
| Manufacturer | ATEN |
| MSRP | $1,280.54 |
| UNSPSC | 52161512 |
| Main Specifications | |
| Dimensions & Weight / Height | 24.8 cm |
| Dimensions & Weight / Weight | 5.7 kg |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 2 |
| Speaker System / Amplification Type | Passive |
| Speaker System / Connectivity Technology | Wired |
| Speaker System / Crossover Channel Qty | 2-way |
| Speaker System / Nominal (RMS) Output Power | 80 Watt |
| Connections | |

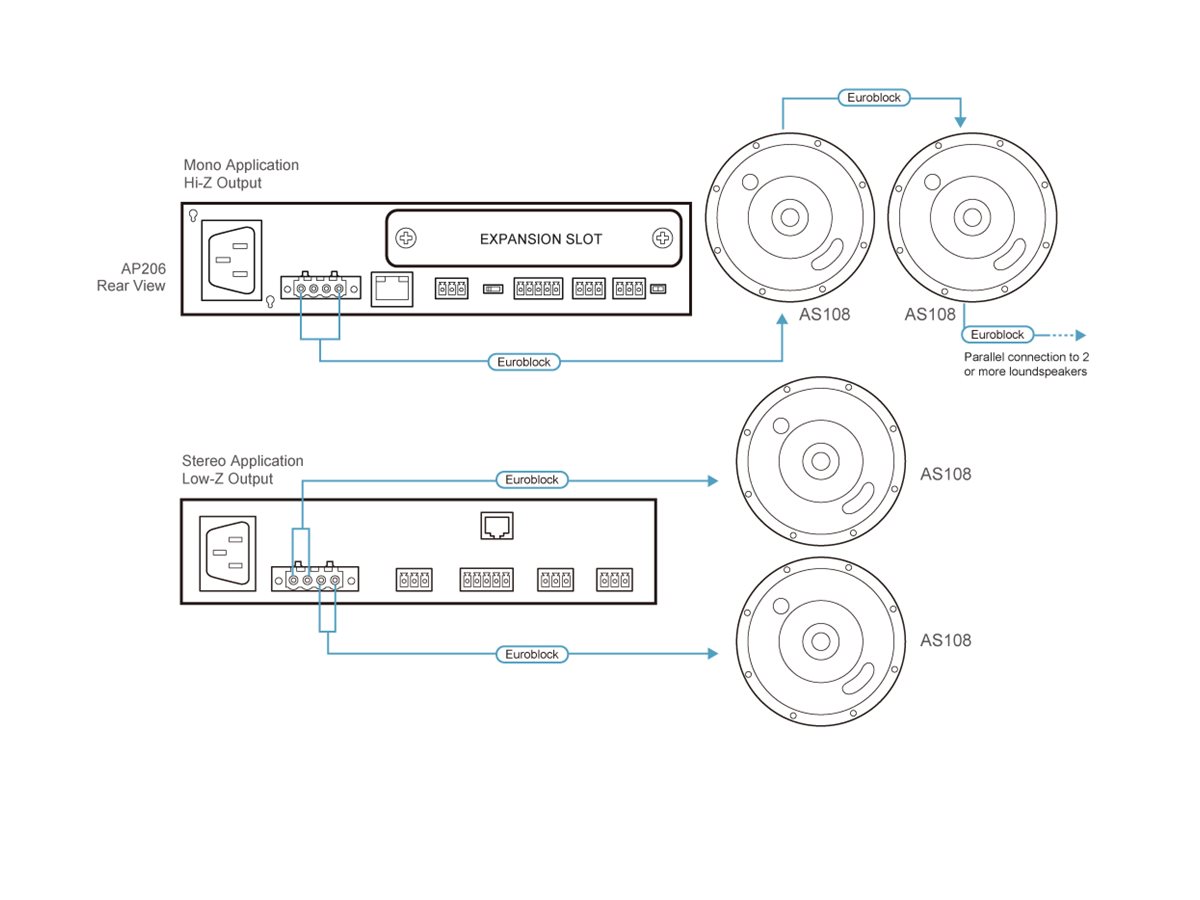

| Connector Type | Audio input (Euroblock terminal) |
| Cutout & Mounting Dimensions | |
| Diameter | 27.1 cm |
| Height | 24.3 cm |
| Dimensions & Weight | |
| Diameter | 30.9 cm |
| Height | 24.8 cm |
| Weight | 5.7 kg |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| General | |
| Design Features | Paintable grille |
| Enclosure Color | White |
| Enclosure Material | ABS plastic, zinc plated steel |
| Grille Color | White |
| Packaged Quantity | 2 (specifications are for single item) |
| Product Type | Speaker |
| Speaker System | |
| Continuous Power | 80 Watt |
| Continuous Power Details | RMS |
| Frequency Response (-10dB) | 65 - 20000 Hz |
| Integrated Transformer | 70V/100V or 8 Ohm operation |
| Nominal Impedance | 8 Ohm |
| Peak Power | 160 Watt |
| Recommended Placing | In-ceiling mounted |
| Sensitivity | 90 dB (1W@1m) |
| Speaker Diameter | 8" |
| Speaker Type | Coaxial - 2-way - passive |
| Speaker System Details | |
| Driver Details |
|
