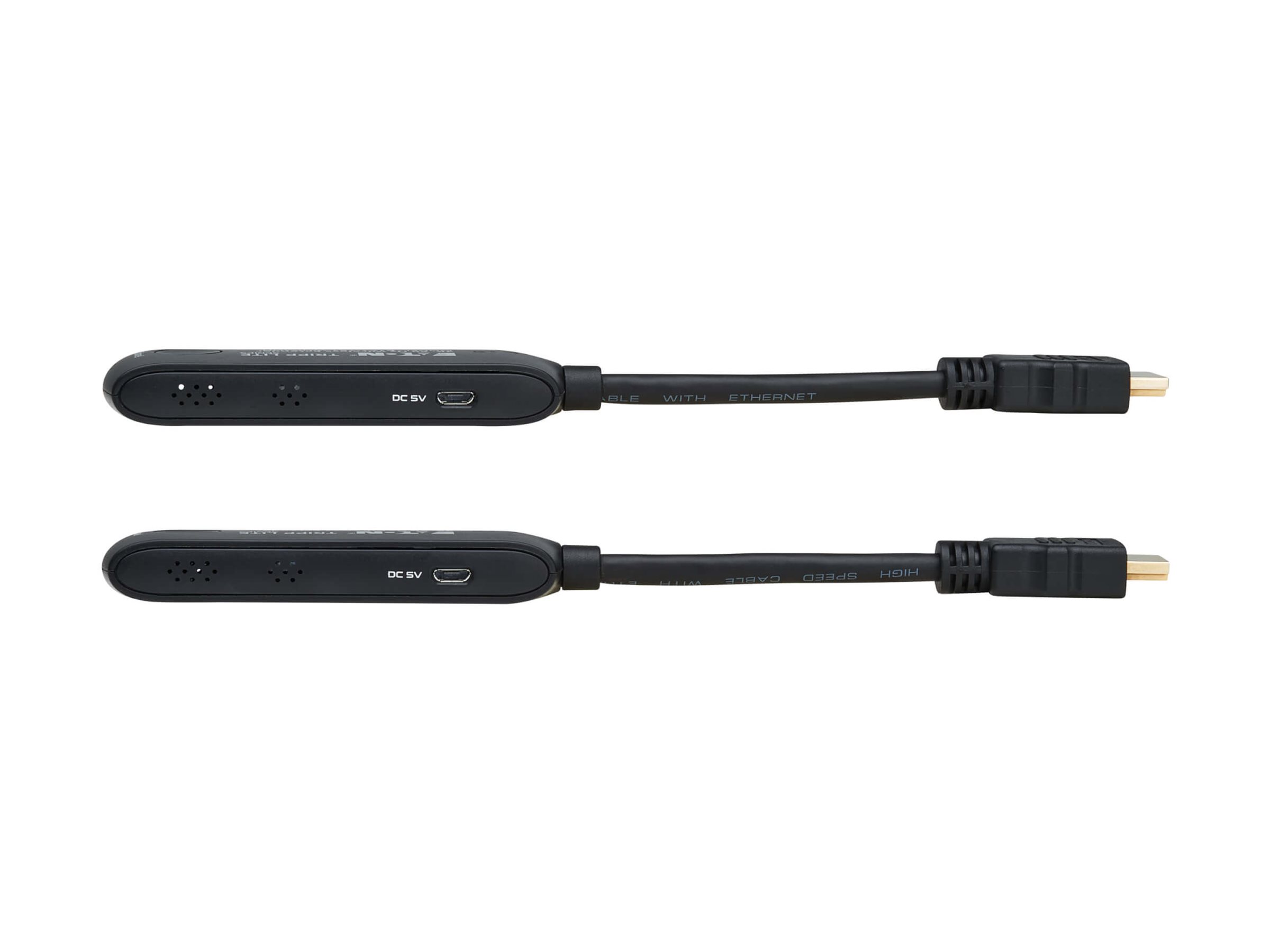

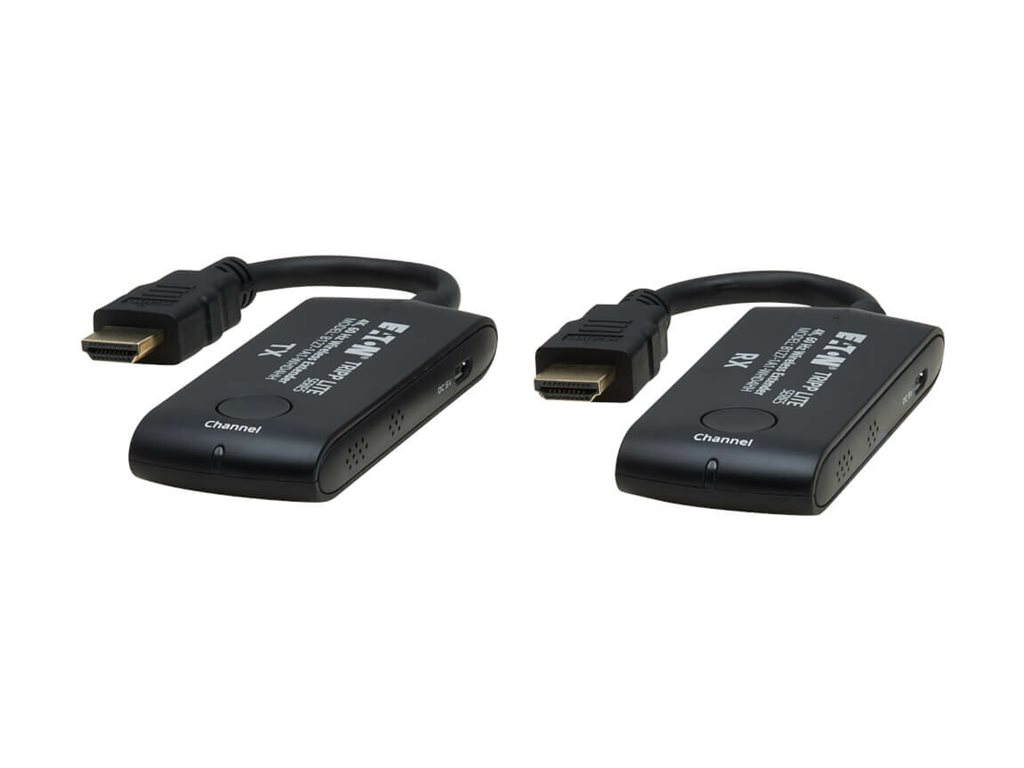

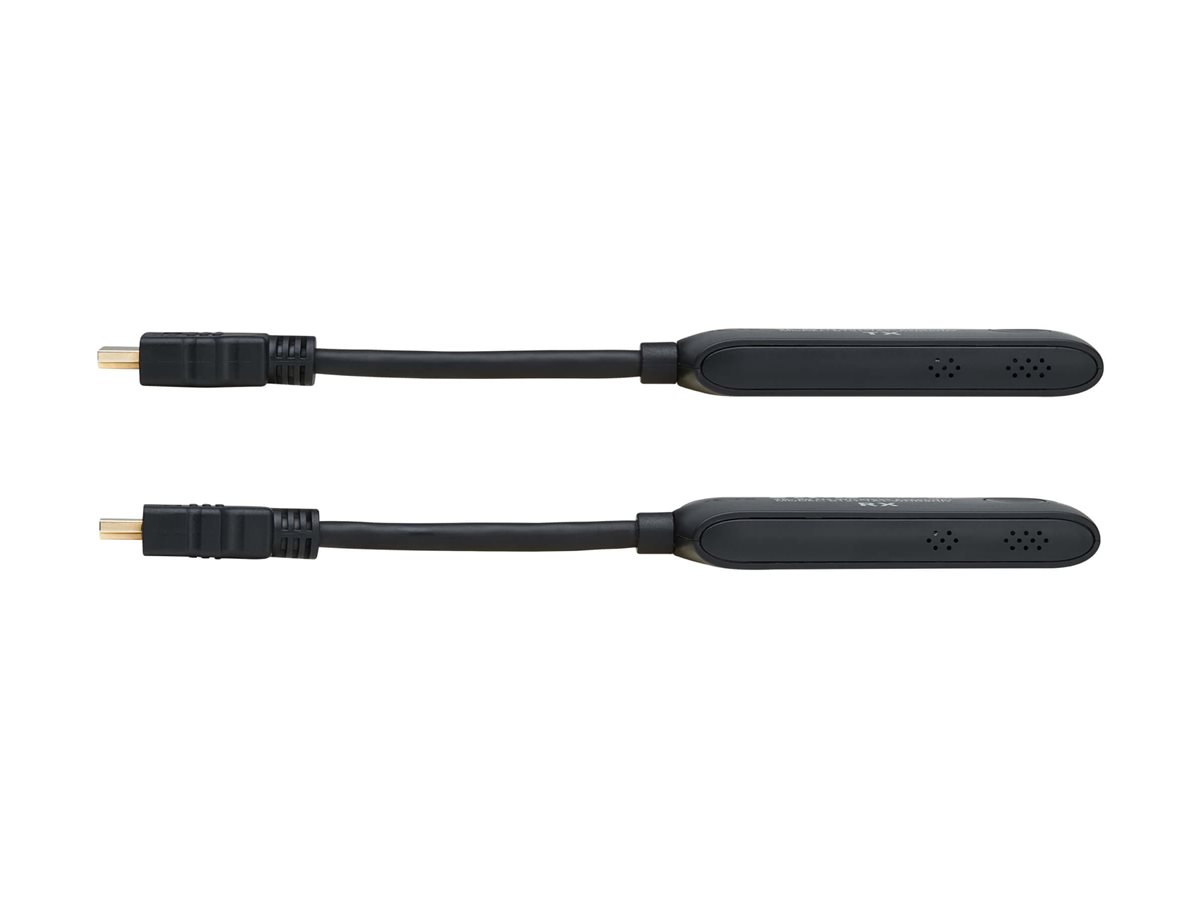

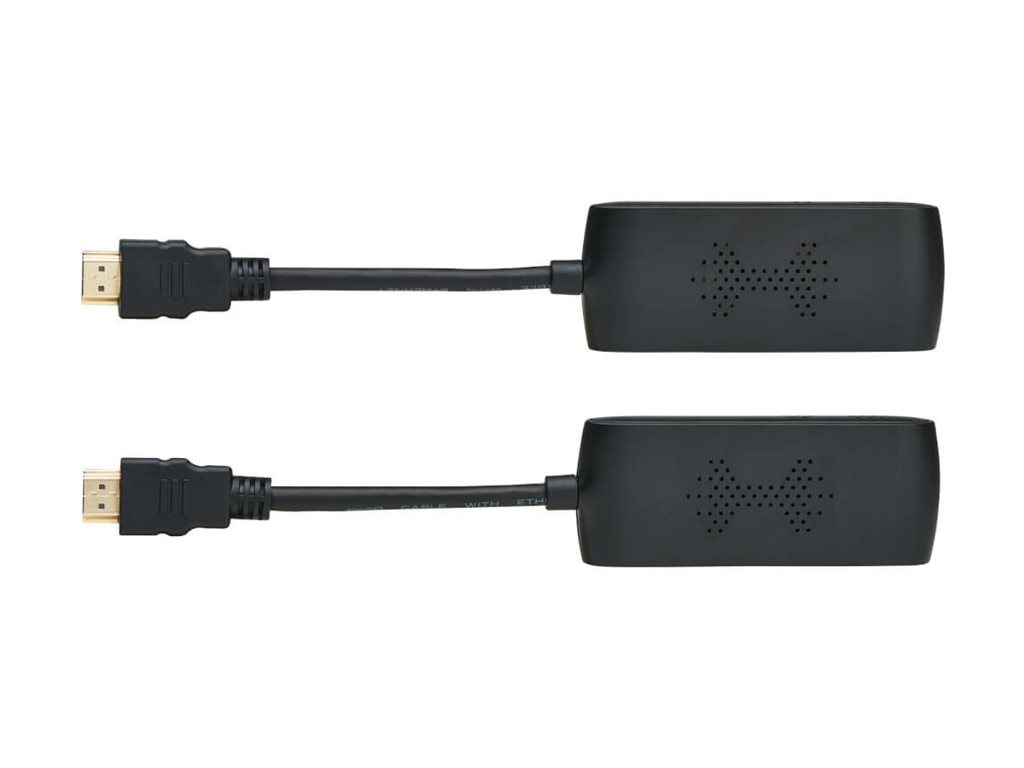

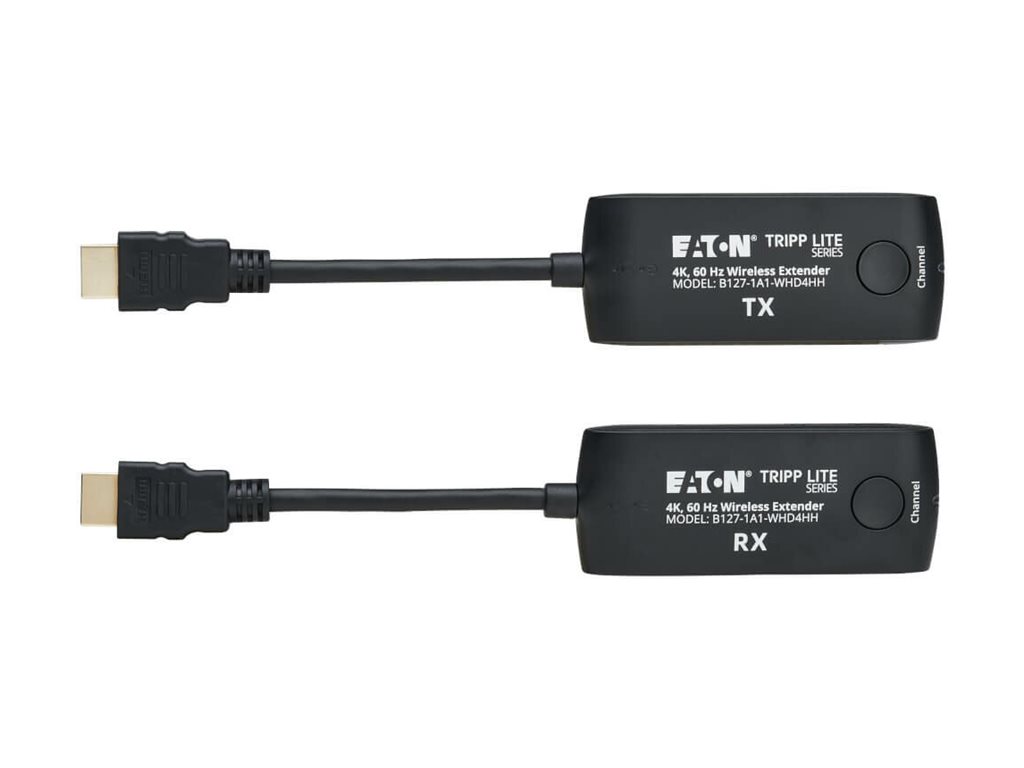

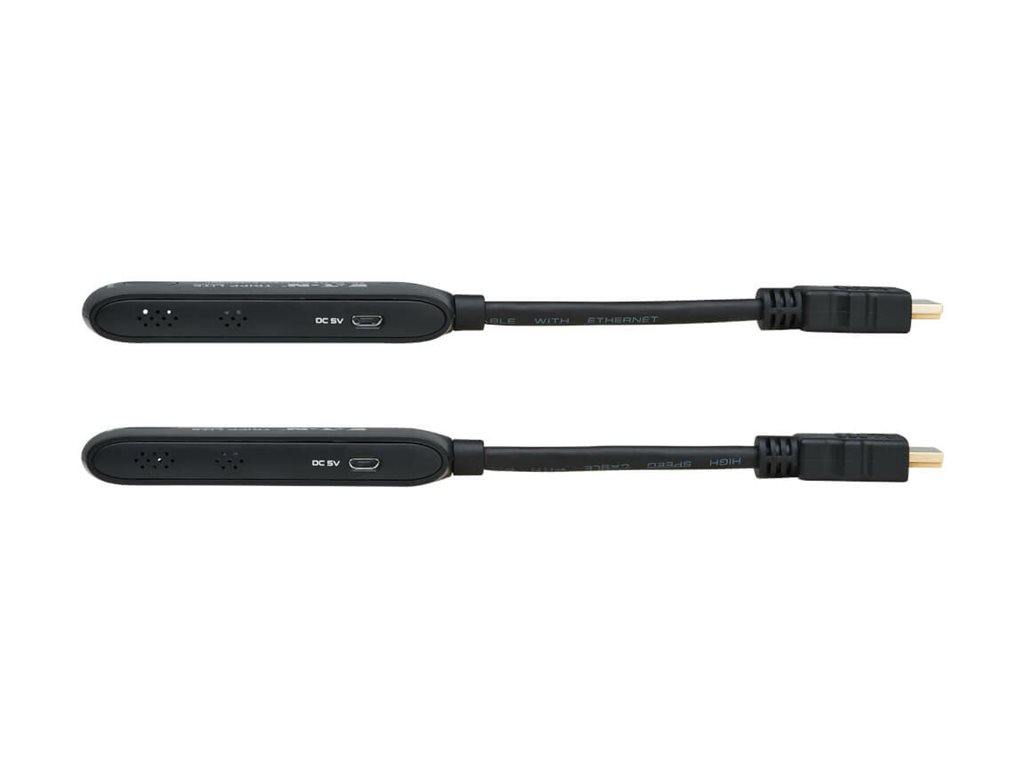

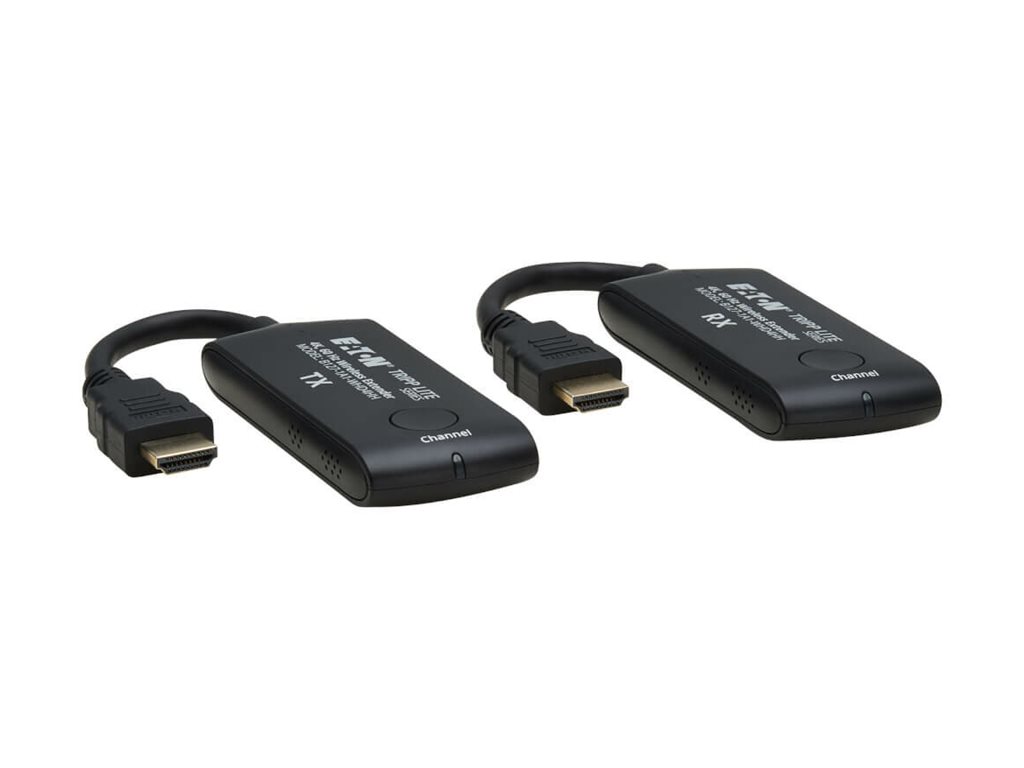

Eaton Tripp Lite Series HDMI over Wireless Extender Kit, HDMI Mini Transmitter and HDMI Mini Receiver, 4K 60Hz, 65ft (20M), Wireless HDMI, switchable channel

$669.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Wireless video/audio extender up to 20 m for P/N: DMCS3770L, U280-002-W12, U280-W01-QC3-1, U280-W04-100C2G

Eaton Tripp Lite Series HDMI over Wireless Extender Kit, HDMI Mini Transmitter and HDMI Mini Receiver, 4K 60Hz, 65ft (20M), Wireless HDMI, switchable channel

Wireless video/audio extender
up to 20 m
for P/N: DMCS3770L, U280-002-W12, U280-W01-QC3-1, U280-W04-100C2G

Additional Details
Price:	$669.00
Mfr Part #:	B127-1A1-WHD4HH
SHI Part #:	48303948
Category:	Serial port cards
UNSPSC:	43201559
Manufacturer:	Eaton
Product Type:	Hardware

HDMI Wireless Extender Ideal for Displaying 4K Video in Classrooms and Conference Rooms

This complete wireless transmitter and receiver system is recommended for video presentations in conference rooms, trade shows, home theaters, digital signage and other applications in which connecting long video cables could be a burden. The B127-1A1-WHD4HH extends 4K video and audio from an HDMI source device to an HDMI display up to 65 feet (20 meters) away. No bulky or costly cabling infrastructure is needed.

Wireless Transmission Saves You Money on Cable and Installation Costs

The B127-1A1-WHD4HH eliminates more than just hassles. You'll save on the costs of cabling infrastructure and the labor to install it. Cable clutter is reduced, and you will enjoy more flexibility in placement of the source and display with no cables to relocate when you want to reconfigure the room. The transmitter and receiver units communicate over a 5.18–5.24 GHz wireless frequency that allows fast data transmission and reduced interference from other wireless sources. Be sure the transmitter and receiver share a direct line of sight for best results.

Transmits Crystal-Clear 4K Video for Ultra High-Definition Presentations

The B127-1A1-WHD4HH ensures Ultra HD performance in a one-to-one application, where there is less obstruction to occur. It supports 4K video resolutions (3840 x 2160) at 60 Hz. LEDs indicate when the transmitter and receiver units are receiving power, building a wireless connection between the units and transmitting data.

Plug-and-Play Operation for Quick Setup and Immediate Use

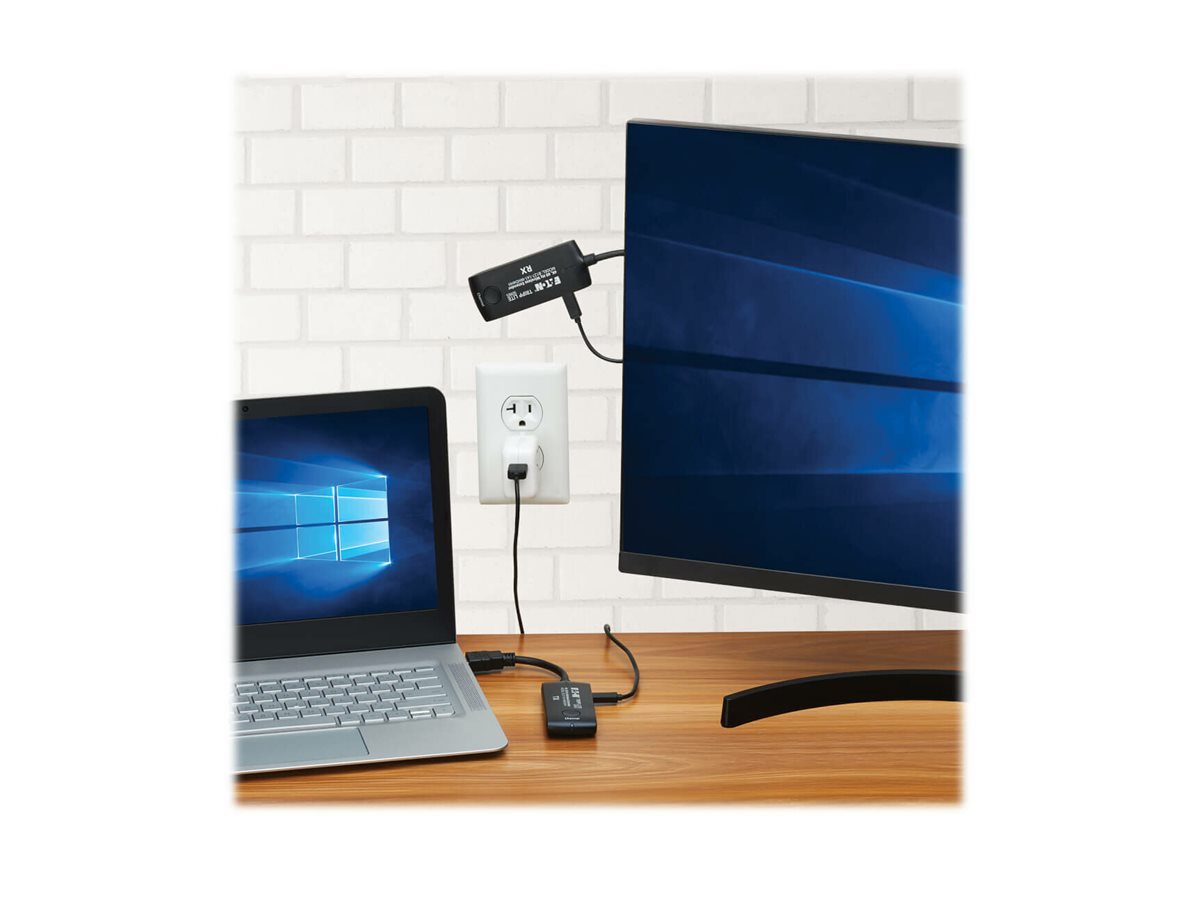

The wireless transmitter and receiver set works right out of the box with no software required. Connect the receiver to the display's HDMI port and the transmitter to the source's HDMI port. Included USB cables connect the two units to a 5V 1A AC wall chargers (not included).

Audio/Video Cables

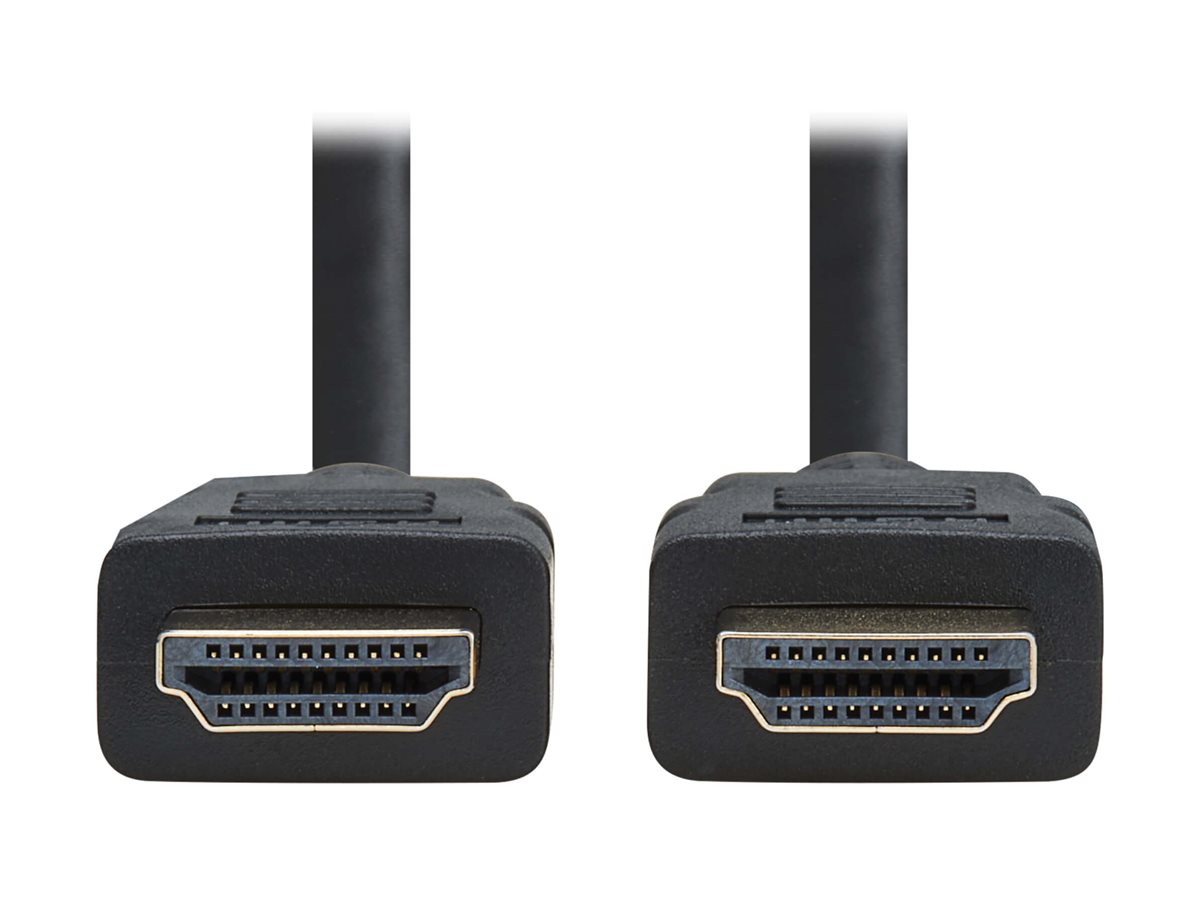

Eaton Tripp Lite Series HDMI Cable

8K @ 60 Hz, Dynamic HDR, 4:4:4, HDCP 2.2, M/M, Black, 3 ft.
HDMI cable
HDMI male to HDMI male
90 cm
double shielded
black

$30.00

Tripp Lite HDMI Cable 8K @ 60Hz High-Speed Dynamic HDR 4:4:4 M/M Black 6ft

Ultra High Speed HDMI cable
HDMI (M) to HDMI (M)
1.8 m
double shielded
black
8K UHD (7680 x 4320) support

$34.00

General Information
Category	Serial port cards
Description	Eaton Tripp Lite Series HDMI over Wireless Extender Kit, HDMI Mini Transmitter and HDMI Mini Receiver, 4K 60Hz, 65ft (20M), Wireless HDMI, switchable channel - Wireless video/audio extender - up to 20 m - for P/N: DMCS3770L, U280-002-W12, U280-W01-QC3-1, U280-W04-100C2G
Manufacturer	Eaton
MSRP	$976.66
UNSPSC	43201559
Main Specifications
Header / Brand	Eaton
Networking / Connectivity Technology	Wireless
Networking / Form Factor	External
Networking / Type	Wireless video/audio extender
Packaged Quantity	1
Service & Support / Type	1-year warranty
Compatibility Information
Designed For	P/N: DMCS3770L, U280-002-W12, U280-W01-QC3-1, U280-W04-100C2G
Dimensions & Weight
Dimensions (WxDxH) / Weight Details	Transmitter: 4.06 cm x 22.86 cm x 1.52 cm / 58.9 g Receiver: 4.06 cm x 22.86 cm x 1.52 cm / 54.4 g
Dimensions & Weight (Shipping)
Shipping Depth	19.9 cm
Shipping Height	8 cm
Shipping Weight	340 g
Shipping Width	14.9 cm
Environmental Parameters
Humidity Range Operating	0 - 90% RH (non-condensing)
Max Operating Temperature	50 °C
Min Operating Temperature	-20 °C
Expansion / Connectivity
Interfaces	1 x audio / video (transmitter) - 19 pin HDMI Type A male 1 x audio / video (receiver) - 19 pin HDMI Type A male
General
Color	Black
Device Type	Wireless video/audio extender
Form Factor	External
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous

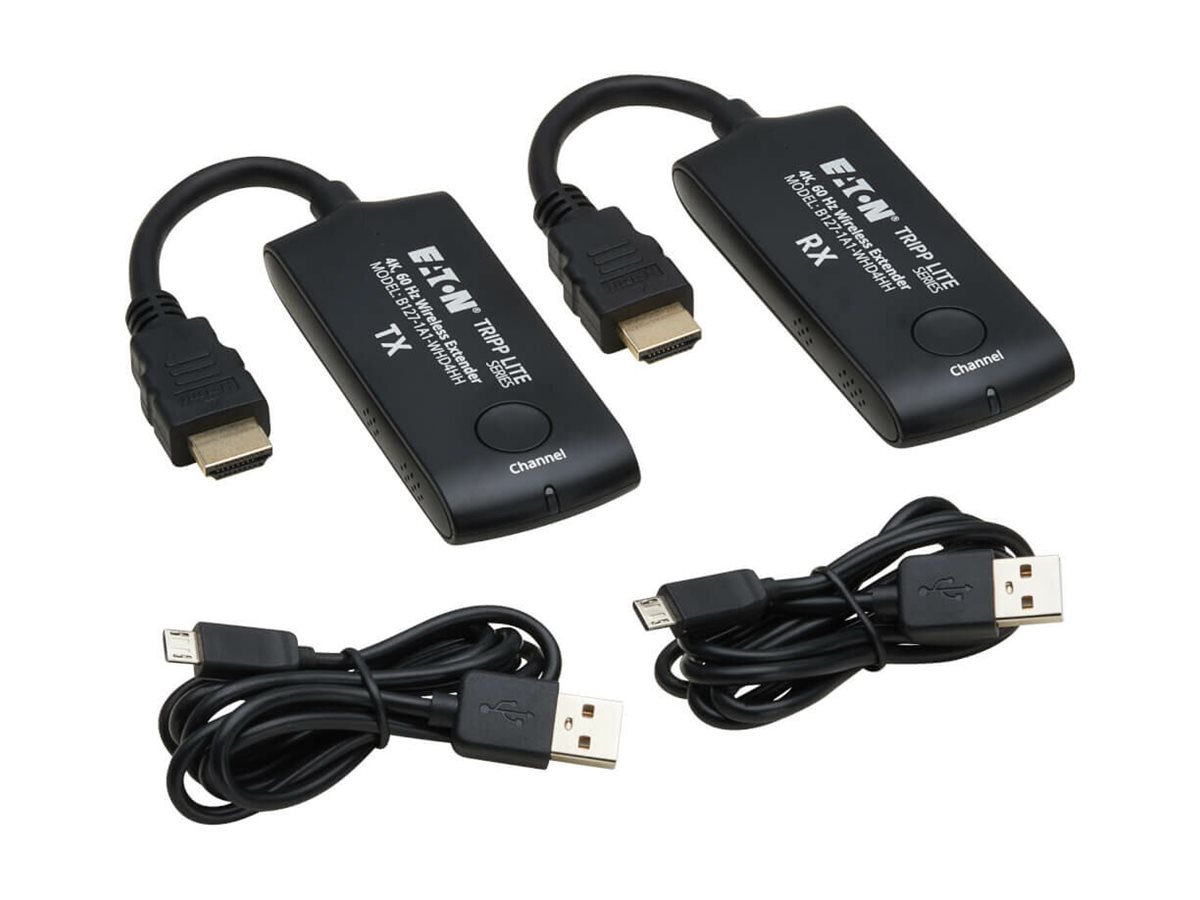

Cables Included	2 x USB-A to Micro-USB Type B cable - 90 cm
Compliant Standards	Plug and Play, FCC, REACH, RoHS, UKCA, WEEE, IEC 61000-4-2
Networking
Compliant Standards	HDCP 1.4, HDCP 2.2
Connectivity Technology	Wireless
Features	4:4:4 chroma subsampling support, 4:2:2 chroma subsampling support, switch button, ABS housing, ESD Protector
Max Resolution	3840 x 2160 @ 60 Hz
Max Transfer Distance	20 m
Status Indicators	Status
Power
Power Device	External power adapter (not included)
