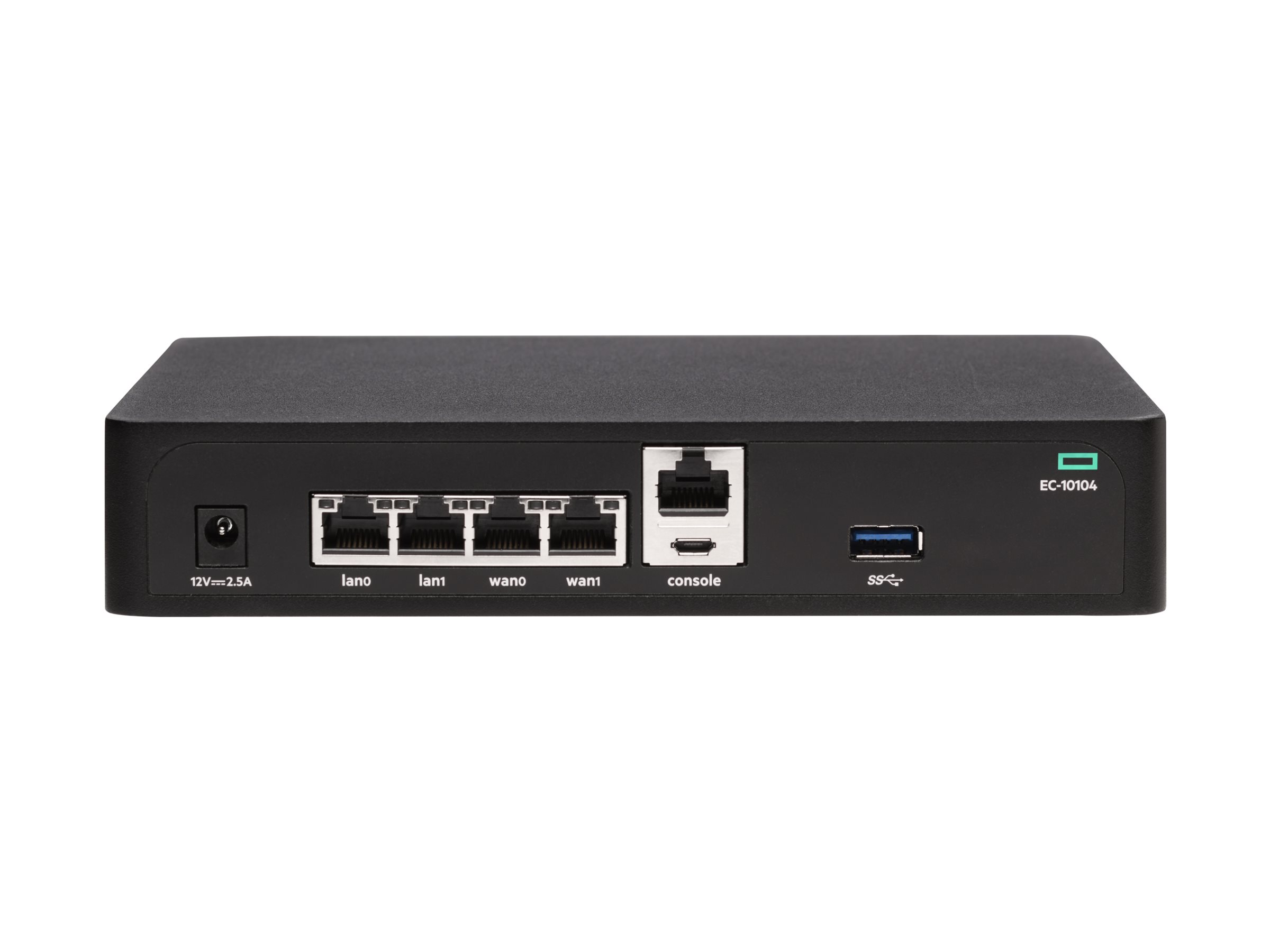

HPE Aruba Networking EdgeConnect 10104 NAL SD-WAN Gateway
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE Aruba Networking EdgeConnect 10104 NAL SD-WAN Gateway
- SD-WAN gateway
- 1GbE
- 1U
- cloud-managed
- desktop
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | S3N69A |
| SHI Part #: | 48280454 |
| Category: | Modems and related hardware |
| UNSPSC: | 43222600 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Modems and related hardware |
| Description | HPE Aruba Networking EdgeConnect 10104 NAL SD-WAN Gateway - SD-WAN gateway - 1GbE - 1U - cloud-managed - desktop |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $1,682.00 |
| UNSPSC | 43222600 |
| Main Specifications | |
| Dimensions & Weight / Depth | 15.31 cm |
| Dimensions & Weight / Height | 3.82 cm |
| Dimensions & Weight / Weight | 1.14 kg |
| Dimensions & Weight / Width | 19.85 cm |
| Header / Brand | Aruba |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Desktop |
| Networking / Type | SD-WAN gateway |
| Packaged Quantity | 1 |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 15.31 cm |
| Device Type | SD-WAN gateway |
| Height | 3.82 cm |
| Height (Rack Units) | 1U |
| Weight | 1.14 kg |
| Width | 19.85 cm |
| Miscellaneous | |
| Compliant Standards | NAL, FCC CFR 47 Part 15 Class B, ICES-003 issue 7 Class B, EN 55032 Class B, EN55035, EN 61000-3-2, EN 61000-3-3, IEC 61000-3-2, IEC 61000-3-3, VCCI Class B, CISPR 32 Class B, CISPR 35, EN 300 386 V2.1.1, UL 60950-1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, UL 62368-1 Third Edition, CSA C22.2 No. 62368-1:19 Third Edition |
| Included Accessories | Table top rubber feet |
| MTBF | 63 years |
| Networking | |
| Authentication Method | RADIUS, TACACS+ |
| Capacity |
|
| Cloud-Managed | Yes |
| Compliant Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Encryption Algorithm | 128-bit AES, 256-bit AES |
| Features | IPFIX, NetFlow, 4G/5G/LTE support, ECC memory |
| Form Factor | Desktop |
| Performance |
|
| Remote Management Protocol | SNMP 2c, SNMP 3, SSH, HTTPS, CLI |
| Routing Protocol | BGP, OSPF |
| Power | |
| Power Consumption Operational | 48 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
