Geist Monitored Unit Level MN05M5W1-44MJ89-3TL21A0A10-S-A
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

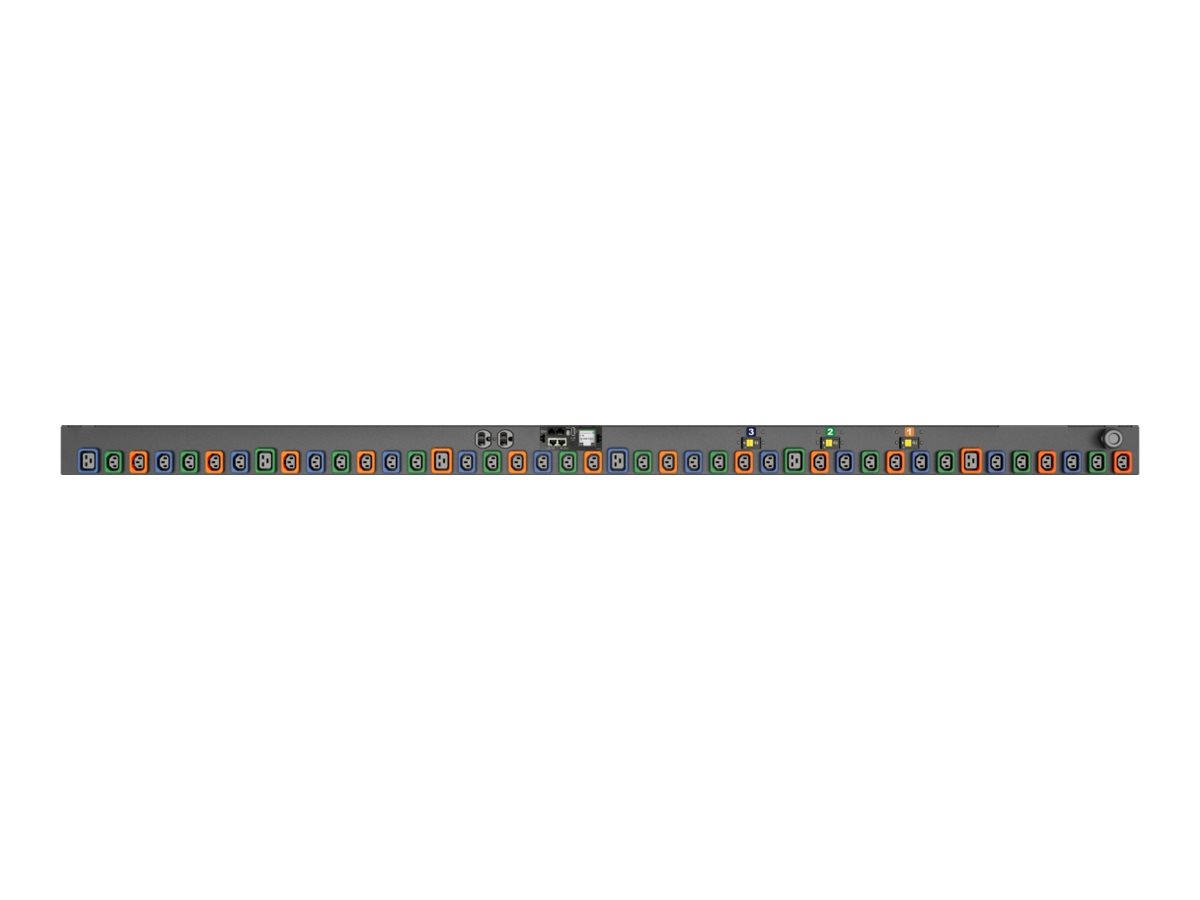

Geist Monitored Unit Level MN05M5W1-44MJ89-3TL21A0A10-S-A
- Power distribution unit (rack-mountable)
- AC 120/208 V
- 8.6 kW
- 3-phase WYE
- Ethernet 10/100/1000, USB, RS-232
- input: NEMA L21-30P
- output connectors: 44 (36 x IEC 60320 C13, 6 x IEC 60320 C19, 2 x NEMA 5-20R)
- 3 m cord
- black powder coat
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VP4N30AB |
| SHI Part #: | 48210932 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Geist Monitored Unit Level MN05M5W1-44MJ89-3TL21A0A10-S-A - Power distribution unit (rack-mountable) - AC 120/208 V - 8.6 kW - 3-phase WYE - Ethernet 10/100/1000, USB, RS-232 - input: NEMA L21-30P - output connectors: 44 (36 x IEC 60320 C13, 6 x IEC 60320 C19, 2 x NEMA 5-20R) - 3 m cord - black powder coat - TAA Compliant |
| Manufacturer | Vertiv |
| MSRP | $2,934.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.08 cm |
| Dimensions & Weight / Height | 191 cm |
| Dimensions & Weight / Width | 8.89 cm |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 44 |
| Power Device / Voltage Required | AC 120/208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 5.08 cm |
| Height | 191 cm |
| Width | 8.89 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 8.62 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | RoHS, FCC Part 15 A, C-UL, UL, UL 62368-1 |
| Features | Vertical orientation, internal RMS current sensor, internal RMS voltage sensor, IP reset button, hard reboot button |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, USB, RS-232 |
| Remote Management Protocol | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP 1, SNMP 2c, SNMP 3, Syslog, TACACS+, Modbus TCP, JSON |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L21-30P |
| Input Voltage | AC 120/208 V |
| Input Voltage Range | AC 100 - 120 / 200 - 240 V |
| Input Wiring | 3-phase WYE |
| Max Electric Current | 30 A |
| Power Capacity | 8.6 kW |
| Power Output Connectors Details |
|
