Raritan - Power distribution strip (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

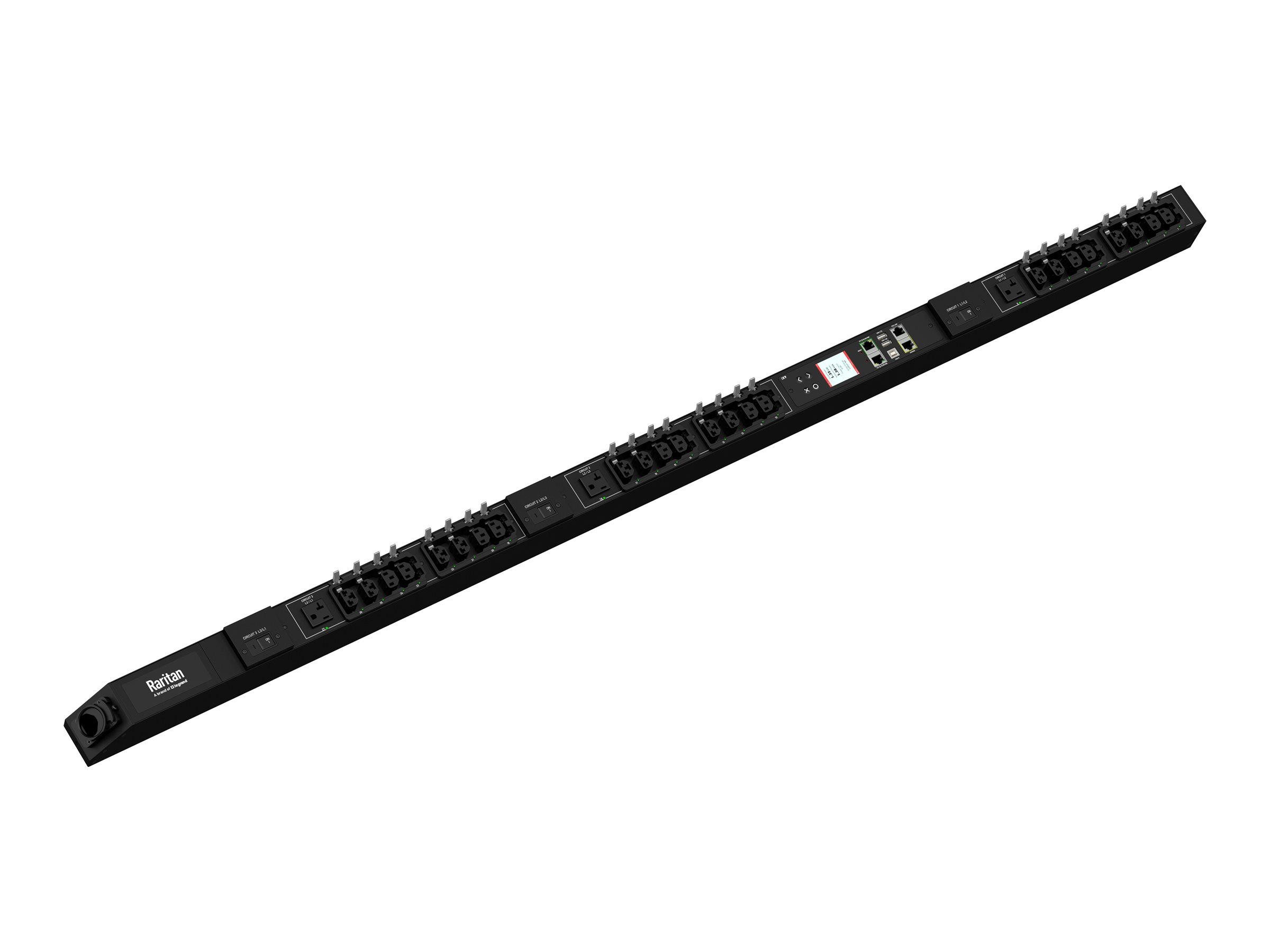

Raritan - Power distribution strip (rack-mountable)
- AC 208 V
- 8600 VA
- 3-phase
- Ethernet 10/100/1000, RS-232
- input: NEMA L21-30P
- output connectors: 27 (12 x IEC 60320 C13, 12 x IEC 60320 Cx, 3 x NEMA 5-20R)
- 3 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX4-542A-E7 |
| SHI Part #: | 47499439 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan - Power distribution strip (rack-mountable) - AC 208 V - 8600 VA - 3-phase - Ethernet 10/100/1000, RS-232 - input: NEMA L21-30P - output connectors: 27 (12 x IEC 60320 C13, 12 x IEC 60320 Cx, 3 x NEMA 5-20R) - 3 m cord - black |
| Manufacturer | Legrand |
| MSRP | $4,024.60 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 153.9 cm |
| Dimensions & Weight / Weight | 8.16 kg |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 27 |
| Power Device / Power Capacity (VA) | 8600 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution strip |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 153.9 cm |
| Weight | 8.16 kg |
| Width | 5.6 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 25.5 cm |
| Shipping Height | 12.5 cm |
| Shipping Weight | 10.61 kg |
| Shipping Width | 170 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution strip - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | cULus, UL, ICES-003, FCC Part 15 A, RoHS |
| Features | Powder coated, extruded aluminum housing, tool-less installation, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, LCD display, metering per input line, metering per branch circuit breaker, metering per output receptacle, remote outlet switching, replaceable controller, cascadable, overload protection, locking connector, LED indicators, Raritan SecureLock Ready, 3 x J62-X0 overload protection |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232 |
| Remote Management Protocol | HTTP, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L21-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 190 - 208 V |
| Input Wiring | 3-phase |
| Max Electric Current | 24 A |
| Output Voltage | AC 120 V |
| Power Capacity | 8600 VA |
| Power Capacity Details | 7.9 kVA at 190 V, 8.6 kVA at 208 V |
| Power Output Connectors Details |
|
