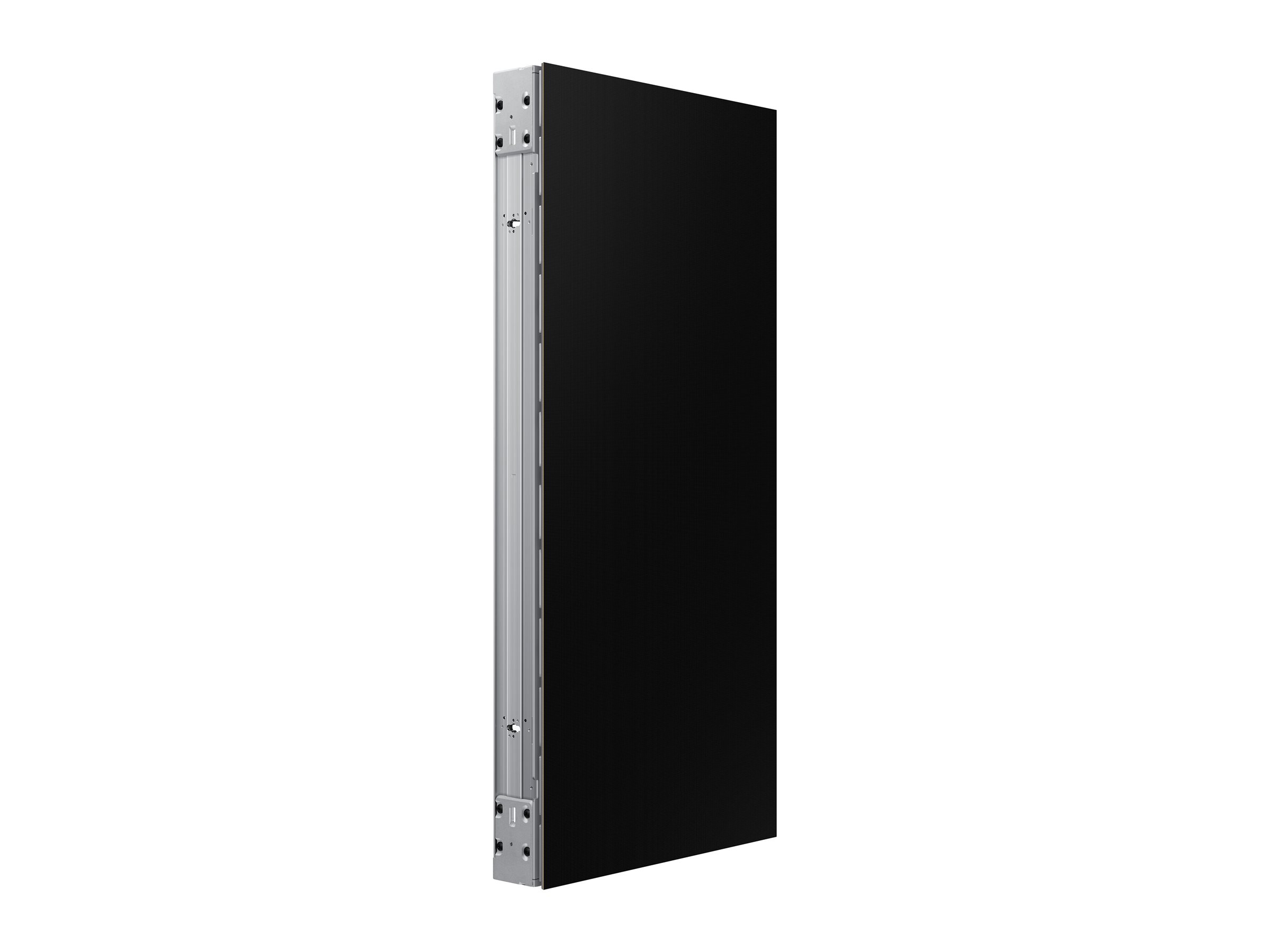

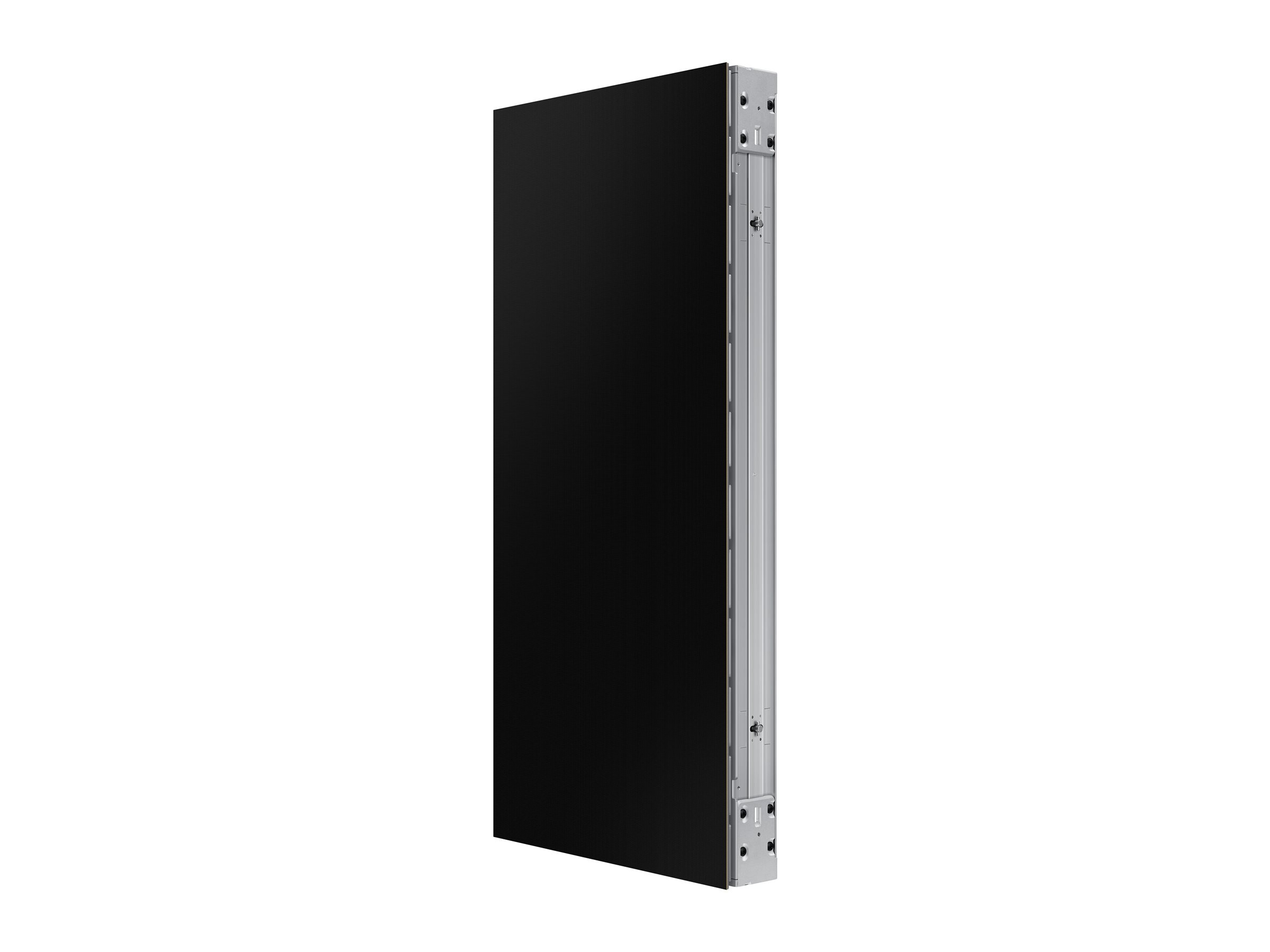

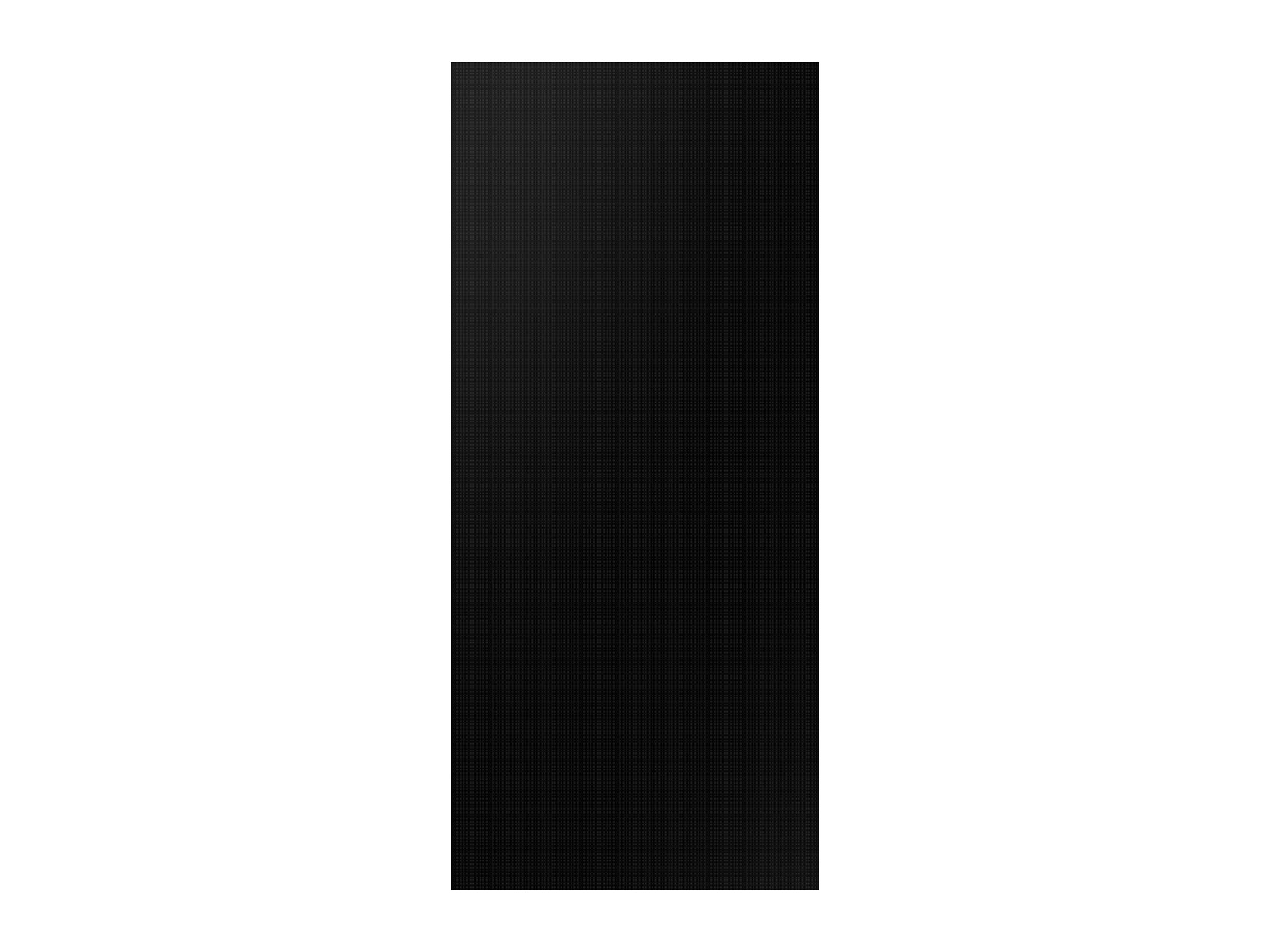

Samsung The Wall for Virtual Production IV016C
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Samsung The Wall for Virtual Production IV016C
- IVC Series LED display unit
- digital signage 240 x 540 per unit
- Flip-chip RGB LED (172*86)
- HDR
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | LH016IVCMVS/ZA |
| SHI Part #: | 47257142 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | Samsung The Wall for Virtual Production IV016C - IVC Series LED display unit - digital signage 240 x 540 per unit - Flip-chip RGB LED (172*86) - HDR |
| Manufacturer | Samsung |
| MSRP | $10,399.99 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.3 cm |
| Dimensions & Weight / Height | 90.7 cm |
| Dimensions & Weight / Weight | 13.3 kg |
| Dimensions & Weight / Width | 40.31 cm |
| Header / Brand | Samsung |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 1500 cd/m² |
| Television / Image Contrast Ratio | 31000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 170° |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 20.4 cm |
| Height (Shipping) | 53.3 cm |
| Weight (Shipping) | 17.3 kg |
| Width (Shipping) | 104.4 cm |
| Display | |
| Additional Features | 16-bit support, 20-bit processing |
| Brightness | 1500 cd/m² |
| Color Temperature | 2800 - 10000K |
| Commercial Features | Genlock, curved installation supported, Samsung Virtual Production Manager |
| Frame Rate & Enhancement Technology | 384 Hz Video Rate, 12288 Hz Frame Rate |
| Image Contrast Ratio | 31000:1 |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 155° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Depth | 8.3 cm |
| HDR Capable | Yes |
| HDR Format | HDR10, HDR10+ |
| Height | 90.7 cm |
| Picture Enhancements | Black Seal Technology+, Color Mapping |
| Product Type | LED display unit |
| Series | IVC Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 13.3 kg |
| Width | 40.31 cm |
| Miscellaneous | |
| Compliant Standards | IP20, EMC Class A, Safety 62368-1, Safety 60950-1 |
| Included Accessories | Hanging bar, stacking bar, angle bracket |
| Power | |
| Heat Generation Details |
|
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Device | Power adapter |
| Video Wall Display Unit Power Consumption (Max) | 188 W |
| Video Wall Display Unit Power Consumption (Typical) | 87 W |
| Video Wall Power Consumption (Max) | 514 W/m² |
| Video Wall Power Consumption (Typical) | 238 W/m² |
| Video Wall Display Unit | |
| LED Lifetime | 150000 hours |
| LED Type | Flip-chip RGB LED (172*86) |
| Maintenance | Rear and front |
| Modules Configuration (Per Cabinet) | 2x6 |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Pixel Pitch | 1.68 mm |
| Resolution | 240 x 540 |
