Juniper Networks ACX Series 7024X
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

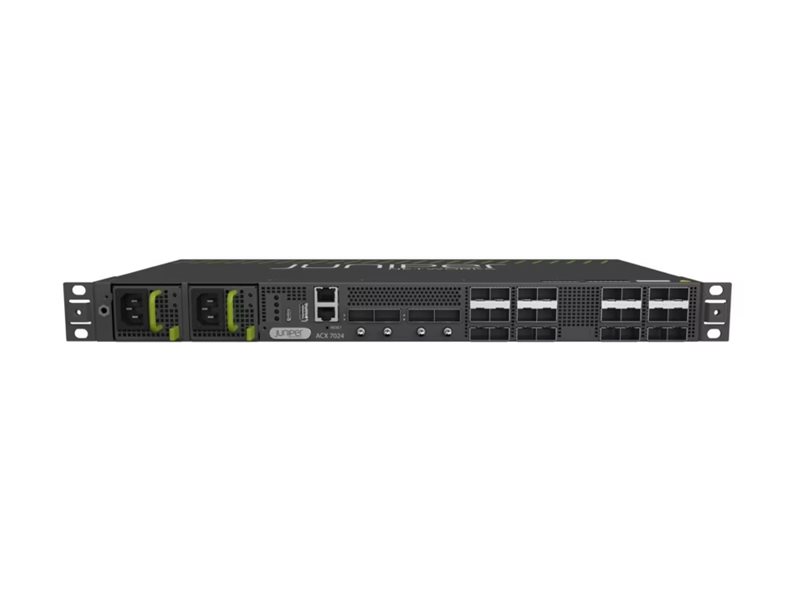

Juniper Networks ACX Series 7024X
- Router 40GbE, 100GbE
- front to back airflow
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ACX7024X-AC-2PSU |
| SHI Part #: | 47202626 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Juniper Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | Juniper Networks ACX Series 7024X - Router 40GbE, 100GbE - front to back airflow |
| Manufacturer | Juniper Networks |
| MSRP | $53,839.45 |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 5.66 kg |
| Dimensions & Weight / Width | 48.2 cm |
| Header / Brand | Juniper Networks |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Type | Router |
| OS Provided / Type | Junos Evolved |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 24.4 cm |
| Height | 4.4 cm |
| Weight | 5.66 kg |
| Width | 48.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | GNSS receiver |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ad, IEEE 1588v2, ITU-T G.8262.1, CISPR 22 Class A, EMC, BSMI CNS 13438, EN 60825-1, FCC Part 15 B Class A, EN 50121-4, GR-1089-CORE, GR-63-CORE, EN 300 386 V1.6.1, IEC 60950-1:2005, CISPR 24:2010, EN 55024:2010, EN 55022:2010 Class A, KN32, SR-3580 NEBS Level 3, EN 55032:2015 Class A, CISPR 32:2015 Class A, AS/NZS CISPR32:2015 Class A, VCCI-CISPR 32:2016, EN 300 386 V2.1.1, IEC 62368-1: 2014 Second Edition, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN 50125-3, CAN/CSA-C22.2 No. 62368-1-14, UL 60950-1:2007 R10.14, NCC C6357, TCVN 7317:2003, CISPR 35: 2016, CAN/CSA-C22.2 No. 60950-1-07, ETSI ES 203 136 V.1.1.1, ICES 003, IEC 62368-1:2018 Third Edition, UL/CSA 62368-1:2019 Third Edition, TEC/SD/DD/EMC/221/05/OCT-16, ETSI 300 019 -2-3 Class 3.2, ECR 3.0.1 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Device Type | Router |
| Enclosure Type | Front to back airflow - 1U |
| Features | QoS, Jumbo Frames support, 6 fans, VPLS, VXLAN, LDP, EVPN, AAA, CFM, L3VPN support, L2VPN support, ZTP, secure boot, IRB, OpenConfig support, LDP over RSVP, transparent clock, ACL support, Static MAC, layer 3 ingress and egress ACL, basic segment routing, PCEP, LFM, Secure Shell protocol, 8-core CPU |
| Network / Transport Protocol | L2TP |
| Performance | ASIC throughput: 360 Gbps |
| RAM | 64 GB DDR4 SDRAM |
| Remote Management Protocol | NETCONF, IPv4, IPv6, YANG |
| Routing Protocol | RIP, IS-IS, BGP, VRRP, OSPFv2, OSPFv3, static IPv6 routing, ECMP, RIPng, MPLS, URPF, RSVP |
| Power | |
| Power Consumption Operational | 97 watt |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 90-264 V |
| Software / System Requirements | |
| OS Provided | Junos Evolved |
