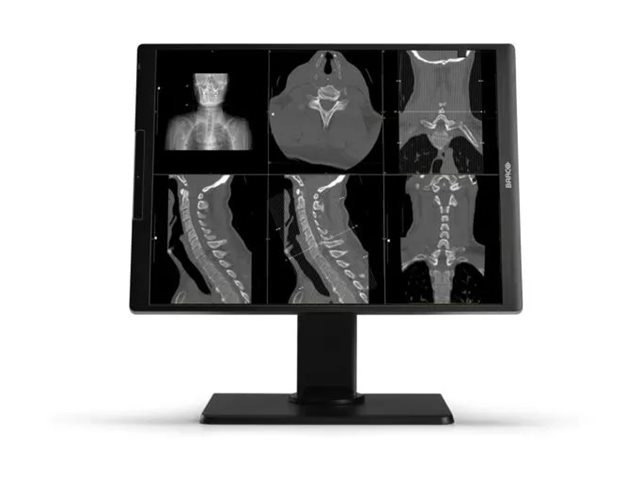

Barco Nio MDNC-3521 - LED monitor
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Barco Nio MDNC-3521 - LED monitor
- 3MP
- color
- 21.3"
- 2048 x 1536
- IPS-SFT
- 1050 cd/m²
- 2000:1
- 2xDisplayPort
- black, RAL 9004, white, RAL 9003
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | K9610768B |
| SHI Part #: | 46389854 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Barco |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Barco Nio MDNC-3521 - LED monitor - 3MP - color - 21.3" - 2048 x 1536 - IPS-SFT - 1050 cd/m² - 2000:1 - 2xDisplayPort - black, RAL 9004, white, RAL 9003 |
| Manufacturer | Barco |
| MSRP | $15,685.48 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.5 cm |
| Dimensions & Weight / Height | 46.2 cm |
| Dimensions & Weight / Width | 49.1 cm |
| Display / Diagonal Size | 21.3 in |
| Display / Diagonal Size (metric) | 54.1 cm |
| Display / Interface | DisplayPort |
| Display / Native Resolution | 2048 x 1536 |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Barco |
| Image Brightness | 1050 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 77 cm |
| Shipping Height | 21 cm |
| Shipping Width | 45.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 4:3 |
| Backlight Technology | LED backlight |
| Brightness | 1050 cd/m² |
| Built-in Devices | KVM switch |
| Color | Black, RAL 9004, white, RAL 9003 |
| Contrast Ratio | 2000:1 |
| Diagonal Size | 21.3" |
| Dimensions (WxDxH) | 49.1 cm x 22.5 cm x 46.2 cm - with stand (landscape orientation) |
| Display Type | LED-backlit LCD monitor - 3MP - color |
| Features | Uniform Luminance Technology (ULT), 30-bit color depth, RapidFrame, ambient light sensor, I-Guard, presence sensor |
| Horizontal Viewing Angle | 178 |
| Native Resolution | 2048 x 1536 |
| Panel Type | IPS-SFT |
| Pixel Per Inch | 0.2115 |
| Response Time | 12 ms (gray-to-gray) |
| Vertical Viewing Angle | 178 |
| Manufacturer Warranty | |
| Service & Support |
|
| Mechanical | |
| Display Position Adjustments | Tilt, swivel, pivot (rotation), height |
| Height Adjustment | 100 mm |
| Rotation Angle | 90 |
| Swivel Angle | 90 |
| Tilt Angle | -10/+30 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | EAC (Belarus, Kazakhstan, Russia), IEC 60950-1:2005 + A1:2009, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, IEC 62368-1:2018, EN IEC 62368-1:2020, IEC 60601-1:2005 + A1:2012, EN 60601-1:2006 + A1:2013 + A12:2014, ANSI/AAMI ES60601-1:2005 + R1:2012, CAN/CSA C22.2 No. 60601-1:14, EMI, IEC 60601-1-2:2014 (Ed4), EN 60601-1-2:2015 (Ed4), FCC Part 15 Class B, ICES-001 level B, Canada Health, WEEE, Packaging Directive, EU RoHS, BIS, INMETRO, BSMI, KC, CCC, CE0123, FDA 510k |
| Power | |
| Input Voltage | AC 100-240 V (50 - 60 Hz) |
| Power Consumption (Off Mode) | 0.3 Watt |
| Power Consumption (Typical) | 45 Watt |
| Power Consumption Sleep | 0.35 Watt |
| Software / System Requirements | |
| Included Software | Barco MediCal QAWeb |
