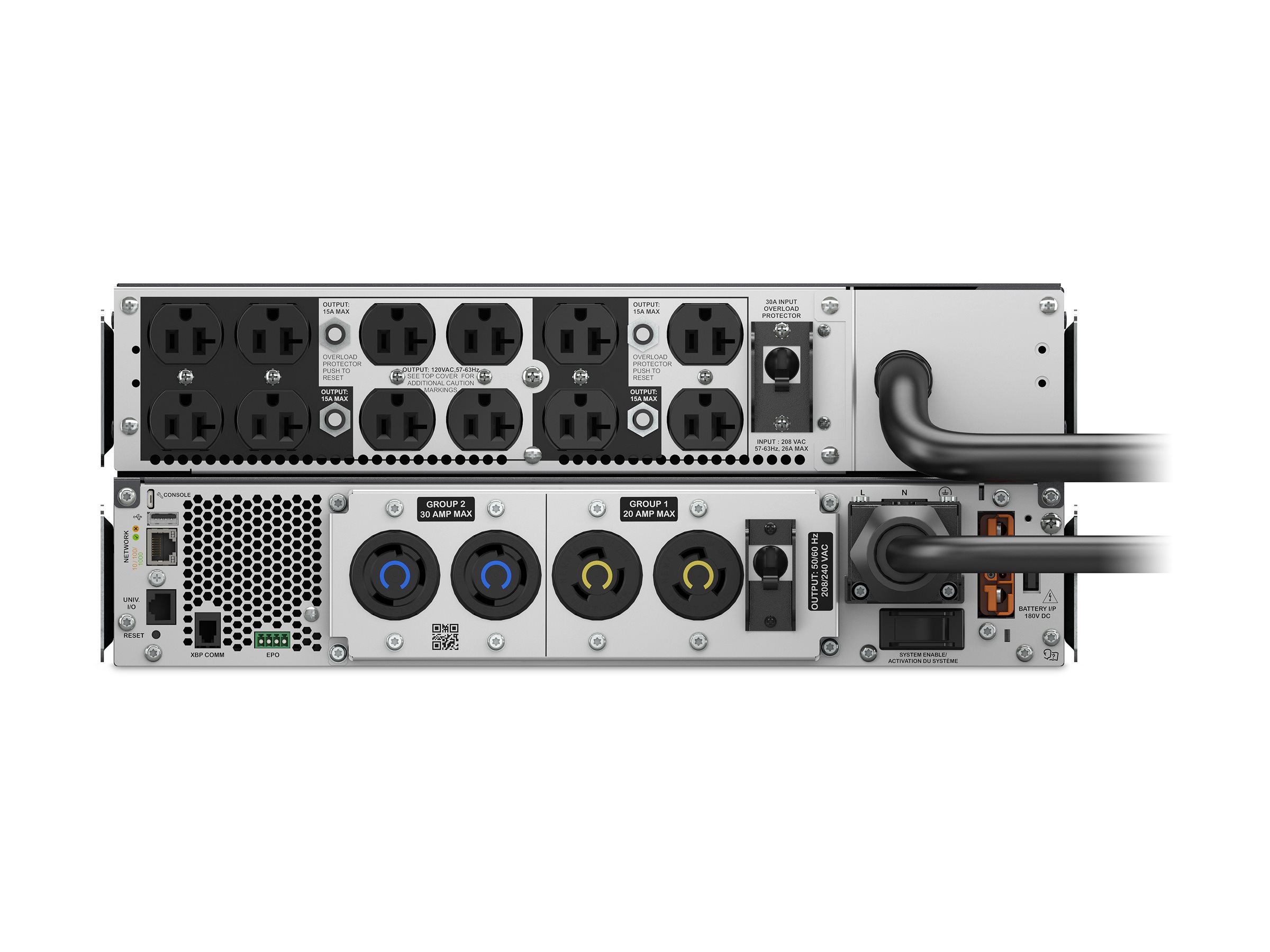

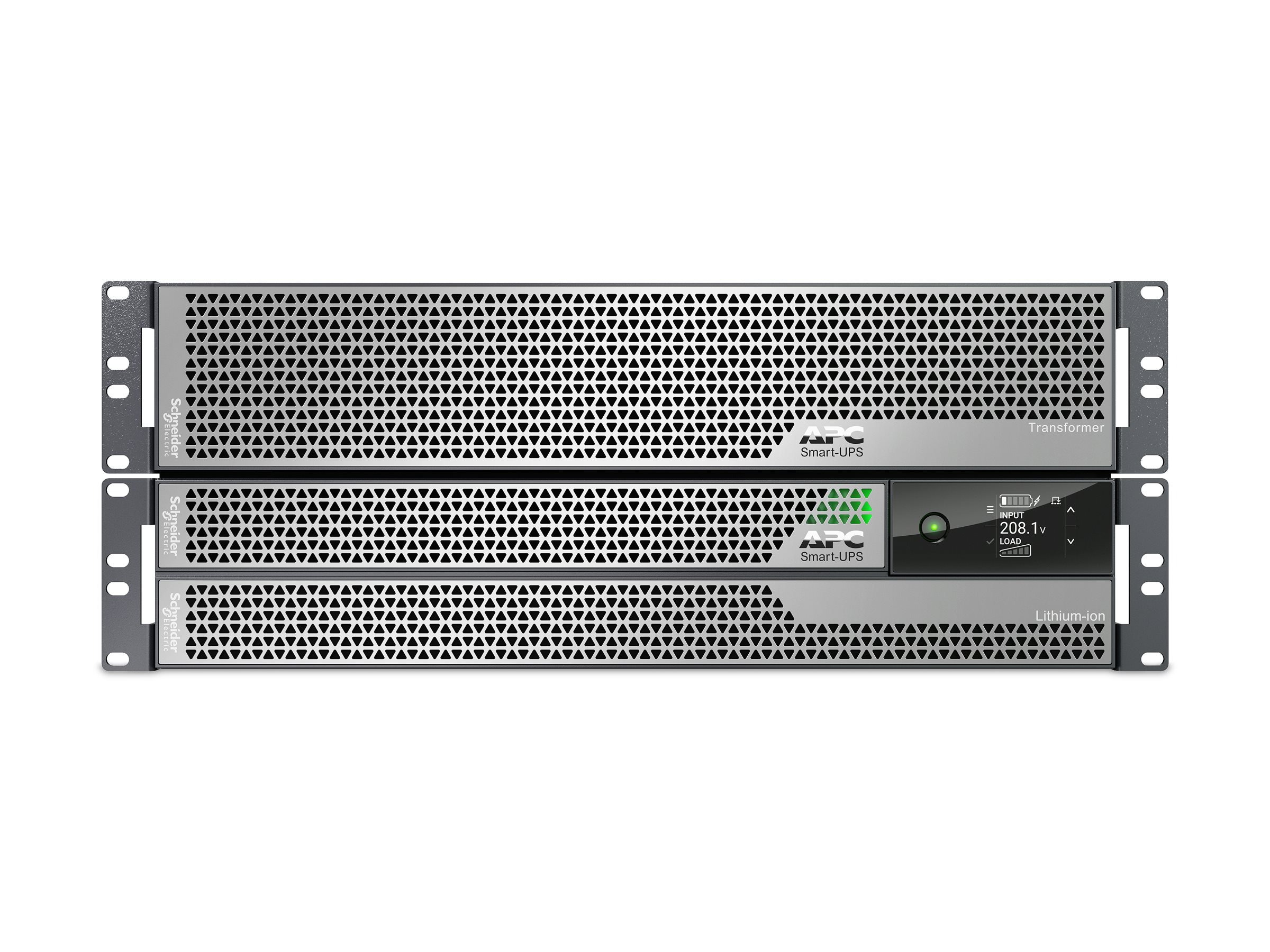

APC Smart-UPS Ultra - UPS (rack-mountable)

$15,923.00
APC Smart-UPS Ultra - UPS (rack-mountable)
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • AC 208 V
  • 4900 Watt
  • 5000 VA
  • 1-phase
  • lithium ion
APC Smart-UPS Ultra - UPS (rack-mountable)
  • AC 208 V
  • 4900 Watt
  • 5000 VA
  • 1-phase
  • lithium ion
  • USB, Ethernet
  • output connectors: 15
  • 4U
  • 3.05 m cord
  • black
  Additional Details
Price: $15,923.00
Mfr Part #: SRTL5KRM2UT-5KRMTF
SHI Part #: 46286513
Category: Rechargeable batteries
UNSPSC: 26111701
Manufacturer: APC by Schneider Electric
Product Type: Hardware

Audio/Video Cables

APC Dry Contact I/O Accessory
APC Dry Contact I/O Accessory
  • Network adapter kit
  • black
  • for P/N: SMT1000RM1U, SRTL10KRM4UT, SRTL5KRM2UI-HW, SRTL5KRM2UT-HW, SRTL8KRM4UT
$241.00
APC - Serial cable - RJ-45 (M) to DB-9 (F)
APC - Serial cable - RJ-45 (M) to DB-9 (F)
  • 2 m
  • for P/N: SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW, SRYL15K15RMX LT, SRYL15K15XLT24
$44.00

Power Distribution (PDU)

APC Metered Rack PDU
APC Metered Rack PDU
  • Power distribution strip (rack-mountable)
  • AC 200/208/230 V
  • RS-232
  • input: IEC 60320 C20
  • output connectors: 20 (power IEC 60320 C13, IEC 60320 C19)
  • black
$1,024.00
APC Basic Rack-Mount PDU
APC Basic Rack-Mount PDU
  • Power distribution strip (rack-mountable)
  • AC 208/230 V
  • input: IEC 60320 C20
  • output connectors: 12 (power IEC 60320 C13, IEC 60320 C19)
  • 2.49 m cord
  • Worldwide
$477.00
General Information
CategoryRechargeable batteries
DescriptionAPC Smart-UPS Ultra - UPS (rack-mountable) - AC 208 V - 4900 Watt - 5000 VA - 1-phase - lithium ion - USB, Ethernet - output connectors: 15 - 4U - 3.05 m cord - black
ManufacturerAPC by Schneider Electric
MSRP$15,600.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth71.9 cm
Dimensions & Weight / Height17.6 cm
Dimensions & Weight / Weight72.29 kg
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty15
Power Device / Power Capacity (VA)5000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage Required
  • AC 208 V
  • AC 208/240 V
Product TypeUPS
Service & Support / Type5-year warranty
Battery
Quantity1
Recharge Time1.5 hours
TechnologyLithium ion lithium ion
TypeExpandable
Voltage Provided180 V
Dimensions & Weight
Depth71.9 cm
Height17.6 cm
Weight72.29 kg
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth62.2 cm
Shipping Height50.8 cm
Shipping Weight79.1 kg
Shipping Width96 cm
Environmental Parameters
Humidity Range Operating0 - 95% RH (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dB
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Interfaces
  • 1 x SmartConnect
  • 1 x management (USB)
General
ColorBlack
Cord Length3.05 m
Device TypeUPS - rack-mountable
Height (Rack Units)4U
Manufacturer Warranty
Service & SupportLimited warranty - replace or repair - 5 years
Miscellaneous
Cables IncludedPower cable - integrated - 3.05 m
Compliant StandardsEnergy Star 2.0, IP20, Mercury-free, China RoHS, EU RoHS, REACH
FeaturesHorizontal orientation, double conversion, internal bypass, emergency power off, audible alarm, visible alarm
Included AccessoriesRack mounting brackets, stabilization feet, rack mounting rails, temperature probe, strain relief, bezel
Rack Mounting KitIncluded
Networking
Remote Management InterfaceUSB, Ethernet
Power Device
Circuit ProtectionCircuit breaker
Efficiency90%-95%
Frequency Provided50/60 Hz ± 3Hz
Frequency Required40 - 70 Hz
Input Connectors1 x power NEMA L6-30P
Input VoltageAC 208 V
Input Voltage RangeAC 187 - 230 V
Input Wiring1-phase
Output VoltageAC 120 V 50/60 Hz
Output WaveformSinewave
Power Capacity4900 Watt / 5000 VA
Power Output Connectors Details
  • 12 x power NEMA 5-20R
  • 2 x power NEMA L6-20R
  • 1 x power NEMA L6-30R
Surge Energy Rating1260 Joules
Surge SuppressionYes
UPS TechnologyOn-line
Sustainability Information
ENERGY STARYes
