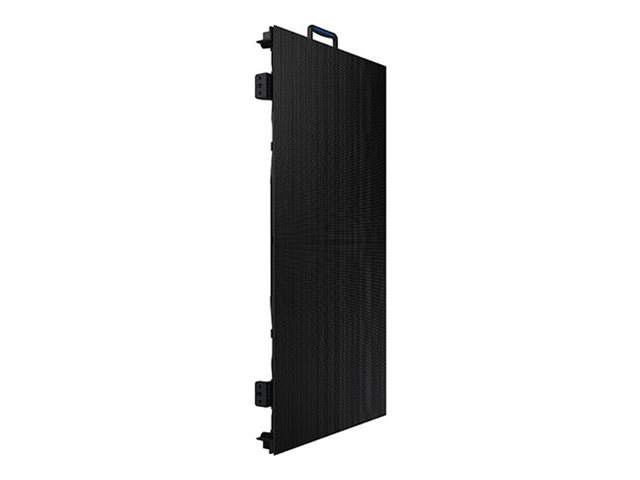

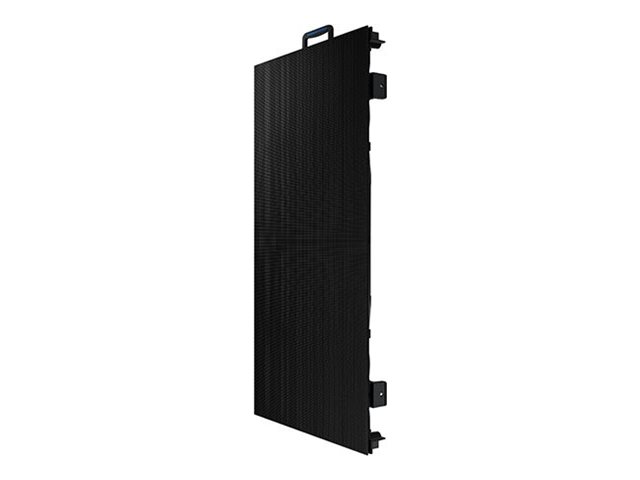

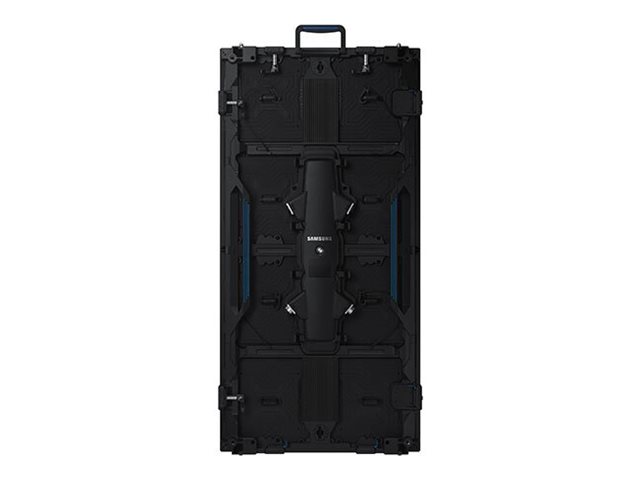

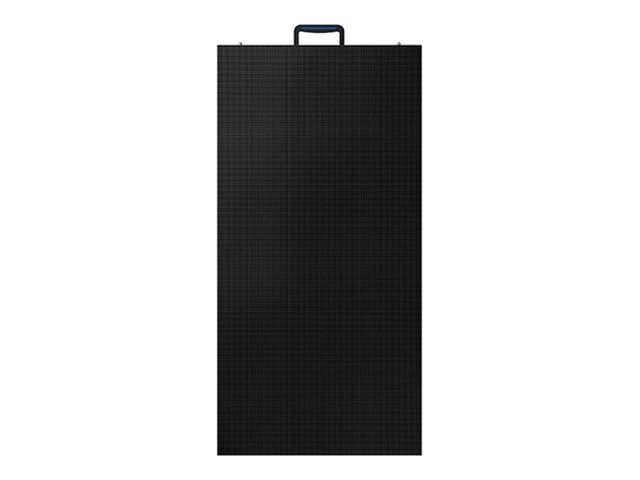

Samsung XRB039-Y - XRB Series LED display unit
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Samsung XRB039-Y - XRB Series LED display unit
- digital signage outdoor
- full sun 64 x 128 per unit
- 3-in-1 SMD
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | LH039XRBCYC/ZA |
| SHI Part #: | 46264782 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | Samsung XRB039-Y - XRB Series LED display unit - digital signage outdoor - full sun 64 x 128 per unit - 3-in-1 SMD |
| Manufacturer | Samsung |
| MSRP | $3,249.99 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.45 cm |
| Dimensions & Weight / Height | 100 cm |
| Dimensions & Weight / Weight | 14 kg |
| Dimensions & Weight / Width | 50 cm |
| Header / Brand | Samsung |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 5000 cd/m² |
| Television / Image Contrast Ratio | 4000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 160° |
| Display | |
| Additional Features | 14-bit Processing, 4.4 trillion colors, 21 scan rate |
| Brightness | 5000 cd/m² |
| Color Temperature | 6500K |
| Commercial Features | L-Type installation supported |
| Frame Rate & Enhancement Technology | 3840 Hz Frame Rate |
| Image Contrast Ratio | 4000:1 |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 160° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -30 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Cooling System | Self cooling |
| Depth | 6.45 cm |
| Dimensions | Display units assembly |
| Height | 100 cm |
| Outdoor | Yes |
| Product Type | LED display unit |
| Protection | UV protection |
| Series | XRB Series |
| Sun Exposure | Full sun |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 14 kg |
| Width | 50 cm |
| Miscellaneous | |
| Compliant Standards | IP65, EMC Class A, Safety 62368-1, Safety 60950-1 |
| Power | |
| Heat Generation Details |
|
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 380 W |
| Video Wall Display Unit Power Consumption (Typical) | 130 W |
| Video Wall Power Consumption (Max) | 760 W/m² |
| Video Wall Power Consumption (Typical) | 260 W/m² |
| Video Wall Display Unit | |
| Cabinet Frame Material | Aluminum |
| LED Lifetime | 100000 hours |
| LED Type | 3-in-1 SMD |
| Maintenance | Rear and front |
| Modules Configuration (Per Cabinet) | 2x2 |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Pixel Density | 65536 pixels/m² |
| Pixel Pitch | 3.9 mm |
| Pixels Per Panel | 32768 |
| Resolution | 64 x 128 |
