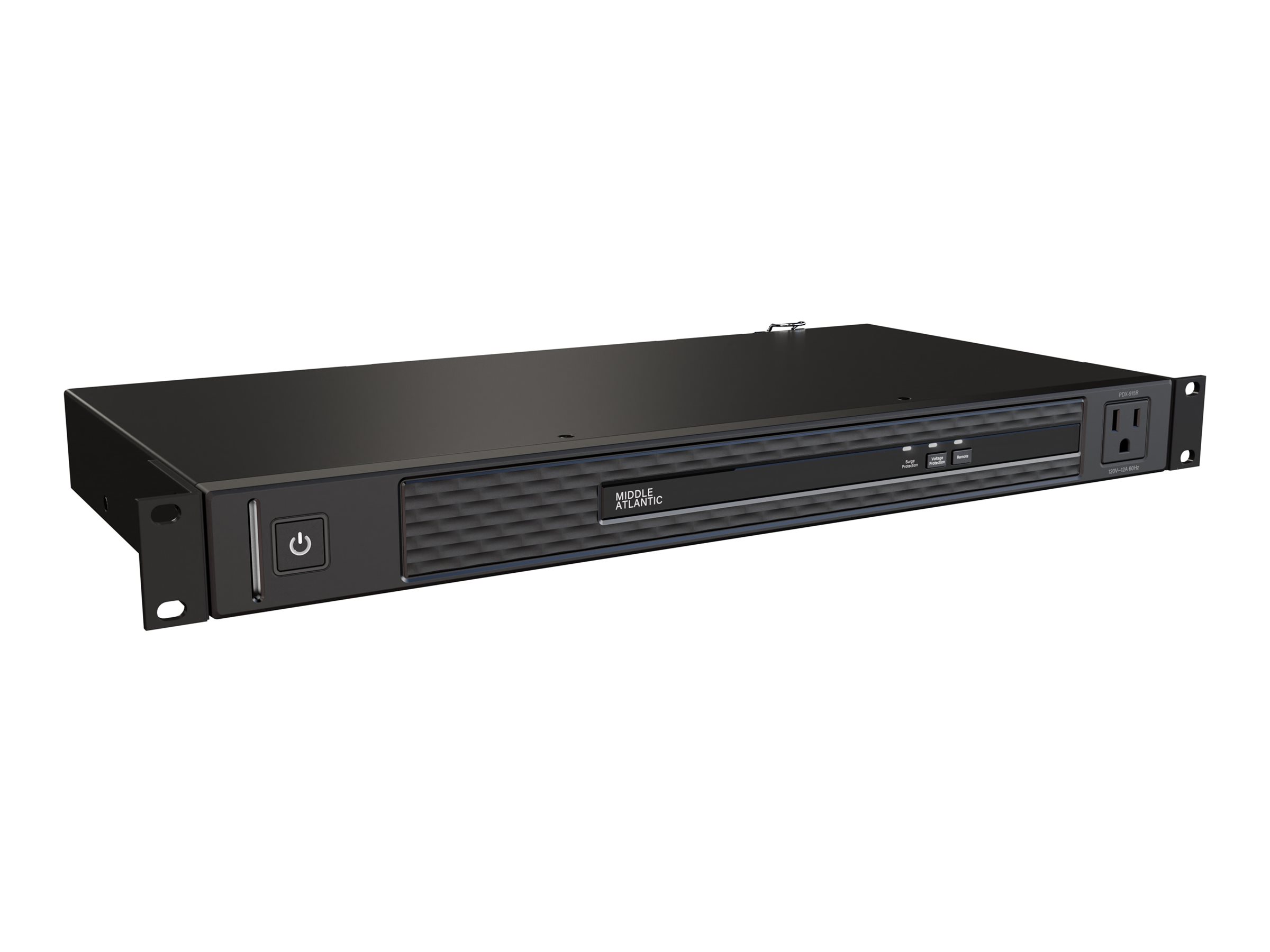

Middle Atlantic NEXSYS Series
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Middle Atlantic NEXSYS Series
- Power distribution unit (rack-mountable)
- with multi-stage surge protection
- AC 120 V
- input: NEMA 5-15P
- output connectors: 9 (power NEMA 5-15R)
- 1U
- 19"
- 2.7 m cord
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PDX-915R |
| SHI Part #: | 46240990 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Middle Atlantic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Middle Atlantic NEXSYS Series - Power distribution unit (rack-mountable) - with multi-stage surge protection - AC 120 V - input: NEMA 5-15P - output connectors: 9 (power NEMA 5-15R) - 1U - 19" - 2.7 m cord |
| Manufacturer | Middle Atlantic |
| MSRP | $568.98 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.2 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 3.1 kg |
| Dimensions & Weight / Width | 48.3 cm |
| Header / Brand | Middle Atlantic |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 9 |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 22.2 cm |
| Height | 4.4 cm |
| Weight | 3.1 kg |
| Width | 48.3 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 4.5 kg |
| General | |
| Cord Length | 2.7 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 2.7 m |
| Compliant Standards | cULus, UL 62368, UL 1449, FCC Class B certified, ICES-003 issue 7 |
| Features | Reset button, LED indicators, voltage protection, Multi-Stage technology, Metal Oxide Varistor Technology (MOV), overvoltage protection, undervoltage protection |
| Included Accessories | Mounting clip, 2 x #10-32 rectangular nuts, cable retainer, screws, mounting bracket set, 4 locking flange nuts, 2 terminal block plugs |
| Power Device | |
| Circuit Protection | Circuit breaker |
| EMI/RFI Noise Filtration | 20 dB |
| Frequency Required | 60 Hz |
| Input Connectors | Power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 80 - 140 V |
| Max Electric Current | 15 A |
| Output Voltage | AC 120 V |
| Power Output Connectors Details | 9 x power NEMA 5-15R |
| Surge Energy Rating | 705 Joules |
| Surge Response Time | 1 ns |
| Surge Suppression | Yes |
