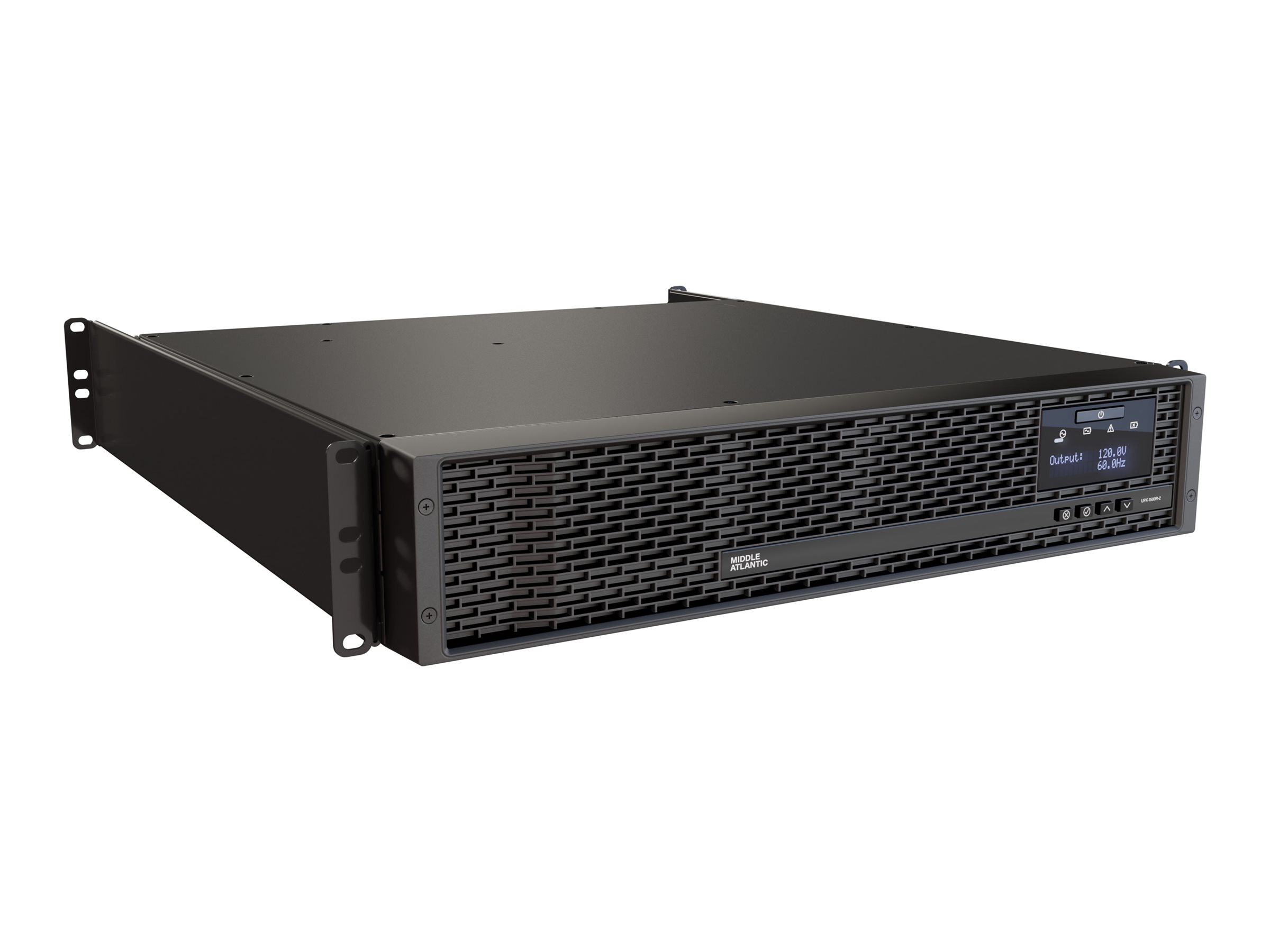

Middle Atlantic NEXSYS Series
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Middle Atlantic NEXSYS Series
- UPS battery (rack-mountable)
- 15A, bank outlet control
- AC
- 1500 VA
- Sealed Lead Acid (SLA)
- 9 Ah
- 2U
- 19"
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | UPX-1500R-2 |
| SHI Part #: | 46030805 |
| Category: | Rechargeable batteries |
| UNSPSC: | 26111701 |
| Manufacturer: | Middle Atlantic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rechargeable batteries |
| Description | Middle Atlantic NEXSYS Series - UPS battery (rack-mountable) - 15A, bank outlet control - AC - 1500 VA - Sealed Lead Acid (SLA) - 9 Ah - 2U - 19" - black |
| Manufacturer | Middle Atlantic |
| MSRP | $3,473.37 |
| UNSPSC | 26111701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 44 cm |
| Dimensions & Weight / Height | 8.65 cm |
| Dimensions & Weight / Weight | 20 kg |
| Dimensions & Weight / Width | 44 cm |
| General / Subcategory | Batteries (UPS battery replacements) |
| Header / Brand | Middle Atlantic |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Power Capacity (VA) | 1500 VA |
| Power Device / UPS Technology | Line interactive |
| Product Type | UPS battery |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Capacity | 9 Ah |
| Features | Hot-swappable, maintenance free, automatic voltage regulation (AVR) |
| Recharge Time | 8 hours |
| Technology | Sealed Lead Acid (SLA) |
| Voltage Provided | DC 36 V |
| Dimensions & Weight | |
| Depth | 44 cm |
| Height | 8.65 cm |
| Weight | 20 kg |
| Width | 44 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 24.5 kg |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 2 x external battery unit detection port |
| General | |
| Color | Black |
| Device Type | UPS battery - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable (NEMA 5-15P) 1.83 m |
| Compliant Standards | CSA, FCC Class A certified, REACH, RoHS, TUV, UL 1778, CAN/CSA-C22.2, ICES-003, cTUVus |
| Features | 4-post, assembled, LED display |
| Power Device | |
| Input Voltage | AC |
| Max Electric Current | 15 A |
| Power Capacity | 1500 VA |
| Power Output Connectors Details | 8 x power NEMA 5-15R (surge) |
| UPS Technology | Line interactive |
| Sustainability Information | |
| ENERGY STAR | Yes |
