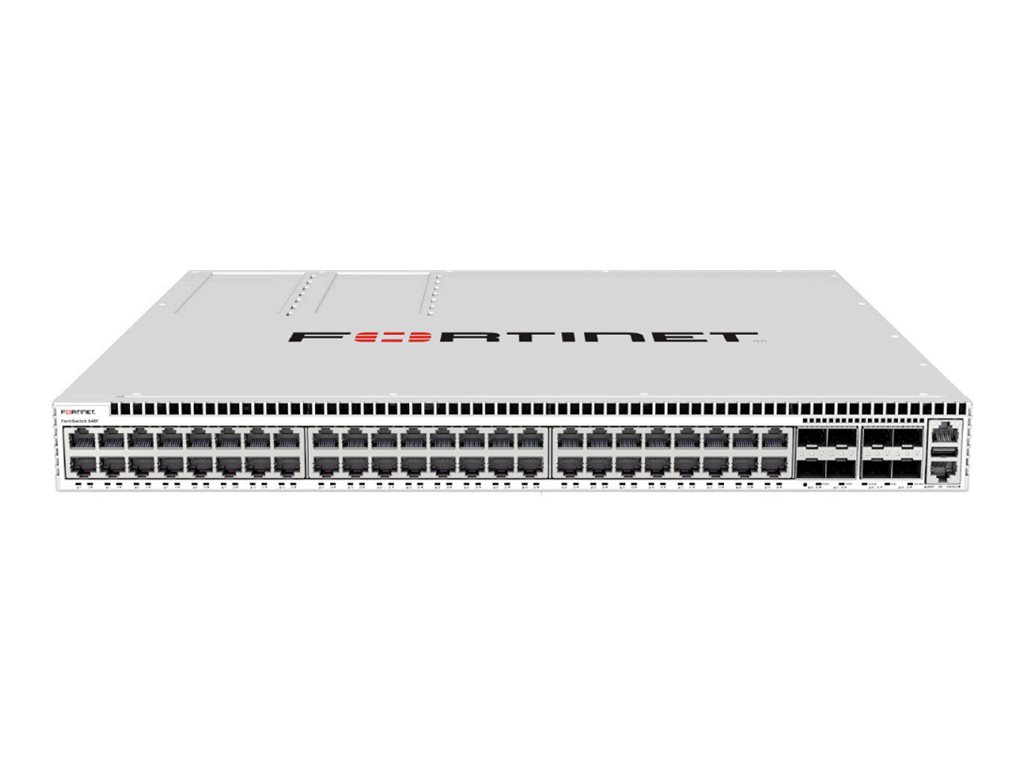

Fortinet FortiSwitch 648F

$11,485.00
Fortinet FortiSwitch 648F
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 32 x 10/100/1000/2.5G + 16 x 100/1000/2.5G/5G + 8 x 10 Gigabit / 25 Gigabit SFP+ / SFP28
  • front to back airflow
Fortinet FortiSwitch 648F
  • Switch
  • L3
  • managed
  • 32 x 10/100/1000/2.5G + 16 x 100/1000/2.5G/5G + 8 x 10 Gigabit / 25 Gigabit SFP+ / SFP28
  • front to back airflow
  • rack-mountable
  Additional Details
Price: $11,485.00
Mfr Part #: FS-648F
SHI Part #: 45964852
Category: Switch matrixes
UNSPSC: 43222612
Manufacturer: Fortinet
Product Type: Hardware
General Information
CategorySwitch matrixes
DescriptionFortinet FortiSwitch 648F - Switch - L3 - managed - 32 x 10/100/1000/2.5G + 16 x 100/1000/2.5G/5G + 8 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 - front to back airflow - rack-mountable
ManufacturerFortinet
MSRP$14,301.54
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth35 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight7.149 kg
Dimensions & Weight / Width44 cm
Header / BrandFortinet
Miscellaneous / Product ColorWhite
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth35 cm
Height4.4 cm
Weight7.149 kg
Width44 cm
Environmental Parameters
Humidity Range Operating5 - 95% RH (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 32 x 1/2.5GBase-T RJ-45
  • 16 x 100/1000/2.5G/5GBase-T RJ-45
  • 8 x 1/10/25GBase-X SFP28/SFP+
  • 1 x management (Gigabit LAN) RJ-45
  • 1 x console RJ-45
General
Authentication MethodRADIUS, Extensible Authentication Protocol (EAP)
Capacity
  • Virtual interfaces (VLANs): 4000
  • Link aggregation groups: 56
  • Packet buffer size: 8 MB
  • ACL: 36000
  • Spanning Tree Protocol instances: 32
  • IPv4 routing entries: 16000
  • Host IPv4 routes: 192000
  • IP multicast entries: 12000
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3bz
Device TypeSwitch - 48 ports - L3 - managed
Enclosure TypeFront to back airflow rack-mountable 1U
FeaturesAuto-negotiation, VLAN support, WOL, IGMP snooping, port mirroring, automatic topology detection, High Availability, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, TDR, STP Root Guard, DHCP relay, RSPAN, IP-MAC binding, NAC, IGMP proxy, 802.1x authentication, PTP, MACsec support, Storm Control, MLD proxy, IP source guard, ARP inspection, IGMP querier, Loop Guard, Private VLAN, RA guard, STP BPDU Guard, ERSPAN, port trunking, MAB, SPAN mode, MLD querier, MDI, Auto MDIX, VLAN / port mapping, MAC black/whitelist, FTP support, RPVST
Flash Memory32 MB
Jumbo Frame SupportYes
MAC Address Table Size64K entries
Performance
  • Switching capacity: 720 Gbps
  • Packets per second: 1071 Mpps
  • Latency: < 1 µs
Ports32 x 10/100/1000/2.5G + 16 x 100/1000/2.5G/5G + 8 x 10 Gigabit / 25 Gigabit SFP+ / SFP28
RAM4 GB DDR4 SDRAM
Remote Management ProtocolSNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, DHCP, IPv4, IPv6, Syslog
Routing ProtocolOSPF, IS-IS, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SSM, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), URPF, MSTP
Status IndicatorsPower, alarm, fan, link/activity/speed
Subtype5 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Cables Included
  • 1 x console cable
  • 2 x AC power cable
Compliant StandardsUL, VCCI, BSMI, CB, FCC, RoHS2, RCM
Included Accessories4 rubber feet
MTBF>10 years
Rack Mounting KitIncluded
Power
Installed Qty2
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power Provided350 Watt
Voltage RequiredAC 100-240 V (50/60 Hz)
