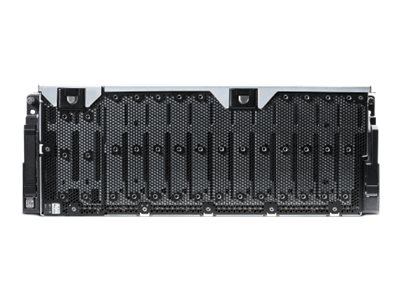

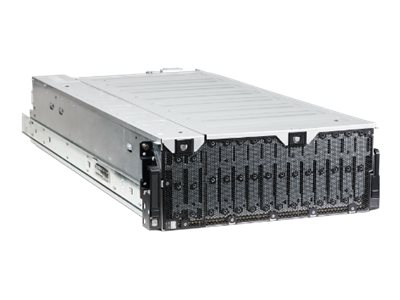

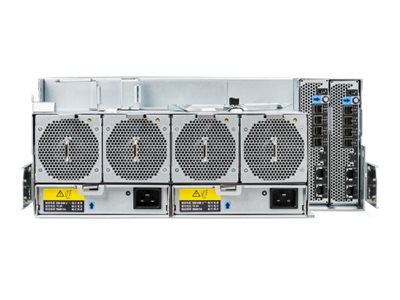

Seagate Exos E 4U106 J12C6X000000DAP
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Seagate Exos E 4U106 J12C6X000000DAP
- Storage enclosure
- 106 bays (SAS-3)
- rack-mountable
- 4U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | J12C6X000000DAP-01 |
| SHI Part #: | 45948335 |
| Category: | Chassis |
| UNSPSC: | 43201601 |
| Manufacturer: | Seagate |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Chassis |
| Description | Seagate Exos E 4U106 J12C6X000000DAP - Storage enclosure - 106 bays (SAS-3) - rack-mountable - 4U |
| Manufacturer | Seagate |
| UNSPSC | 43201601 |
| Main Specifications | |
| Dimensions & Weight / Depth | 113.9 cm |
| Dimensions & Weight / Height | 17.64 cm |
| Dimensions & Weight / Weight | 45 kg |
| Dimensions & Weight / Width | 44.1 cm |
| Header / Brand | Seagate |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Type | Storage enclosure |
| Chassis | |
| Built-in Devices | 2 x I/O module |
| Supported Devices / Modules Qty | 106 |
| Supported Drives | SAS-3 |
| Dimensions & Weight | |
| Depth | 113.9 cm |
| Height | 17.64 cm |
| Weight | 45 kg |
| Width | 44.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Bays | 106 (total) / 106 (free) x hot-swap - 3.5" |
| Interfaces |
|
| General | |
| Device Type | Storage enclosure |
| Enclosure Type | Rack-mountable - 4U |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | ASHRAE Class A2, UL 60950-1, EN 60950-1, IEC 60950-1, CCC, BIS, Directive 2009/125/EC, AS/NZS CISPR 32 Class A, CNS 13438 Class A, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 B Class A, ICES-3(A)/NMB-3(A), KN24, KN35, VCCI Class A, FCC, RoHS 2011/65/EU, WEEE, KC, RCM, CAN/CSA-C22.2 No. 60950-1-07 |
| Features | Hot-swappable controllers, hot-swappable fans, hot-swappable IOM, out of band management, SCSI Enclosure Services (SES) |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 2000 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 200-240 V 50/60 Hz |
