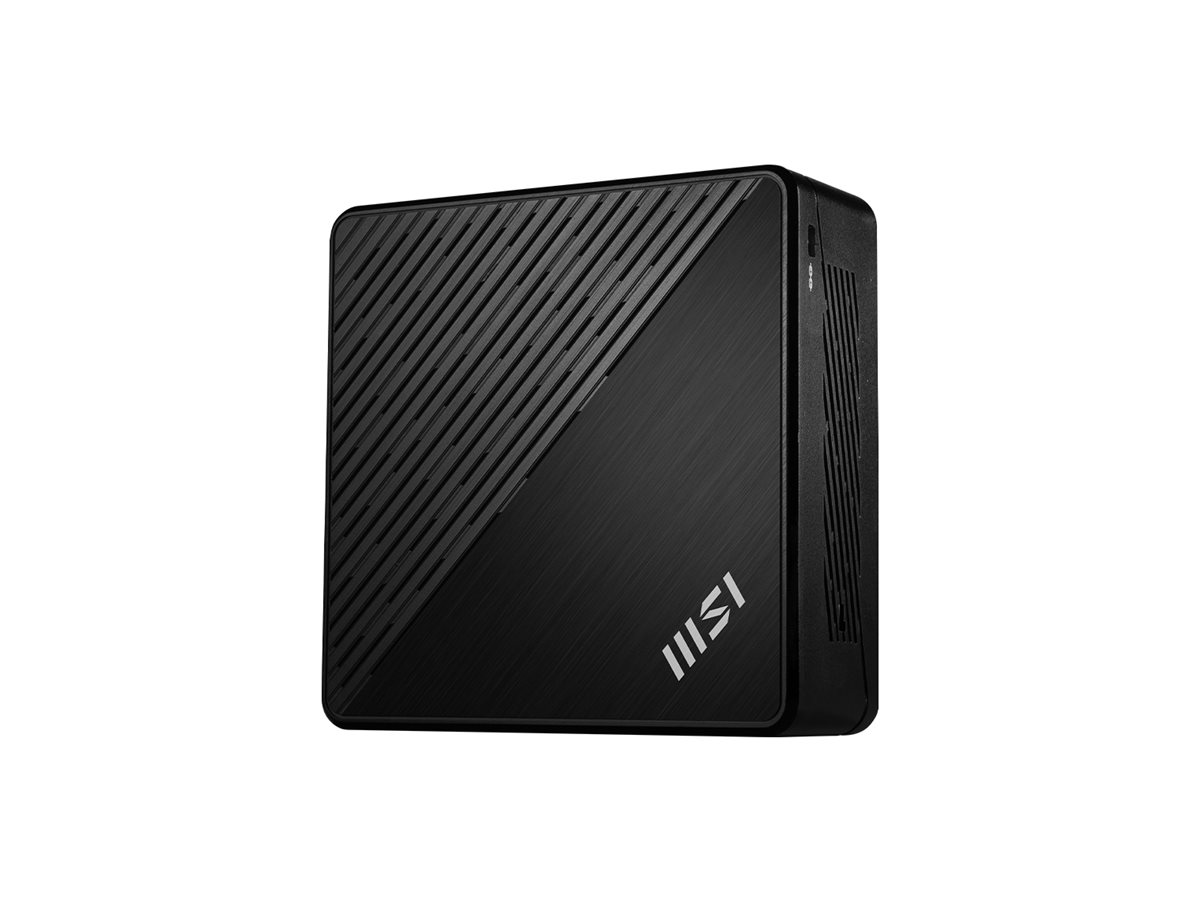

MSI Cubi 5 12M 028US

$1,125.00
MSI Cubi 5 12M 028US
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Mini PC Core i5 1235U / up to 4.4 GHz
  • RAM 8 GB
  • SSD 512 GB
  • NVMe
  • Intel Iris Xe Graphics
MSI Cubi 5 12M 028US
  • Mini PC Core i5 1235U / up to 4.4 GHz
  • RAM 8 GB
  • SSD 512 GB
  • NVMe
  • Intel Iris Xe Graphics
  • IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2, Gigabit Ethernet, 2.5 Gigabit Ethernet
  • Win 11 Pro
  • monitor: none
  Additional Details
Price: $1,125.00
Mfr Part #: CUBI512M028
SHI Part #: 45521522
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: MSI
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionMSI Cubi 5 12M 028US - Mini PC Core i5 1235U / up to 4.4 GHz - RAM 8 GB - SSD 512 GB - NVMe - Intel Iris Xe Graphics - IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2, Gigabit Ethernet, 2.5 Gigabit Ethernet - Win 11 Pro - monitor: none
ManufacturerMSI
MSRP$1,099.00
UNSPSC43211507
Main Specifications
Chassis / Form FactorUltra small form factor
Dimensions & Weight / Depth12.4 cm
Dimensions & Weight / Height5.37 cm
Dimensions & Weight / Weight549 g
Dimensions & Weight / Width12.4 cm
Display / TypeNone.
Hard Drive / Capacity512 GB
Header / BrandMSI
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.2
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
  • Bluetooth 5.2
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / Clock Speed1.3 GHz
Processor / Generation12
Processor / ManufacturerIntel
Processor / Number of Cores10-core
Processor / Processor NumberI5-1235U
Processor / TypeCore i5
RAM / Form FactorSO-DIMM 260-pin
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity512 GB
System / TypePersonal computer
Video Output / Graphics ProcessorIntel Iris Xe Graphics
Cache Memory
Cache Per Processor12 MB
Installed Size12 MB
Dimensions & Weight
Depth12.4 cm
Height5.37 cm
Weight549 g
Width12.4 cm
Dimensions & Weight (Shipping)
Shipping Weight1.39 kg
Expansion / Connectivity
Bays1 (total) / 1 (free) x internal 2.5"

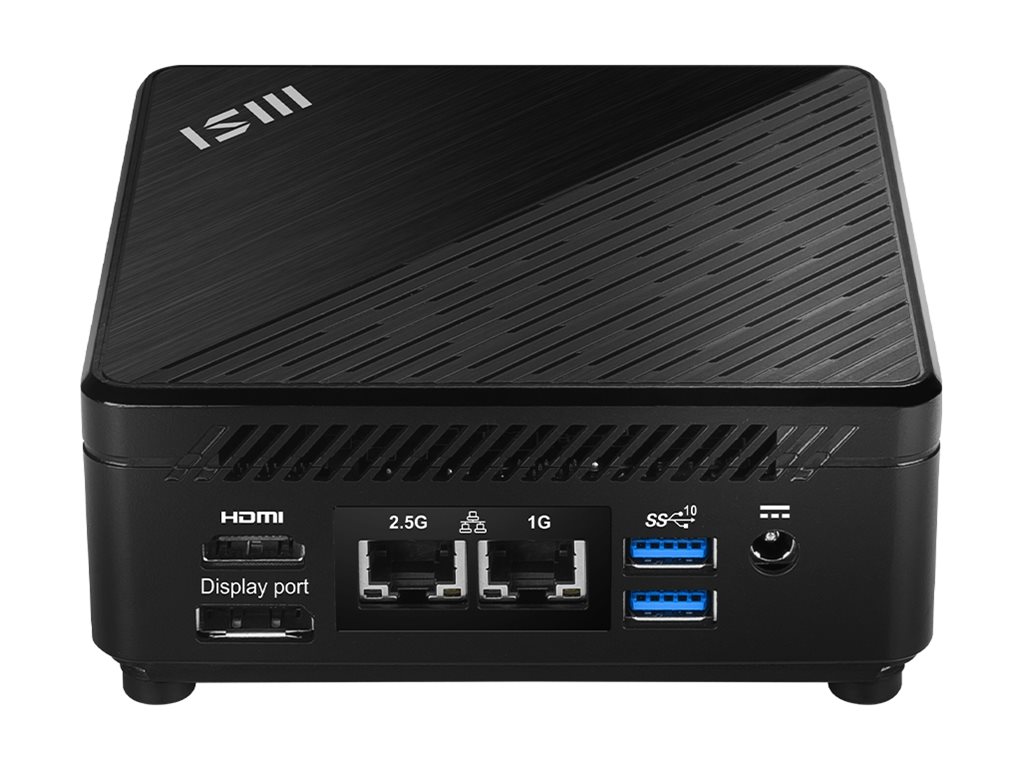

Interfaces
  • 1 x headphones/microphone (1 in front)
  • 1 x Thunderbolt 4/DisplayPort 1.4/USB-C (1 front)
  • 1 x HDMI output (1 rear)
  • 1 x DisplayPort (1 rear)
  • 4 x USB 3.2 Gen 2 (2 front, 2 rear)
  • 1 x LAN (Gigabit Ethernet)
  • 1 x LAN (2.5Gigabit Ethernet)
Slots1 (total) / 0 (free) x M.2 Card
General
Built-in DevicesAir cooling solution
Product Form FactorMini PC
TypePersonal computer
Graphics Controller
Graphics ProcessorIntel Iris Xe Graphics
Max Monitors Supported3
Video InterfacesHDMI, DisplayPort, USB-C
Hard Drive
Capacity1 x 512 GB
FeaturesNVM Express (NVMe)
Interface TypePCI Express
TypeSSD - M.2
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Compliant StandardsFCC Class B certified, CB, UL, cUL, VCCI, RCM
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)
VESA Mounting InterfaceYes
Monitor
Monitor TypeNone.
Networking
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.2, Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Ethernet ControllerRealtek RTL8125BG-CG, RTL8111H
Wireless LAN SupportedYes
Operating System / Software
OS ProvidedWindows 11 Pro
SoftwareMSI Center
Optical Storage
TypeNo optical drive
Power
Device TypePower adapter
Power Provided65 watt
Voltage RequiredAC 100-240 V (50/60 Hz)
Processor / Chipset
Clock Speed1.3 GHz (P-core) / 900 MHz (E-core)
CPUIntel Core i5 (12th Gen) 1235U
CPU Qty1
Max CPU Qty1
Max Turbo Speed4.4 GHz (P-core) / 3.3 GHz (E-core)
Number of Cores10-core
Processor Main FeaturesIntel Smart Cache
RAM
Configuration Features1 x 8 GB
Form FactorSO-DIMM 260-pin
Installed Size8 GB (installed) / 64 GB (max)
Slots2 (total) / 1 (empty)
TechnologyDDR4 SDRAM
Storage Controller
Type1 x SATA
