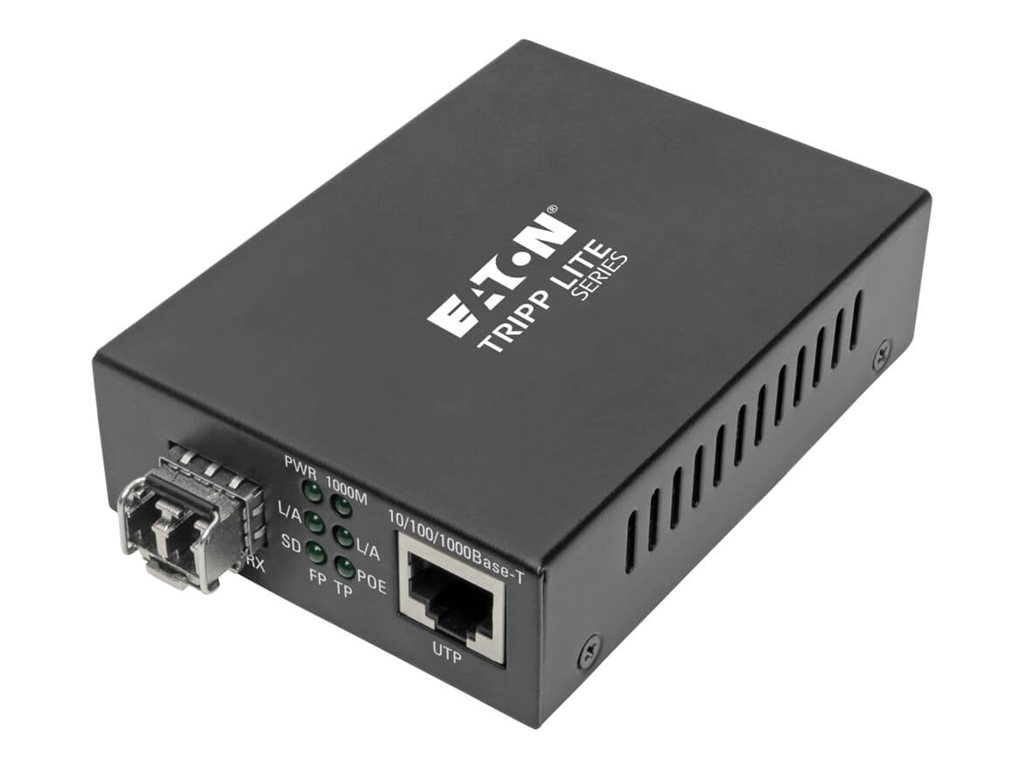

Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, PoE+
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, PoE+
- International Power Cables, 10/100/1000 LC, 850 nm, 550 m (1,804 ft.)
- Fiber media converter
- 1GbE
- over CAT 5e/6
- 10Base-T, 100Base-TX, 1000Base-T
- RJ-45 / LC multi-mode
- up to 550 m
- 850 nm
- for P/N: N001-025-BK, N201-025-BL, N320-61M, N520-100M
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | N785-INT-PLCMM1 |
| SHI Part #: | 45389182 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
Audio/Video Cables
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 7.6 m
- UTP
- CAT 6
- molded, snagless, stranded
- Patch cable
- RJ-45 (M) to RJ-45 (M)
- 7.2 m
- UTP
- CAT 5e
- booted, snagless
- Patch cable
- LC multi-mode (M) to LC multi-mode (M)
- 61 m
- fiber optic
- duplex
- 62.5 / 125 micron 0.2 dB
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, PoE+ - International Power Cables, 10/100/1000 LC, 850 nm, 550 m (1,804 ft.) - Fiber media converter - 1GbE - over CAT 5e/6 - 10Base-T, 100Base-TX, 1000Base-T - RJ-45 / LC multi-mode - up to 550 m - 850 nm - for P/N: N001-025-BK, N201-025-BL, N320-61M, N520-100M |
| Manufacturer | Eaton |
| MSRP | $444.27 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7 cm |
| Dimensions & Weight / Height | 2.5 cm |
| Dimensions & Weight / Width | 9.5 cm |
| Header / Brand | Tripp Lite |
| Header / Country Kits |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Compatibility Information | |
| Designed For | P/N: N001-025-BK, N201-025-BL, N320-61M, N520-100M |
| Dimensions & Weight | |
| Depth | 7 cm |
| Height | 2.5 cm |
| Width | 9.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | Australia, United Kingdom, North America, Europe |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |

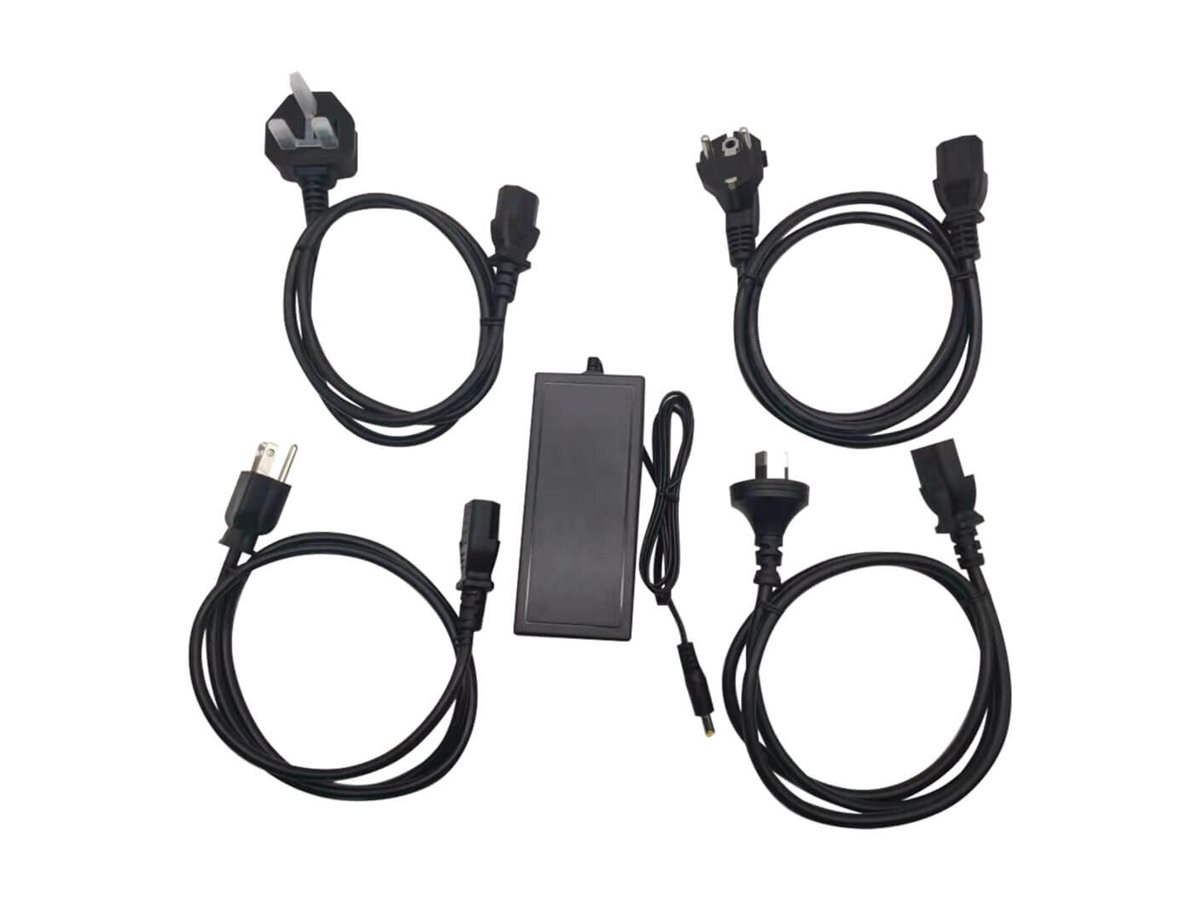

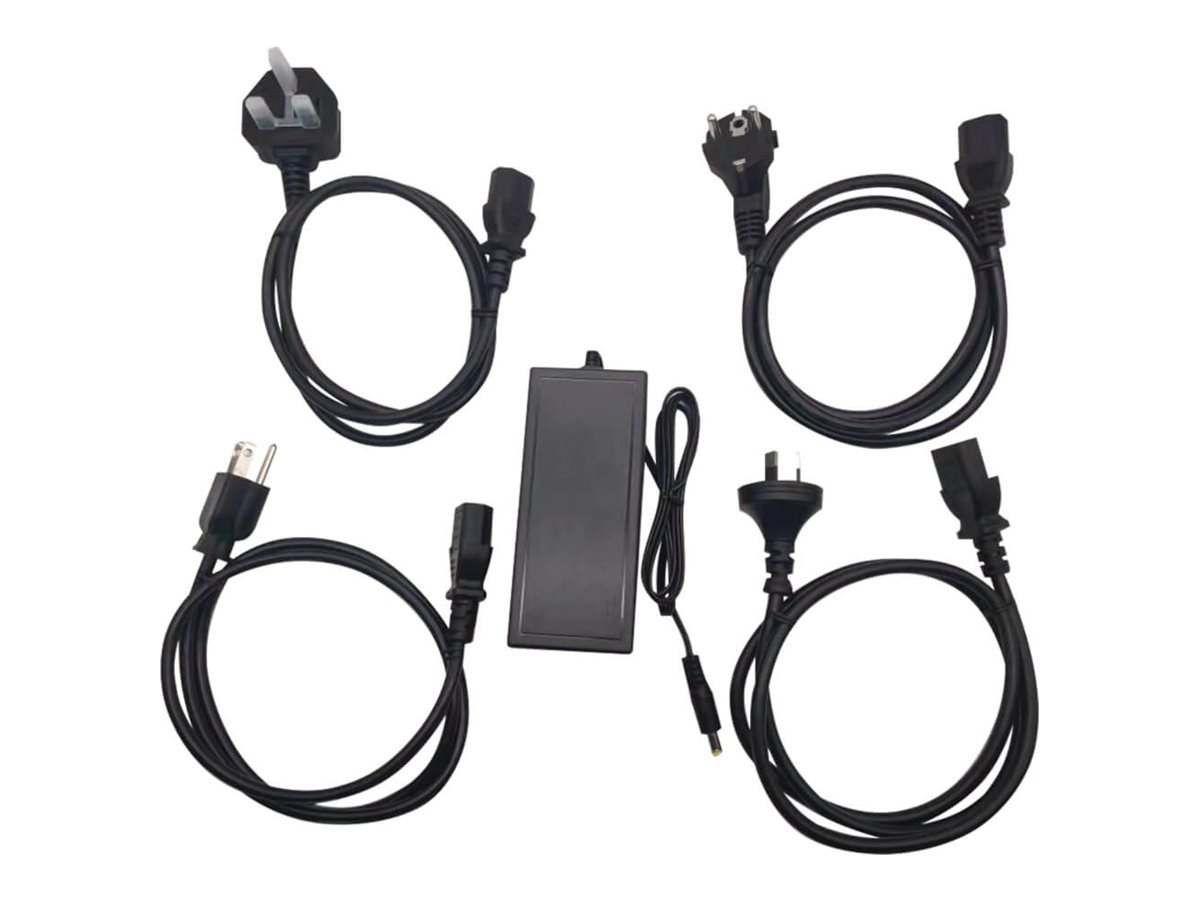

| Cables Included | Power cable - 1.1 m |
| Compliant Standards | Plug and Play, CCC, FCC, PSE Mark, WEEE, cUL, EN55024, IEC 62368-1, Mexico NOM, REACH, RoHS, RoHS3, UKCA, FCC Part 15 B |
| Included Accessories | 4 power plug adapters |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Half duplex mode, full duplex mode, auto-uplink (auto MDI/MDI-X), Link Fault Pass Through function (LFP) |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Status Indicators | Power, link/activity, port transmission speed, status, PoE |
| Power | |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoE+ |
| Voltage Required | AC 100-240 V (50/60 Hz) |
