Eaton Tripp Lite Series Hardened Gigabit Copper to Fiber Media Converter

$283.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
10/100/1000 Mbps, RJ45/SC Multimode, -10° to 60°C, 500 m (1640 ft.) Fiber media converter 1GbE over CAT 5/5e/6 10Base-T, 100Base-TX, 1000Base-T

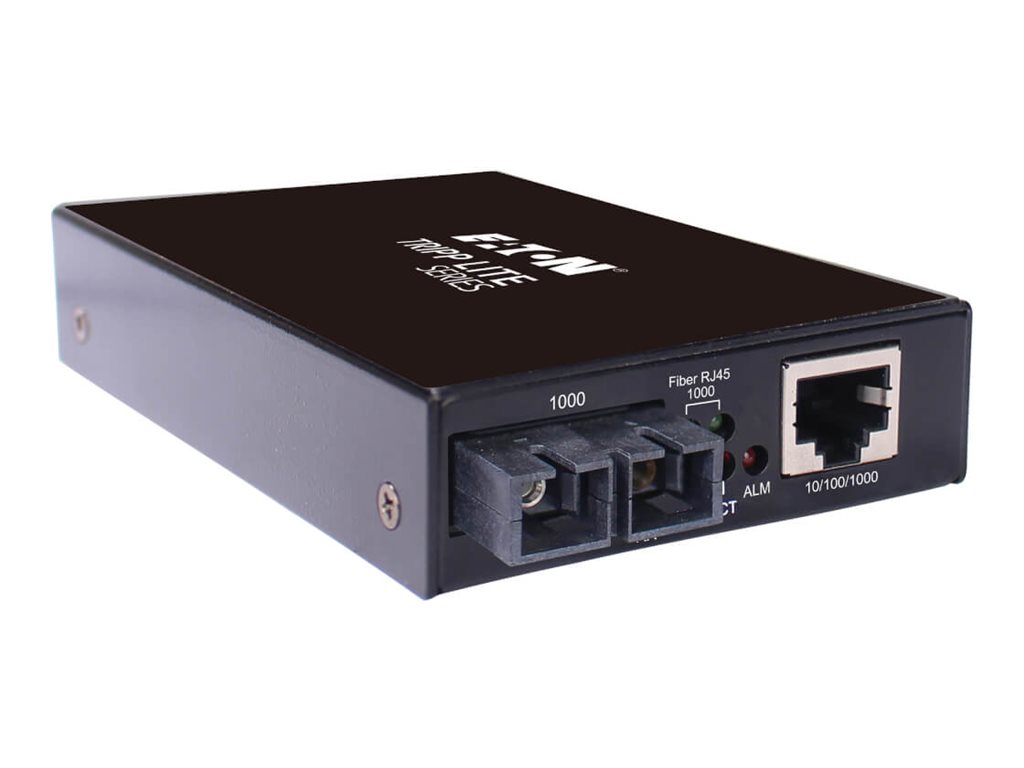

Eaton Tripp Lite Series Hardened Gigabit Copper to Fiber Media Converter

10/100/1000 Mbps, RJ45/SC Multimode, -10° to 60°C, 500 m (1640 ft.)
Fiber media converter
1GbE
over CAT 5/5e/6
10Base-T, 100Base-TX, 1000Base-T
RJ-45 / SC multi-mode
up to 500 m
850 nm
TAA Compliant

Additional Details
Price:	$283.00
Mfr Part #:	N785-H01-SCMM
SHI Part #:	45182770
Category:	Transceivers
UNSPSC:	43201553
Manufacturer:	Eaton
Product Type:	Hardware

Extends a Network Connection up to 500 m over SC Multimode Fiber Optic Cable

This network media converter converts a copper Gigabit Ethernet signal to a multimode fiber optic signal and extends it to a second network device up to 500 meters (1640 feet) away. Because copper Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-H01-SCMM with multimode fiber cable to reach hubs, switches and other network devices located farther away. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.

Monitor Your Installation with Link Fault Signaling and Loop Back Functions

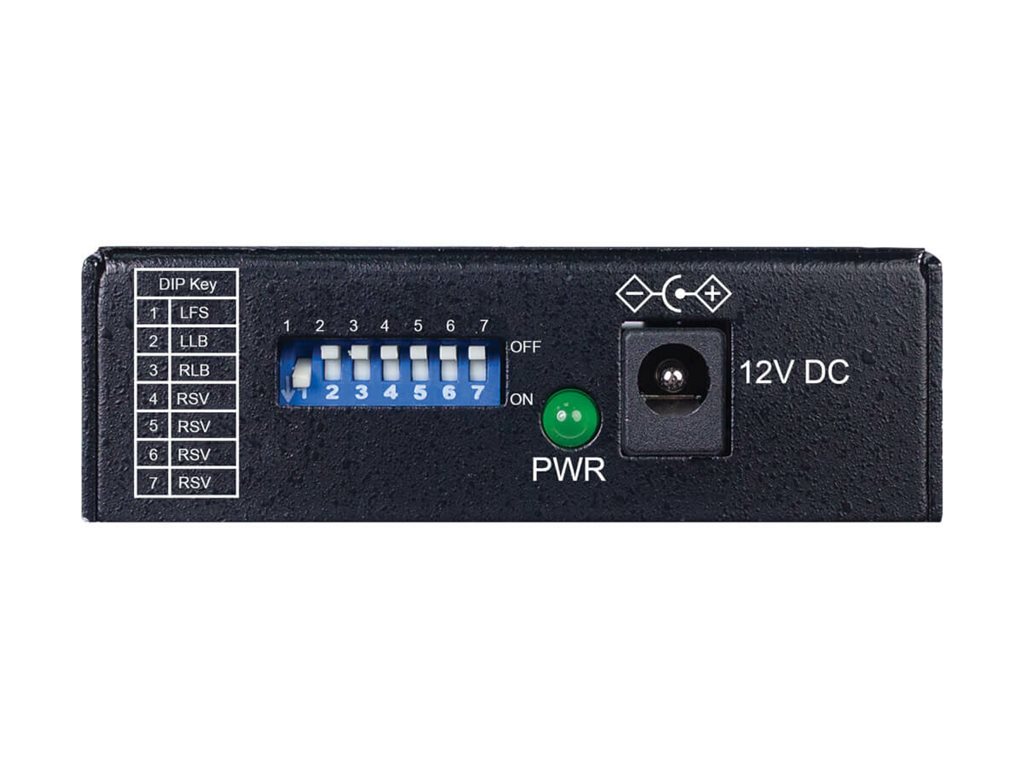

Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.

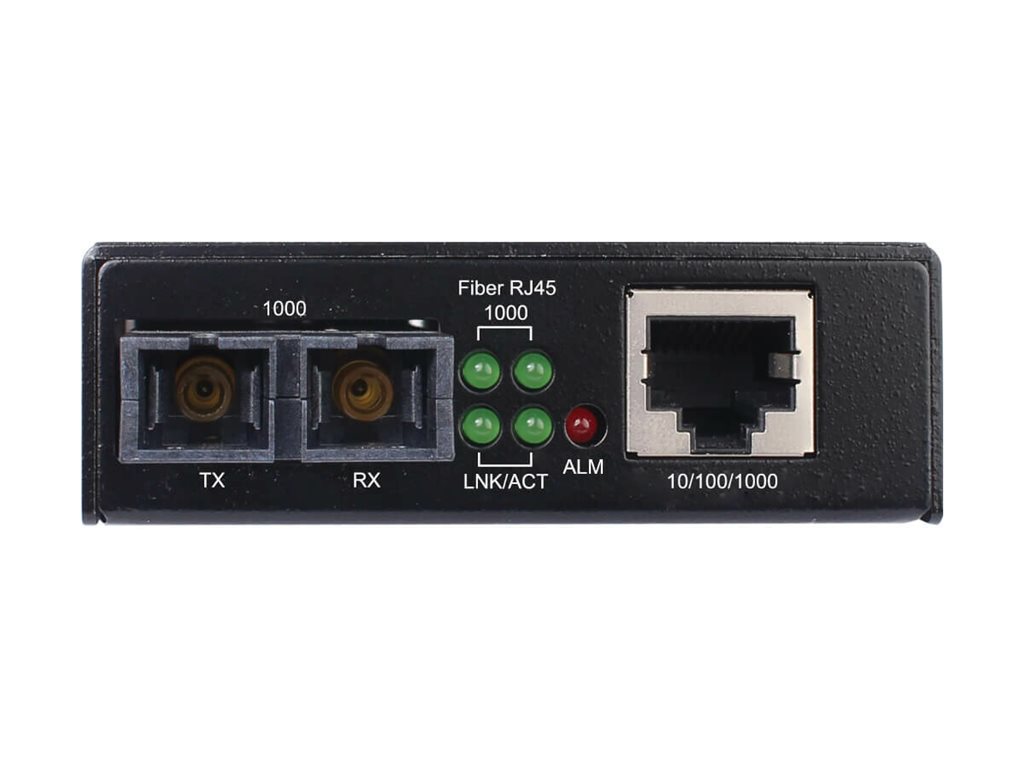

LEDs Indicate Installation Performance and Diagnostic Functions

Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power.

Protective Metal Housing Built to Withstand a Variety of Hazards

The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting.

Works in Tandem with N785-CH12 Chassis

House and power up to 12 media converters, including the N785-H01-SCMM, using the N785-CH12 12-port chassis (sold separately) to create an organized installation.

TAA-Compliant for GSA Schedule Purchases

The N785-H01-SCMM is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Audio/Video Cables

Tripp Lite 10ft Cat5e / Cat5 Snagless Molded Patch Cable RJ45 M/M Blue 10'

Patch cable
RJ-45 (M) to RJ-45 (M)
3 m
UTP
CAT 5e
booted, snagless

$5.00

Tripp Lite 3ft Cat5e / Cat5 Snagless Molded Patch Cable RJ45 M/M Blue 3'

Patch cable
RJ-45 (M) to RJ-45 (M)
0.9 m
UTP
CAT 5e
molded, snagless, stranded

$3.00

Tripp Lite 10ft Cat6 Gigabit Snagless Molded Patch Cable RJ45 M/M Blue 10'

Patch cable
RJ-45 (M) to RJ-45 (M)
3 m
UTP
CAT 6
molded, snagless, stranded

$8.00

Network Cables

Tripp Lite 2M Duplex Multimode 62.5/125 Fiber Optic Patch Cable SC/SC 6' 6ft 2 Meter

Network cable
SC multi-mode (M) to SC multi-mode (M)
1.8 m
fiber optic
duplex

$18.00

Tripp Lite 3M Duplex Multimode 62.5/125 Fiber Optic Patch Cable SC/SC 10' 10ft 3 Meter

Network cable
SC multi-mode (M) to SC multi-mode (M)
3.1 m
fiber optic
duplex

$24.00

General Information
Category	Transceivers
Description	Eaton Tripp Lite Series Hardened Gigabit Copper to Fiber Media Converter - 10/100/1000 Mbps, RJ45/SC Multimode, -10° to 60°C, 500 m (1640 ft.) - Fiber media converter - 1GbE - over CAT 5/5e/6 - 10Base-T, 100Base-TX, 1000Base-T - RJ-45 / SC multi-mode - up to 500 m - 850 nm - TAA Compliant
Manufacturer	Eaton
MSRP	$431.09
UNSPSC	43201553
Main Specifications
Dimensions & Weight / Depth	10.92 cm
Dimensions & Weight / Height	2.34 cm
Dimensions & Weight / Weight	240 g
Dimensions & Weight / Width	7.38 cm
Header / Brand	Tripp Lite
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Networking / Data Transfer Rate	1 Gbps
Networking / Form Factor	External
Networking / Type	Fiber media converter
Packaged Quantity	1
Service & Support / Type	2-year warranty
Dimensions & Weight
Depth	10.92 cm
Height	2.34 cm
Weight	240 g
Width	7.38 cm
Environmental Parameters
Humidity Range Operating	5 - 95% RH (non-condensing)
Max Operating Temperature	60 °C
Min Operating Temperature	-10 °C
Expansion / Connectivity
Interfaces	1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x Ethernet 1000 - SC multi-mode female x 2
General
Color	Black
Device Type	Fiber media converter
Form Factor	External
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Compliant Standards	RoHS, FCC, LPS, UL, WEEE
Included Accessories	L-shape rack mount brackets, 2 x connector caps
Mounting Kit	Included
TAA Compliant	Yes
Networking
Cabling Type	10Base-T, 100Base-TX, 1000Base-T
Compliant Standards	IEEE 802.3ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Connectivity Technology	Wired
Data Link Protocol	10Mb LAN, 100Mb LAN, 1GbE
Data Transfer Rate	1 Gbps
Features	Auto-uplink (auto MDI/MDI-X), hardened
Max Transfer Distance	500 m
Optical Wave Length	850 nm
Status Indicators	Power, link/activity, status
Power
Power Consumption Operational	1.8 Watt
Power Device	External power adapter
Voltage Required	AC 100-240 V (50/60 Hz)
