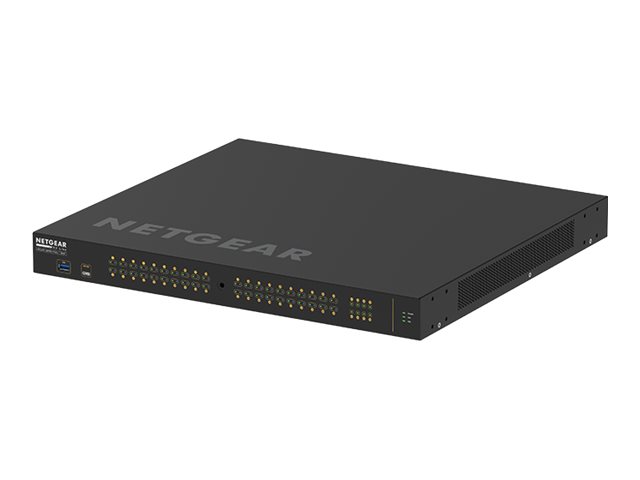

NETGEAR M4250-40G8F-POE+
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NETGEAR M4250-40G8F-POE+
- Switch
- L3
- managed
- 40 x 10/100/1000 (PoE+) + 8 x 1 Gigabit / 10 Gigabit SFP+
- front to back airflow
- rack-mountable
- PoE+ (480 W)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | M4250-40G8F-PoE+ |
| SHI Part #: | 45165848 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Kramer Electronics |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | NETGEAR M4250-40G8F-POE+ - Switch - L3 - managed - 40 x 10/100/1000 (PoE+) + 8 x 1 Gigabit / 10 Gigabit SFP+ - front to back airflow - rack-mountable - PoE+ (480 W) |
| Manufacturer | Kramer Electronics |
| MSRP | $4,930.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 40 cm |
| Dimensions & Weight / Height | 4.32 cm |
| Dimensions & Weight / Weight | 5.85 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | NETGEAR |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 40 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 40 cm |
| Height | 4.32 cm |
| Weight | 5.85 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Capacity | Packet buffer size: 32 MB |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1x, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1v, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ac |
| Device Type | Switch - 40 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Features | LAG, PIM, DHCP server, PTP, AVB, IPTV support, sFlow, RSPAN, auto-sensing per device, LLDP support, dual firmware images, Energy Efficient Ethernet, store and forward, Voice VLAN, 802.1x authentication, TPID, GARP, GVRP, GMRP, MRP, MVRP, MVR, LACP support, full duplex mode, flow control, UDLD, RPVST+, STP loop guard, STP Root Guard, STP BPDU Guard, STP BPDU Filtering, STP BPDU Flooding, IGMP snooping, MLD snooping, MGMD Snooping, IGMP proxy, MLD proxy, ASM, SSM, NDP, BOOTP support, DHCP relay, DNS client, ISDP, LLDP-MED, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DoS protection, MACAL, MAB, Port Security, IP source guard, DHCP snooping, DAI, RA guard, MAC address filtering, DiffServ support, QoS, CoS, WRED, SP, DSCP support, SNTP support, port mirroring, cable test |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 12000 bytes |
| MAC Address Table Size | 16K entries |
| Performance |
|
| PoE Budget | 480 W |
| Ports | 40 x 10/100/1000 (PoE+) + 8 x 1 Gigabit / 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | 1 x ARM ARM8 A57: 1.8 GHz |
| RAM | 2 GB |
| Remote Management Protocol | HTTP, Telnet, SSH, DHCP, CLI, RADIUS, ICMP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, TACACS+, SSH-2, TFTP, HTTPS, SCP, SFTP |
| Routing Protocol | IGMP, STP, MSTP, RSTP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-DMv6, PIM-SM, PIM-SMv6, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIP-1, RIP-2, PIM-SSM |
| Status Indicators | Power, PoE max, fan, port status |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited hardware warranty - limited lifetime warranty |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC 47 CFR Part 15 B Class A, ICES-003 issue 7 Class A, EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN55024, EN 55035, AS/NZS, VCCI, EAC, BSMI |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 624.8 Watt |
| Power Consumption Stand by | 46.4 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
