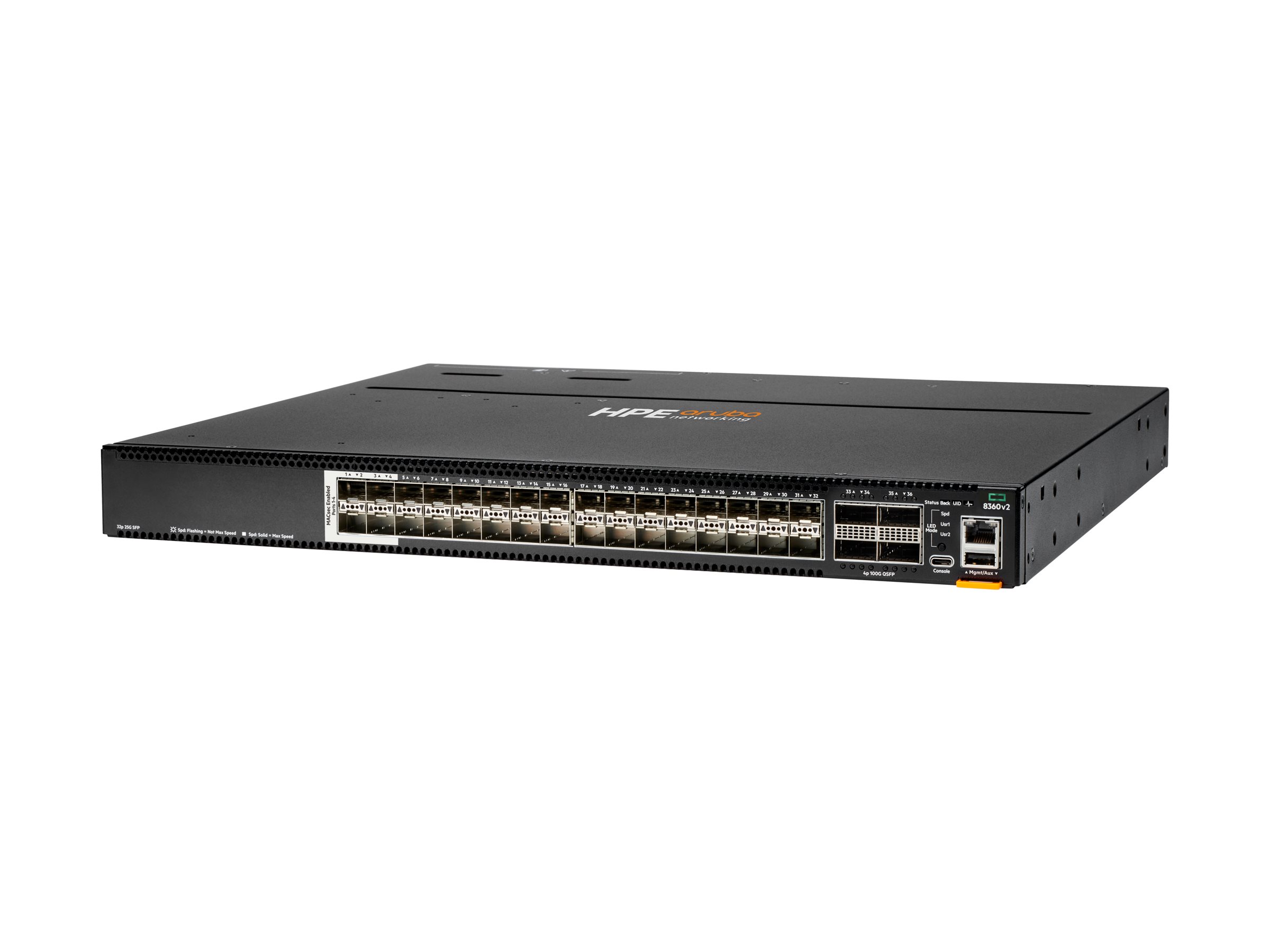

HPE Aruba CX 8360-32Y4C V2

$39,162.00
HPE Aruba CX 8360-32Y4C V2
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 28 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28
  • rack-mountable
HPE Aruba CX 8360-32Y4C V2
  • Switch
  • L3
  • managed
  • 28 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28
  • rack-mountable
  Additional Details
Price: $39,162.00
Mfr Part #: JL717C
SHI Part #: 44669198
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionHPE Aruba CX 8360-32Y4C V2 - Switch - L3 - managed - 28 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP$46,380.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth40.64 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight8.19 kg
Dimensions & Weight / Width44.25 cm
Header / BrandAruba
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty32
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth40.64 cm
Height4.4 cm
Weight8.19 kg
Width44.25 cm
Environmental Parameters
Humidity Range Operating15 - 95% (non-condensing)
Humidity Range Storage15 - 95% (non-condensing)
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 32 x 1/10/25Gbit LAN SFP/SFP+/SFP28
  • 4 x 10/25Gbit LAN SFP28/SFP+ with MACsec
  • 4 x 40/100Gbit LAN QSFP28/QSFP+
  • 1 x serial RJ-45
  • 1 x console Type C
  • 1 x management Type A
General
Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • VLANs supported: 4094
  • IGMP groups: 7000
  • MLD groups: 7000
  • IPv4 routes (Multicast): 7000
  • IPv6 routes (Multicast): 7000
  • IPv4 ACL entries (egress): 8192
  • IPv6 ACL entries (egress): 2048
  • MAC addresses: 212992
  • Host table entries (IPv4): 145780
  • Host table entries (IPv6): 145780
  • IPv4 routes (Unicast): 606977
  • IPv6 routes (Unicast): 630784
  • IPv4 ACL entries (ingress): 65536
  • IPv6 ACL entries (ingress): 16384
  • MAC ACL entries (egress): 8192
  • MAC ACL entries (ingress): 65536
Compliant StandardsIEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s
Device TypeSwitch - 32 ports - L3 - managed
Enclosure TypeRack-mountable 1U
Encryption AlgorithmEAP-TLS
FeaturesRPVST+, VXLAN Distributed Anycast Gateway, VXLAN ARP/ND Suppression, VRF, Loopback, QoS, packet storm protection, DCB, RoCE v2, ECN, VSX, ERPS, UDLD, REST API interface, sFlow, job scheduler framework, dual flash Images, MSTP support, RSTP support, ARP support, IP Directed Broadcast
Flash Memory32 GB
Jumbo Frame Support9KB
PerformanceSwitching capacity: 2.4 Tbps
Ports28 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28
Processor1: 1.8 GHz
RAM16 GB
Remote Management ProtocolCLI, RMON, SNMP, TFTP, SFTP, NTP, DHCP
Routing ProtocolOSPF, static IPv6 routing, static IPv4 routing, IGMP, MLD, BGP-4, BGP, PIM-SM, VRRP, Bidirectional Forwarding Detection (BFD)
Subtype25 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsEN 50581:2012, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 62368-1:2014 Second Edition, cUL No.60950-1 Second Edition, UL 60950-1 Second Edition, CSA 22.2 No. 60950-1, IEC60950-1:2005, Second edition + Am1:2009 + A2:2013, IEC 62368-1: 2014, EN 55024:2010, EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, FCC CFR47 Part 15, ICES-003 Class A, VCCI Class A, CNS 13438, CNS 13438 Class A, FCC Class A certified, CISPR 35, CISPR 32 Class A, CISPR 24
Included AccessoriesRack kit (2 post)
Rack Mounting KitIncluded
Power
Max Supported Qty2
Power DeviceInternal power supply (not installed) - hot-plug
