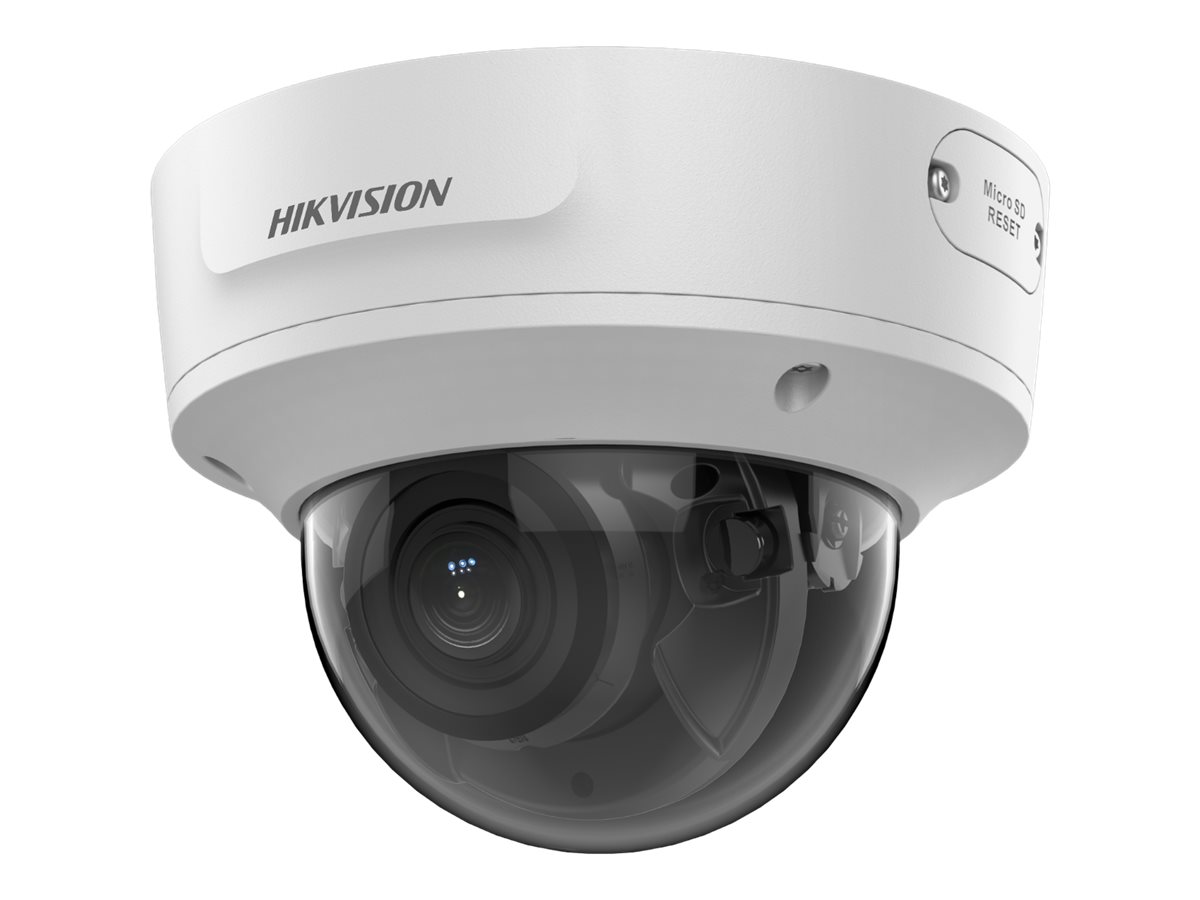

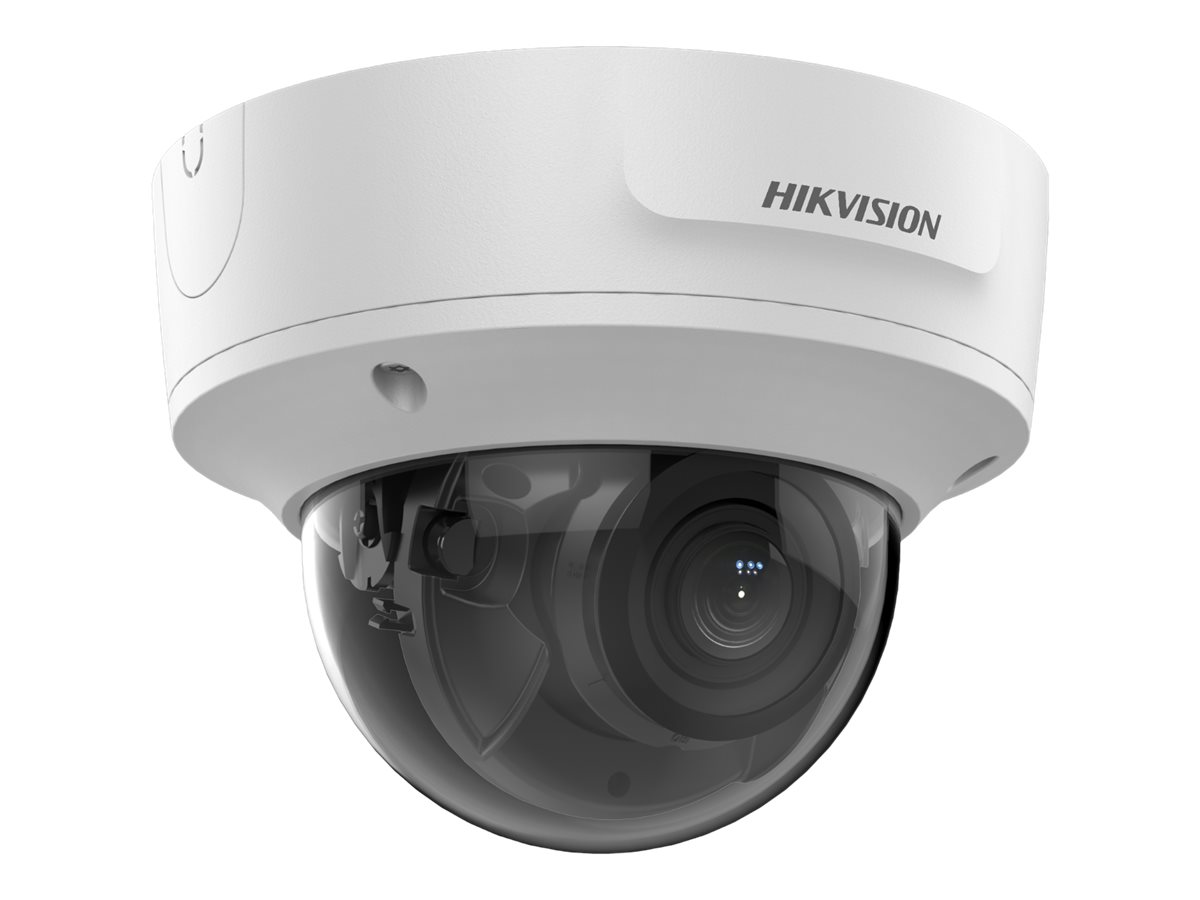

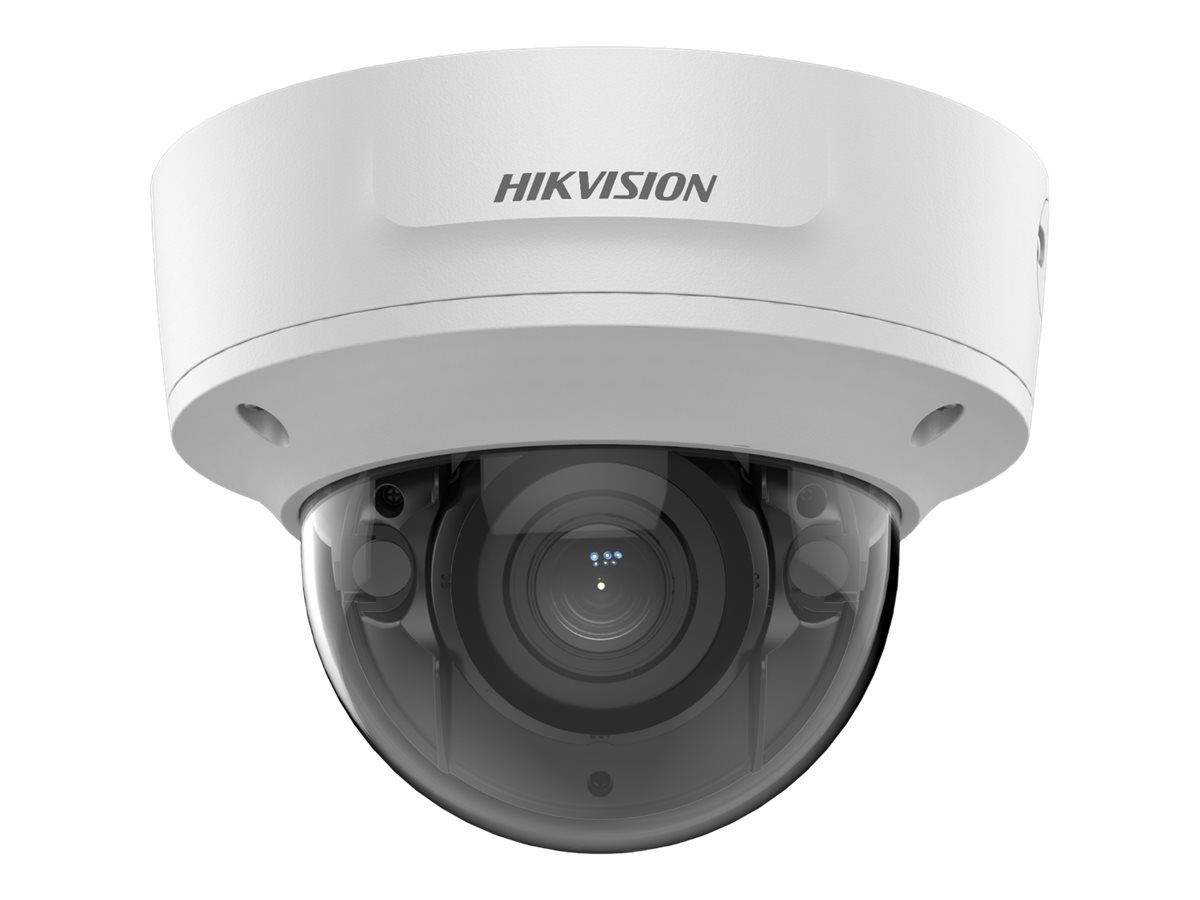

Hikvision Pro Series(EasyIP) DS-2CD2743G2-IZS
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Hikvision Pro Series(EasyIP) DS-2CD2743G2-IZS
- Network surveillance camera
- dome
- dustproof / waterproof / vandal-proof
- color (Day&Night)
- 4 MP
- 2688 x 1520
- 720p, 1080p
- f14 mount
- motorized
- audio
- LAN 10/100
- MJPEG, H.264, H.265, H.265+, H.264+
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Mfr Part #: | DS-2CD2743G2-IZS |
| SHI Part #: | 44402554 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | Hikvision |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hikvision Pro Series(EasyIP) DS-2CD2743G2-IZS - Network surveillance camera - dome - dustproof / waterproof / vandal-proof - color (Day&Night) - 4 MP - 2688 x 1520 - 720p, 1080p - f14 mount - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265, H.265+, H.264+ - DC 12 V / PoE Class 3 |
| Manufacturer | Hikvision |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 15.33 cm |
| Dimensions & Weight / Height | 11.16 cm |
| Dimensions & Weight / Weight | 880 g |
| Dimensions & Weight / Width | 15.33 cm |
| Header / Brand | Hikvision |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
| Exposure Range | 1/3 sec - 1/100000 sec |
| Features | Backlight Compensation (BLC), sharpness control, digital image rotation, white balance, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), face detection, infrared cut filter, Privacy Mask Function, adjustable gain control, Highlight Compensation (HLC), NAS-Ready, tamper-detection, notification picture to E-mail, notification picture to FTP, reset button, password protection, triple video stream, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Line Crossing Detection, EXIR LEDs, heartbeat, anti-flicker, Internet Server Application Programming Interface (ISAPI), DORI coverage, IP address filtering, 3D digital noise reduction (DNR), environment noise filtering, aluminum housing, up to 6 channels simultaneous live view, Automatic Network Replenishment (ANR), Scalable Video Coding (SVC) |
| Infrared Distance | 40 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2688 x 1520 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - dustproof / waterproof / vandal-proof |
| Video Capture |
|
| Video Modes | 720p, 1080p |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 17.4 cm |
| Shipping Height | 17.3 cm |
| Shipping Weight | 1.419 kg |
| Shipping Width | 24.4 cm |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | AAC, PCM, G.726, MP3, G.722.1, MP2L2, G.711a, G.711u |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 15.33 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 11.16 cm |
| Weight | 880 g |
| Width | 15.33 cm |
| Image Sensor | |
| Type | 4 MP PS CMOS 1/3" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, PPPoE, SMB, IGMP, SSL, QOS, CIFS, NFS, ISAPI |
| Lens Construction | |
| Diagonal Field of View (degree) | 33.4 - 114.6 |
| Focal Length | 2.7 mm - 13.5 mm |
| Horizontal Field of View (degree) | 29.2 - 95.8 |
| Lens Iris | F/1.5 |
| Optical Zoom | 5 x |
| Type | F14 mount - motorized zoom |
| Vertical Field of View (degree) | 16.4 - 50.6 |
| Miscellaneous | |
| Compliant Standards | UL, CB, EMC, IC, UL 60950-1, FCC CFR47 Part 15 B, REACH, IP67, IK10, LVD, KC, RCM, RoHS 2011/65/EU, BIS, EN 61000-3-3:2013, Regulation EC 1907/2006, TLS v1.2, TLS v1.1, WEEE 2012/19/EU, EN 61000-3-2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55032:2015, IEEE 802.3af, IS13252-1 (2010)/A1:2013/A2:2015, IEEE 802.1x, AS/NZS CISPR 32:2015, EN 50130-4:2011+A1:2014, KN32:2015, KN35:2015, IEC 60529:2013, IEC 62262:2002, EN 60950-1:2005+Am1:2009+Am 2:2013, ICES-003 issue 6:2016 |
| Panning | |
| Range (degree) | 0 to 355 |
| Power | |
| Power Device | 10.5 Watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 75 |
