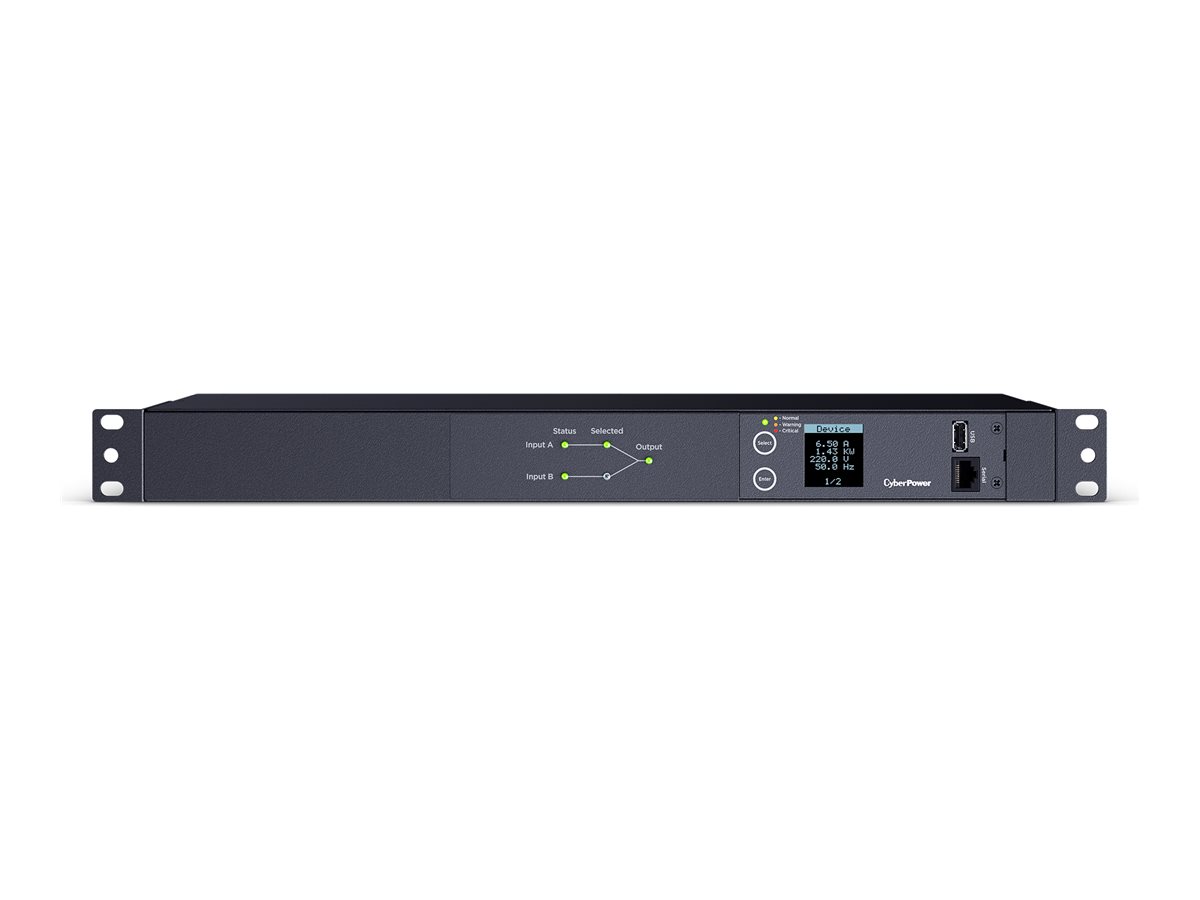

CyberPower Metered ATS Series PDU24004
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
CyberPower Metered ATS Series PDU24004
- Power distribution unit (rack-mountable)
- AC 200-240 V
- 1-phase
- serial
- input: 2 x IEC 60320 C14
- output connectors: 12 (12 x IEC 60320 C13)
- 1U
- 3.05 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PDU24004 |
| SHI Part #: | 44392255 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | CyberPower |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CyberPower Metered ATS Series PDU24004 - Power distribution unit (rack-mountable) - AC 200-240 V - 1-phase - serial - input: 2 x IEC 60320 C14 - output connectors: 12 (12 x IEC 60320 C13) - 1U - 3.05 m cord - black |
| Manufacturer | CyberPower |
| MSRP | $731.44 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 21.5 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 3.5 kg |
| Dimensions & Weight / Width | 43.3 cm |
| Header / Brand | Cyberpower |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Serial |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 12 |
| Power Device / Voltage Required | AC 200-240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 21.5 cm |
| Height | 4.4 cm |
| Weight | 3.5 kg |
| Width | 43.3 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 39.8 cm |
| Shipping Height | 12.5 cm |
| Shipping Weight | 5.7 kg |
| Shipping Width | 55 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3.05 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class A certified, UL 62368, EN 55032 Class A, IEC 62368, RoHS |
| Features | LCD display, Automatic Transfer Switch (ATS), firmware upgradable |
| Included Accessories | Cord retention tray, rack mount brackets, screws, cable ties |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Serial |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x 2 x power IEC 60320 C14 |
| Input Voltage | AC 200-240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 12 A |
| Power Output Connectors Details | 12 x power IEC 60320 C13 |
