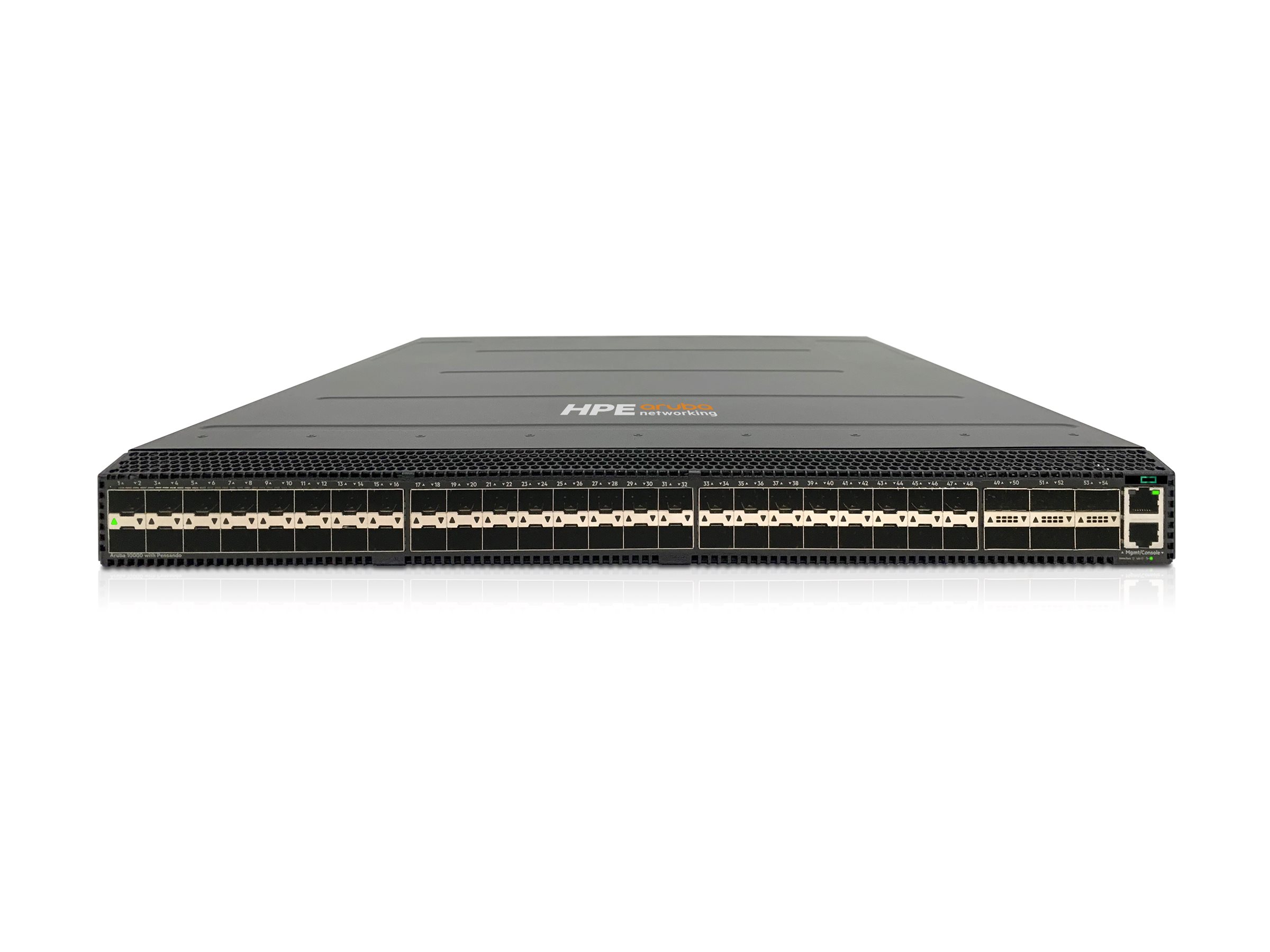

HPE Aruba CX 10000-48Y6C

$80,682.00
HPE Aruba CX 10000-48Y6C
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 48 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 6 x 40/100 Gigabit QSFP+ / QSFP28
  • front to back airflow
HPE Aruba CX 10000-48Y6C
  • Switch
  • L3
  • managed
  • 48 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 6 x 40/100 Gigabit QSFP+ / QSFP28
  • front to back airflow
  • rack-mountable
  Additional Details
Price: $80,682.00
Mfr Part #: R8P13A#ABA
SHI Part #: 44279258
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

CPU-Fans

HPE Aruba - Fan unit
HPE Aruba - Fan unit
  • front-to-back airflow
  • for P/N: R8P13A, R8P13A#ABA, R8P13A#ABB, R8P13A#ACC, R8P13A#ACD
$1,144.00
HPE Aruba Back to Front
HPE Aruba Back to Front
  • Fan unit
  • for P/N: R8P14A, R8P14A#ABB, R8P14A#ACC, R8P14A#ACD
$1,144.00

Network Cables

HPE Aruba Direct Attach Copper Cable
HPE Aruba Direct Attach Copper Cable
  • 10GBase direct attach cable
  • SFP+ (M) to SFP+ (M)
  • 3 m
  • twinaxial
  • passive
  • for HPE Aruba 2540 48, 2930F 24, 2930M 24, 6200F 12, 6200M 24, 83XX; CX 10000, 6405 v2, 8360
$348.00
HPE Aruba - 1000Base direct attach cable
HPE Aruba - 1000Base direct attach cable
  • QSFP28 to QSFP28
  • 1 m
  • for HPE Aruba 8325-32C, 8325-48Y8C; CX 10000 Empty Chassis, 8360-12C V2, 8360-16Y2C V2
$681.00
HPE Aruba Direct Attach Copper Cable
HPE Aruba Direct Attach Copper Cable
  • 25GBase direct attach cable
  • SFP28 to SFP28
  • 3 m
  • for HPE Aruba 8325-48Y8C
$541.00
General Information
CategoryNetwork switches
DescriptionHPE Aruba CX 10000-48Y6C - Switch - L3 - managed - 48 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 6 x 40/100 Gigabit QSFP+ / QSFP28 - front to back airflow - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP$95,106.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth51.1 cm
Dimensions & Weight / Height4.44 cm
Dimensions & Weight / Weight9.75 kg
Dimensions & Weight / Width43.82 cm
Header / BrandAruba
Header / Country KitsUnited States
Header / LocalizationEnglish
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty48
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type1-year warranty
Dimensions & Weight
Depth51.1 cm
Height4.44 cm
Weight9.75 kg
Width43.82 cm
Environmental Parameters
Humidity Range Operating10 - 85% (non-condensing)
Humidity Range Storage5 - 95%
Max Operating Temperature40 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 1 x serial RJ-45
  • 1 x console (USB)
  • 1 x console (micro-USB)
  • 1 x LAN RJ-45 management
General
Built-in Devices64 GB SSD
Capacity
  • IPv4 hosts: 120000
  • IPv6 hosts: 52000
  • IPv4 unicast direct routes: 131072
  • IPv6 unicast direct routes: 32732
  • IGMP groups: 4094
  • MLD groups: 4094
  • IPv4 routes (Multicast): 4094
  • IPv6 routes (Multicast): 4094
Device TypeSwitch - 48 ports - L3 - managed
Enclosure TypeFront to back airflow rack-mountable 1U
FeaturesREST API interface
Flash Memory64 MB
MAC Address Table Size98K entries
Performance
  • Switching capacity: 3.6 Tbps
  • Latency: < 1.30 µs
Ports48 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 6 x 40/100 Gigabit QSFP+ / QSFP28
RAM32 GB
Remote Management ProtocolCLI, SNMP
Routing ProtocolStatic IPv6 routing, static IPv4 routing, RIP-2, RIPng, OSPF, OSPFv3, BGP-4, ECMP, GRE, policy-based routing (PBR), Multiprotocol BGP
Subtype25 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
Included Accessories6 x fans
LocalizationEnglish / United States
Rack Mounting KitOptional
Power
Installed Qty2
Max Supported Qty2
Power DeviceInternal power supply - hot-plug
Power Provided550 Watt
Voltage Required(50 - 60 Hz)
