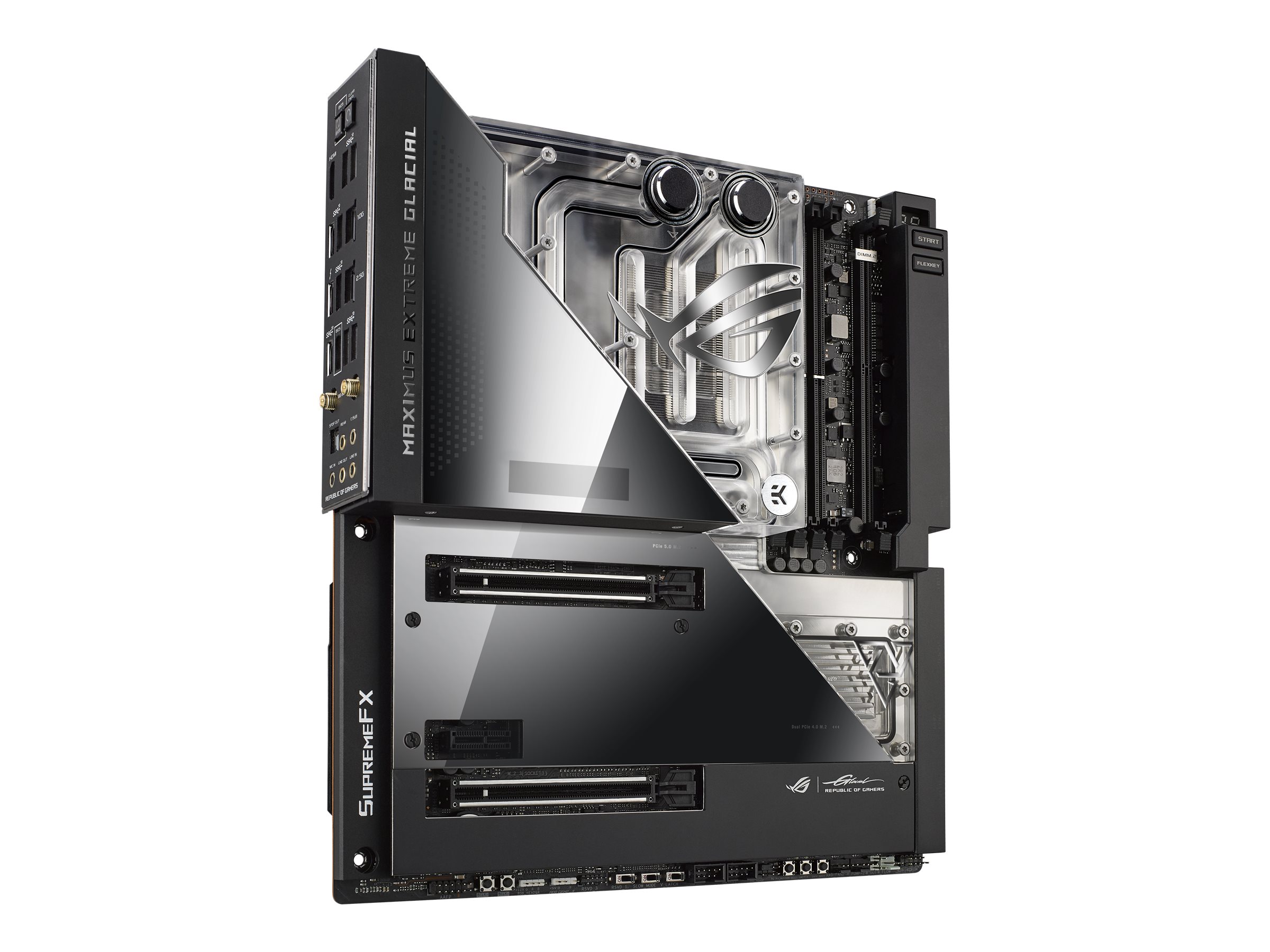

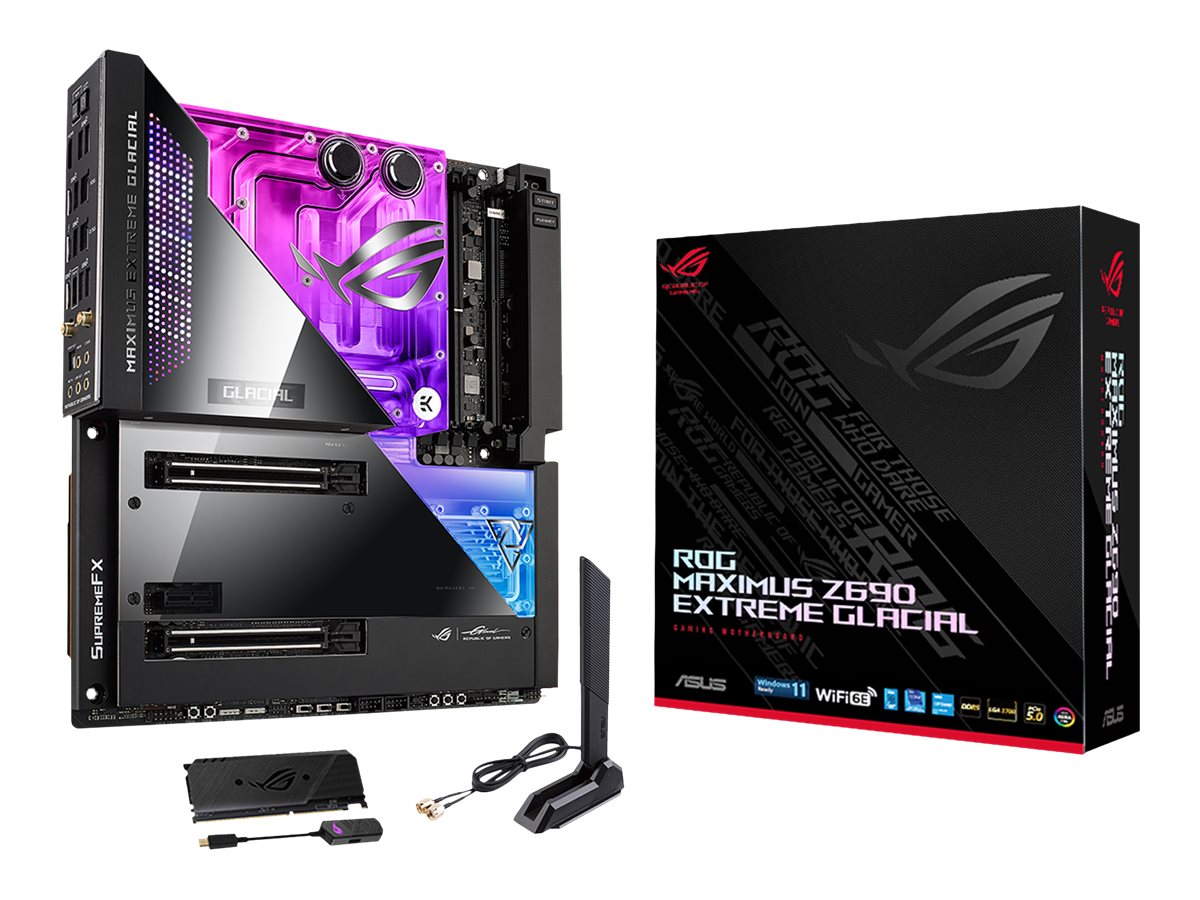

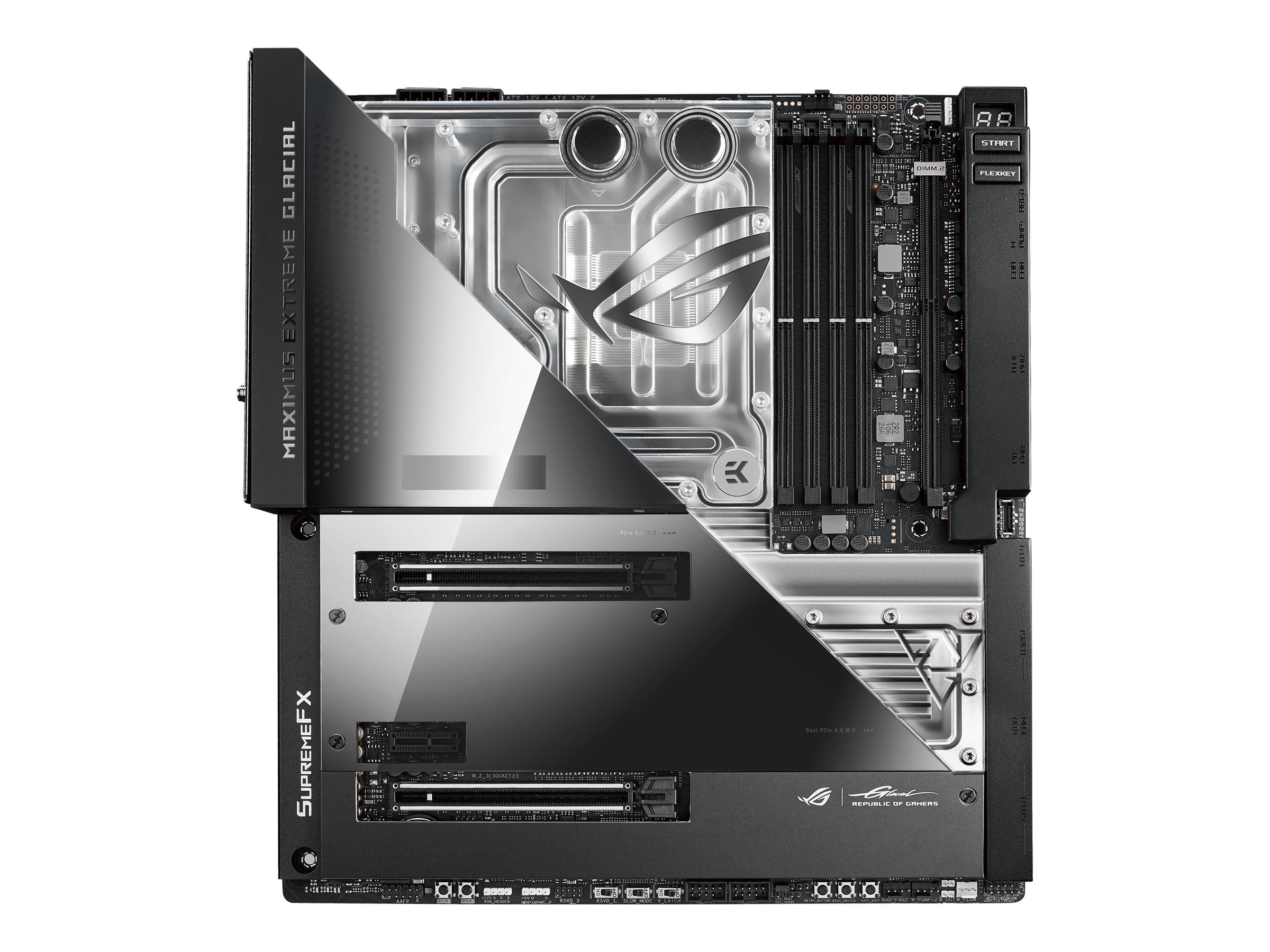

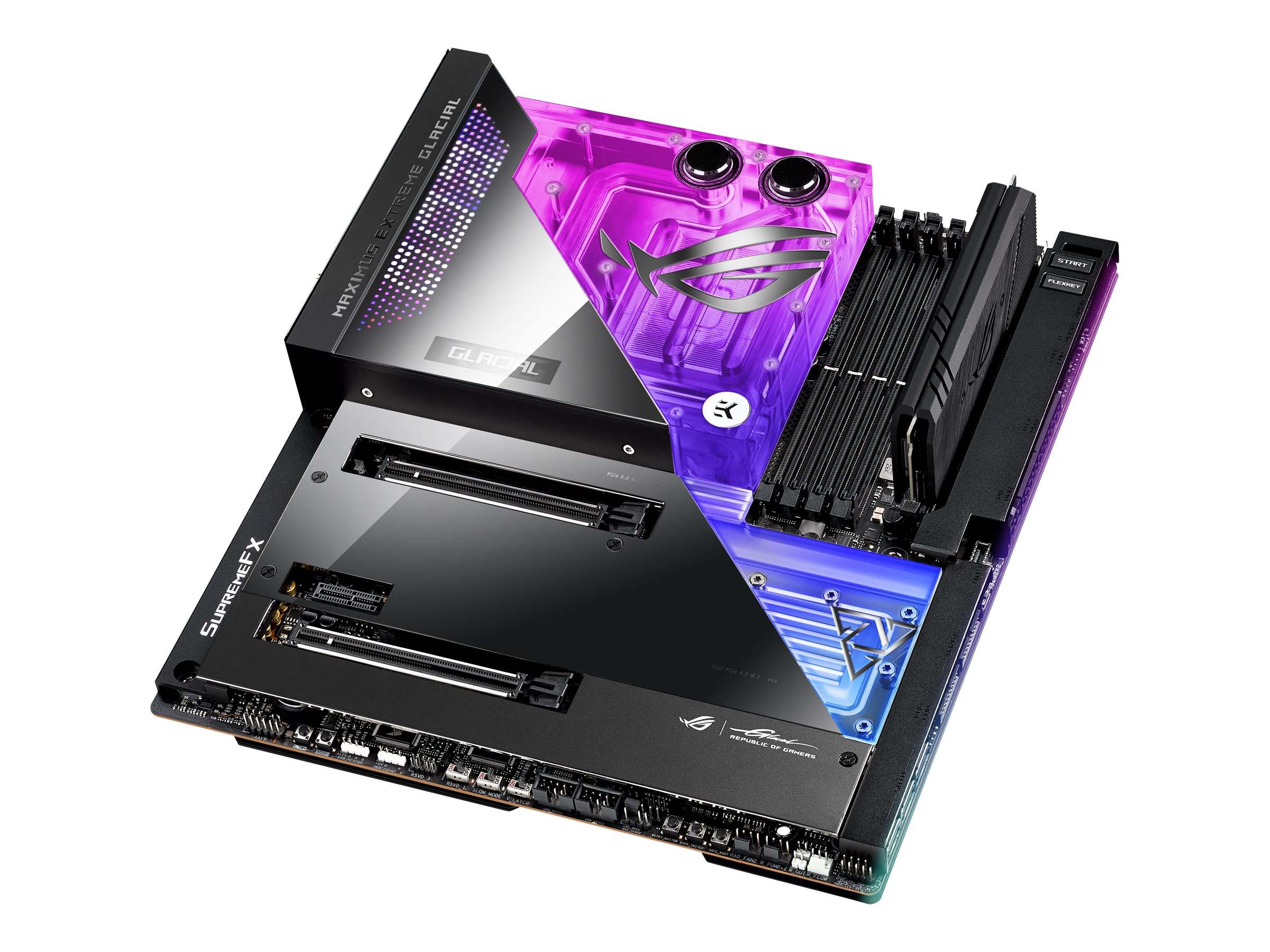

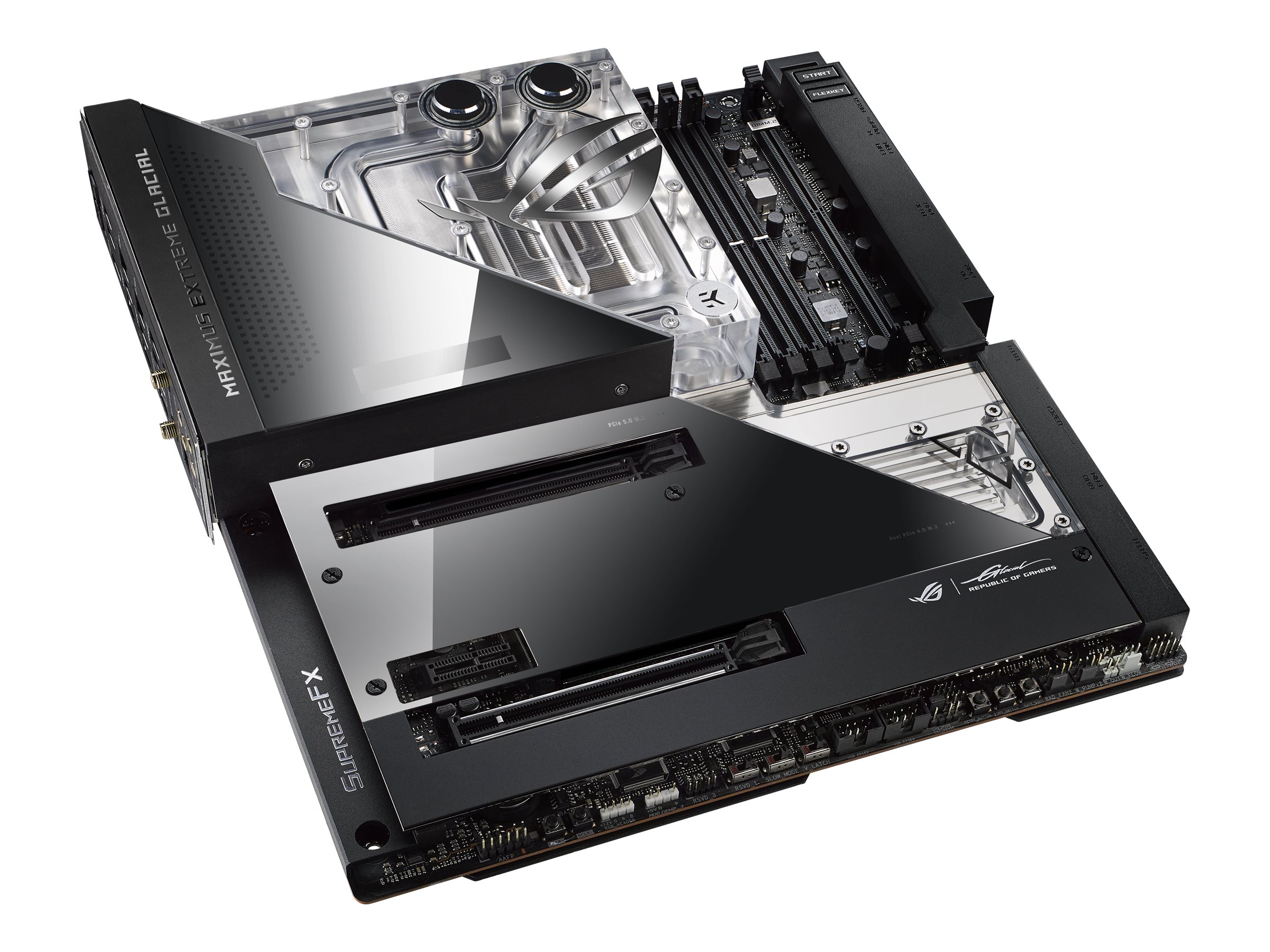

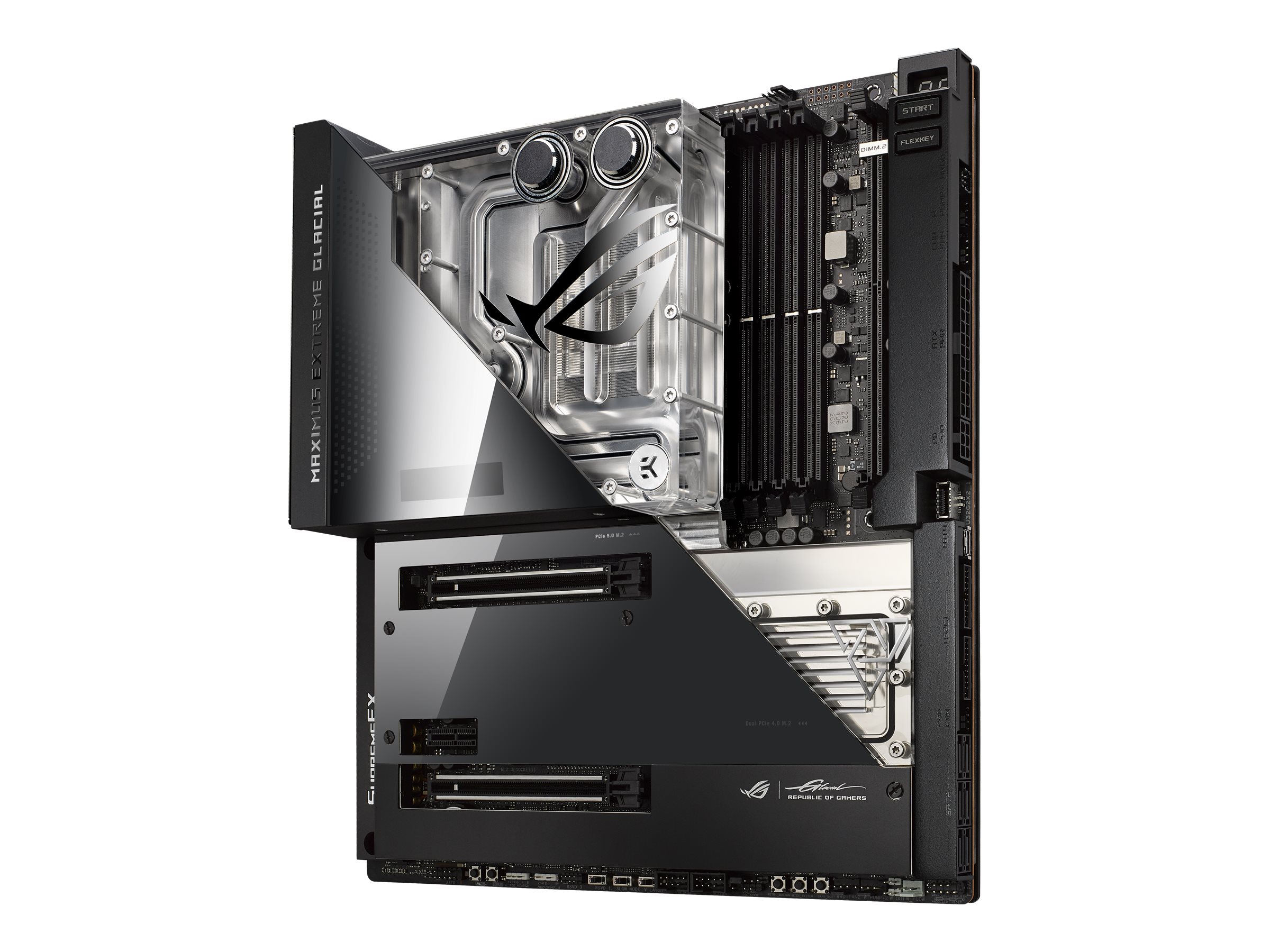

ASUS ROG MAXIMUS Z690 EXTREME GLACIAL

$3,259.00
ASUS ROG MAXIMUS Z690 EXTREME GLACIAL
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • extended ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB-C Gen2, USB 3.2 Gen 2, USB4, USB-C Gen 2x2, USB 3.2 Gen 1
ASUS ROG MAXIMUS Z690 EXTREME GLACIAL
  • Motherboard
  • extended ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB-C Gen2, USB 3.2 Gen 2, USB4, USB-C Gen 2x2, USB 3.2 Gen 1
  • 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $3,259.00
Mfr Part #: ROG MAXIMUS Z690 EXTREME GLACIAL
SHI Part #: 44187723
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG MAXIMUS Z690 EXTREME GLACIAL - Motherboard - extended ATX - LGA1700 Socket - Z690 Chipset - USB-C Gen2, USB 3.2 Gen 2, USB4, USB-C Gen 2x2, USB 3.2 Gen 1 - 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth27.7 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel Z690
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 10 Gigabit Ethernet
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.2
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX (ALC4082)
Compliant StandardsHigh Definition Audio, DTS Sound Unbound
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode)
  • 1 x PCIe 3.0 x1

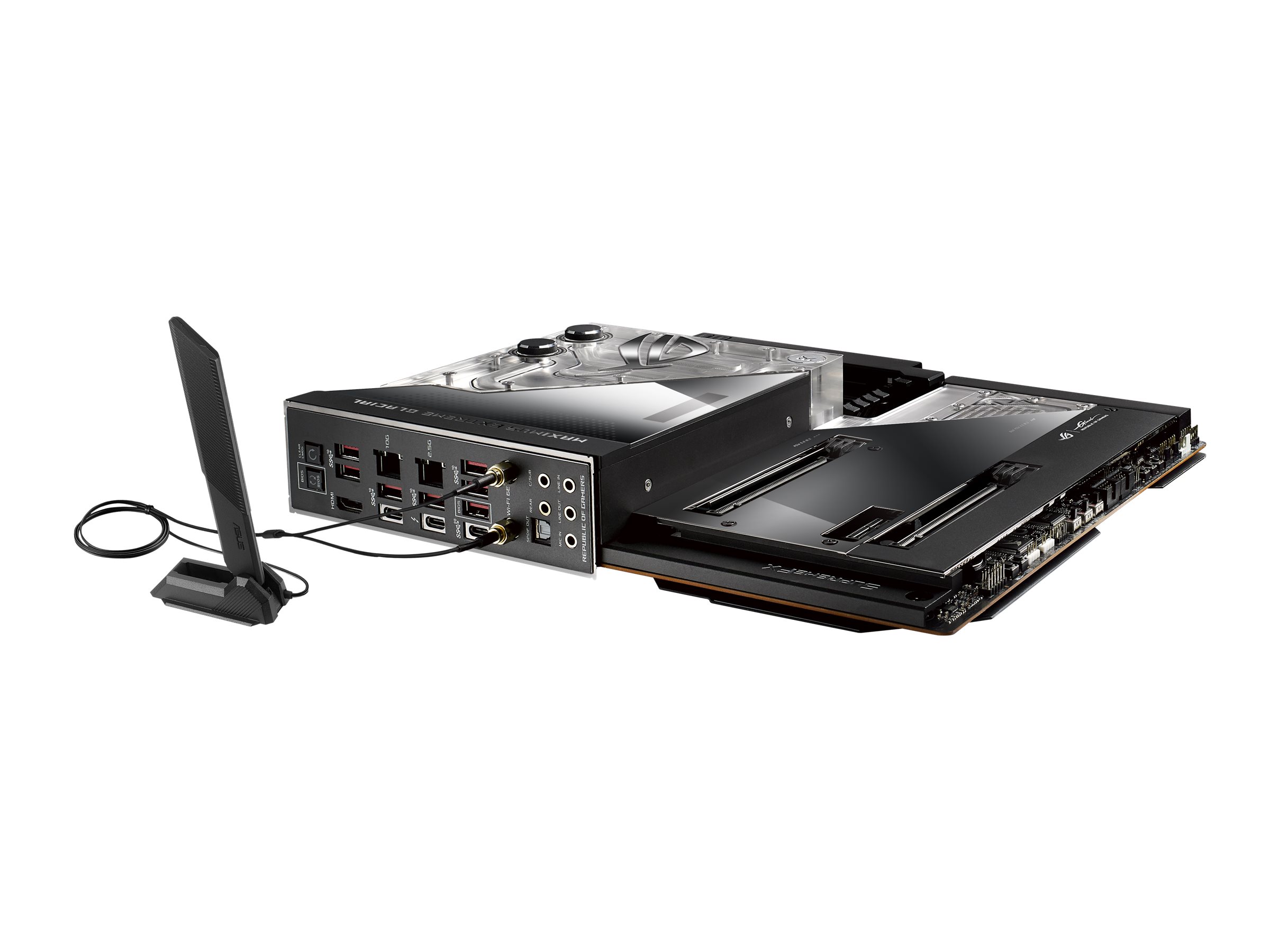

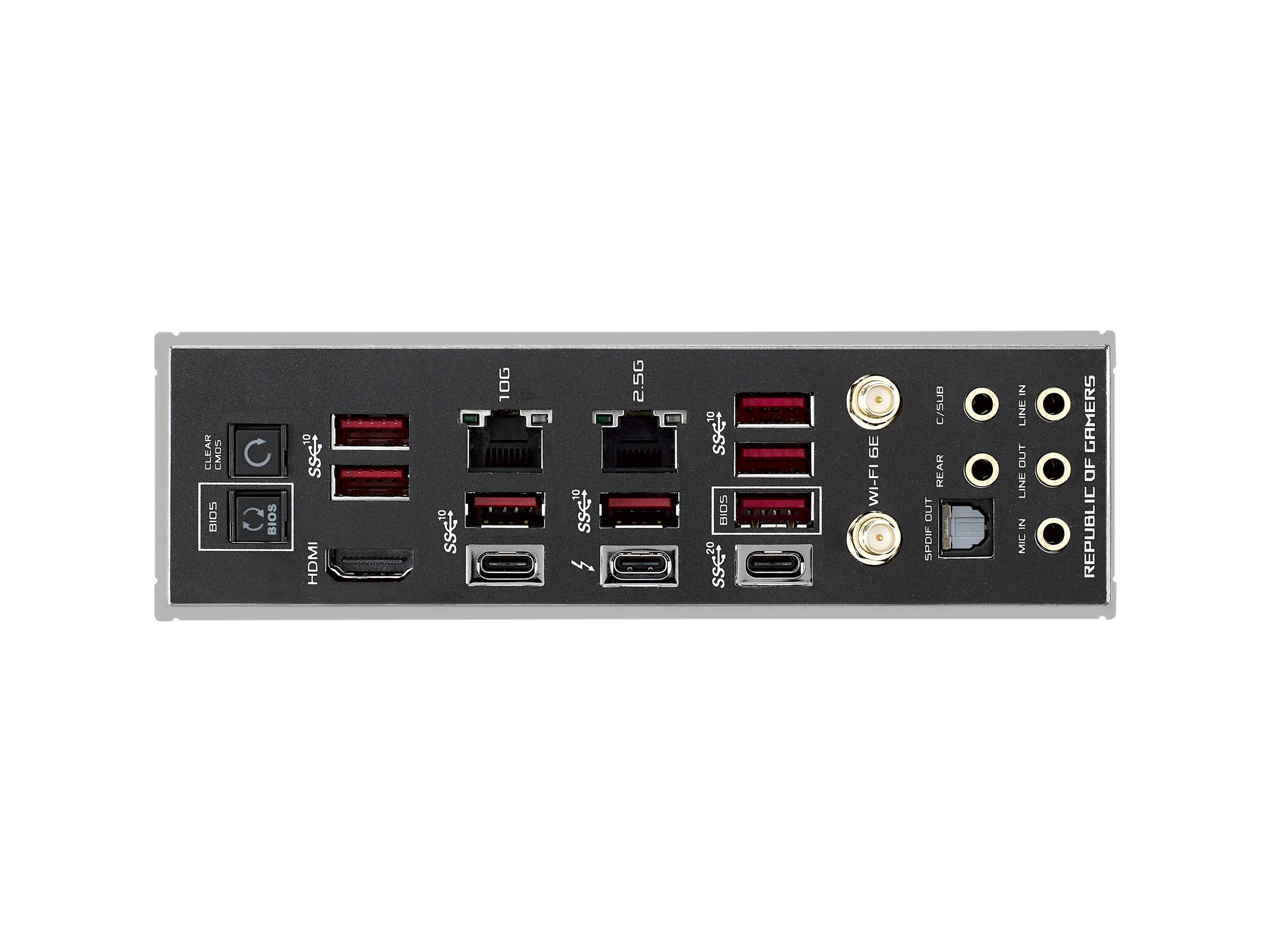

Interfaces
  • 1 x Thunderbolt 4/USB4
  • 1 x HDMI
  • 7 x USB 3.2 Gen 2
  • 1 x USB-C Gen2
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x TOSLINK
  • 1 x LAN (10Gigabit Ethernet)
  • 1 x USB-C Gen2x2
  • 1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces
  • 4 x USB 2.0 - header
  • 1 x USB-C Gen 2x2 - header
  • 4 x USB 3.2 Gen 1 - header
  • 1 x Thunderbolt 4 - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin ATX12V connector
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
  • SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
  • SATA-600 -connectors: 2 x 7pin Serial ATA
  • PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, BIOS FlashBack, MemTest86, Dual BIOS
BIOS TypeAMI
Hardware FeaturesIntel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem III, LANGuard, audio jack detect technology, jack retasking, ESS SABRE9018Q2C DAC/AMP, FlexKey button, Start button, ReTry button, Safe boot button, ASUS Extreme Engine Digi+, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-Code, ASUS Q-Connector, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, ASUS EZ DIY, Clear CMOS Button, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, SafeDIMM, ASUS Aura Sync, CPU Socket lever protector, Quick Charge 4+, ASUS HYDRANODE, ASUS 2" LiveDash OLED, GameFirst VI, Sonic Radar III, Sonic Studio III, Armoury Crate, ASUS Fan Xpert 4, ASUS TPU (TurboV Processing Unit), ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, ASUS DIGI+ Power Control, AniMe Matrix LED display, 24+1 power stages, DIY Friendly Design, Preboot eXecution Environment (PXE), EK Ultrablock
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel Z690
Compatible Processors(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - extended ATX
LAN
Network Interfaces10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Miscellaneous
Cables Included7 x Serial ATA cable
Depth27.7 cm

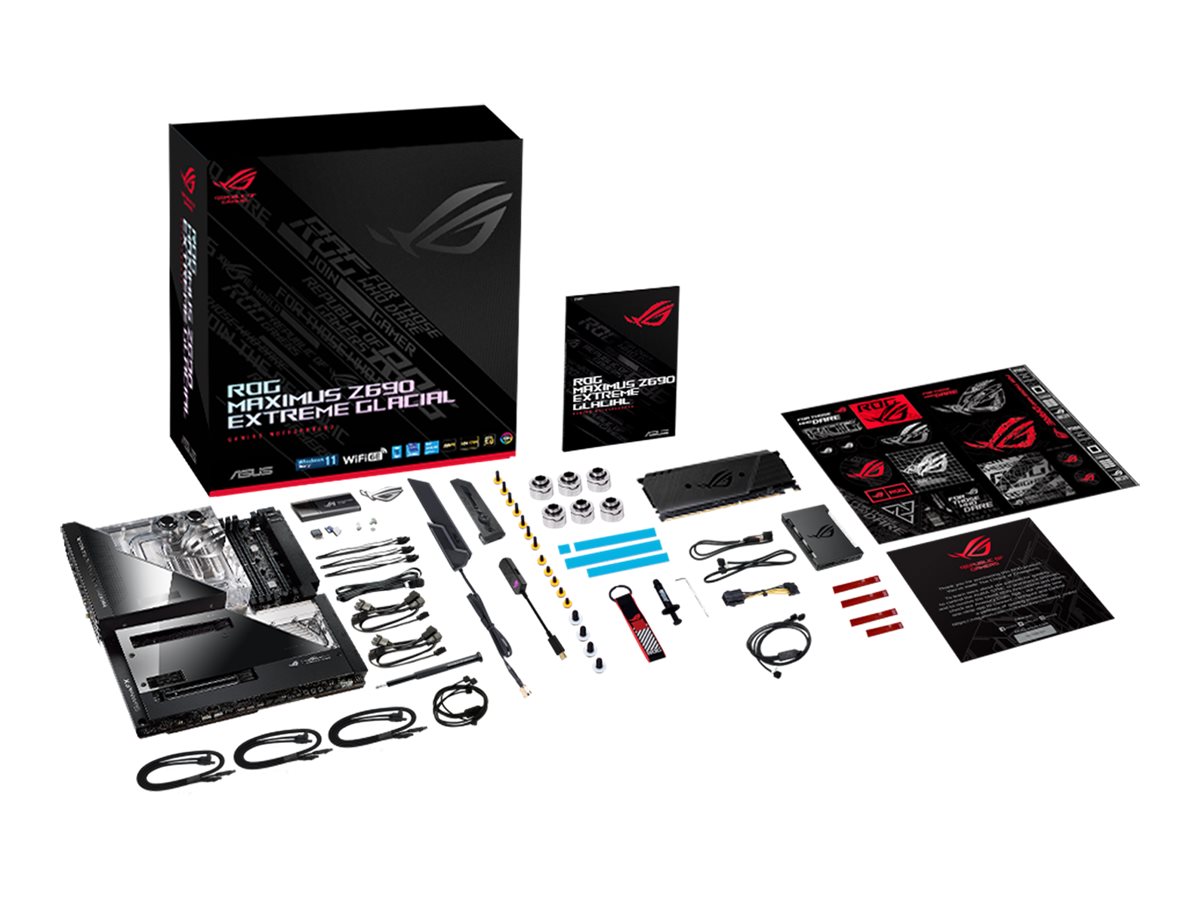

Included Accessories1 to 3 ARGB LED splitter cable, 1 to 2 ARGB LED splitter cable, 2 x 1 to 4 fan splitter cable, RGB (RGBW) LED strip extension cable, 3 in 1 thermistor cables pack, ROG Fan Controller, ROG DIMM.2 expansion card with heatsink, ROG True Voltician, ASUS Wi-Fi moving antenna, 1 x M.2 screw, Q-Connector, ROG CLAVIS DAC, ROG VGA holder, ROG key chain, ROG fan stickers, screwdriver, ROG thank you card, thermal pad for M.2 SSD
Software IncludedDrivers & utilities, ROG GameFirst VI, ROG CPU-Z, Sonic Studio Virtual Mixer, Sonic Suite Companion, BullGuard Internet Security (1 year license), AIDA64 Extreme (1 year license), ASUS AURA Creator, ASUS AI Suite III, ASUS Turbo App, WinRAR, MyAsus, ROG True Voltician
Width30.5 cm
Supported RAM
Bus Clock4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)
FeaturesDual channel memory architecture
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR5
