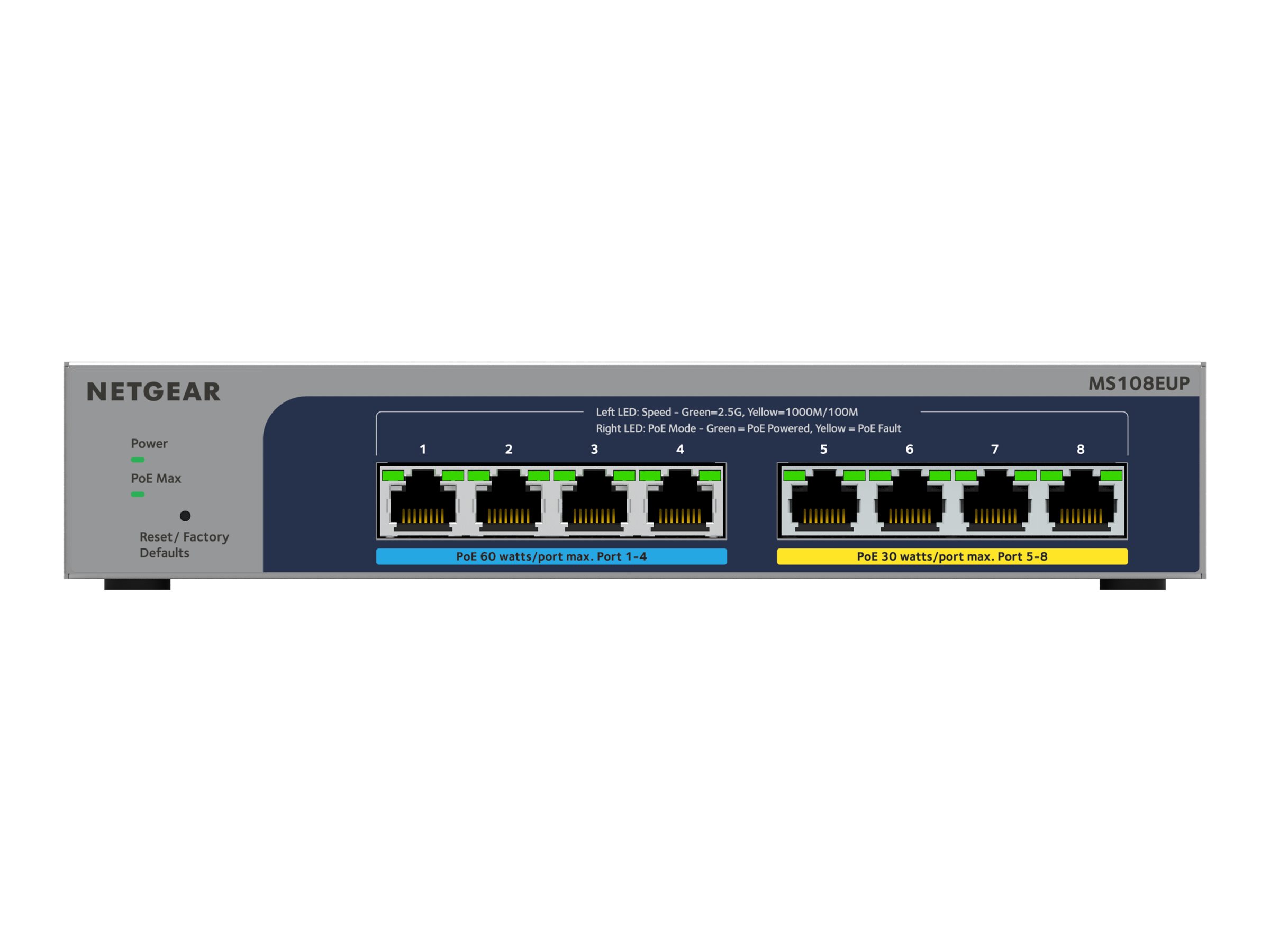

NETGEAR Plus MS108EUP
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NETGEAR Plus MS108EUP
- Switch
- managed
- 4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5G (PoE+)
- desktop, wall-mountable
- PoE++ (230 W)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MS108EUP-100NAS |
| SHI Part #: | 44178269 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | NETGEAR |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | NETGEAR Plus MS108EUP - Switch - managed - 4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5G (PoE+) - desktop, wall-mountable - PoE++ (230 W) |
| Manufacturer | NETGEAR |
| MSRP | $479.28 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 14 cm |
| Dimensions & Weight / Height | 4 cm |
| Dimensions & Weight / Weight | 900 g |
| Dimensions & Weight / Width | 21 cm |
| Header / Brand | NETGEAR |
| Miscellaneous / Product Color |
|
| Networking / Form Factor |
|
| Networking / Ports Qty | 8 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 14 cm |
| Height | 4 cm |
| Weight | 900 g |
| Width | 21 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Capacity |
|
| Compliant Standards | IEEE 802.1x, IEEE 802.1p, IEEE 802.3az, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, UPnP, IEEE 802.3bt |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Desktop, wall-mountable |
| Features | QoS, IGMP snooping, DoS attack prevention, loopback detection, port mirroring, fanless, auto-uplink (auto MDI/MDI-X), store and forward, EEE, WRR, VLAN support, VLAN Tagging, port-based VLAN, Link Aggregation, port trunking, block unknown multicast, DHCP client, DSCP support, metal housing |
| Jumbo Frame Support | 12000 bytes |
| MAC Address Table Size | 16K entries |
| Performance | Bandwidth: 40 Gbps |
| PoE Budget | 230 W |
| Ports | 4 x 100/1000/2.5G (PoE++) + 4 x 100/1000/2.5G (PoE+) |
| Power Over Ethernet (PoE) | PoE++ |
| Remote Management Protocol | DHCP |
| Routing Protocol | IGMP, IGMPv2, IGMPv3 |
| Status Indicators | Link/activity/speed, PoE, power, system, PoE max |
| Subtype | 2.5 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 Class B, EN 55032, EN55024, VCCI, ACMA, CSA, KC, BSMI |
| Included Accessories | Wall mounting kit, rubber feet |
| MTBF | 373,644 hours |
| Power | |
| Power Device | External power adapter |
