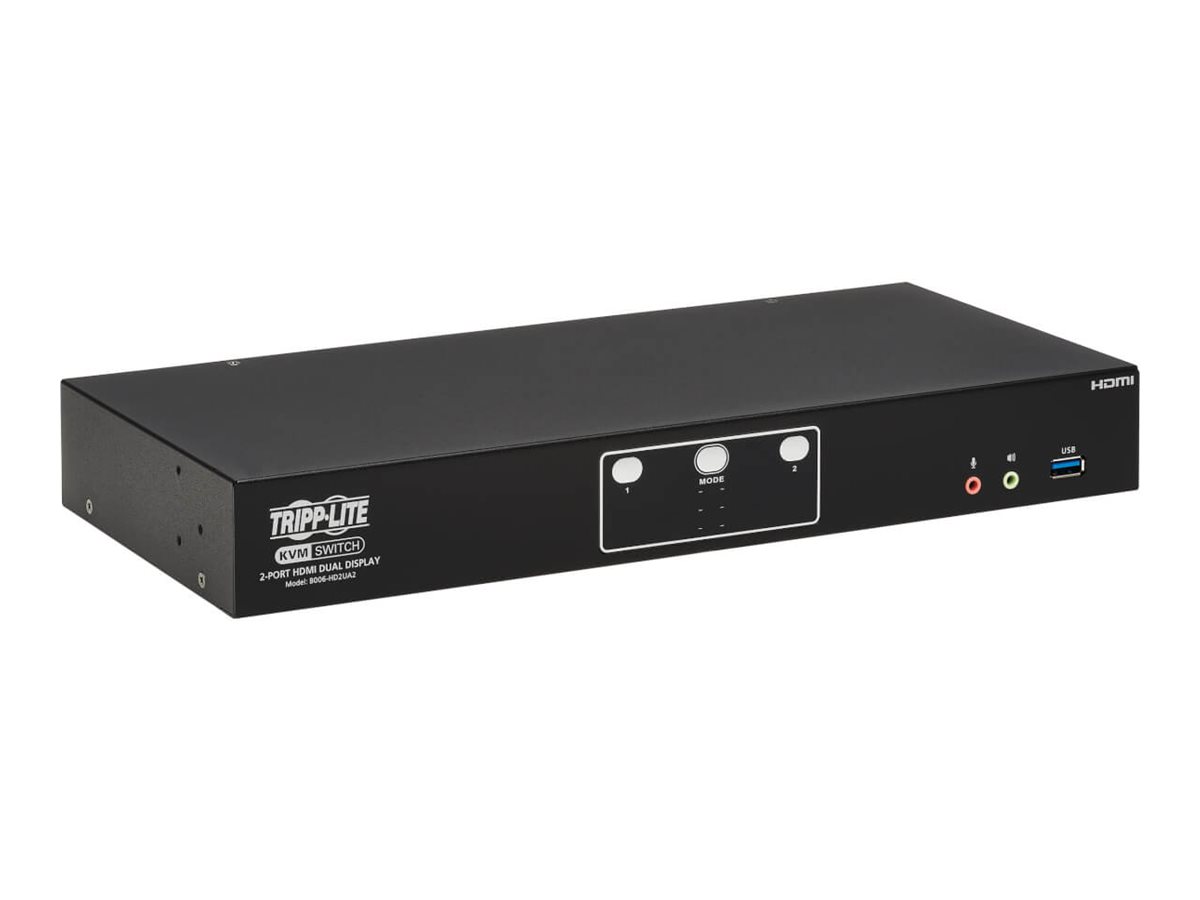

Eaton Tripp Lite series 2-Port HDMI Dual-Display KVM Switch

$766.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
4K 60 Hz, USB 3.2 Gen 1, HDCP 2.2, USB Sharing KVM / audio / USB switch 4 x KVM / audio / USB 1 local user desktop

Eaton Tripp Lite series 2-Port HDMI Dual-Display KVM Switch

4K 60 Hz, USB 3.2 Gen 1, HDCP 2.2, USB Sharing
KVM / audio / USB switch
4 x KVM / audio / USB
1 local user
desktop

Additional Details
Price:	$766.00
Mfr Part #:	B006-HD2UA2
SHI Part #:	44125982
Category:	Peripheral switch boxes
UNSPSC:	43211604
Manufacturer:	Eaton
Product Type:	Hardware

Connects Two Computers to Two 4K Monitors and a Single Keyboard/Mouse

This dual-monitor KVM switch lets you access, control, boot and reboot two computers or other devices with HDMI ports and switch back and forth between them. It's ideal for work-from-home applications in which you'd like to share two monitors between your home and work computers. Both computers share two HDMI 4K monitors and one USB keyboard/mouse, which saves space on your desk or workspace.

Switching Between Computers Is Fast and Easy

Use the front-panel push buttons, hotkey commands, mouse movement, RS-232 commands or the included remote port selector for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected.

Transmits Crystal-Clear 4K Video with Digital Audio

The B006-HD2UA2 supports video resolutions up to 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz) on two HDMI monitors, as well as 2.1-channel surround sound for music, movies and games. Independent audio switching lets you listen to music or a podcast on one computer, while simultaneously working on a second computer. Front-panel audio jacks have priority over the rear-panel jacks. A DCC (Daisy Chain Control) port lets you connect two B006-HD2UA2 KVM switches for a quad-display installation.

USB Hub Lets You Share Peripherals between Computers

Two USB 3.2 Gen 1 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. This lets you avoid the expense and clutter of separate USB hubs. The USB-A ports support data transfer speeds up to 5 Gbps and are backward compatible with previous USB generations.

Designed for Convenient Mounting

The heavy-duty metal housing can be placed on a desktop or other level surface that can safely support the weight of the KVM switch and attached cables. The included DC power supply connects to any standard AC power source.

General Information
Category	Peripheral switch boxes
Description	Eaton Tripp Lite series 2-Port HDMI Dual-Display KVM Switch - 4K 60 Hz, USB 3.2 Gen 1, HDCP 2.2, USB Sharing - KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop
Manufacturer	Eaton
MSRP	$1,119.04
UNSPSC	43211604
Main Specifications
Dimensions & Weight / Depth	15.4 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	1.6 kg
Dimensions & Weight / Width	33.5 cm
Header / Brand	Tripp Lite
Miscellaneous / Product Color	Black
Networking / Form Factor	Desktop
Networking / Ports Qty	4
Networking / Type	KVM / audio / USB switch
Packaged Quantity	1
Service & Support / Type	3-year warranty
System Requirements / OS Required	Apple MacOS X 10.0 or later Linux Kernel 4.15 or later Microsoft Windows 7 / 10
Dimensions & Weight
Depth	15.4 cm
Height	4.4 cm
Weight	1.6 kg
Width	33.5 cm
Environmental Parameters
Humidity Range Operating	0 - 80% RH (non-condensing)
Max Operating Temperature	40 °C
Max Storage Temperature	60 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-20 °C
Expansion / Connectivity
Interfaces	6 x HDMI input 2 x keyboard (USB) / mouse (USB) Type B 8 x audio input mini-jack 4 x keyboard (USB) / mouse (USB) Type A 1 x 10/100/1000 Base-T RJ-45
General
Device Type	KVM / audio / USB switch - 4 ports
Enclosure Type	Desktop
Features	Pushbutton/Hotkey switching, 4K resolution support, 2.1 channel audio support
Keyboard / Mouse Interface	USB
KVM Local Users Qty	1 local user
Max Resolution	4096 x 2160 @ 60 Hz
Ports	4 x KVM / audio / USB
Status Indicators	KVM, audio, USB
Subtype	KVM
Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Miscellaneous
Cables Included	1 x power cable - 1.2 m
Color	Black
Compliant Standards	RoHS, REACH, NOM, BSMI, CCC, China RoHS, DOE, FCC, GS, PSE Mark, RCM, TUV, UL, WEEE, cUL, HDCP 2.2
Included Accessories	Remote port selector switch, 4 rubber pads
Power
Power Device	External power adapter
Power Provided	12 V - 1.2 A
Voltage Required	AC 100-240 V (50/60 Hz)
Software / System Requirements
OS Required	Microsoft Windows 7 / 10, Apple MacOS X 10.0 or later, Linux Kernel 4.15 or later
