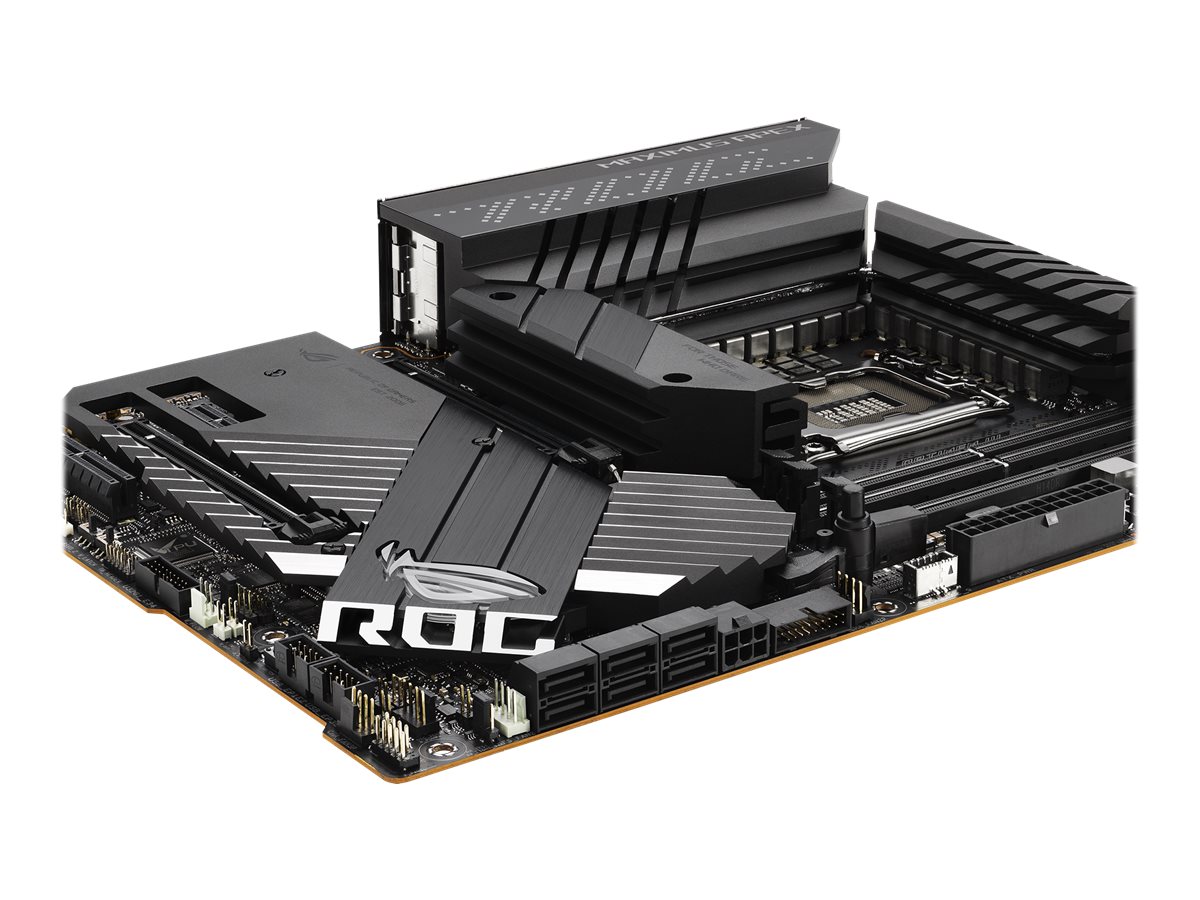

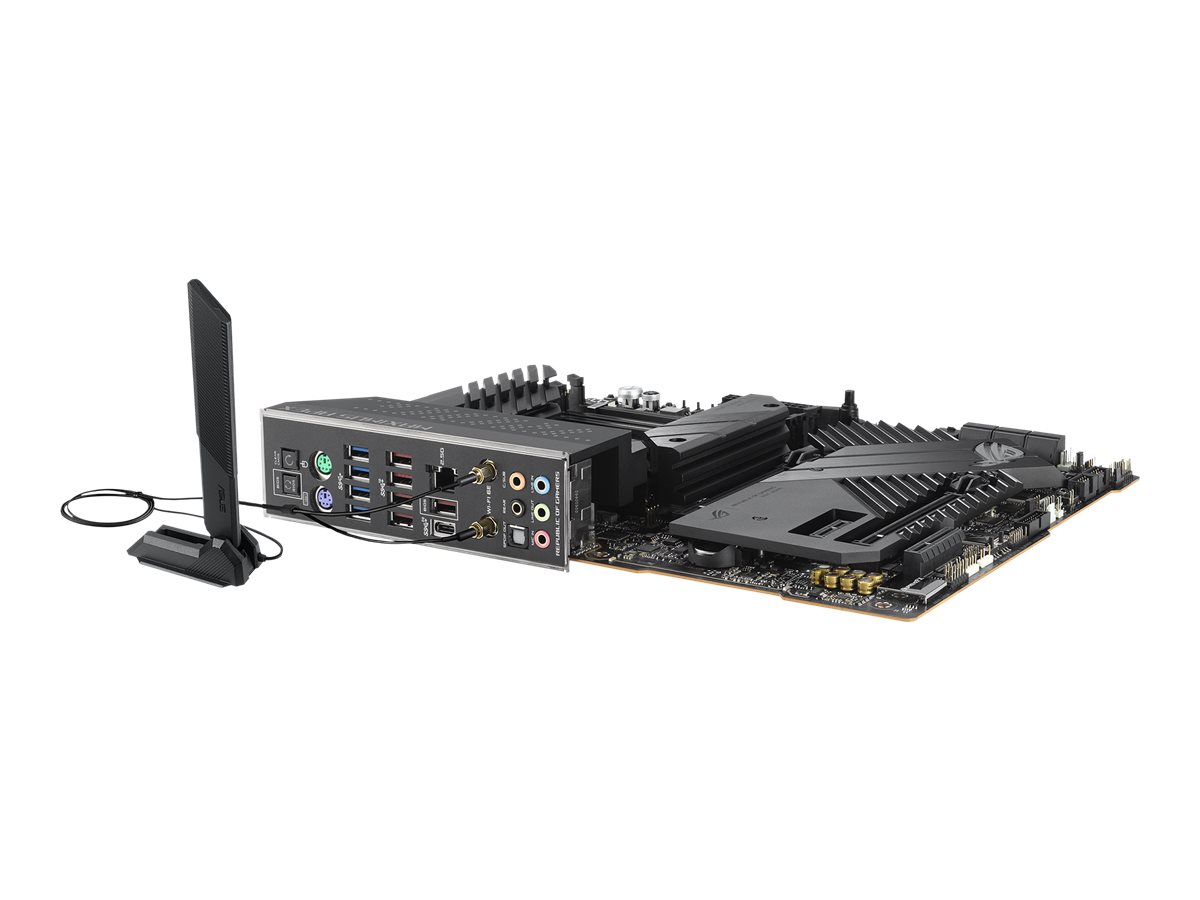

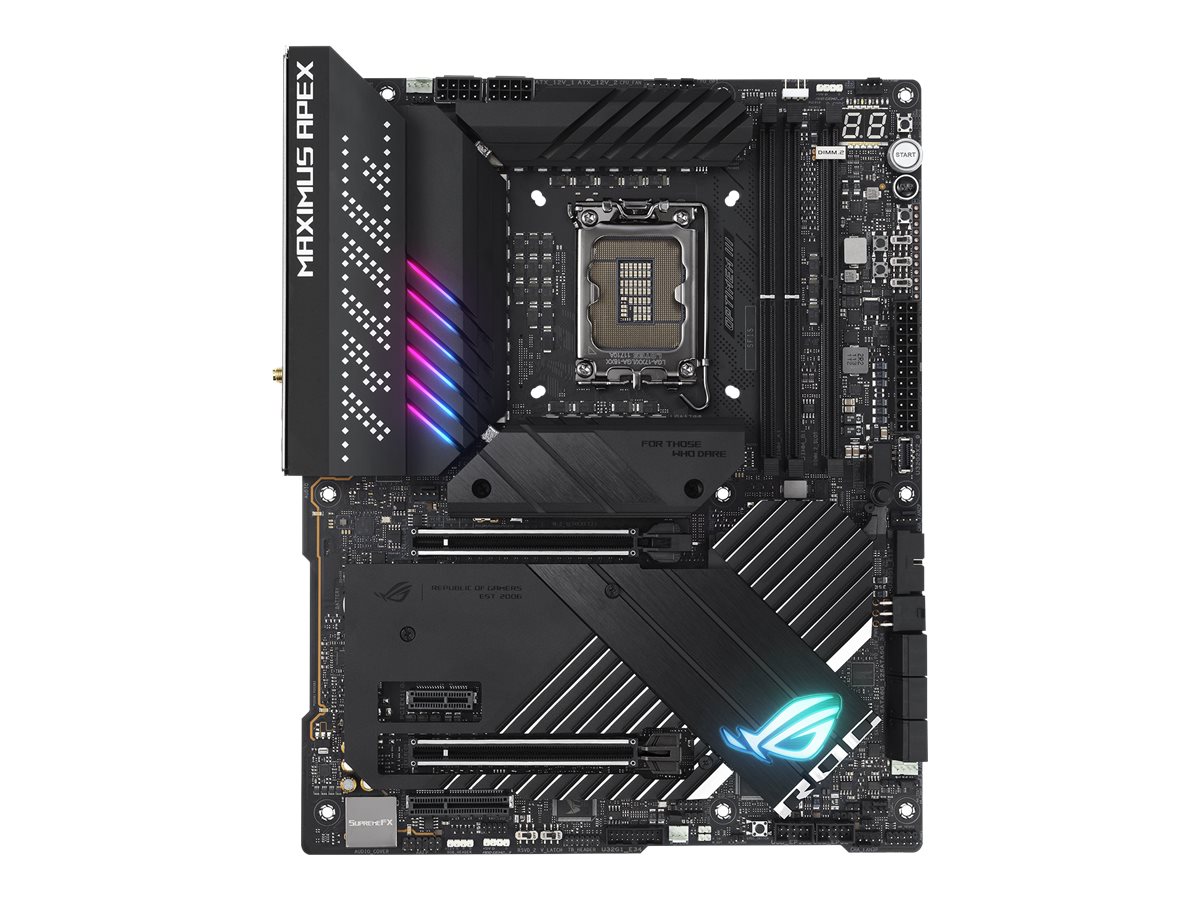

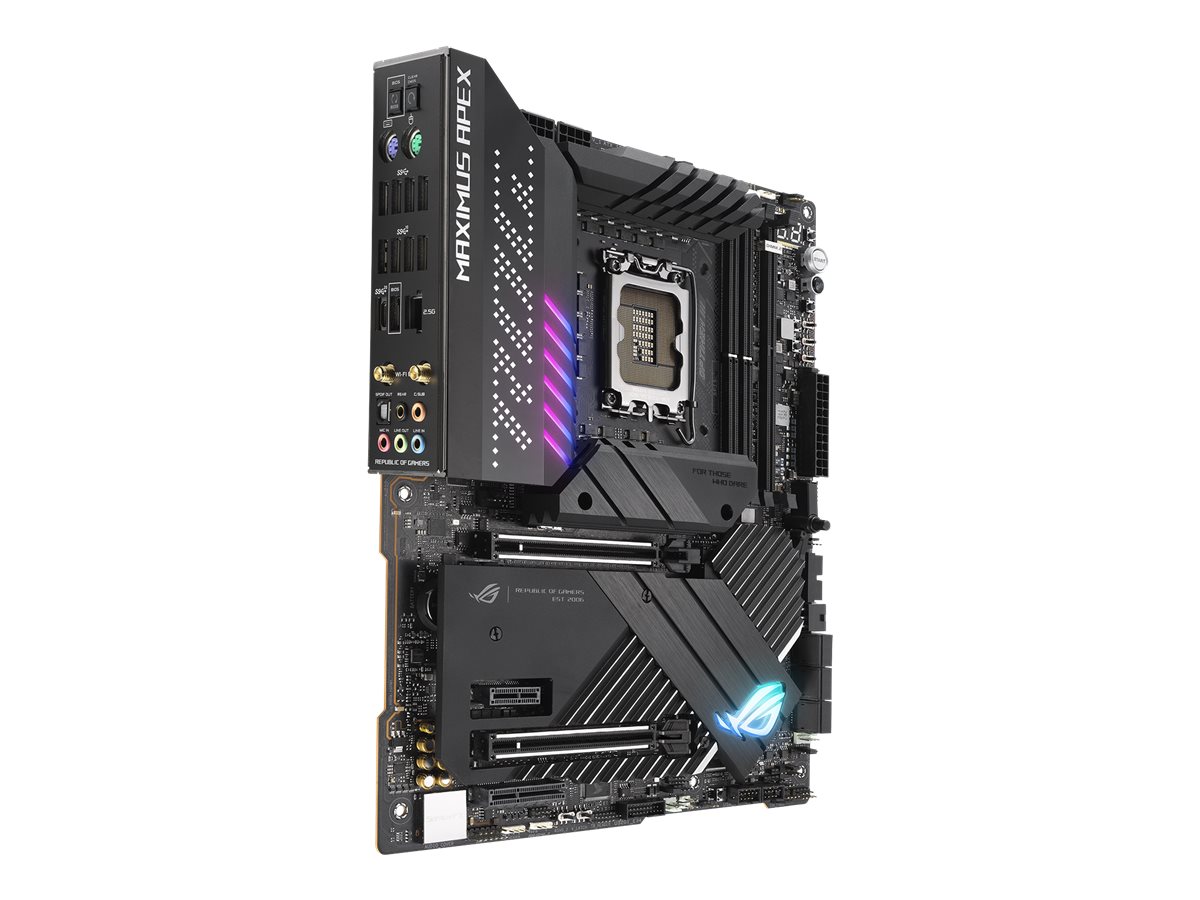

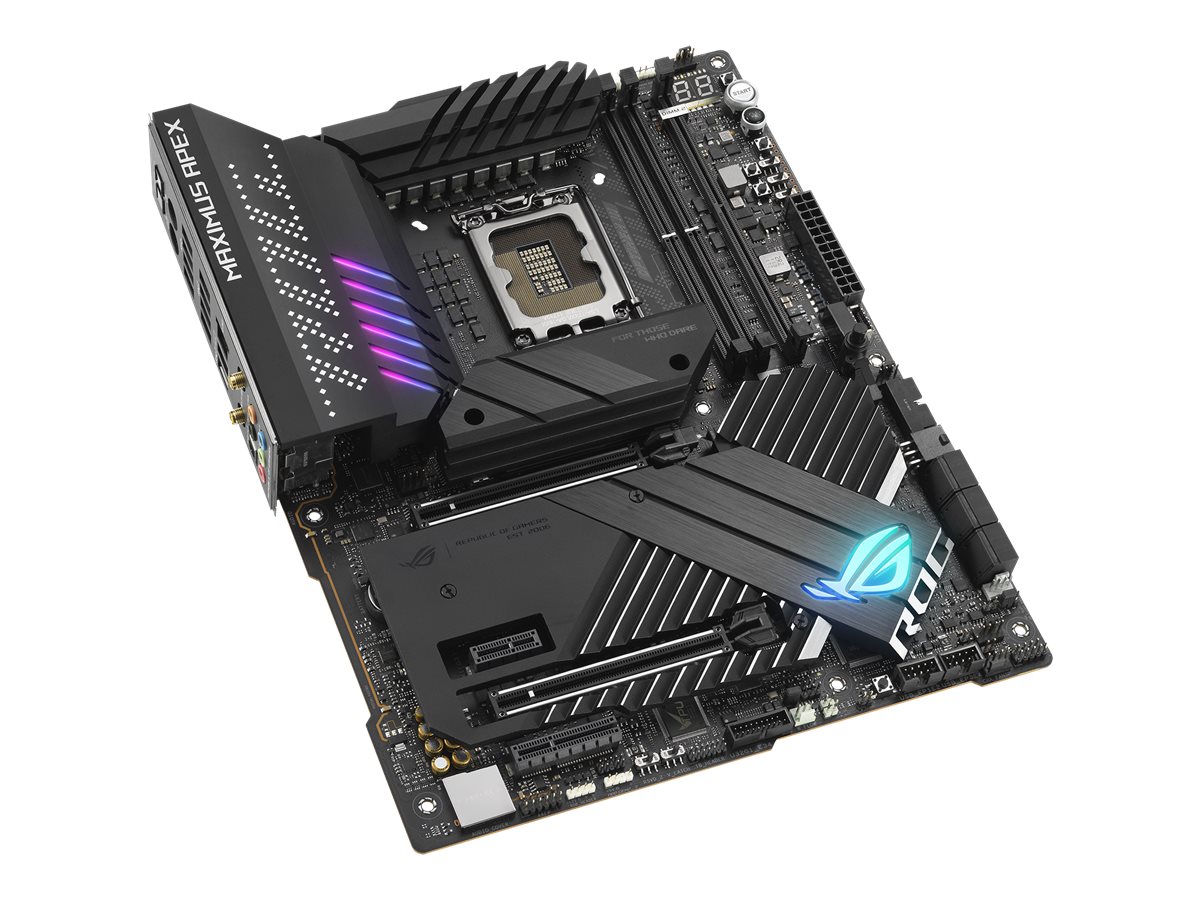

ASUS ROG MAXIMUS Z690 APEX

$1,155.00
ASUS ROG MAXIMUS Z690 APEX
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB 3.2 Gen 2, USB-C Gen 2x2, USB 3.2 Gen 1
ASUS ROG MAXIMUS Z690 APEX
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z690 Chipset
  • USB 3.2 Gen 2, USB-C Gen 2x2, USB 3.2 Gen 1
  • 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
  • HD Audio (8-channel)
  Additional Details
Price: $1,155.00
Mfr Part #: ROG MAXIMUS Z690 APEX
SHI Part #: 44094959
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG MAXIMUS Z690 APEX - Motherboard - ATX - LGA1700 Socket - Z690 Chipset - USB 3.2 Gen 2, USB-C Gen 2x2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel Z690
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.2
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeNone
Audio
Audio CodecSupremeFX (ALC4080)
Compliant StandardsHigh Definition Audio, DTS Sound Unbound
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 2 x DIMM 288-pin
  • 2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode)
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x4

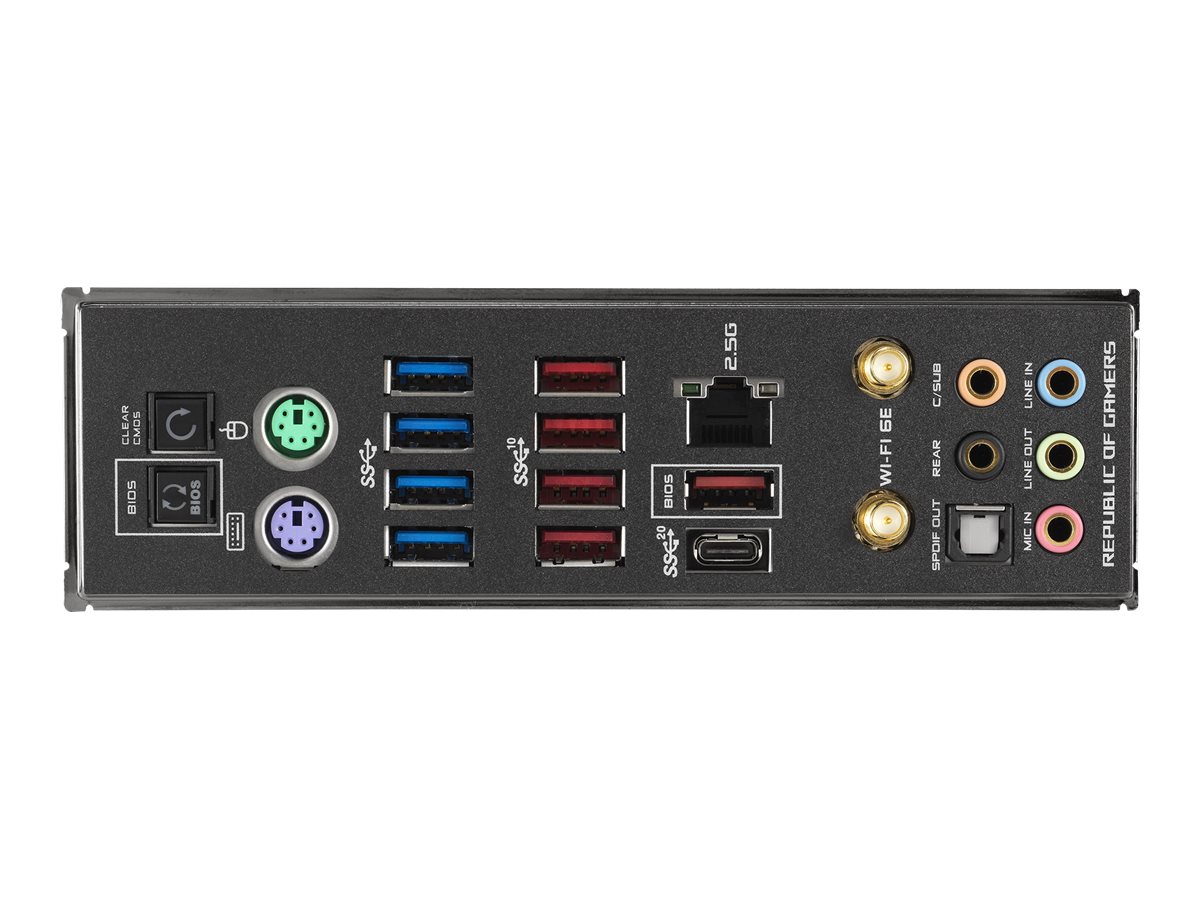

Interfaces
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 5 x USB 3.2 Gen 2
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x TOSLINK
  • 4 x USB 3.2 Gen 1
  • 1 x USB-C Gen2x2
  • 1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces
  • 4 x USB 2.0 - header
  • 1 x USB-C Gen 2x2 - header
  • 4 x USB 3.2 Gen 1 - header
  • 1 x audio - header
  • 1 x Thunderbolt - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin ATX12V connector
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
  • SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
  • PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5
  • SATA-600 -connectors: 2 x 7pin Serial ATA
Features
BIOS FeaturesBIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, Dual BIOS, MemTest86
BIOS TypeAMI
Hardware FeaturesIntel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, LANGuard, audio jack detect technology, jack retasking, SupremeFX Shielding technology, Savitech SV3H712 amplifier, Gold Plated Audio Hardware, Clear CMOS Button, FlexKey button, ReTry button, ASUS ROG Extreme OC, ASUS Extreme Engine Digi+, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, ASUS Q-Connector, Q-Code, Q-LED, Q-Slot, M.2 heatsink, ASUS EZ DIY, CPU Socket lever protector, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, SafeDIMM, ASUS Aura Sync, ASUS HYDRANODE, Quick Charge 4+, GameFirst VI, Sonic Studio III, Sonic Radar III, Preboot eXecution Environment (PXE), Armoury Crate, ASUS Fan Xpert 4, ASUS TPU (TurboV Processing Unit), ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, DIY Friendly Design, 24+0 power stages, Auto-Extreme Technology
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel Z690
Compatible Processors(supports 12th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - ATX
LAN
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Miscellaneous
Cables Included6 x Serial ATA cable
Depth24.4 cm

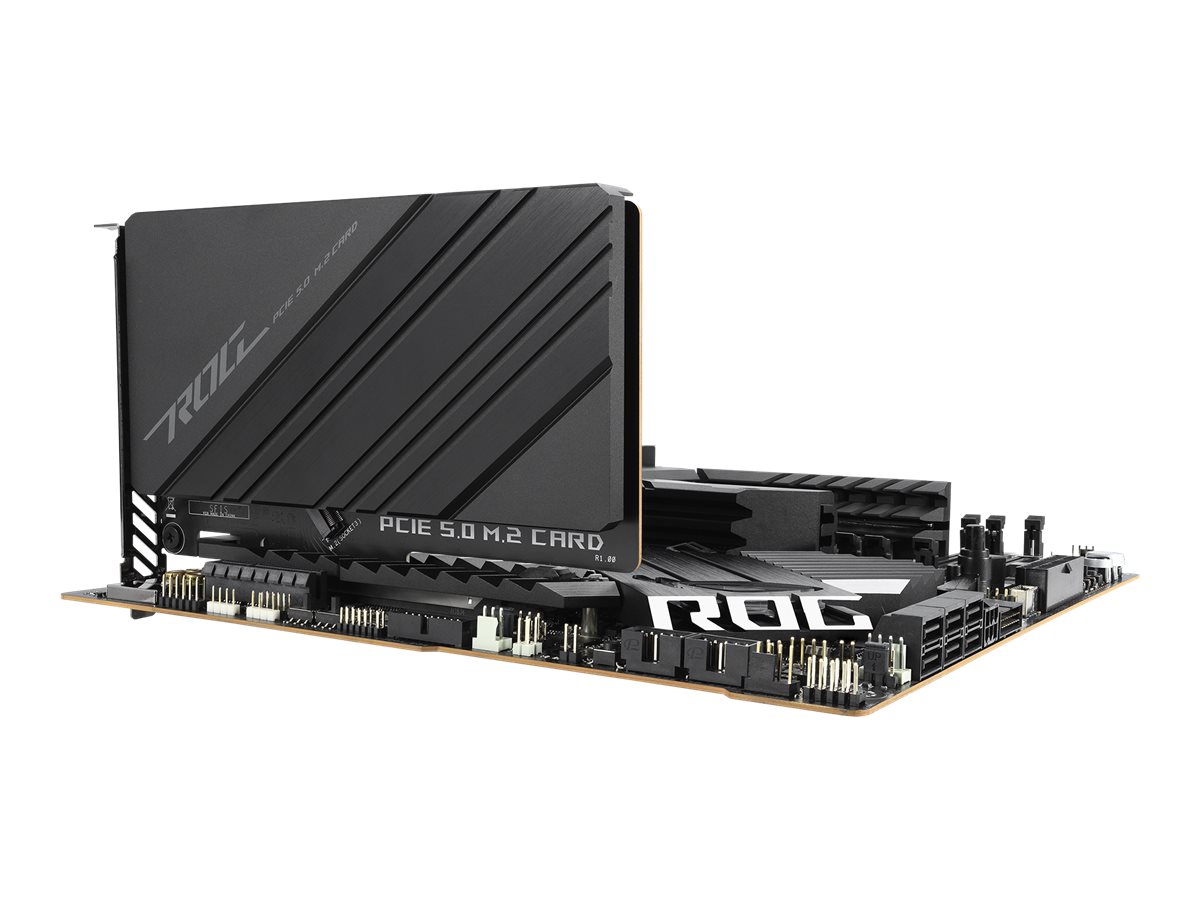

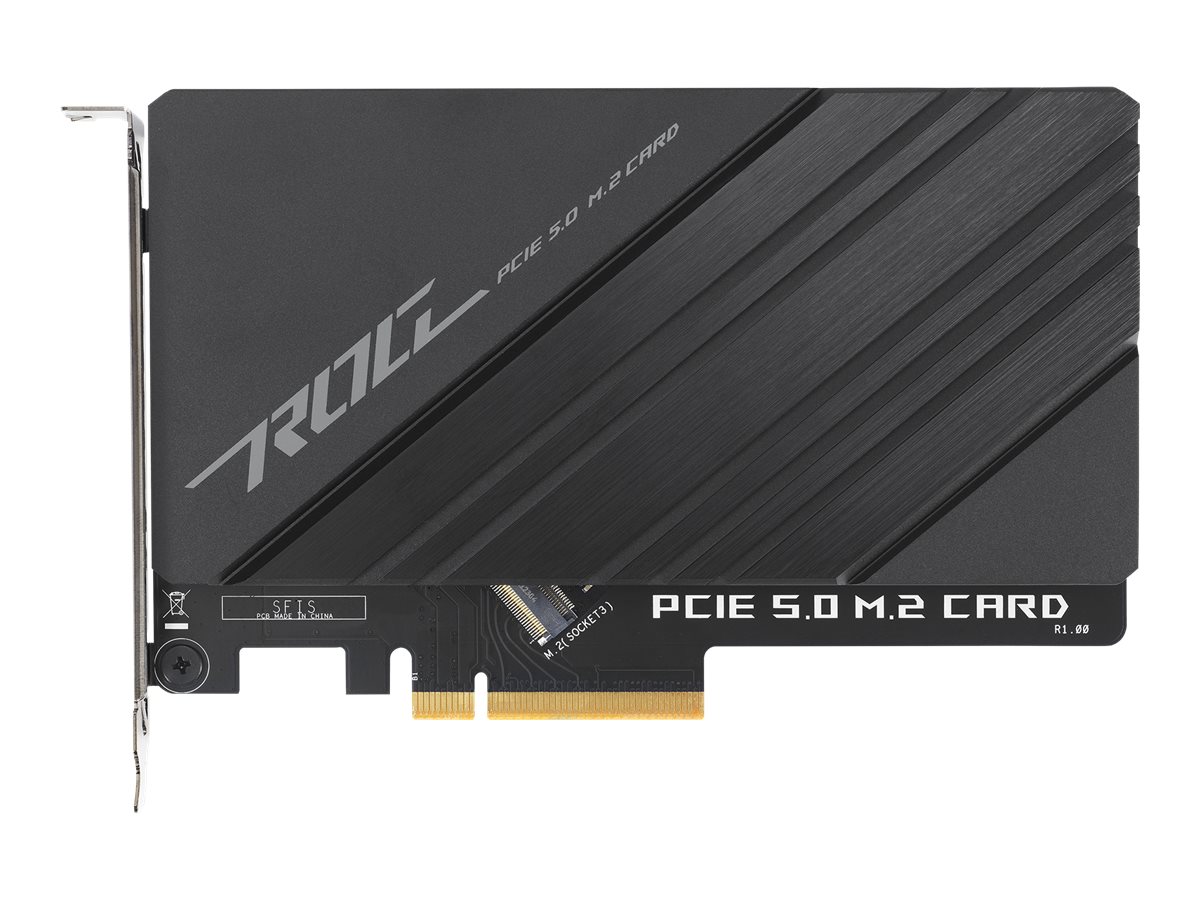

Included AccessoriesARGB LED strip extension cable, RGB (RGBW) LED strip extension cable, 3 in 1 thermistor cables pack, ROG DIMM.2 expansion card with heatsink, PCIe 5.0 M.2 Card, ROG True Voltician, ASUS Wi-Fi moving antenna, Q-Connector, 2 x M.2 Q-Latch, ROG VGA holder, ROG key chain, ROG fan stickers, ROG thank you card
Software IncludedROG True Voltician, drivers & utilities, ROG GameFirst VI, ROG CPU-Z, Sonic Studio Virtual Mixer, Sonic Suite Companion, BullGuard Internet Security (1 year license), AIDA64 Extreme (1 year license), ASUS AURA Creator, ASUS AI Suite III, ASUS Turbo App, WinRAR, MyAsus
Width30.5 cm
Supported RAM
Bus Clock4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.)
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size64 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR5
