Eaton Tripp Lite Series Hardened Gigabit Copper to Fiber Media Converter

$233.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
10/100/1000 Mbps, RJ45/SFP, -10° to 60°C Fiber media converter 1GbE 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X RJ-45 / SFP (mini-GBIC)

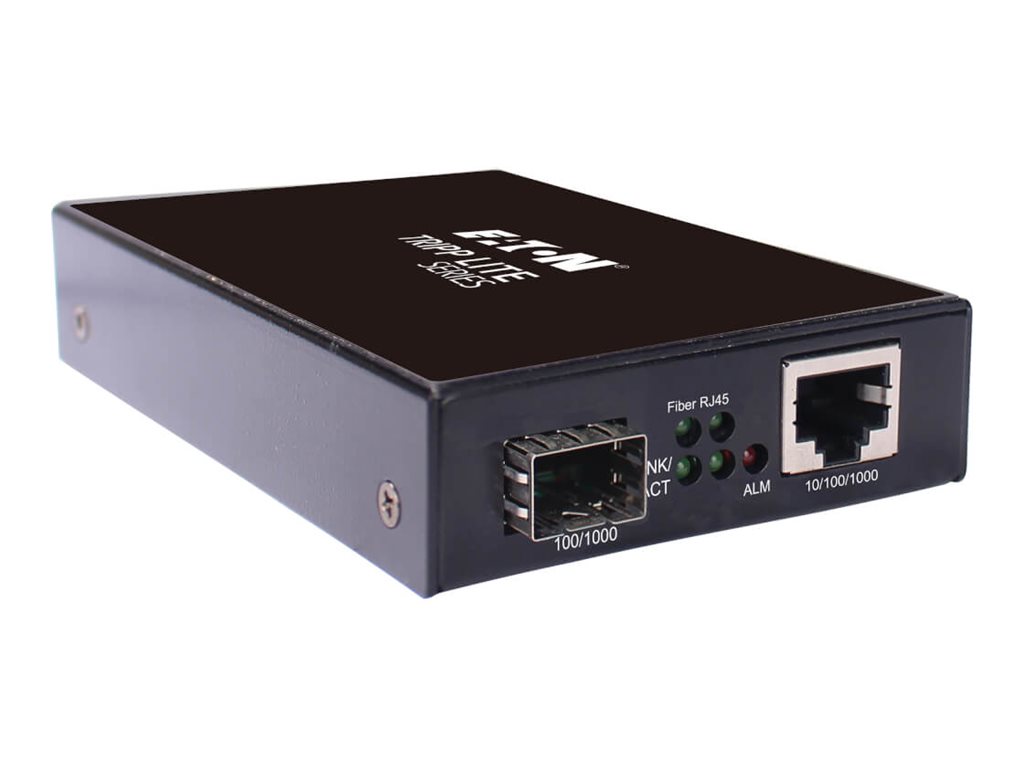

Eaton Tripp Lite Series Hardened Gigabit Copper to Fiber Media Converter

10/100/1000 Mbps, RJ45/SFP, -10° to 60°C
Fiber media converter
1GbE
10Base-T, 100Base-TX, 1000Base-T, 1000Base-X
RJ-45 / SFP (mini-GBIC)
TAA Compliant

Additional Details
Price:	$233.00
Mfr Part #:	N785-H01-SFP
SHI Part #:	43818238
Category:	Transceivers
UNSPSC:	43201553
Manufacturer:	Eaton
Product Type:	Hardware

Customize a Network Extension over Fiber Optic Cable

This network media converter works with a variety of SFP transceivers to convert a copper Gigabit Ethernet signal to fiber optic and extend it to a second network device. The customizable SFP port supports both singlemode and multimode transceivers, allowing your network connection to reach hubs, switches and other devices located farther away than copper cabling's 100-meter limit. Auto-negotiation and automatic MDI/MDI-X configuration seamlessly connect devices without crossover cabling.

Monitor Your Installation with Link Fault Signaling and Loop Back Functions

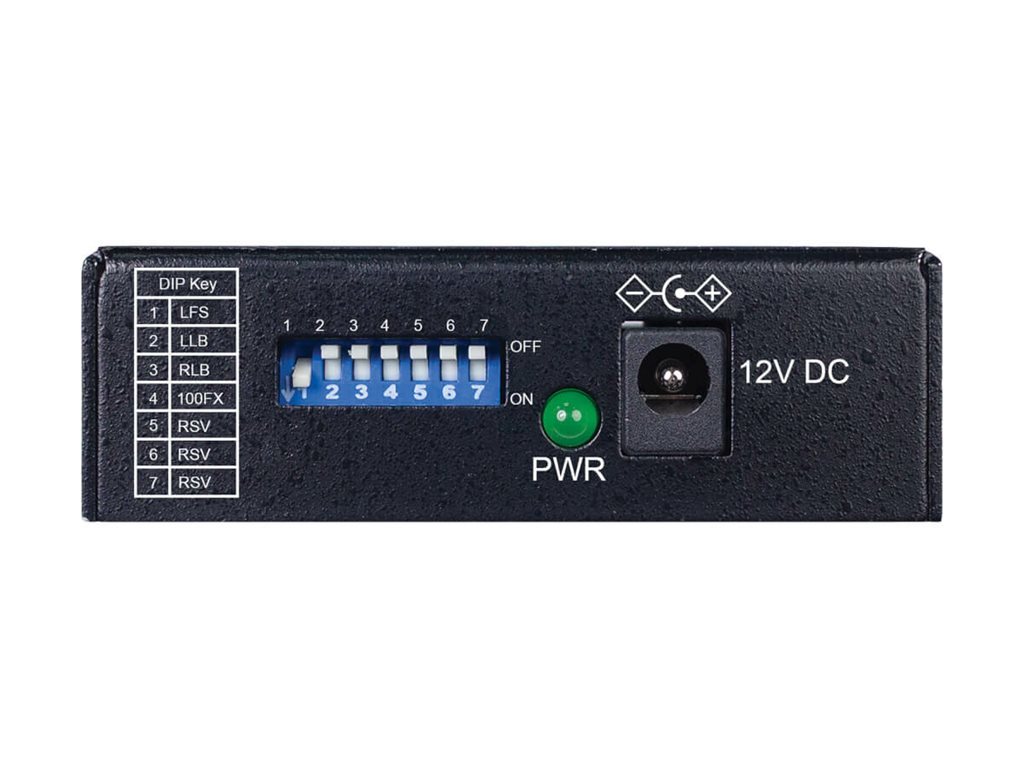

Determine the health of your network connection via the Link Fault Signaling (LFS) and Loop Back functions. The LFS LED indicates when a copper or fiber cable has been severed or another cause of disruption in service has occurred. The Local Loop Back (LLB) and Remote Loop Back (RLB) functions ensure copper and fiber cables have been correctly installed. Use the DIP switches to control each function or turn them on or off.

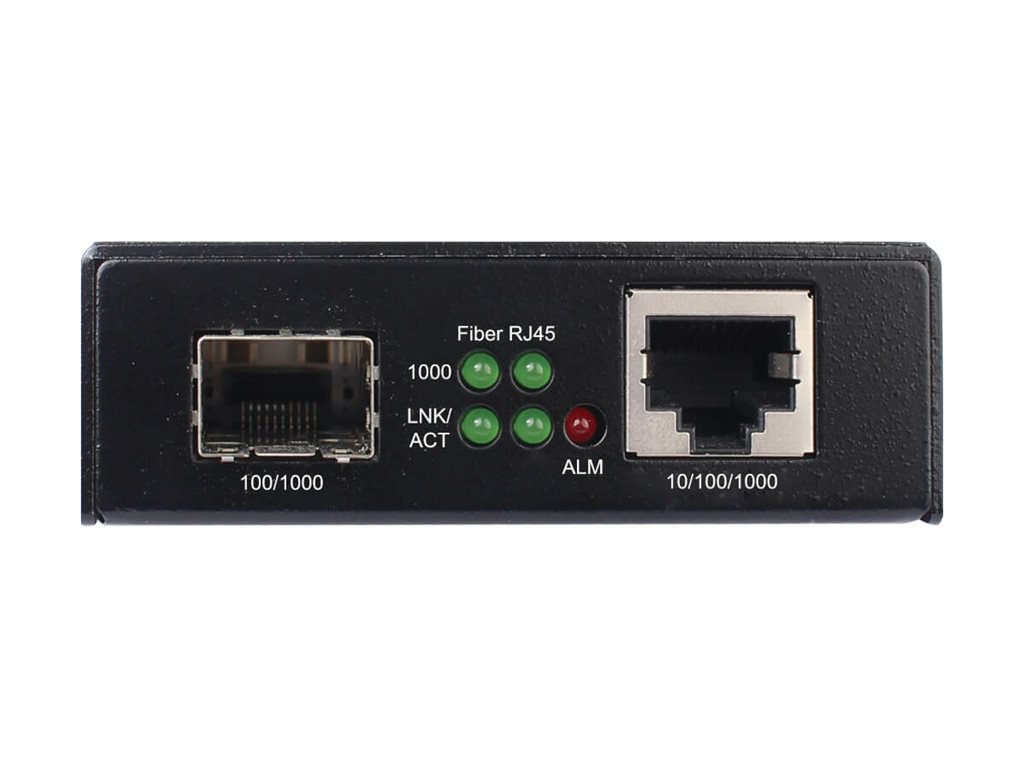

LEDs Indicate Installation Performance and Diagnostic Functions

Easy-to-read LEDs on the side of the unit indicate essential status information, including network speed and connection, LFS diagnostics and unit power.

Protective Metal Housing Built to Withstand a Variety of Hazards

The hardened aluminum case is designed to operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit). It is protected from electrostatic discharge (ESD), radio frequency interference (RFI) and power surges. Hardware is included for wall or DIN mounting.

Works in Tandem with N785-CH12 Chassis

House and power up to 12 media converters, including the N785-H01-SFP, using the N785-CH12 12-port chassis (sold separately) to create an organized installation.

TAA-Compliant for GSA Schedule Purchases

The N785-H01-SFP is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

General Information
Category	Transceivers
Description	Eaton Tripp Lite Series Hardened Gigabit Copper to Fiber Media Converter - 10/100/1000 Mbps, RJ45/SFP, -10° to 60°C - Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC) - TAA Compliant
Manufacturer	Eaton
MSRP	$340.11
UNSPSC	43201553
Main Specifications
Dimensions & Weight / Depth	10.9 cm
Dimensions & Weight / Height	2.34 cm
Dimensions & Weight / Weight	239 g
Dimensions & Weight / Width	7.39 cm
Header / Brand	Tripp Lite
Header / Country Kits	North America
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Networking / Form Factor	Wall / DIN rail mountable
Networking / Type	Fiber media converter
Packaged Quantity	1
Service & Support / Type	2-year warranty
Dimensions & Weight
Depth	10.9 cm
Height	2.34 cm
Weight	239 g
Width	7.39 cm
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Max Operating Temperature	60 °C
Min Operating Temperature	-10 °C
Expansion / Connectivity
Interfaces	1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x Ethernet 1000Base-X - SFP female
General
Color	Black
Device Type	Fiber media converter
Form Factor	Wall / DIN rail mountable
Localization	North America
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Compliant Standards	RoHS, FCC, LPS, UL, WEEE
Included Accessories	L-shape rack mount brackets, rubber feet, DIN-rail mounting kit
Mounting Kit	Included
TAA Compliant	Yes
Networking
Cabling Type	10Base-T, 100Base-TX, 1000Base-T, 1000Base-X
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Connectivity Technology	Wired
Data Link Protocol	10Mb LAN, 100Mb LAN, 1GbE
Features	Auto-uplink (auto MDI/MDI-X), metal housing
Status Indicators	Status
Power
Power Device	External power adapter
Voltage Required	AC 100-240 V (50/60 Hz)
