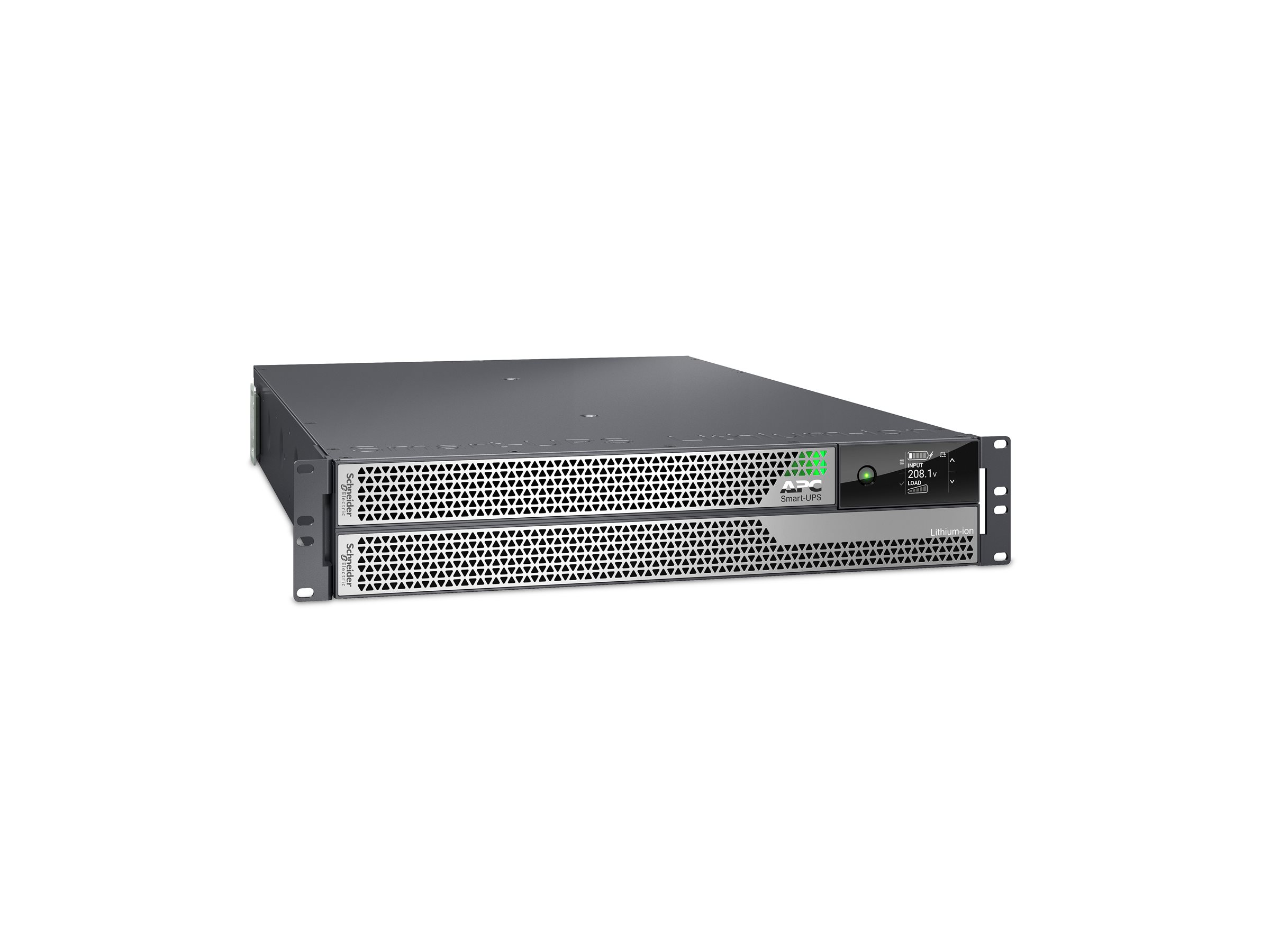

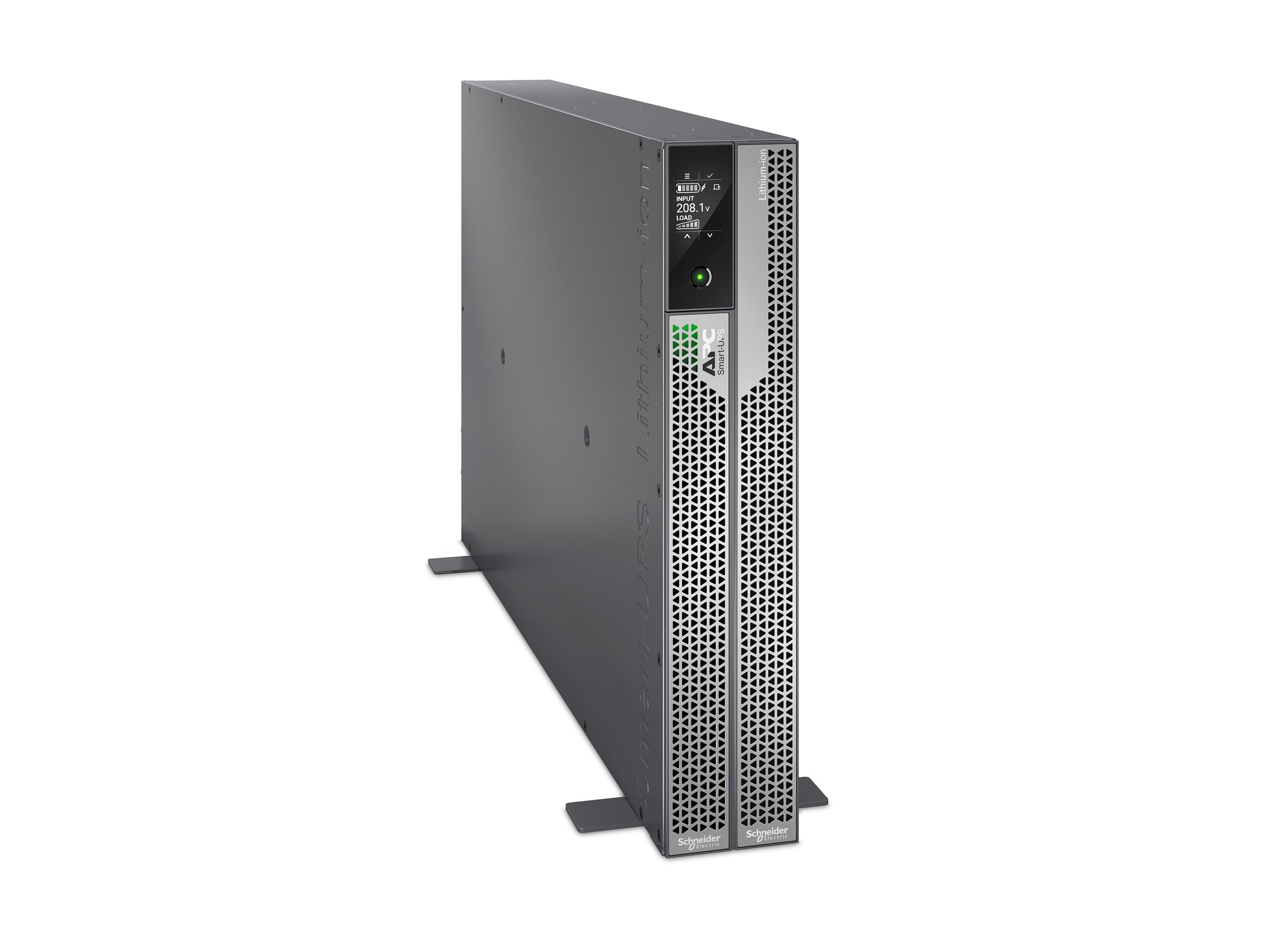

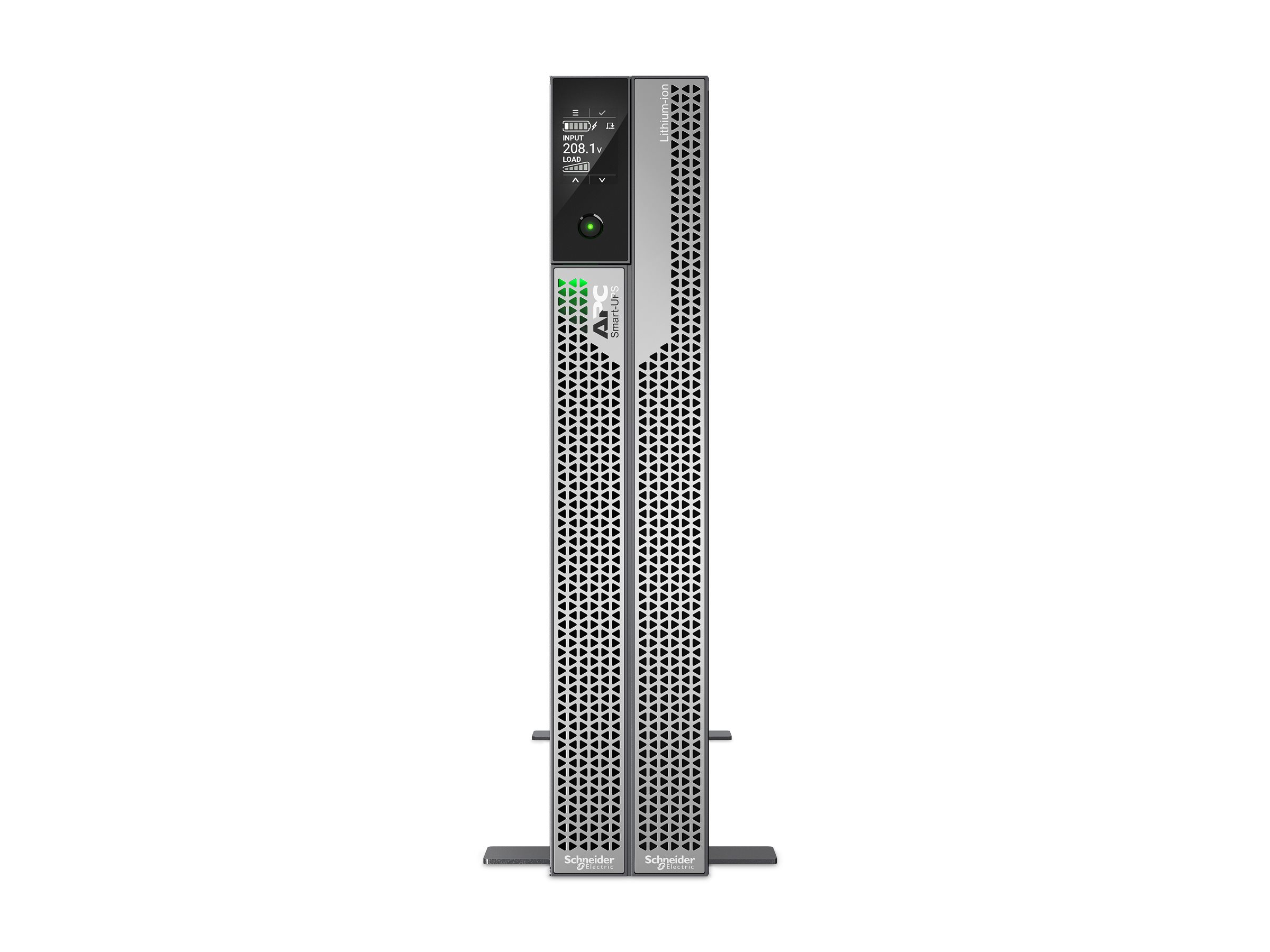

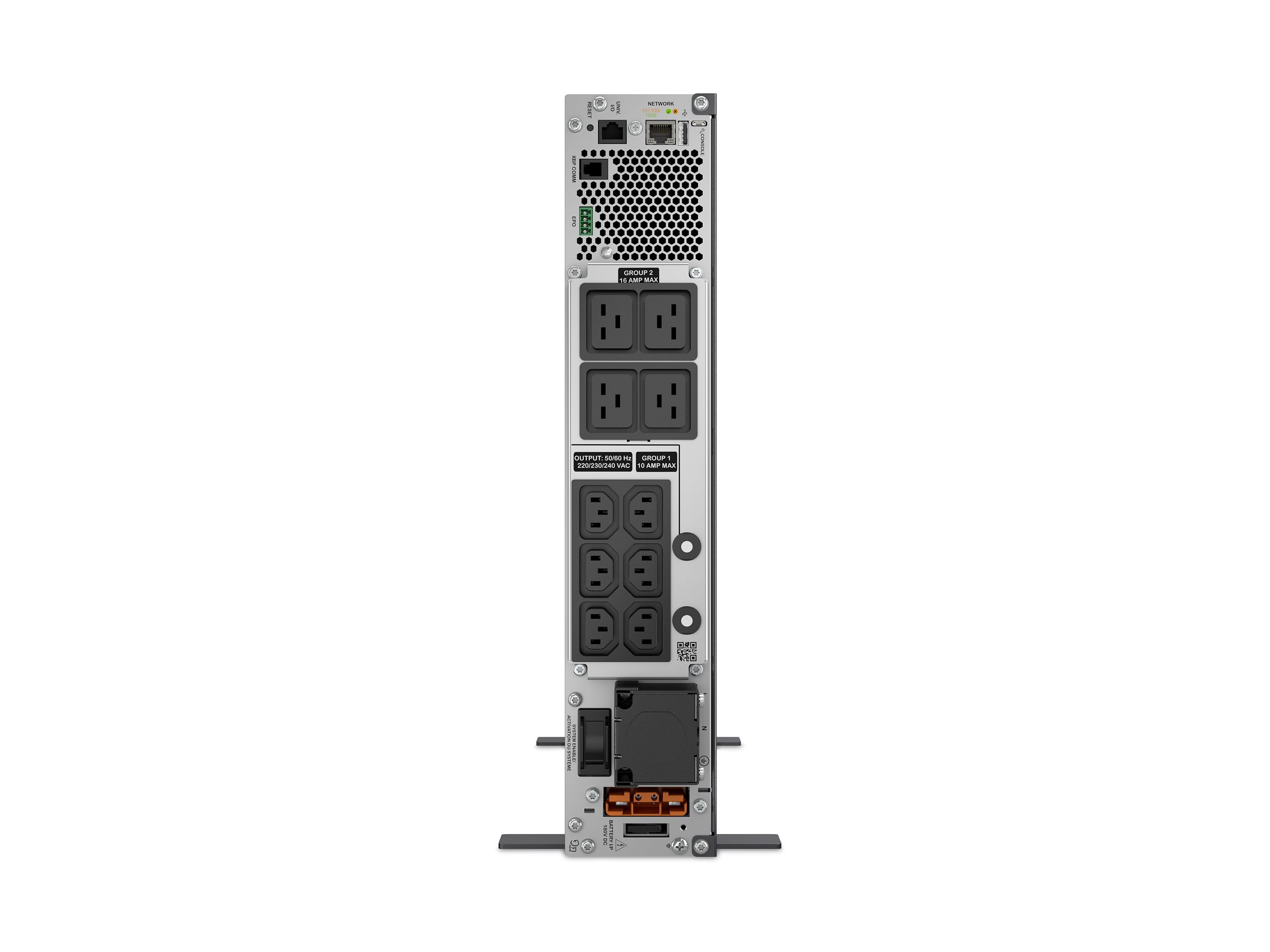

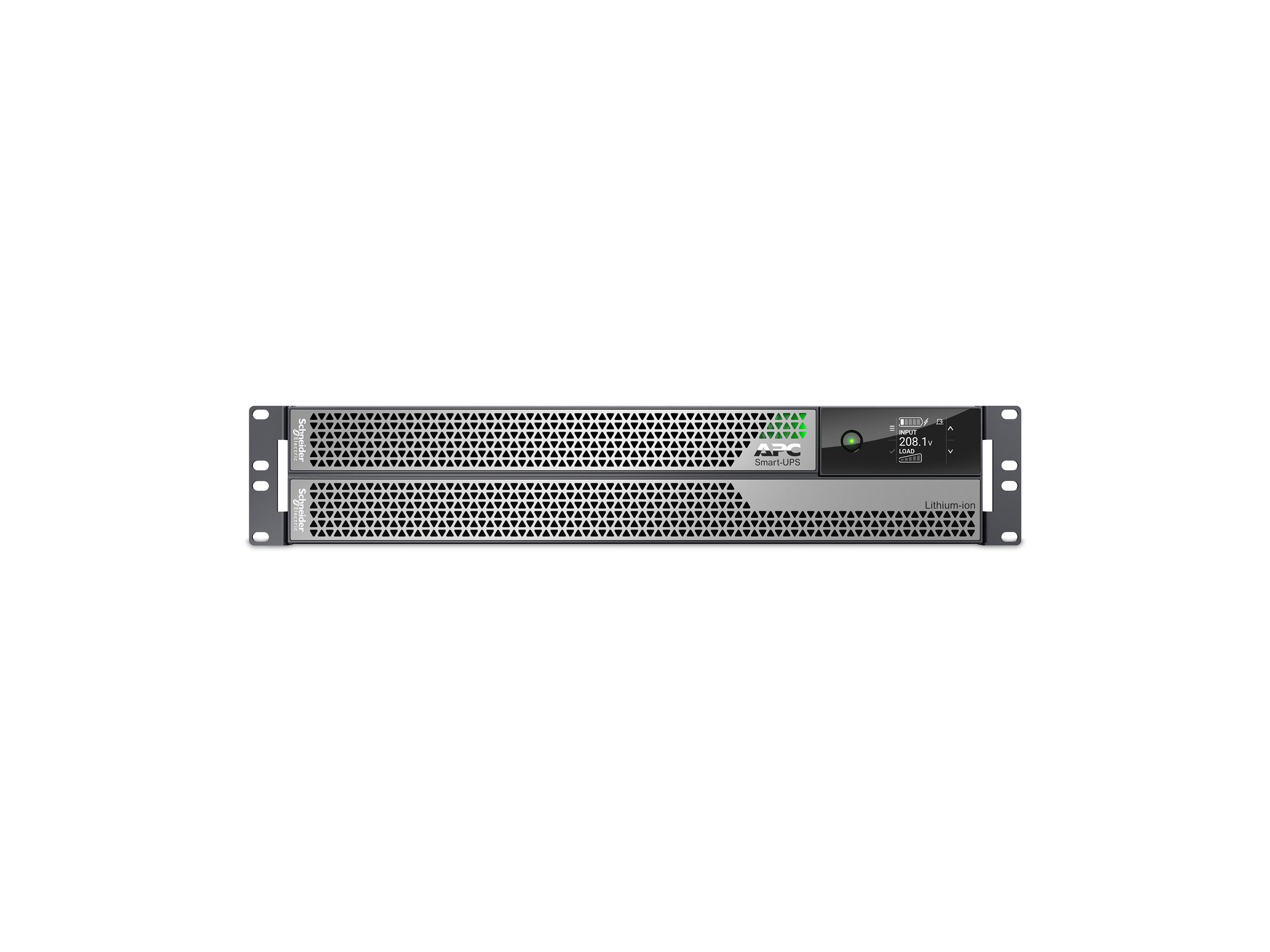

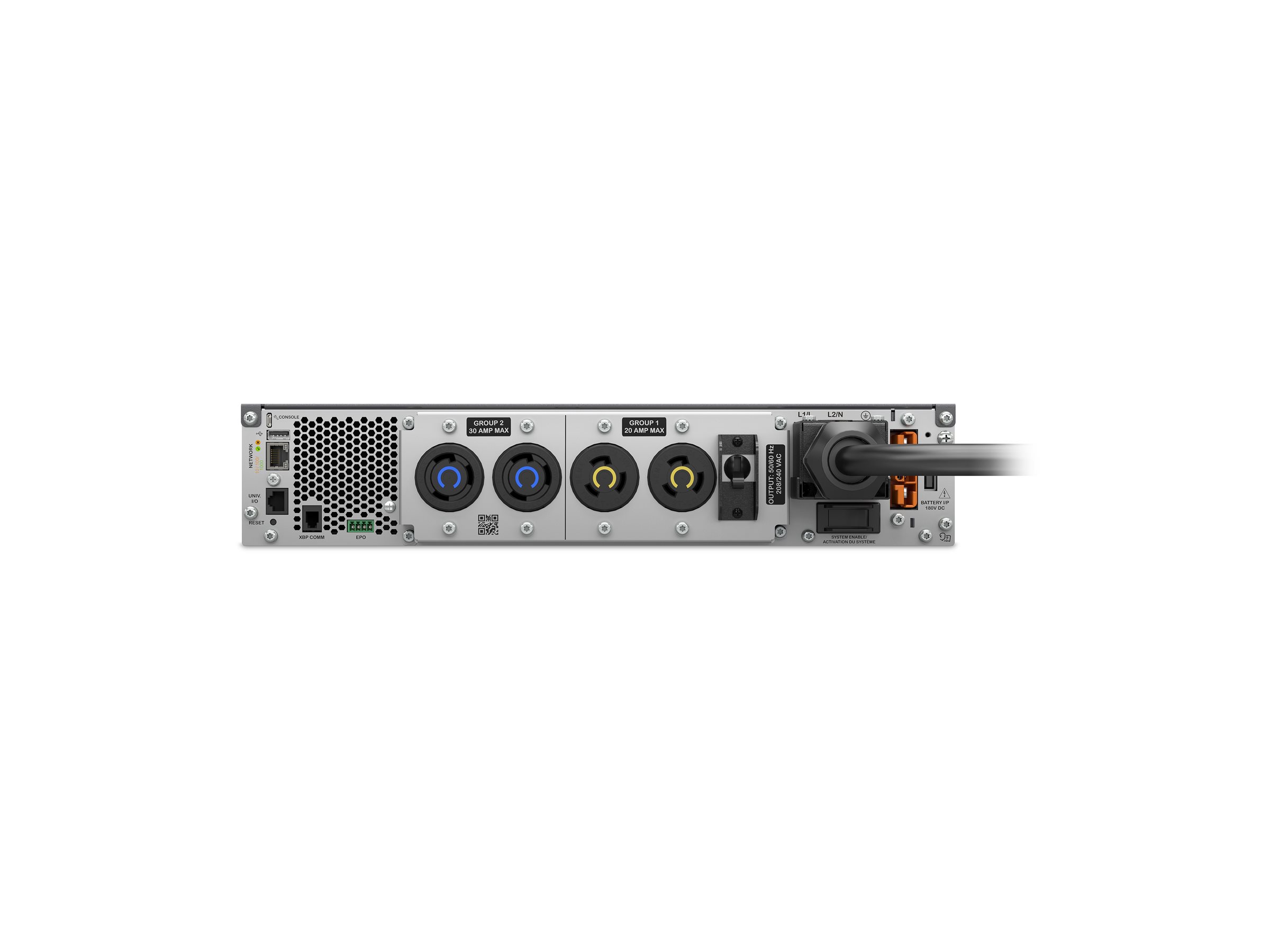

APC Smart-UPS Ultra - UPS (rack-mountable / external) (high density)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Smart-UPS Ultra - UPS (rack-mountable / external) (high density)
- on-line, 5kVA, network card, with rail kit
- AC 208 V
- 4900 Watt
- 4900 VA
- 1-phase
- lithium ion
- output connectors: 4
- 2U
- 3.05 m cord
- black
- for P/N: SRTL180RM2UBP, SRTL5KRMTF, SRTL5KTF
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SRTL5KRM2UT |
| SHI Part #: | 43763941 |
| Category: | Rechargeable batteries |
| UNSPSC: | 26111701 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
Servers
- Rack cabinet
- 2124H x 750W x 1070D mm, with sides
- floor-standing
- black
- 42U
- 19"
- Rack cabinet
- 2258H x 600W x 1070D mm, with Sides
- floor-standing
- black
- 48U
- 19"
Storage Networking (SAN)
- Power distribution strip (rack-mountable)
- AC 200/208/230 V
- Ethernet 10/100, RS-232
- input: NEMA L6-30
- output connectors: 42 (power IEC 60320 C13, IEC 60320 C19)
- 0U
- AC 200/208/230 V
- input: NEMA L6-30
- output connectors: 12 (power IEC 60320 C13)
- 1U
- 3.65 m cord
- black
- Power distribution unit (rack-mountable)
- AC 100/120 V
- 1920 VA
- Ethernet 10/100, RS-232, USB
- input: NEMA L5-20
- output connectors: 24
| General Information | |
|---|---|
| Category | Rechargeable batteries |
| Description | APC Smart-UPS Ultra - UPS (rack-mountable / external) (high density) - on-line, 5kVA, network card, with rail kit - AC 208 V - 4900 Watt - 4900 VA - 1-phase - lithium ion - output connectors: 4 - 2U - 3.05 m cord - black - for P/N: SRTL180RM2UBP, SRTL5KRMTF, SRTL5KTF |
| Manufacturer | APC by Schneider Electric |
| MSRP | $14,300.00 |
| UNSPSC | 26111701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 70.1 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 29.2 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 4 |
| Power Device / Power Capacity (VA) | 4900 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required |
|
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Recharge Time | 1.5 hours |
| Technology | Lithium ion lithium ion |
| Type | High density |
| Voltage Provided | 180 V |
| Compatibility Information | |
| Designed For | P/N: SRTL180RM2UBP, SRTL5KRMTF, SRTL5KTF |
| Dimensions & Weight | |
| Depth | 70.1 cm |
| Height | 8.6 cm |
| Weight | 29.2 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 98.4 cm |
| Shipping Height | 39.2 cm |
| Shipping Weight | 38.5 kg |
| Shipping Width | 58.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| General | |
| Color | Black |
| Cord Length | 3.05 m |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | IP20, Energy Star 2.0, Mercury-free, China RoHS, EU RoHS, REACH |
| Features | Horizontal mount, vertical mount, auto-sensing, emergency power off, mercury free, double conversion, internal bypass, LCD display, audible alarm |
| Included Accessories | Rack mounting brackets |
| Rack Mounting Kit | Included |
| Power Device | |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 40 - 70 Hz |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 180 - 275 V |
| Input Voltage Range (Adjustable) | AC 180 - 275 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 208 V ± 2% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 4900 Watt / 4900 VA |
| Power Output Connectors Details |
|
| Supported Battery Technology | Lithium ion |
| Surge Energy Rating | 1260 Joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Sustainability Information | |
| ENERGY STAR | Yes |
