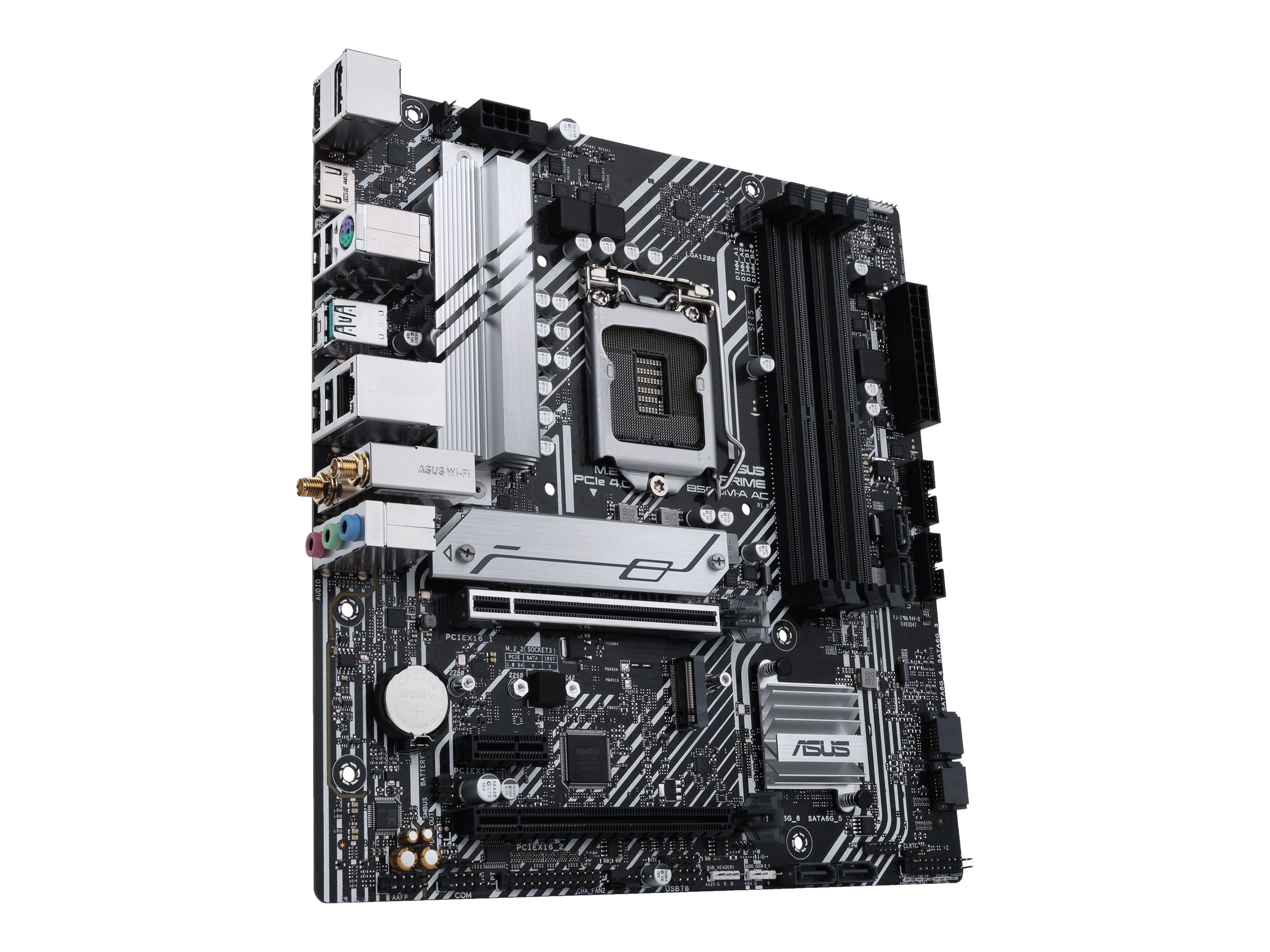

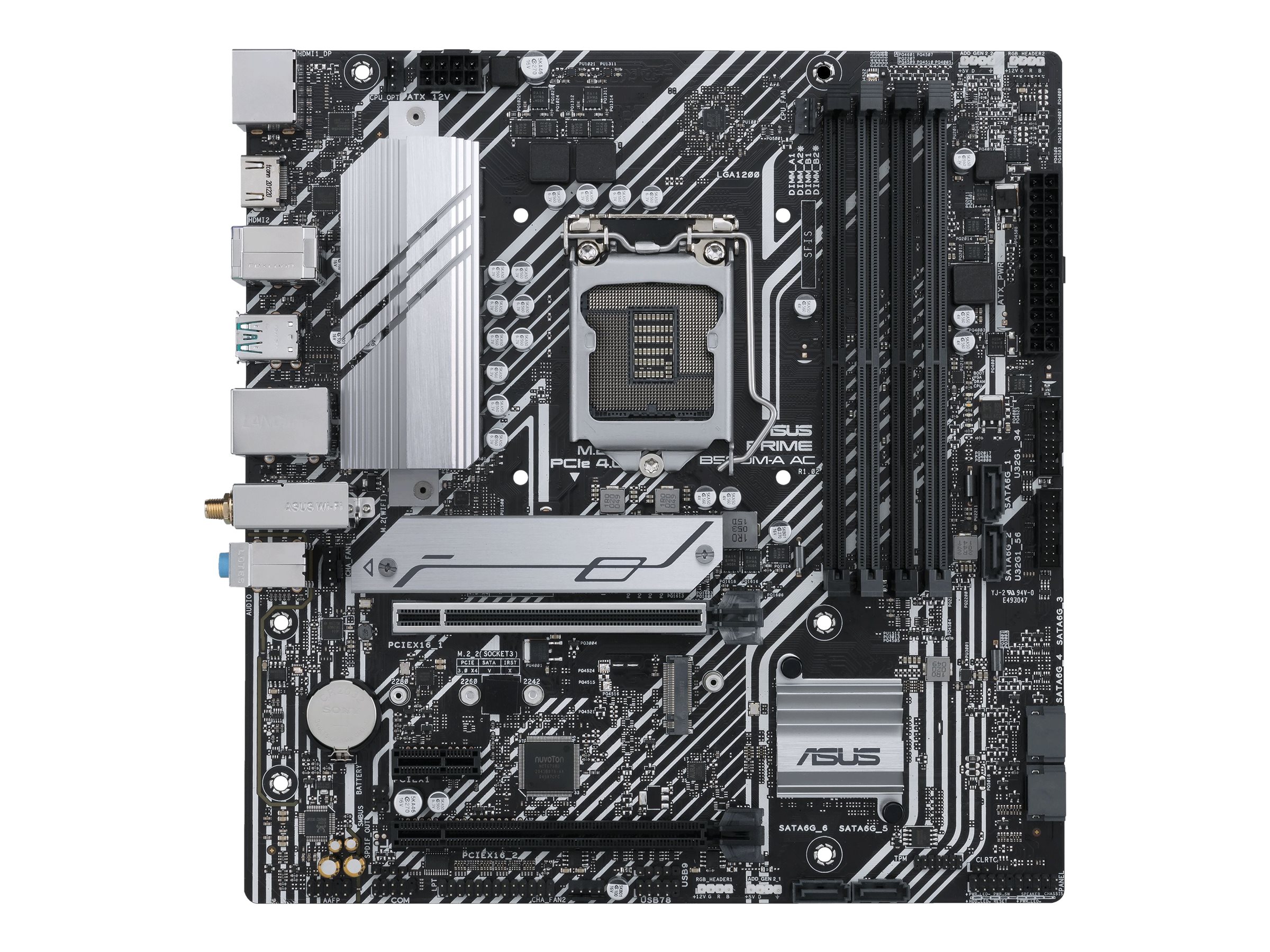

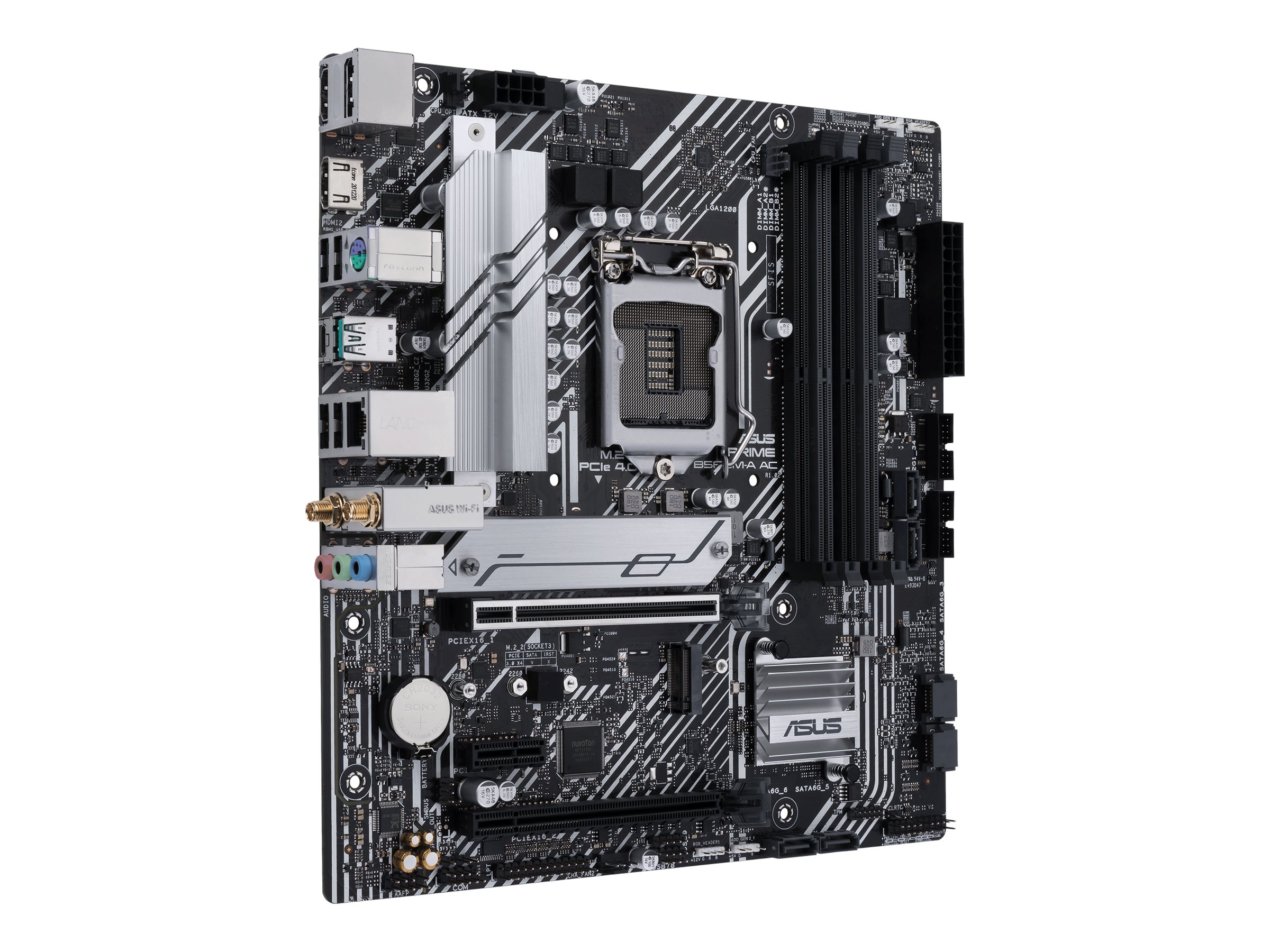

ASUS PRIME B560M-A AC-SI
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASUS PRIME B560M-A AC-SI
- Motherboard
- micro ATX
- LGA1200 Socket
- B560 Chipset
- USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C Gen2
- Gigabit LAN, Wi-Fi, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PRIME B560M-A AC-SI |
| SHI Part #: | 43383639 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASUS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASUS PRIME B560M-A AC-SI - Motherboard - micro ATX - LGA1200 Socket - B560 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C Gen2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASUS |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.4 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASUS |
| Mainboard / Chipset Type | Intel B560 |
| Mainboard / Processor Socket | LGA1200 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC887/ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, Intel Optane Memory Ready, LANGuard, audio jack detect technology, jack retasking, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ESD Guards, ASUS Overvoltage Protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED, Q-Slot, ASUS Aura Sync, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert 2+, ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE) |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| General | |
| Chipset Type | Intel B560 |
| Compatible Processors | (supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max Processors Qty | 1 |
| Processor Socket | LGA1200 Socket |
| Product Type | Motherboard - micro ATX |
| LAN | |
| Network Controller | Intel I219V |
| Network Interfaces | Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 5.0 |
| Miscellaneous | |
| Compliant Standards | DisplayPort 1.4 |
| Depth | 23.4 cm |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3200 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.) |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR4 |
