Motherboards

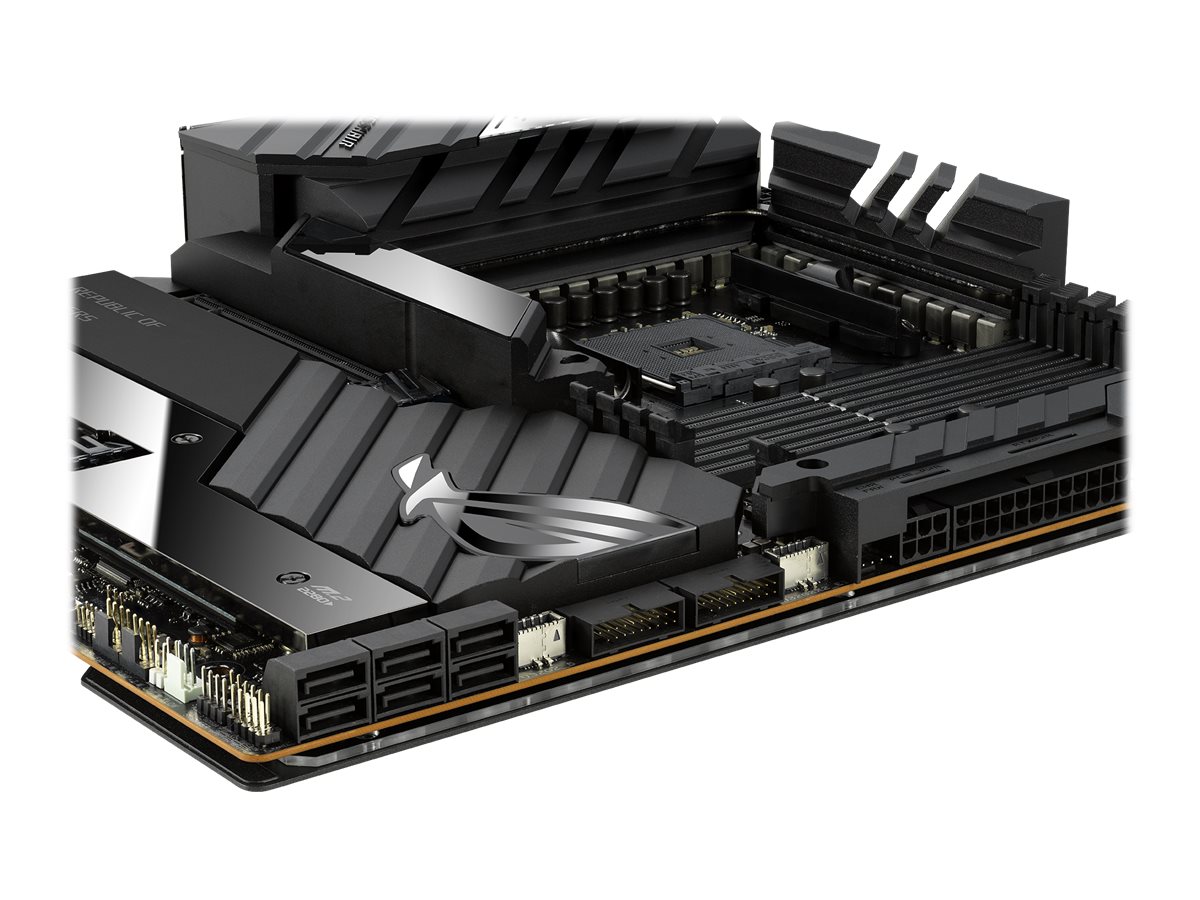

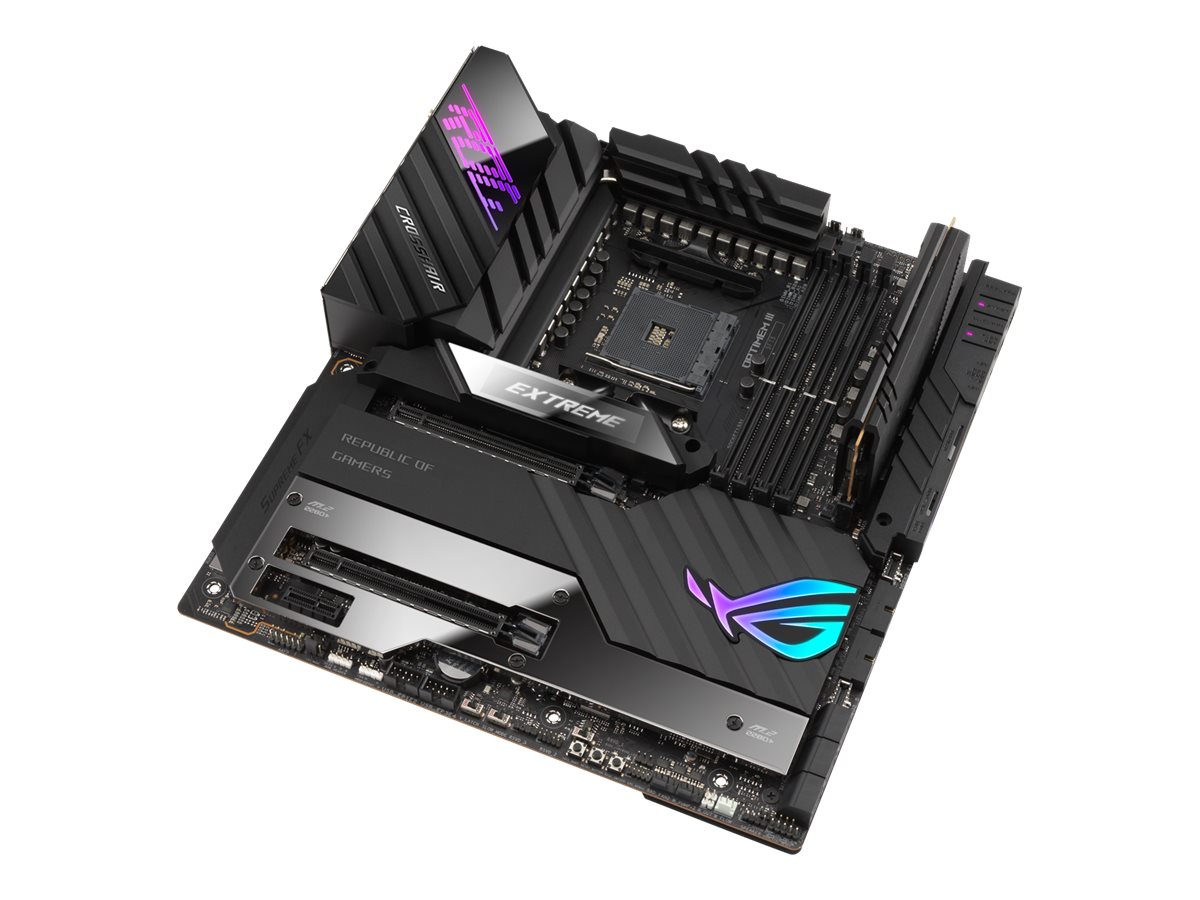

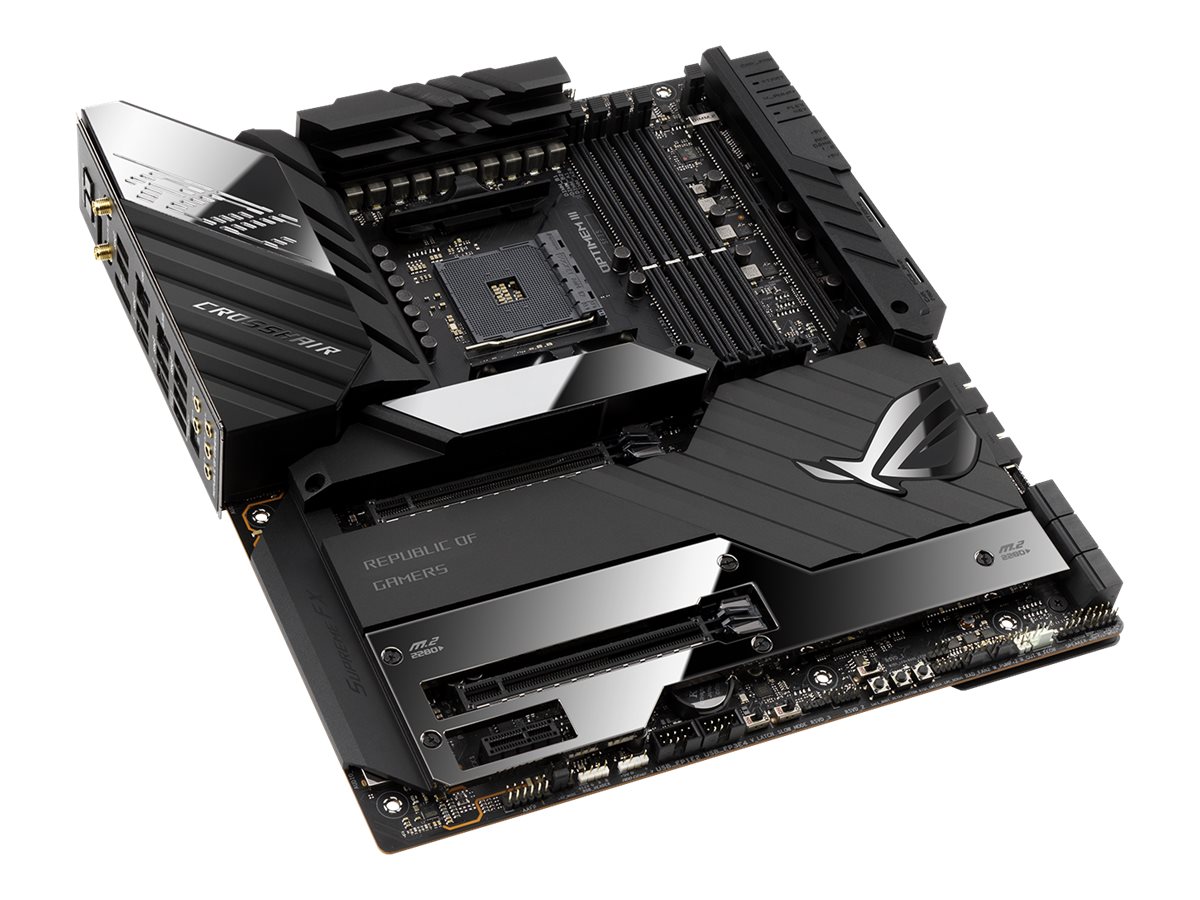

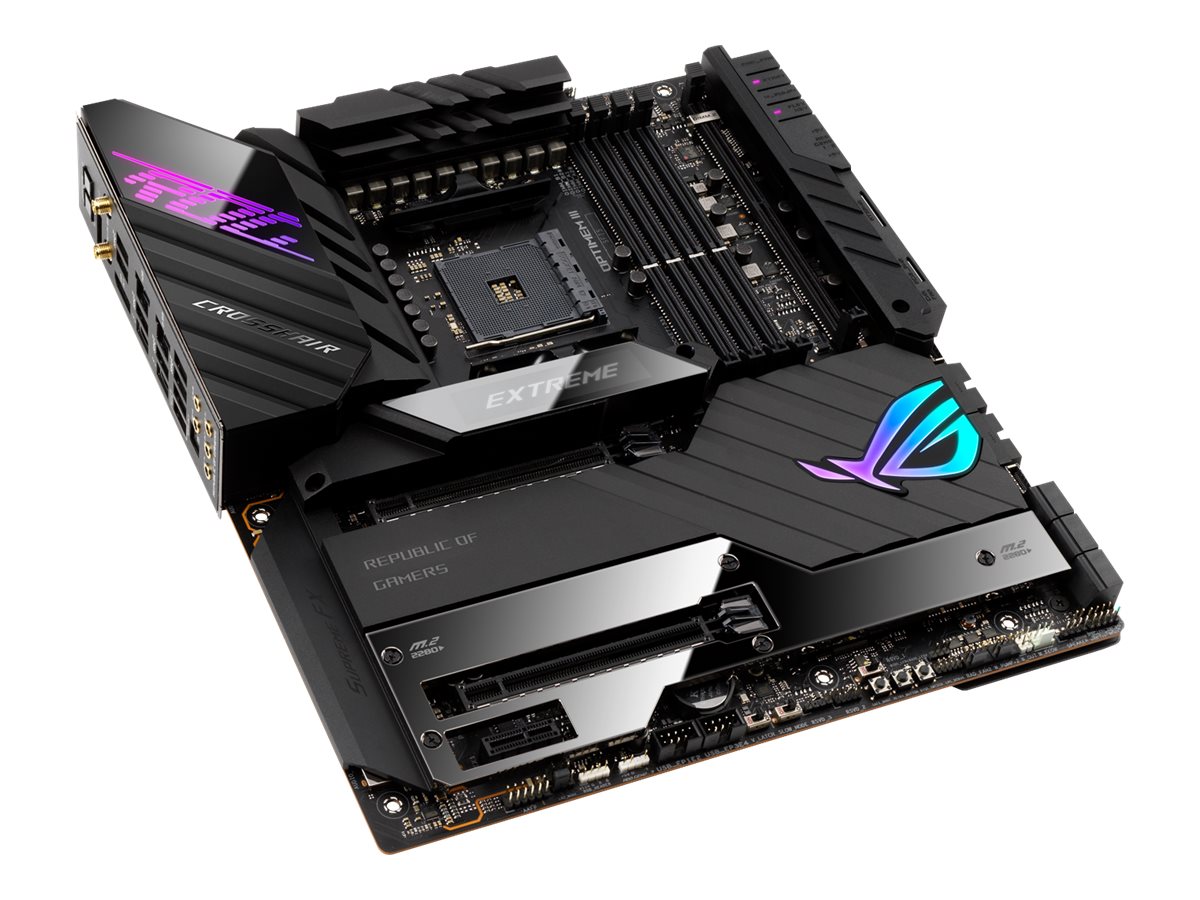

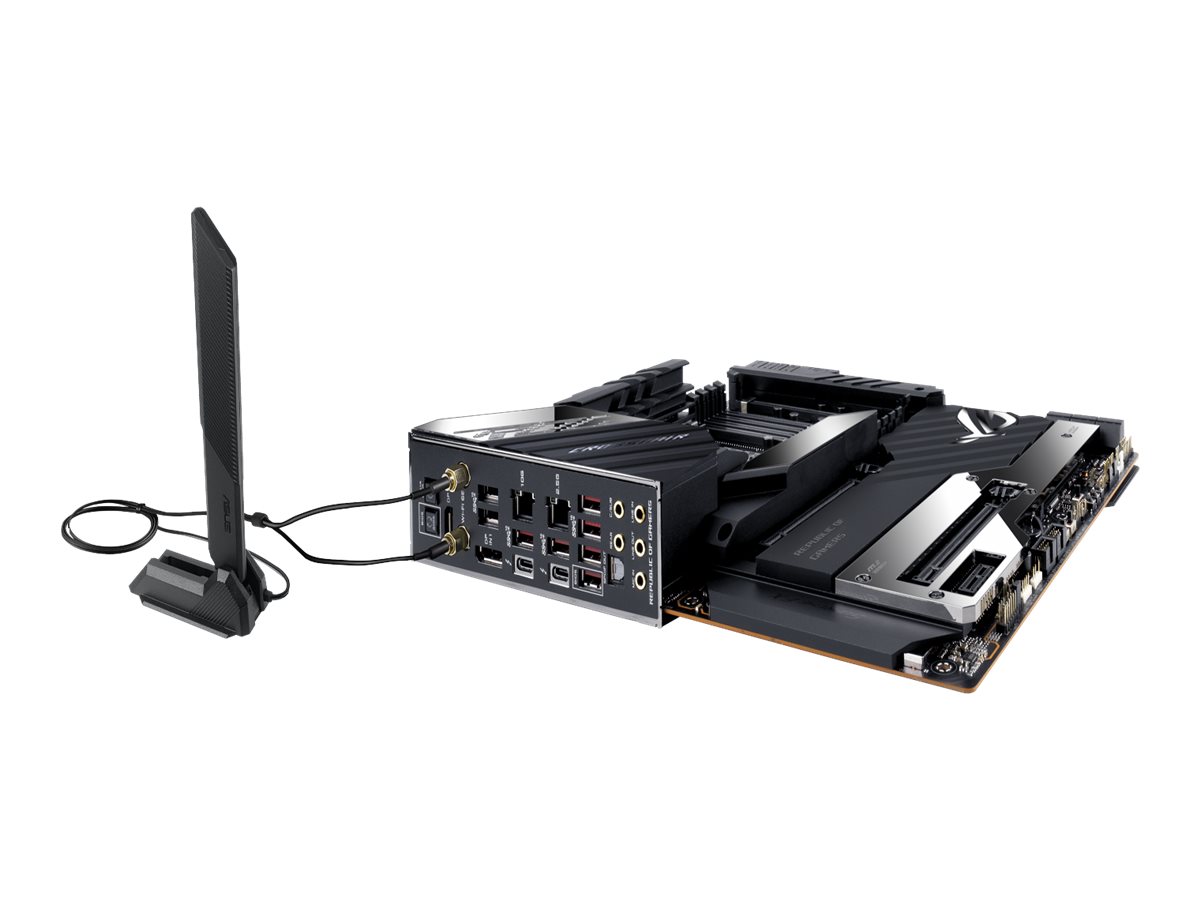

ASUS ROG CROSSHAIR VIII EXTREME

$1,300.00
ASUS ROG CROSSHAIR VIII EXTREME
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • extended ATX
  • Socket AM4
  • AMD X570 Chipset
  • USB-C Gen2, USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2
ASUS ROG CROSSHAIR VIII EXTREME
  • Motherboard
  • extended ATX
  • Socket AM4
  • AMD X570 Chipset
  • USB-C Gen2, USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2
  • 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $1,300.00
Mfr Part #: ROG CROSSHAIR VIII EXTREME
SHI Part #: 43298539
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG CROSSHAIR VIII EXTREME - Motherboard - extended ATX - Socket AM4 - AMD X570 Chipset - USB-C Gen2, USB-C Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2 - 10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth27.7 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeAMD X570
Mainboard / Compatible ProcessorsRyzen
Mainboard / Processor SocketSocket AM4
Networking / Data Link Protocol
  • 10 Gigabit Ethernet
  • 2.5 Gigabit Ethernet
  • 802.11ax
  • Bluetooth 5.2
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX (ALC4082)
Compliant StandardsHigh Definition Audio, DTS Sound Unbound
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 2 x PCIe 4.0 x16 (dual x8 mode; single card: x16 mode)
  • 1 x PCIe 3.0 x16 (x8 mode)
  • 1 x PCIe 3.0 x1

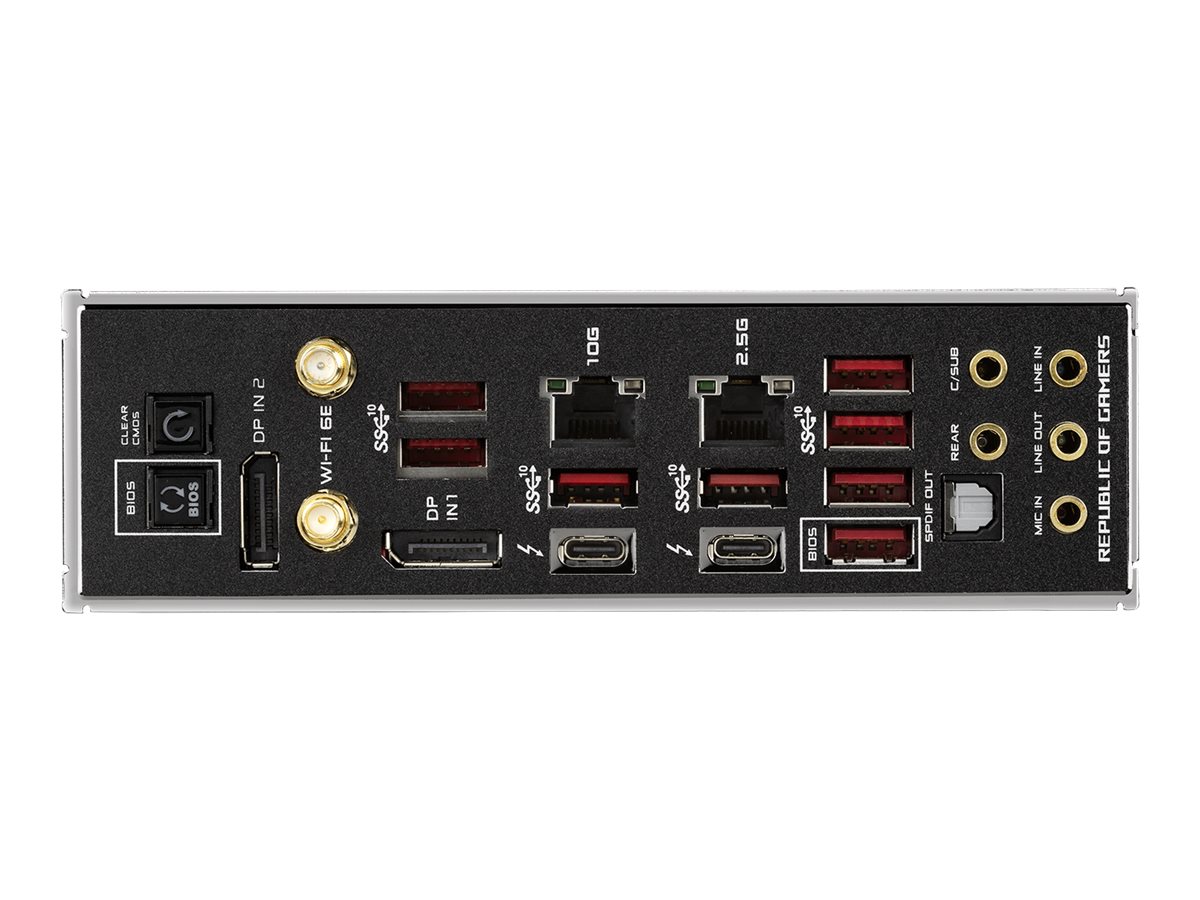

Interfaces
  • 1 x LAN (10Gigabit Ethernet)
  • 1 x LAN (2.5Gigabit Ethernet)
  • 2 x Thunderbolt 4/DisplayPort/USB4
  • 1 x microphone - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x TOSLINK
  • 8 x USB 3.2 Gen 2
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 2 x DisplayPort input
Internal Interfaces
  • 4 x USB 2.0 - header
  • 1 x USB-C Gen2 - header
  • 4 x USB 3.2 Gen 1 - header
  • 1 x USB-C Gen 2x2 - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector
Storage Interfaces
  • SATA-600 -connectors: 6 x 7pin Serial ATA
  • SATA-600 / PCIe 4.0 -connectors: 1 x M.2
  • PCIe 4.0 -connectors: 2 x M.2
  • SATA-600 / PCIe 4.0 -connectors: 1 x DIMM.2 - 2 devices
Features
BIOS FeaturesBIOS FlashBack, UEFI BIOS
BIOS TypeAMI
Hardware FeaturesASUS OptiMem III, NVIDIA 2-way SLI Technology Support, audio jack detect technology, jack retasking, SupremeFX Shielding technology, ESS 9018 SABRE HiFi DAC, LED-illuminated audio jacks, Clear CMOS Button, FlexKey button, ProbeIt, ASUS ROG Extreme OC, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS Q-Connector, ASUS Q-Design, LN2 Switch, M.2 Q-Latch, MicroFine Alloy Chokes, Q-Code, Q-DIMM, Q-LED, Q-Slot, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, ASUS Aura Sync, DualBIOS, Status OLED, ASUS HYDRANODE, Sonic Studio III, Sonic Radar III, Armoury Crate, ASUS DIGI+ Power Control, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert 4, ASUS TPU (TurboV Processing Unit), Dual Intelligent Processors 5, CrashFree BIOS 3, Preboot eXecution Environment (PXE)
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeAMD X570
Compatible ProcessorsRyzen (supports Ryzen 2000 Series/ 2000 G-Series/ 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Max Processors Qty1
Processor SocketSocket AM4
Product TypeMotherboard - extended ATX
LAN
Network ControllerIntel I225-V / AQtion AQC113CS
Network Interfaces10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Miscellaneous
Cables Included
  • 3 x Serial ATA cable
  • External fan power adapter cable
Depth27.7 cm

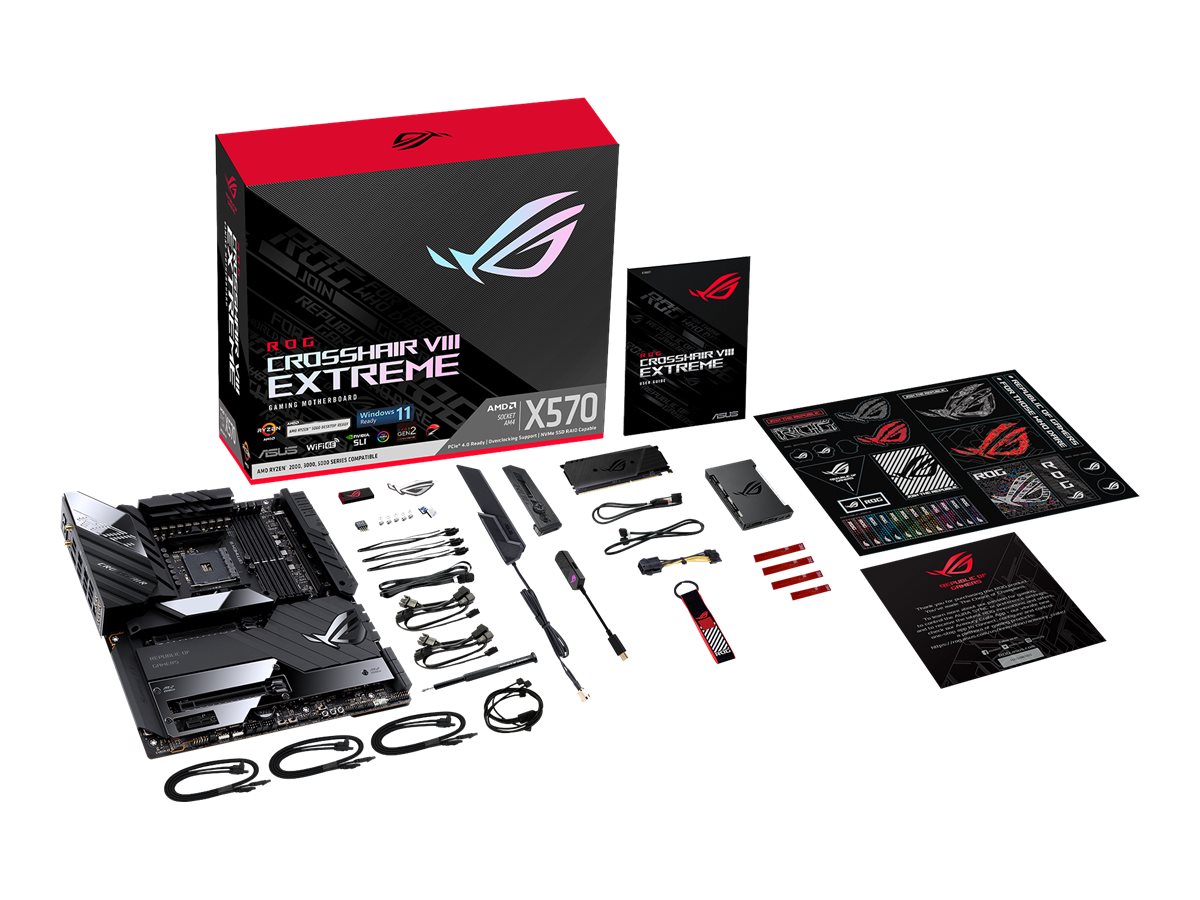

Included Accessories1 to 3 ARGB LED splitter cable, 1 to 4 fan splitter cable, RGB Addressable LED extension cable, 3 thermistor cables, ROG Fan Controller, DIMM.2 extension card, 4 x M.2 screws, ASUS Wi-Fi moving antenna, ROG CLAVIS DAC, thermal pad for M.2 SSD, Q-Connector, ROG key chain, graphics card holder, ROG logo plate sticker, screwdriver, ROG fan stickers, ROG thank you card, USB drive
Software IncludedASUS ROG RAMCache III, ROG CPU-Z, ROG GameFirst VI, Sonic Studio Virtual Mixer, BullGuard Internet Security (1 year license), AIDA64 Extreme (1 year license), ASUS AURA Creator, ASUS AI Suite III, ASUS Turbo App, DAEMON Tools, WinRAR, ASUS EZ Flash 3
Width30.5 cm
Supported RAM
Bus Clock2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5000 MHz (O.C.), 5100 MHz (O.C.)
FeaturesDual channel memory architecture
Max Size128 GB
Registered or BufferedUnbuffered
TechnologyDDR4
