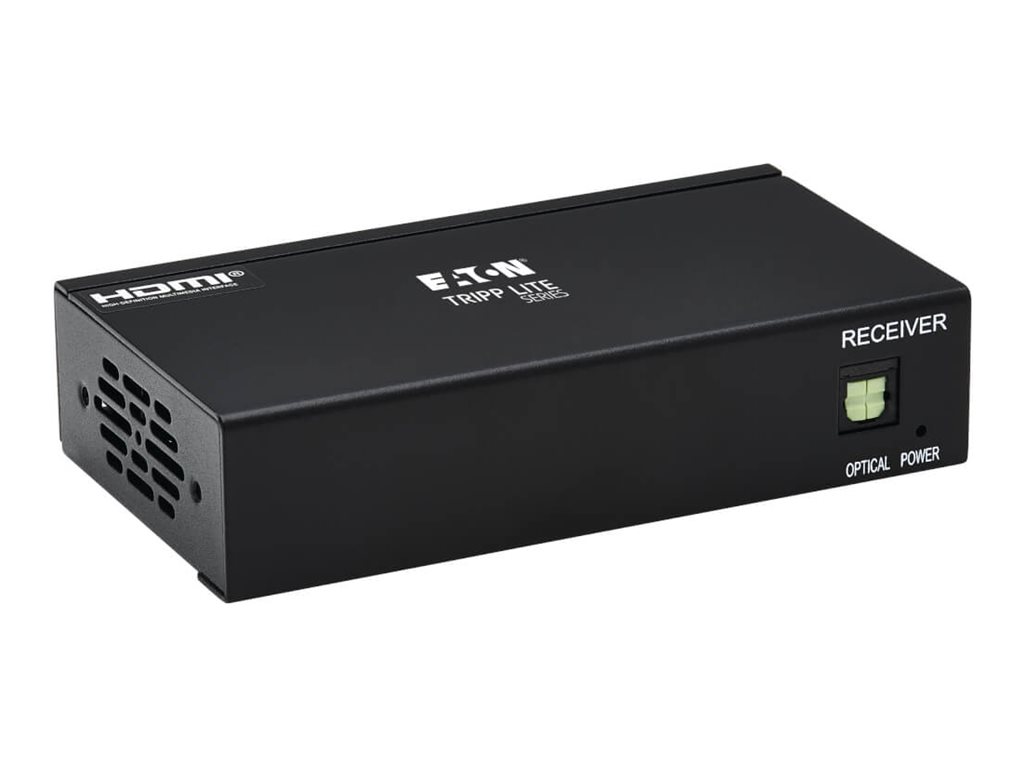

Eaton Tripp Lite Series HDMI over Cat6 Receiver 1-Port

$151.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA Video/audio extender receiver over CAT 6 up to 70.1 m

Eaton Tripp Lite Series HDMI over Cat6 Receiver 1-Port

4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA
Video/audio extender
receiver
over CAT 6
up to 70.1 m
TAA Compliant

Additional Details
Price:	$151.00
Mfr Part #:	B127A-1A0-BH
SHI Part #:	43200717
Category:	Serial port cards
UNSPSC:	43201559
Manufacturer:	Eaton
Product Type:	Hardware

HDMI Extender Receiver Ideal for Digital Signage in Schools and Workplaces

This 4K receiver is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Extends a 4K A/V Transmission up to 230 ft….or Even Farther

The B127A-1A0-BH connects to a B127A-Series transmitter, switch or splitter to extend 4K signals from an HDMI source to an HDMI display up to 230 feet (70.1 meters) away via user-supplied Cat6 cabling. By adding a B127A-010-H signal repeater (sold separately) to the application, you can extend the signal up to 400 feet (121.9 meters).

Supports Crystal-Clear 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color

The B127A-1A0-BH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with 7.1-channel surround sound audio via TOSLINK. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This receiver also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks

Power over Cable (PoC) technology powers the B127A-1A0-BH over Cat6 cable. LEDs indicate when the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver where needed without worrying about finding a nearby AC outlet.

Plug-and-Play Operation for Quick Setup and Immediate Use

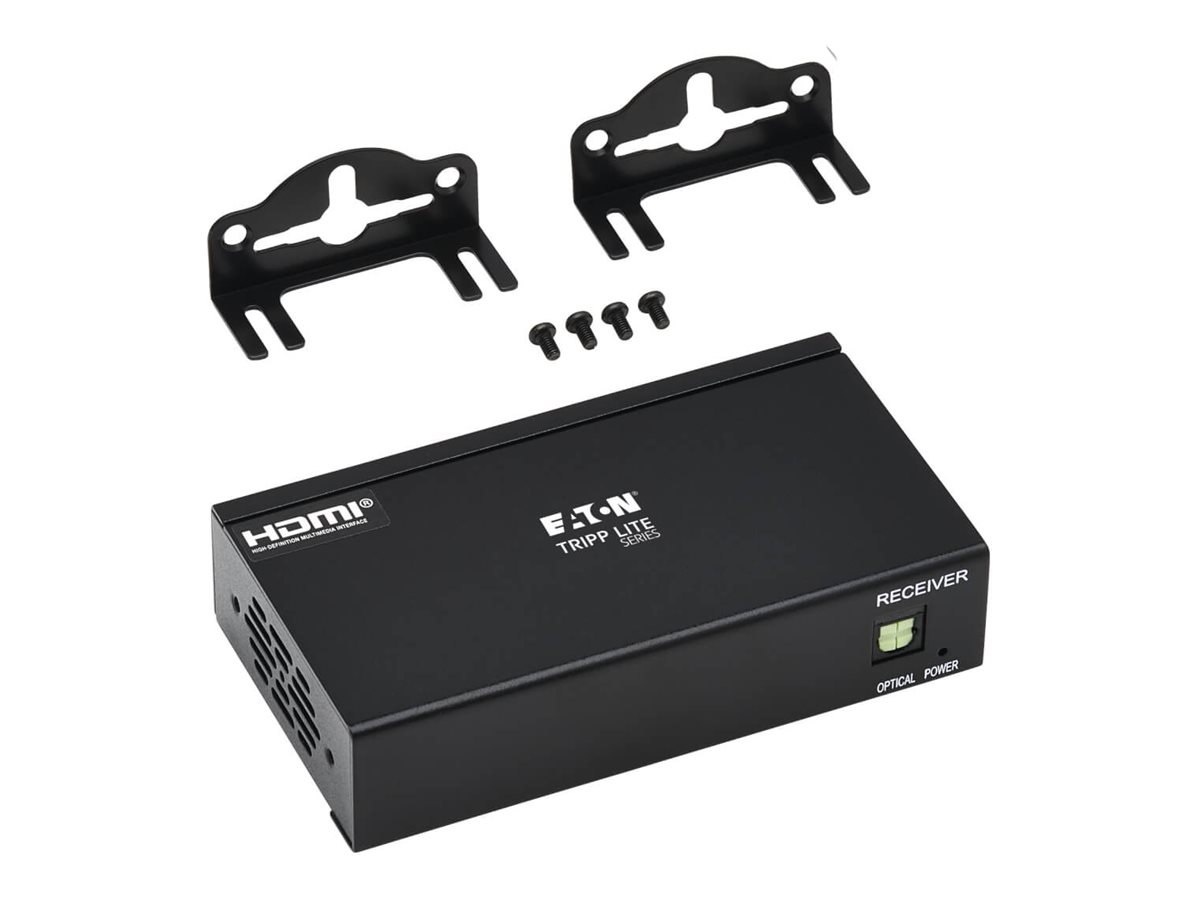

The receiver works right out of the package with no software required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the receiver to a transmitter, switch or splitter with user-supplied Cat6 cable (such as N202-Series). Connect to a 4K display with a user-supplied HDMI cable (such as P568- or P569-Series).

TAA-Compliant for GSA Schedule Purchases

The B127A-1A0-BH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Audio/Video Cables

Tripp Lite High-Speed HDMI Cable with Gripping Connectors 4K 60 Hz 4:4:4 M/M Black 15ft

HDMI cable
HDMI (M) to HDMI (M)
4.57 m
shielded
black
molded

$20.00

Eaton Tripp Lite Series 4K HDMI Cable (M/M)

4K 60 Hz, HDR, 4:4:4, Gripping Connectors, Black, 6 ft.
HDMI cable
HDMI male to HDMI male
1.83 m
shielded
black

$9.00

Tripp Lite 50ft Cat6 Gigabit Solid Conductor Snagless Patch Cable RJ45 M/M Blue 50'

Patch cable
RJ-45 (M) to RJ-45 (M)
15.3 m
CAT 6
booted, snagless, solid
blue

$30.00

General Information
Category	Serial port cards
Description	Eaton Tripp Lite Series HDMI over Cat6 Receiver 1-Port - 4K 60 Hz, HDR, 4:4:4, PoC, HDCP 2.2, 230 ft. (70.1 m), TAA - Video/audio extender - receiver - over CAT 6 - up to 70.1 m - TAA Compliant
Manufacturer	Eaton
MSRP	$219.79
UNSPSC	43201559
Main Specifications
Dimensions & Weight / Depth	6.24 cm
Dimensions & Weight / Height	2.7 cm
Dimensions & Weight / Weight	249 g
Dimensions & Weight / Width	11.5 cm
Header / Brand	Tripp Lite
Networking / Connectivity Technology	Wired
Networking / Form Factor	Wall / pole mountable / rack mountable
Networking / Type	Video/audio extender
Packaged Quantity	1
Service & Support / Type	1-year warranty
Dimensions & Weight
Depth	6.24 cm
Height	2.7 cm
Weight	249 g
Width	11.5 cm
Dimensions & Weight (Shipping)
Shipping Depth	16.4 cm
Shipping Height	5.51 cm
Shipping Weight	558 g
Shipping Width	21.4 cm
Environmental Parameters
Humidity Range Operating	0 - 85% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity

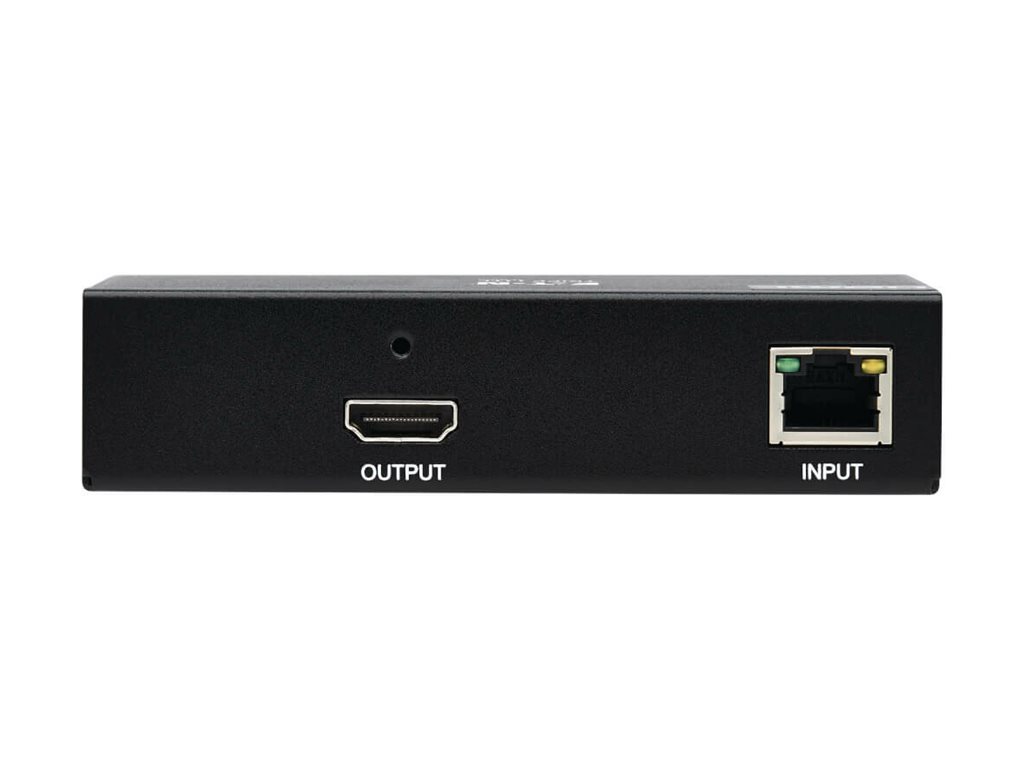

Interfaces	1 x HDMI (output) - Type A female 1 x network (input) - RJ-45 female 1 x audio (output) - TOSLINK female
General
Color	Black
Device Type	Video/audio extender (receiver)
Form Factor	Wall / pole mountable / rack mountable
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	Plug and Play, FCC, AS/NZS 3112, RoHS, REACH, CEC, EDID compatible, BS 1363
Mounting Kit	Included
Rack Mounting Kit	Included
TAA Compliant	Yes
Networking
Compliant Standards	HDCP 1.4, HDCP 2.2
Connectivity Technology	Wired
Features	3D support, video mirror mode, 7.1 channel audio support, LPCM 7.1 support, 36-bit Deep Color support, LPCM 5.1 support, HDR support, 4:4:4 chroma subsampling support, LPCM 2.0 support
Max Resolution	3840 x 2160 @ 60 Hz
Max Transfer Distance	70.1 m
Status Indicators	Status
Power
Power Over Ethernet (PoE)	PoC
