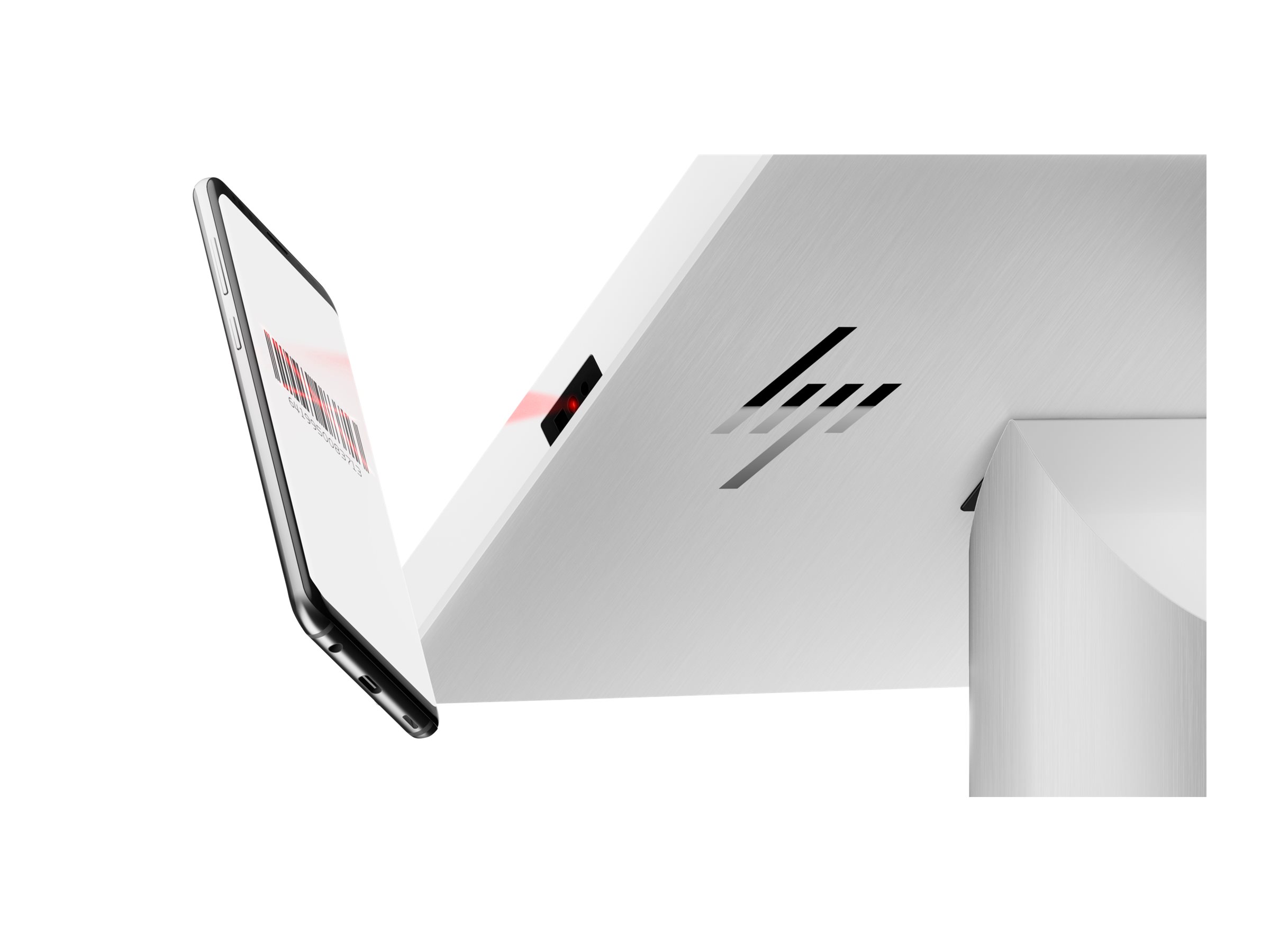

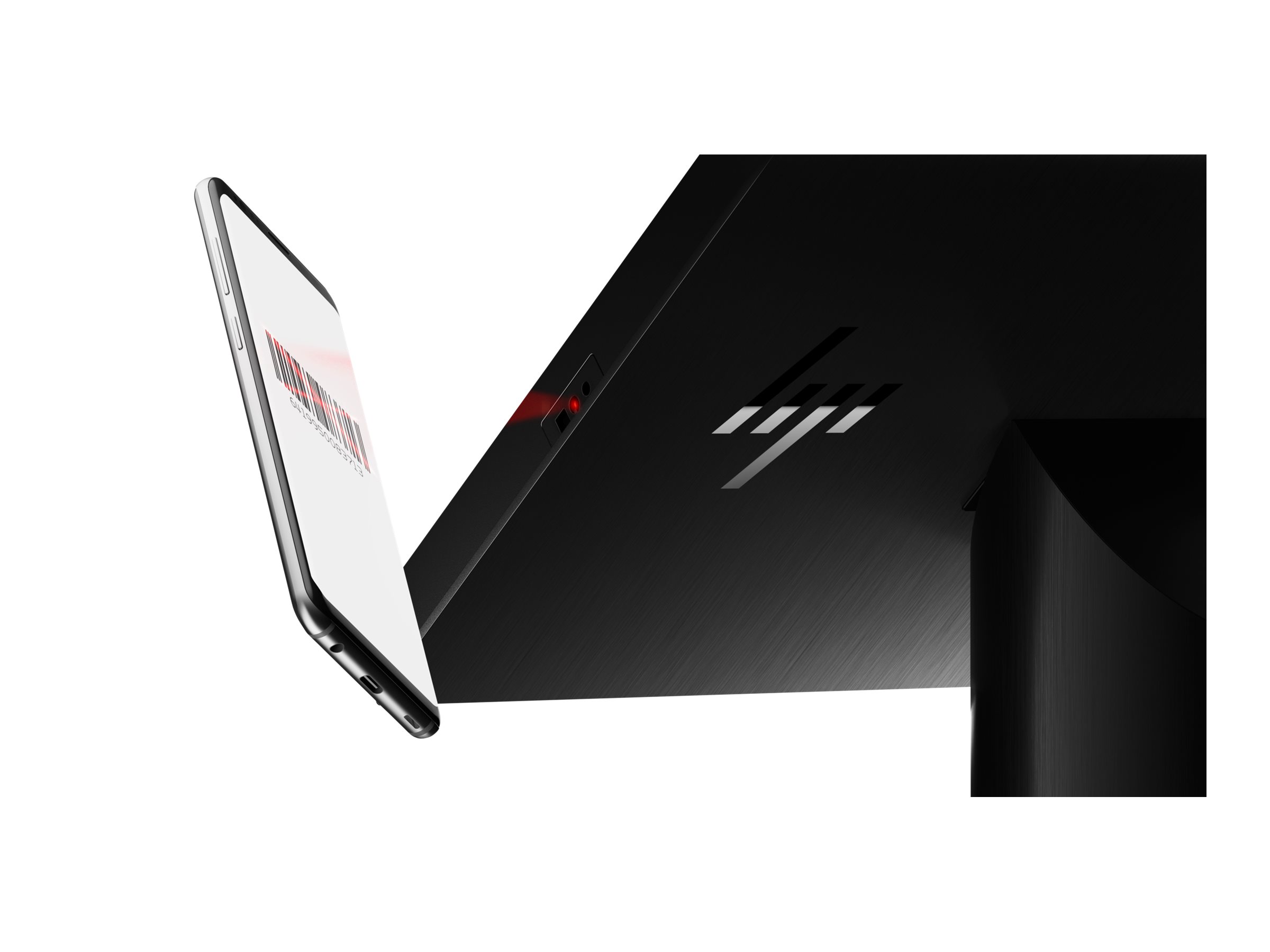

HP - Barcode scanner
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HP - Barcode scanner
- integrated
- decoded
- USB
| Additional Details | |
|---|---|
| Mfr Part #: | 9YH49AA#ABA |
| SHI Part #: | 42187668 |
| Category: | Bar code equipment |
| UNSPSC: | 43211701 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Bar code equipment |
| Description | HP - Barcode scanner - integrated - decoded - USB |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.58 cm |
| Dimensions & Weight / Height | 0.98 cm |
| Dimensions & Weight / Weight | 15 g |
| Dimensions & Weight / Width | 3.04 cm |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Barcode | |
| Decode Capability | Aztec code, Chinese Sensible Code, Code One, Data Matrix, China GM Code, MaxiCode, MicroPDF417, Micro QR code, PDF417, QR code, Australian Post, Kix (Netherlands) Post, Royal Mail, US Planet, US Postnet, GS1 DataBar |
| Features | Passport reader |
| Interface Type | USB |
| Light Source Wave Length | 625 nm |
| Max Working Distance | 24.5 cm |
| Pitch (Degrees) | 60 |
| Scan Element Type | CMOS - white LED / red LED |
| Scan Mode | Fixed projection |
| Sensor Resolution | 1200 x 800 |
| Skew (Degrees) | 60 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 4.58 cm |
| Height | 0.98 cm |
| Weight | 15 g |
| Width | 3.04 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| General | |
| Color | Black |
| Localization | English / United States |
| Type | Barcode scanner - integrated - stationary |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 3 years |
| Miscellaneous | |
| Compliant Standards | IP54, FCC Part 15 Class B, EMC Class B, IEC 62471, RoHS, IEC 62368-1 |
| Power | |
| Electric Current Required | 500-700 mA (operating), 800 mA (maximum), 1 mA (sleep), 70 mA (idle) |
| Power Consumption Operational | 3 Watt |
| System Requirements | |
| OS Required | Windows 10 IoT Enterprise 2016 LTSB 64-bit Edition (RS1), Windows 10 IoT Enterprise 2019 LTSC 64-bit Edition (RS5), Windows 10 Pro 64-bit Edition, CentOS 5.6.8 (64-bit) or later, Red Hat Linux, SUSE Linux Enterprise Desktop 11 64-bit, SuSE Linux Enterprise Server 12 SP3 (64-bit) or later, Ubuntu 12.04, Ubuntu 14.04 LTS (64-bit) or later, Android 8.0 (Oreo) or later |
