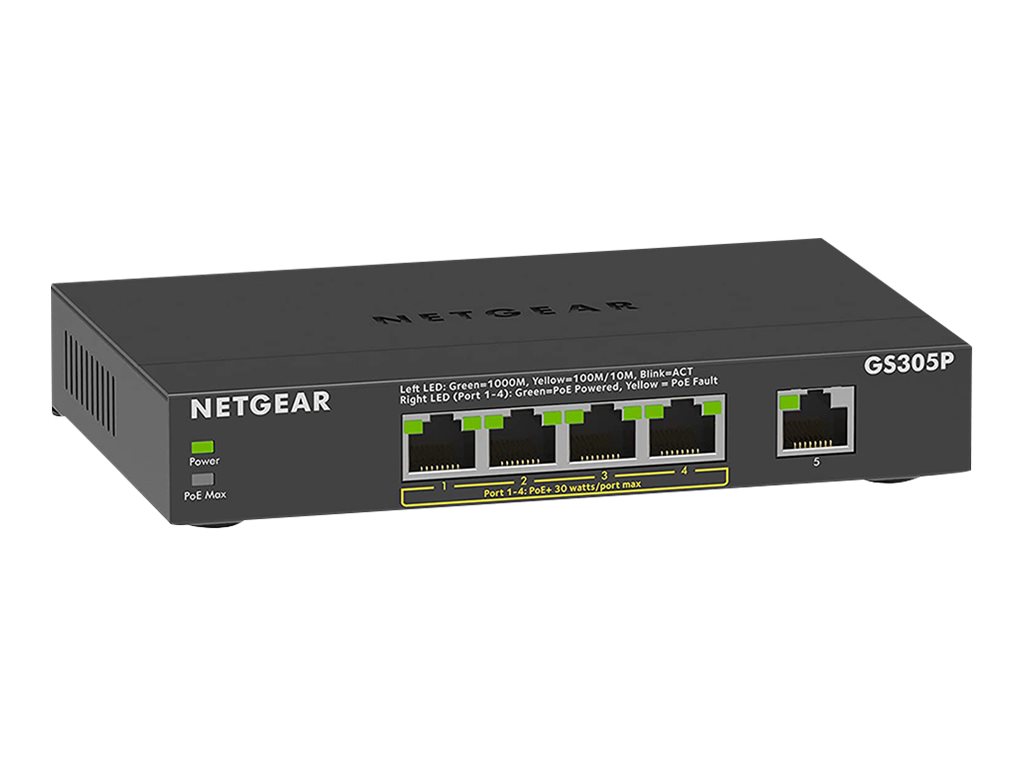

5Port Gigabit Poe+ Switch


$108.00
5Port Gigabit Poe+ Switch

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
5Port Gigabit Poe+ Switch
  Additional Details
Price: $108.00
Mfr Part #: GS305P-200NAS
SHI Part #: 41378271
Category: Network switches
UNSPSC: 43222612
Manufacturer: NETGEAR
Product Type: Hardware
General Information
CategoryNetwork switches
Description5Port Gigabit Poe+ Switch
ManufacturerNETGEAR
MSRP$89.99
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth10.1 cm
Dimensions & Weight / Height2.9 cm
Dimensions & Weight / Weight0.39 kg
Dimensions & Weight / Width15.8 cm
Header / BrandNETGEAR
Miscellaneous / Product ColorBlack
Networking / Form Factor
  • Desktop
  • Wall-mountable
Networking / Ports Qty5
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type3-year warranty
Dimensions & Weight
Depth10.1 cm
Height2.9 cm
Weight0.39 kg
Width15.8 cm
Environmental Parameters
Humidity Range Operating90%
Humidity Range Storage95%
Max Operating Temperature40 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-20 °C
Expansion / Connectivity
Interfaces
  • 4 x 1000Base-T RJ-45 PoE+
  • 1 x 1000Base-T RJ-45
General
Compliant StandardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Device TypeSwitch - 5 ports - unmanaged
Enclosure TypeDesktop, wall-mountable
Features128KB packet buffer, auto-uplink (auto MDI/MDI-X), flow control, fanless, metal housing
Jumbo Frame Support9216 bytes
MAC Address Table Size2K entries
Performance
  • Non-blocking bandwidth: 10 Gbps
  • Forwarding performance (64-byte packet size): 1448000 pps
  • Latency (64-byte packets): 2.4 µs
PoE Budget63 W
Ports5 x 10/100/1000 (4 PoE+)
Power Over Ethernet (PoE)PoE+
Status IndicatorsPower, link/activity, PoE
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - power supply - 2 years
  • Limited warranty - technical support - 90 days with product registration
Miscellaneous
Compliant StandardsPlug and Play, CB, FCC Part 15 B, IC Class B, KC, LVD, RCM, VCCI
Included AccessoriesRubber feet, wall mounting kit
MTBF4,105,494 hours
Power
Power DeviceExternal power adapter
Voltage RequiredDC 54 V
