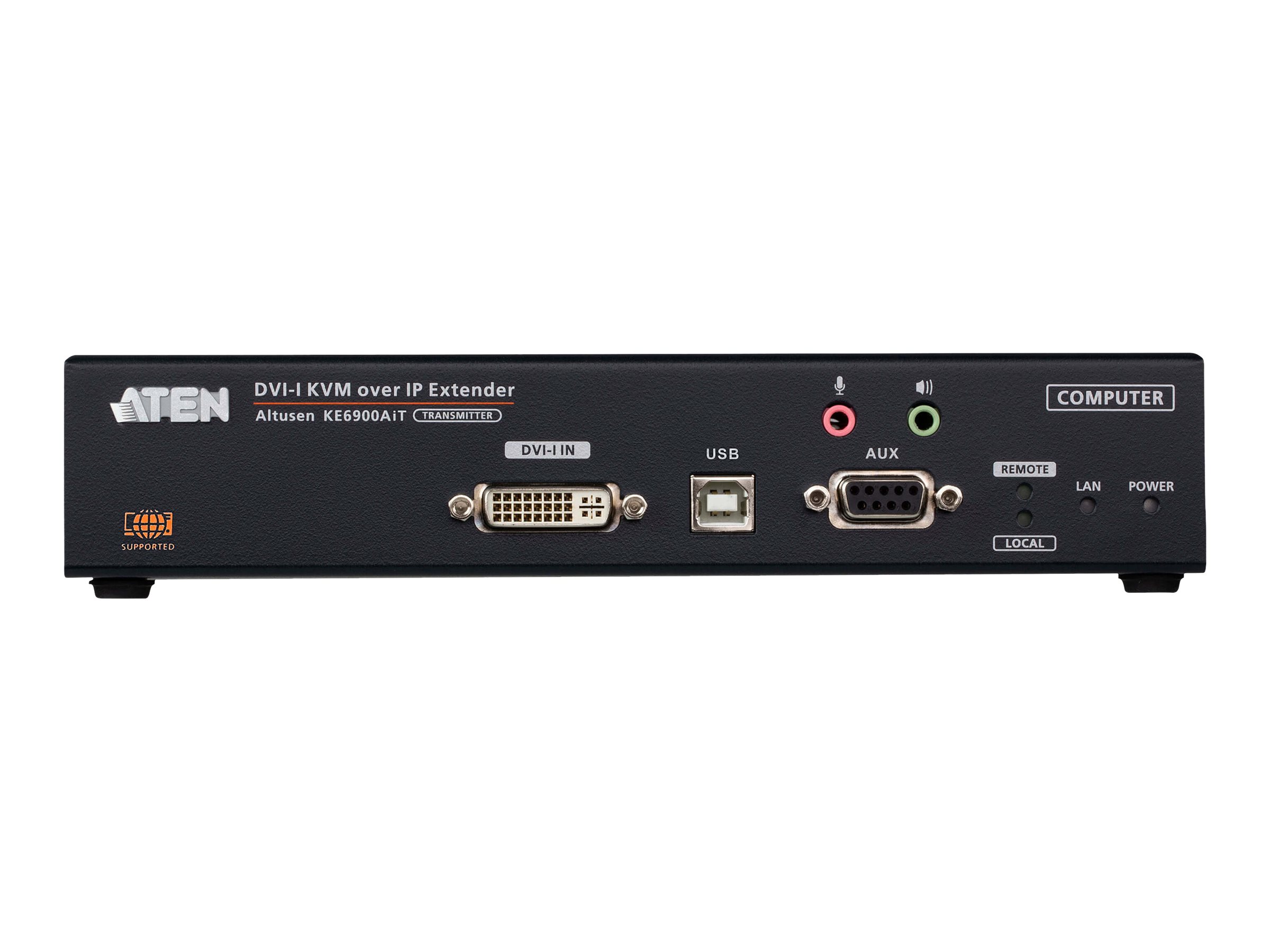

ATEN Altusen KE6900AiT
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN Altusen KE6900AiT
- KVM / audio / serial extender
- transmitter
- USB
- up to 10 km
- for P/N: CS1144DP4UN
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | KE6900AIT |
| SHI Part #: | 41098216 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN Altusen KE6900AiT - KVM / audio / serial extender - transmitter - USB - up to 10 km - for P/N: CS1144DP4UN |
| Manufacturer | ATEN |
| MSRP | $2,183.10 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.33 cm |
| Dimensions & Weight / Height | 4.18 cm |
| Dimensions & Weight / Weight | 1.16 kg |
| Dimensions & Weight / Width | 21.5 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Form Factor | External |
| Networking / Type | KVM / audio / serial extender |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | P/N: CS1144DP4UN |
| Dimensions & Weight | |
| Depth | 16.33 cm |
| Height | 4.18 cm |
| Weight | 1.16 kg |
| Width | 21.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | KVM / audio / serial extender (transmitter) |
| Form Factor | External |
| Miscellaneous | |
| Cables Included | 1 x keyboard / mouse / video / audio cable - 1.8 m |
| Compliant Standards | RoHS |
| Included Accessories | 4 foot pads, mounting kit |
| Mounting Kit | Included |
| Networking | |
| Authentication Method | RADIUS, TACACS+, LDAP, Active Directory |
| Connectivity Technology | Wired |
| Encryption Algorithm | TLS, 128-bit AES |
| Features | On-Screen Display, auto-uplink (auto MDI/MDI-X), reset button, fanless, 8KV/15KV ESD Protector, metal housing, EDID Expert, video wall function |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 1920 x 1200 @ 60 Hz |
| Max Transfer Distance | 10 km |
| Remote Management Protocol | CLI |
| Status Indicators | Power, link/speed, local, remote |
| Power | |
| Power Consumption Operational | 12 Watt |
| Power Device | External power adapter |
