Hardware Computers and Tablets Desktops and Workstations
Add to My Favorites
Desktops and Workstations

HP Workstation Z8 G4

Login for Price

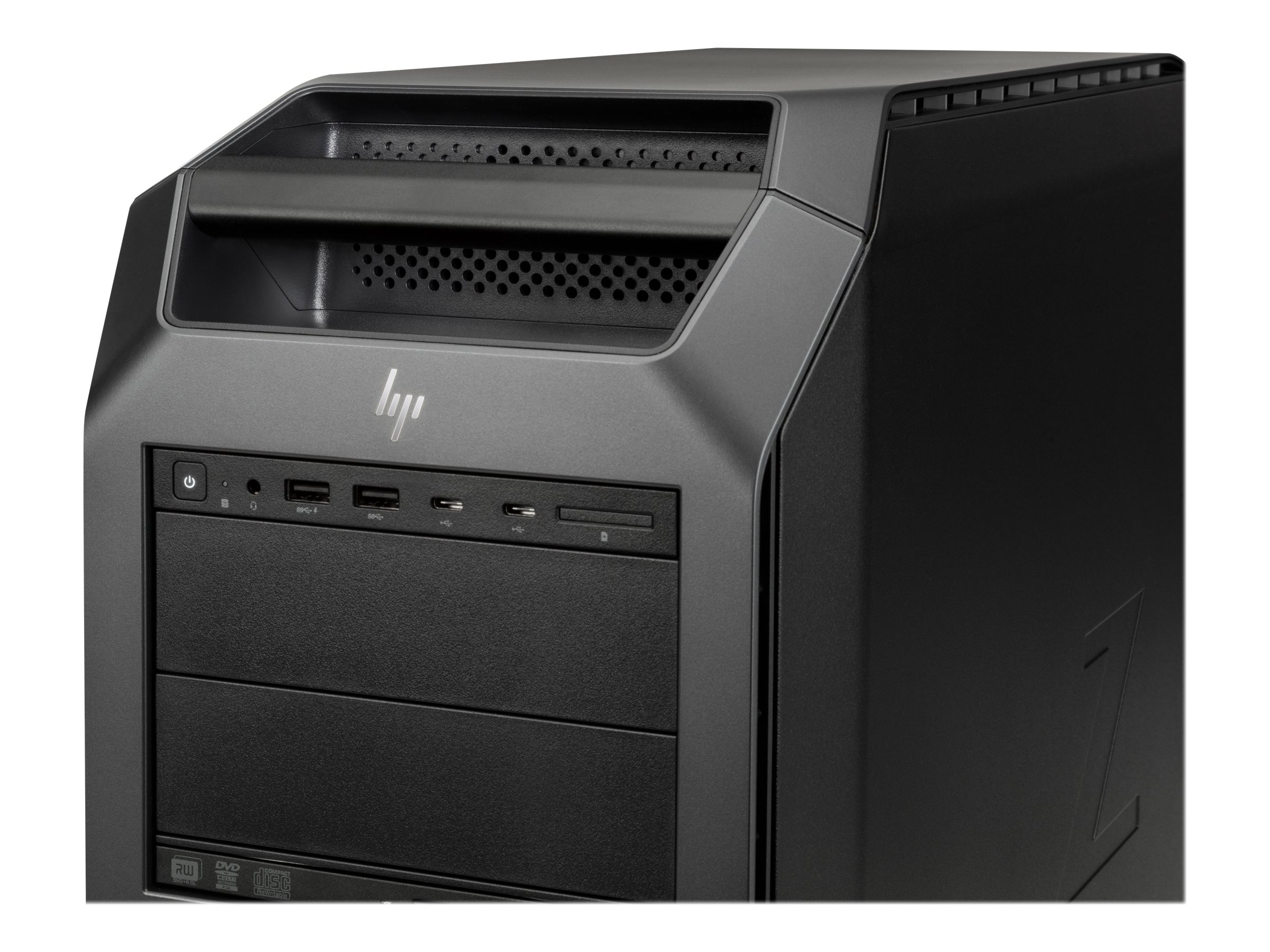

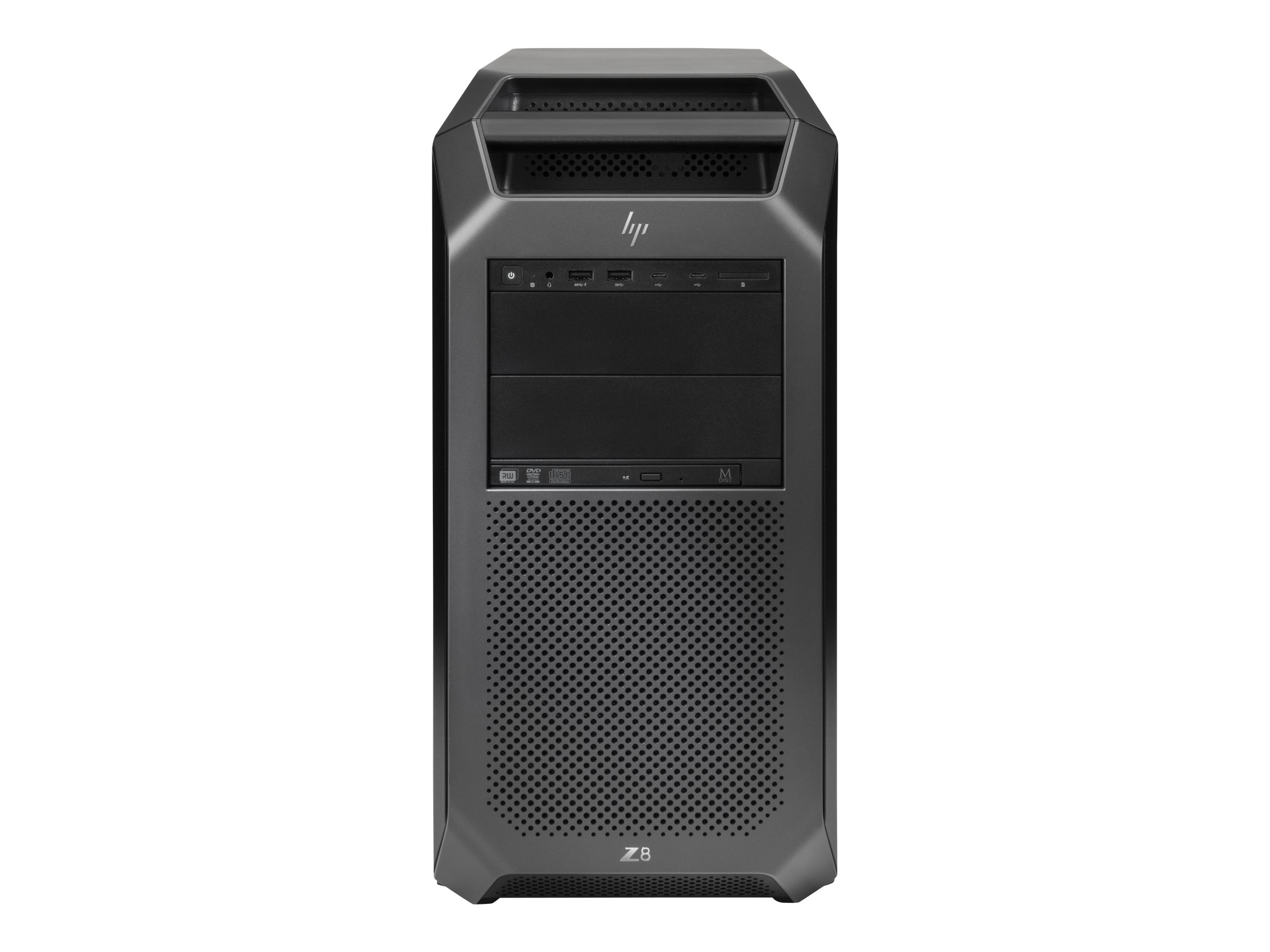

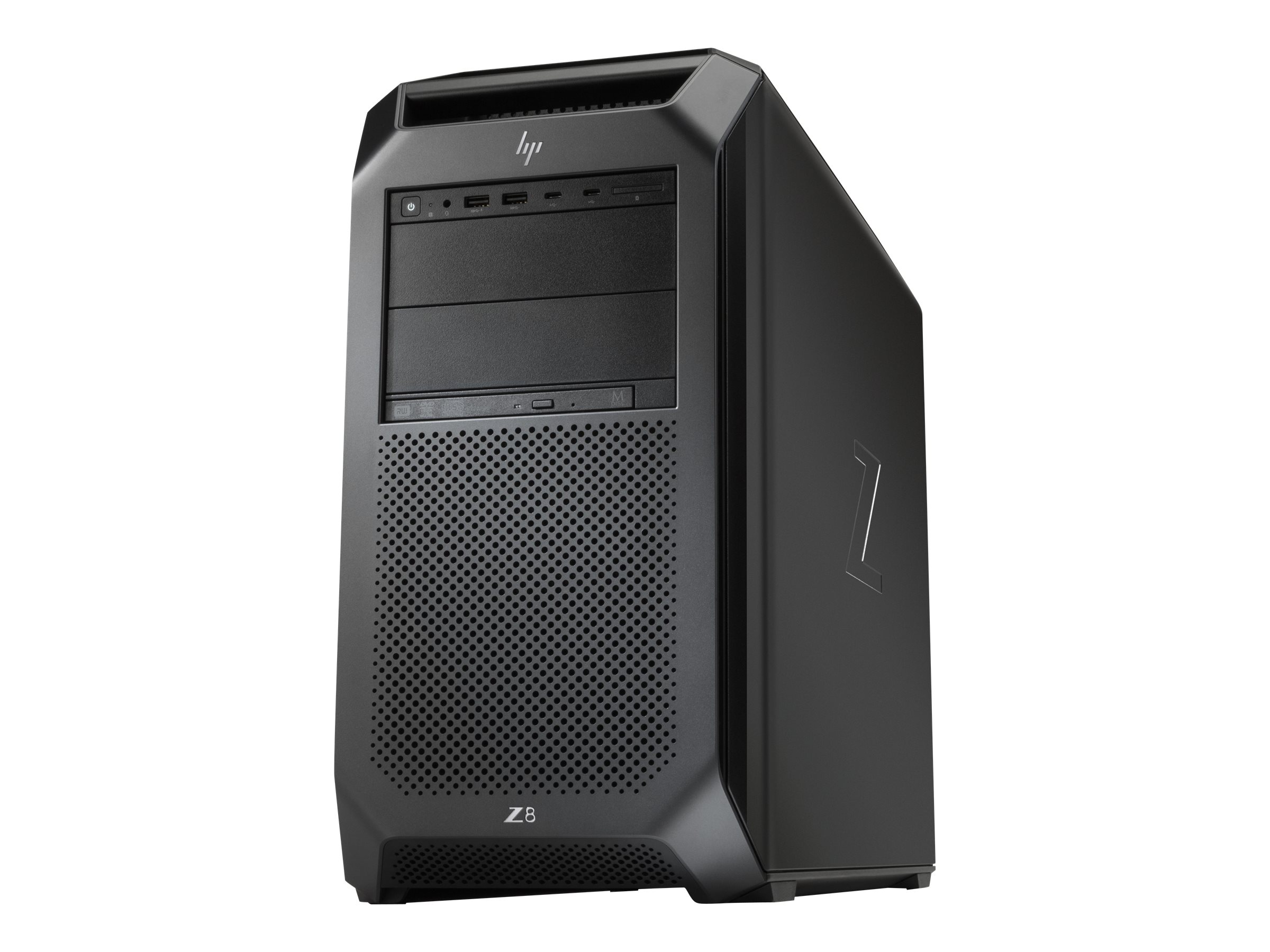

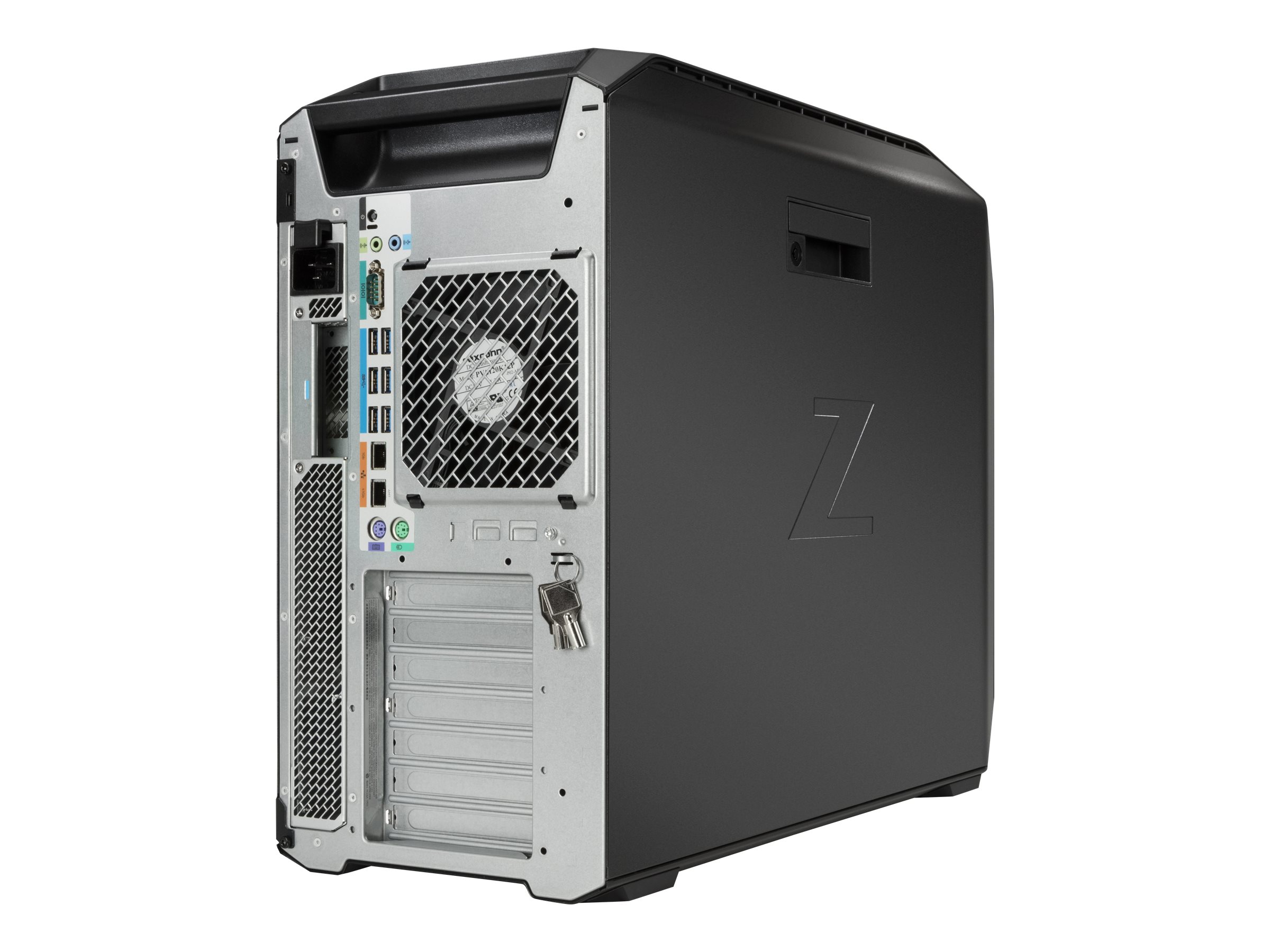

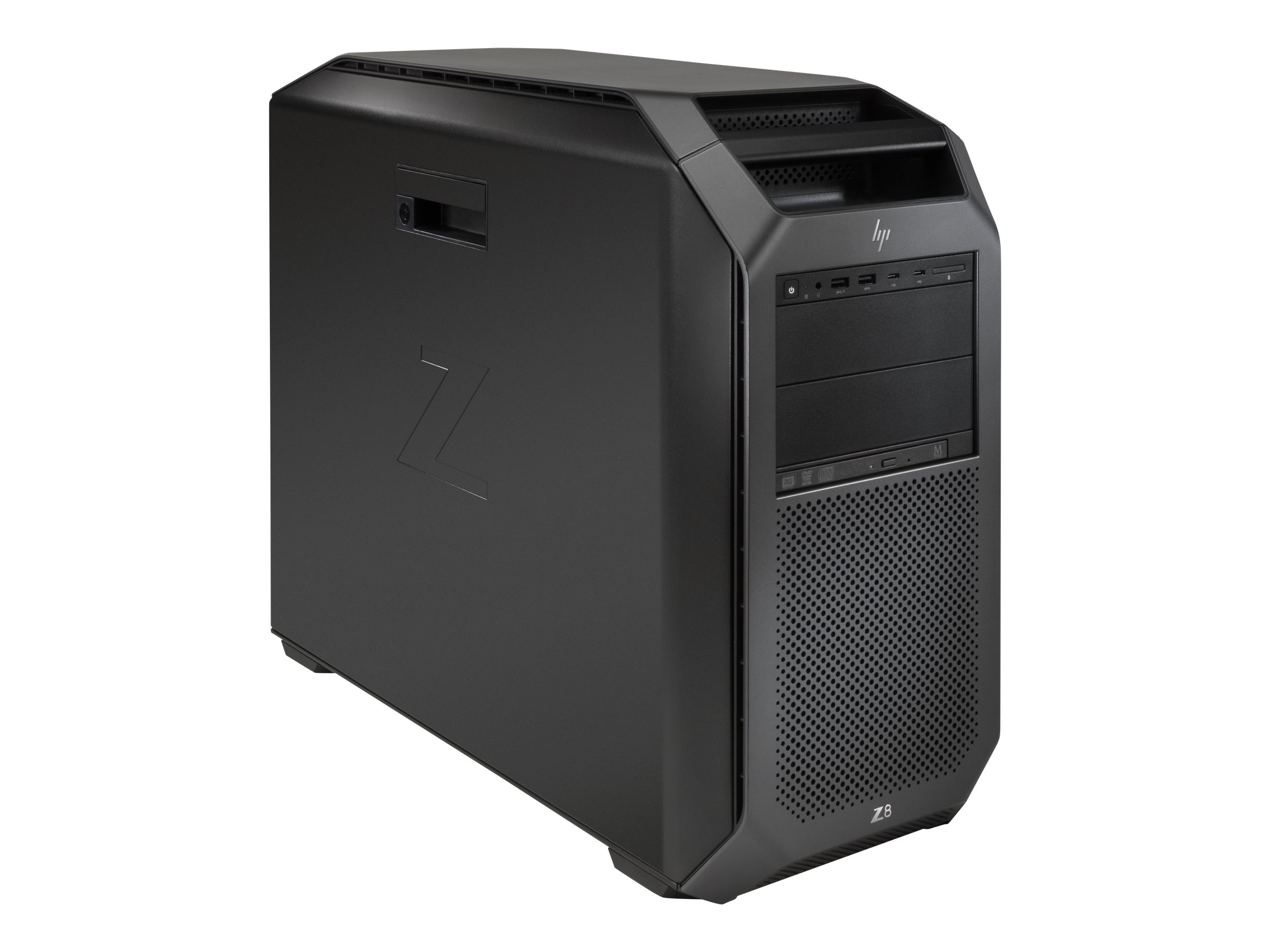

HP Workstation Z8 G4
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Tower 5U
  • 1 x Xeon Silver 4215R / up to 4 GHz
  • vPro
  • RAM 16 GB
  • SSD 512 GB
HP Workstation Z8 G4
  • Tower 5U
  • 1 x Xeon Silver 4215R / up to 4 GHz
  • vPro
  • RAM 16 GB
  • SSD 512 GB
  • HP Z Turbo Drive, NVMe, TLC
  • DVD-Writer
  • Quadro RTX 5000
  • Gigabit Ethernet
  • Win 10 Pro for Workstations Plus 64-bit
  • monitor: none
  • keyboard: US
  • black
  • Smart Buy
  Additional Details
Mfr Part #: 2K9H2UT#ABA
SHI Part #: 41071543
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: HP, Inc.
Product Type: Hardware

Hard Drives

HP - Hard drive - 8 TB
HP - Hard drive - 8 TB
  • internal
  • 3.5" LFF
  • SATA
  • 7200 rpm
  • for Workstation Z2 G4, Z2 G5, Z2 G8, Z2 G9 (SFF, tower), Z4 G4, Z6 G4, Z8 G4
Login for Price
HP Z Turbo Drive - SSD
HP Z Turbo Drive - SSD
  • 2 TB
  • internal
  • M.2
  • PCIe 4.0 x4
  • for Workstation Z2 G9 (SFF, tower), Z8 G4
Login for Price

Network Interface Cards

Intel AX210 - Network adapter
Intel AX210 - Network adapter
  • M.2 2230
  • Wi-Fi 6E, Bluetooth 5.2
  • for Workstation Z4 G4, Z4 G5, Z6 G4, Z6 G5, Z8 G4
Login for Price
Intel X550-T2 - Network adapter
Intel X550-T2 - Network adapter
  • PCIe 3.0 x4
  • 10Gb Ethernet x 2
  • for Workstation Z2 G4, Z2 G5, Z4 G4, Z6 G4, Z8 G4; ZCentral 4R
Login for Price
Intel I350-T4 - Network adapter
Intel I350-T4 - Network adapter
  • PCIe 2.1 x4 low profile
  • Gigabit Ethernet x 4
  • for Workstation Z2 G4, Z2 G5, Z2 G8, Z2 G9, Z4 G4, Z6 G4, Z8 G4
Login for Price
General Information
CategoryDesktop computers
DescriptionHP Workstation Z8 G4 - Tower 5U - 1 x Xeon Silver 4215R / up to 4 GHz - vPro - RAM 16 GB - SSD 512 GB - HP Z Turbo Drive, NVMe, TLC - DVD-Writer - Quadro RTX 5000 - Gigabit Ethernet - Win 10 Pro for Workstations Plus 64-bit - monitor: none - keyboard: US - black - Smart Buy
ManufacturerHP, Inc.
UNSPSC43211507
Main Specifications
Chassis / Form FactorTower
Dimensions & Weight / Depth55.12 cm
Dimensions & Weight / Height44.45 cm
Dimensions & Weight / Weight22.4 kg
Dimensions & Weight / Width21.59 cm
Display / TypeNone.
Hard Drive / Capacity512 GB
Hard Drive / InterfacePCI Express 3.0 x4
Hard Drive / Interface TypePCI Express 3.0 x4
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel C622
Mainboard / Processor SocketFCLGA3647 Socket
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / Drive TypeDVD-Writer
Optical Storage / TypeDVD-Writer
OS Provided / TypeWindows 10 Pro for Workstations Plus 64-bit Edition
Packaged Quantity1
Processor / Clock Speed3.2 GHz
Processor / ManufacturerIntel
Processor / Number of Cores8-core
Processor / Processor Number4215R
Processor / TypeXeon Silver
RAM / Data Integrity CheckECC
RAM / Form FactorDIMM 288-pin
RAM / Memory Speed2933 MHz
RAM / TechnologyDDR4 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity512 GB
System / Platform TechnologyIntel vPro Platform
System / TypeWorkstation
Video Memory / TechnologyGDDR6 SDRAM
Video Output / Graphics ProcessorNVIDIA Quadro RTX 5000
Audio Output
Compliant StandardsHigh Definition Audio
Sound Output ModeStereo
Cache Memory
Cache Per Processor11 MB
Installed Size11 MB
Dimensions & Weight
Depth55.12 cm
Height44.45 cm
Weight22.4 kg
Width21.59 cm
Environmental Parameters
Humidity Range Operating10 - 85% (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Bays
  • 1 (total) / 0 (free) x external 5.25" Slim Line
  • 2 (total) / 2 (free) x external 5.25"
  • 4 (total) / 4 (free) x internal 2.5" / 3.5" shared
Interfaces
  • 1 x headphones/microphone (1 in front)
  • 8 x USB 3.1 Gen 1 (2 front, 6 rear) (one of them is charging)
  • 1 x PS/2 mouse
  • 2 x LAN (Gigabit Ethernet)
  • 1 x audio line-in
  • 1 x audio line-out
  • 1 x PS/2 keyboard
  • 1 x serial
  • 2 x USB-C 3.1 Gen 2 (2 in front)
  • 4 x DisplayPort
  • 1 x VR-Link
Slots
  • 2 PCIe 3.0 x4 (open ended)
  • 2 (total) / 1 (free) x PCIe 3.0 x16
  • 2 (total) / 2 (free) x PCIe 3.0 x16 (2 processors must be installed)
  • 1 (total) / 1 (free) x PCIe 2.0 x4 (PCIe 3.0 x8 mode with 2 processors, open ended)
General
ColorBlack
LocalizationLanguage: English / region: United States
Platform TechnologyIntel vPro Platform
Product Form FactorTower - 5U
TypeWorkstation
Graphics Controller
CUDA Cores Qty3072
Graphics ProcessorNVIDIA Quadro RTX 5000
Video InterfacesDisplayPort, VirtualLink
Video Memory16 GB GDDR6 SDRAM
Hard Drive
Capacity1 x 512 GB
FeaturesHP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC)
Interface TypePCI Express 3.0 x4
TypeSSD - M.2 2280
Input Device
TypeMouse, keyboard
Keyboard
InterfaceUSB
Keyboard NameHP Business Slim Keyboard
Localization & LayoutUS
Manufacturer Warranty
Service & SupportLimited warranty - parts and labor - 3 years - on-site
Miscellaneous
Compliant StandardsRoHS, WEEE, Directive 2006/66/EC, ACPI 5.0, low halogen
Manufacturer Selling ProgramHP Smart Buy
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)
Monitor
Monitor TypeNone.
Mouse
InterfaceUSB
TechnologyOptical
Networking
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Ethernet Ports2 x Gigabit Ethernet
FeaturesWake on LAN (WoL), PXE support, auto-uplink (auto MDI/MDI-X)
Operating System / Software
OS ProvidedWindows 10 Pro for Workstations Plus 64-bit Edition English
Optical Storage
TypeDVD-Writer - SATA
Power
Device TypePower supply
Efficiency90%
Power Factor CorrectionYes (active)
Power Provided1125 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Processor / Chipset
Chipset TypeIntel C622
Clock Speed3.2 GHz
CPUIntel Xeon Silver 4215R
CPU Qty1
CPU SocketFCLGA3647 Socket
CPU UpgradabilityUpgradable
Max CPU Qty2
Max Turbo Speed4 GHz
Number of Cores8-core
RAM
Configuration Features2 x 8 GB
Effective Memory Speed2933 MHz
FeaturesRegistered, slots 13 - 24 are available in two-processor configuration only
Form FactorDIMM 288-pin
Installed Size16 GB (installed) / 3 TB (max)
RAM Supported
  • PC4-21300 - 1.5 TB Load-Reduced - ECC
  • PC4-21300 - 1.5 TB registered - ECC
  • PC4-21300 - 3 TB 3DS Load-Reduced - ECC
Rated Memory Speed2933 MHz
Slots24 (total) / 22 (empty)
TechnologyDDR4 SDRAM - ECC
Storage Controller
Channel Qty8
Controller Interface TypeSATA 6Gb/s
RAID LevelRAID 0, RAID 1, RAID 5, RAID 10
Type1 x RAID
Sustainability Information
TCO CertifiedTCO Certified Desktops 9
