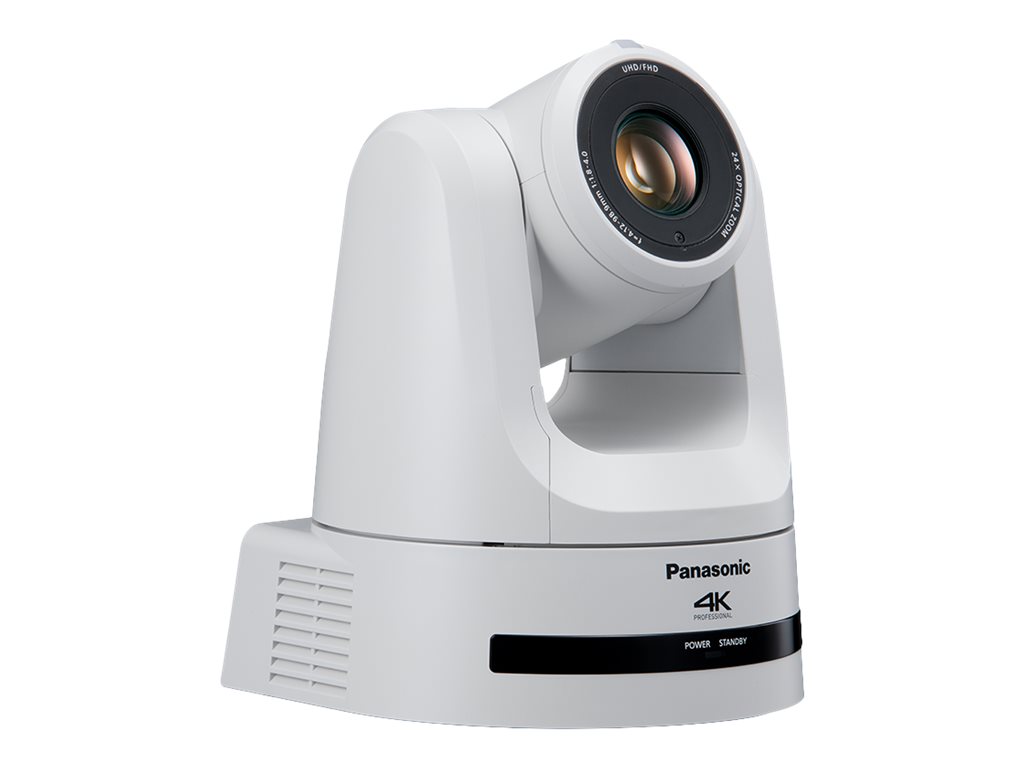

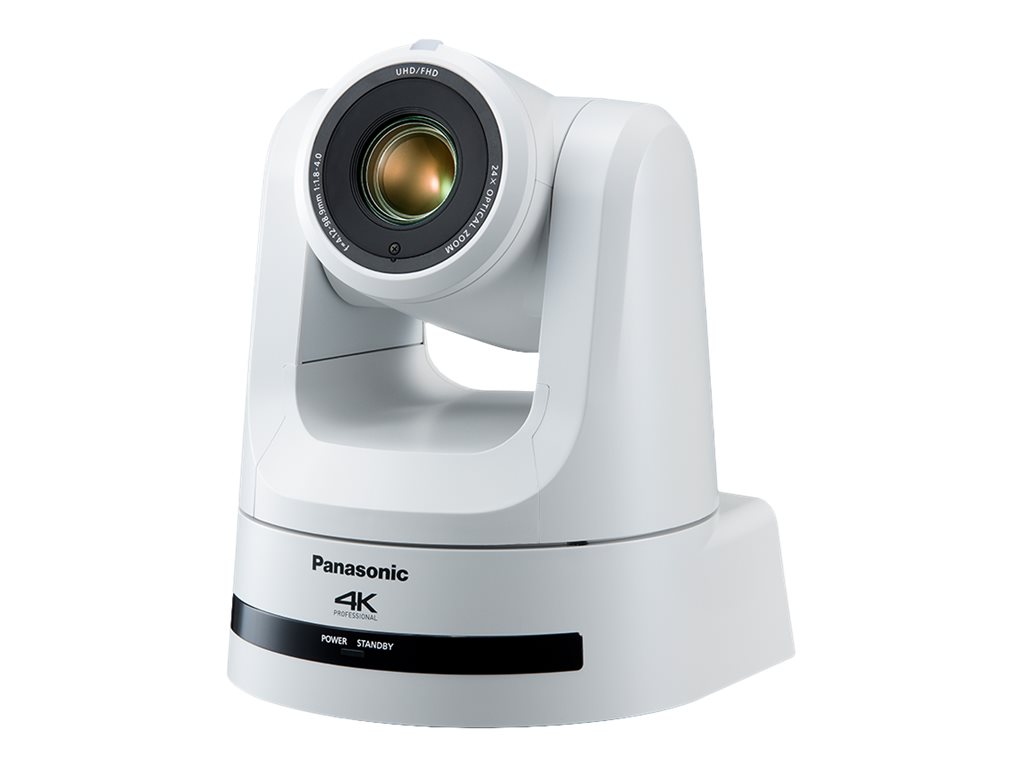

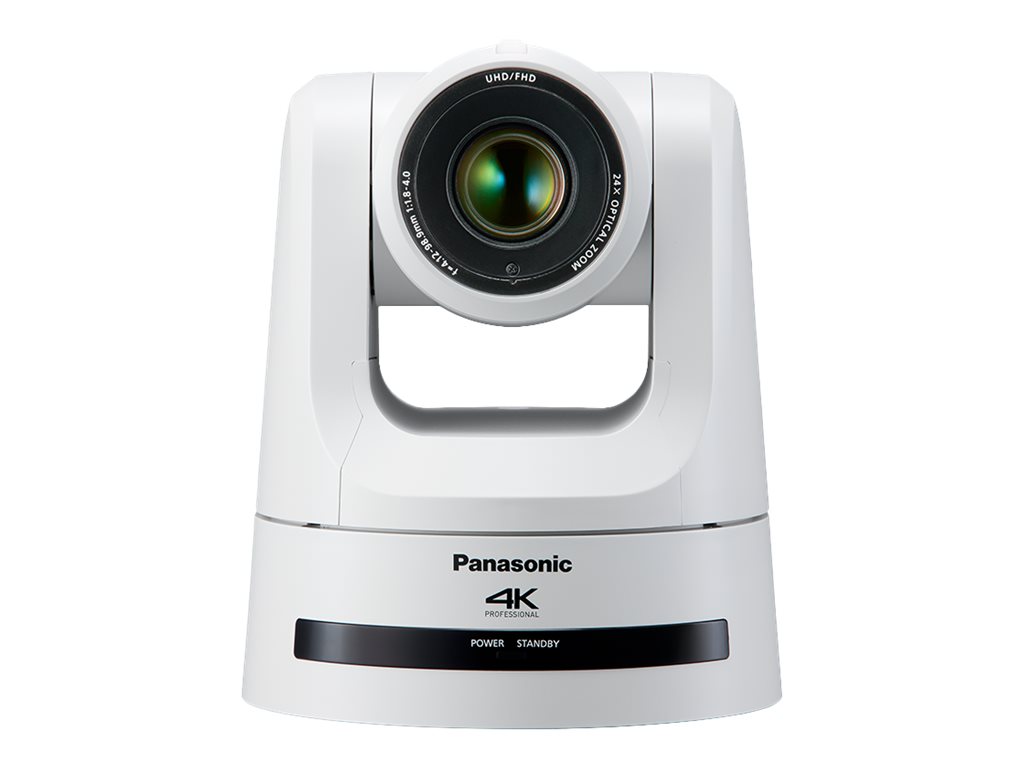

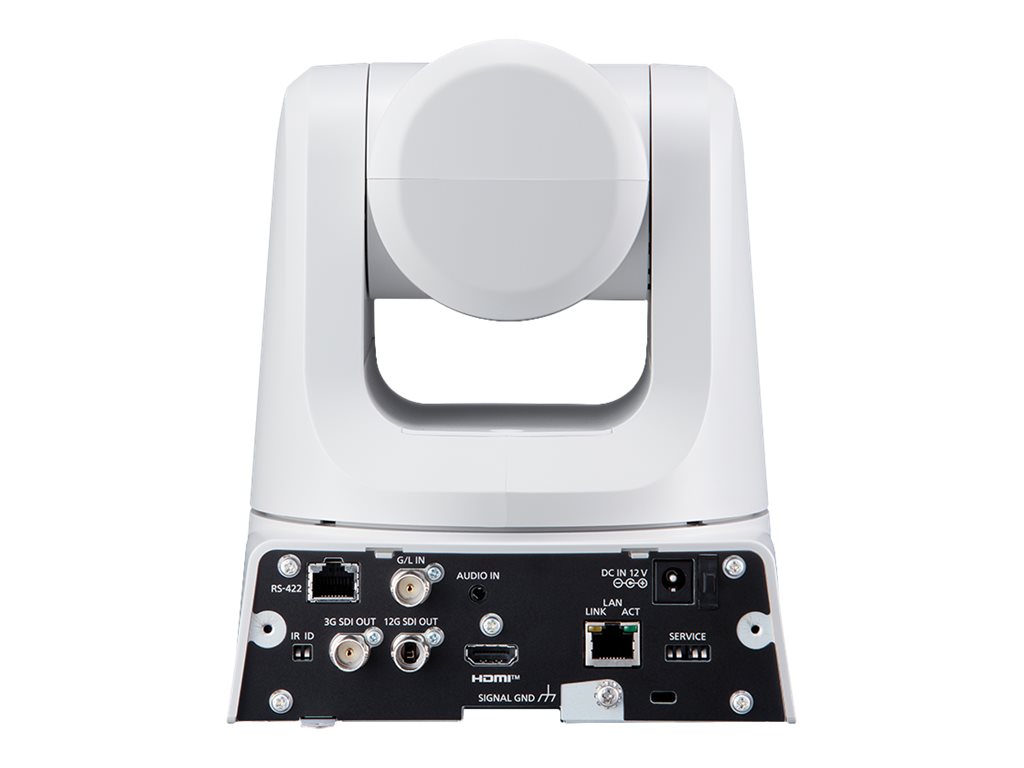

Panasonic AW-UE100 - Conference camera
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Panasonic AW-UE100 - Conference camera
- PTZ
- color (Day&Night)
- 3840 x 2160
- motorized
- 1500 TVL
- audio
- HDMI, 3G-SDI, 12G-SDI
- H.264, H.265, MJPEG
- DC 10.8
- 13.2 V / PoE++
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | AWUE100WPC |
| SHI Part #: | 40951419 |
| Category: | Video conference cameras |
| UNSPSC: | 45121506 |
| Manufacturer: | Panasonic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Video conference cameras |
| Description | Panasonic AW-UE100 - Conference camera - PTZ - color (Day&Night) - 3840 x 2160 - motorized - 1500 TVL - audio - HDMI, 3G-SDI, 12G-SDI - H.264, H.265, MJPEG - DC 10.8 - 13.2 V / PoE++ |
| Manufacturer | Panasonic |
| MSRP | $13,390.00 |
| UNSPSC | 45121506 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.06 cm |
| Dimensions & Weight / Height | 20.46 cm |
| Dimensions & Weight / Weight | 2.2 kg |
| Dimensions & Weight / Width | 16.92 cm |
| Header / Brand | Panasonic |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180 |
| Digital Video Format | H.264, H.265, MJPEG |
| Digital Zoom | 2 |
| Exposure Range | 1/24 sec - 1/10000 sec |
| Features | Auto white balance, Electronic Image Stabilizer (EIS), Automatic Tracing White (ATW), live RTMP streaming, cropping function |
| Frame Rate (max) | 60 frames per second |
| Horizontal Resolution (TV Lines) | 1500 |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination | 3 lux F1.8 - 50 IRE |
| Supported Image Formats | JPEG |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Modes | 4K/60p, 4K/50p, 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p, 1080/59.94p, 1080/50p, 1080/29.97PsF, 1080/25p, 1080/25PsF, 1080/23.98p, 1080/24p, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 20 - 90% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Audio Formats | AAC-LC |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 17.06 cm |
| Device Type | Conference camera |
| Height | 20.46 cm |
| Weight | 2.2 kg |
| Width | 16.92 cm |
| Image Sensor | |
| Type | MOS 1/2.5" |

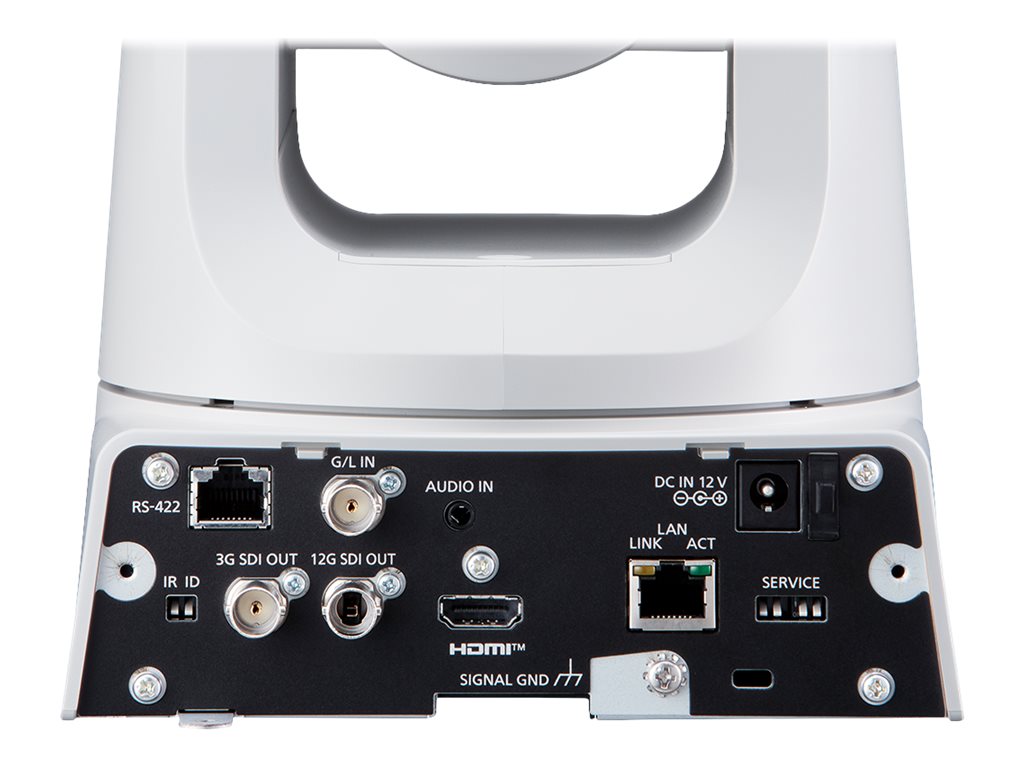

| Interfaces | |
| Control Interface | RS-422 |
| Network Protocols | SRT, IPv6, IPv4, TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCP, RTP, MLD, ICMP, ARP, RTMP, RTSP, RTCP, DDNS, IGMP, RTMPS, NDI |
| Video | HDMI, 3G-SDI, 12G-SDI |
| Lens Construction | |
| Diagonal Field of View (degree) | 3.8 - 81.8 |
| Focal Length | 4.12 mm - 98.9 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 3.3 - 74.1 |
| Lens Iris | F/1.8-4.0 |
| Min Focus Distance | 10 cm |
| Optical Zoom | 24 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.9 - 46 |
| Miscellaneous | |
| Color | White |
| Compliant Standards | IEEE 802.3bt |
| Panning | |
| Range (degree) | -175 to +175 |
| Speed (degree/sec) | Up to 180 |
| Power | |
| Power Requirements | DC 10.8 - 13.2 V / PoE++ |
| Software / System Requirements | |
| OS Required | Windows 10, Apple macOS 10.13, Apple macOS 10.14, Apple macOS 10.15, Apple iOS, Apple iPadOS |
| Tilting | |
| Range (degree) | -30 to +210 |
| Speed (degree/sec) | Up to 180 |
