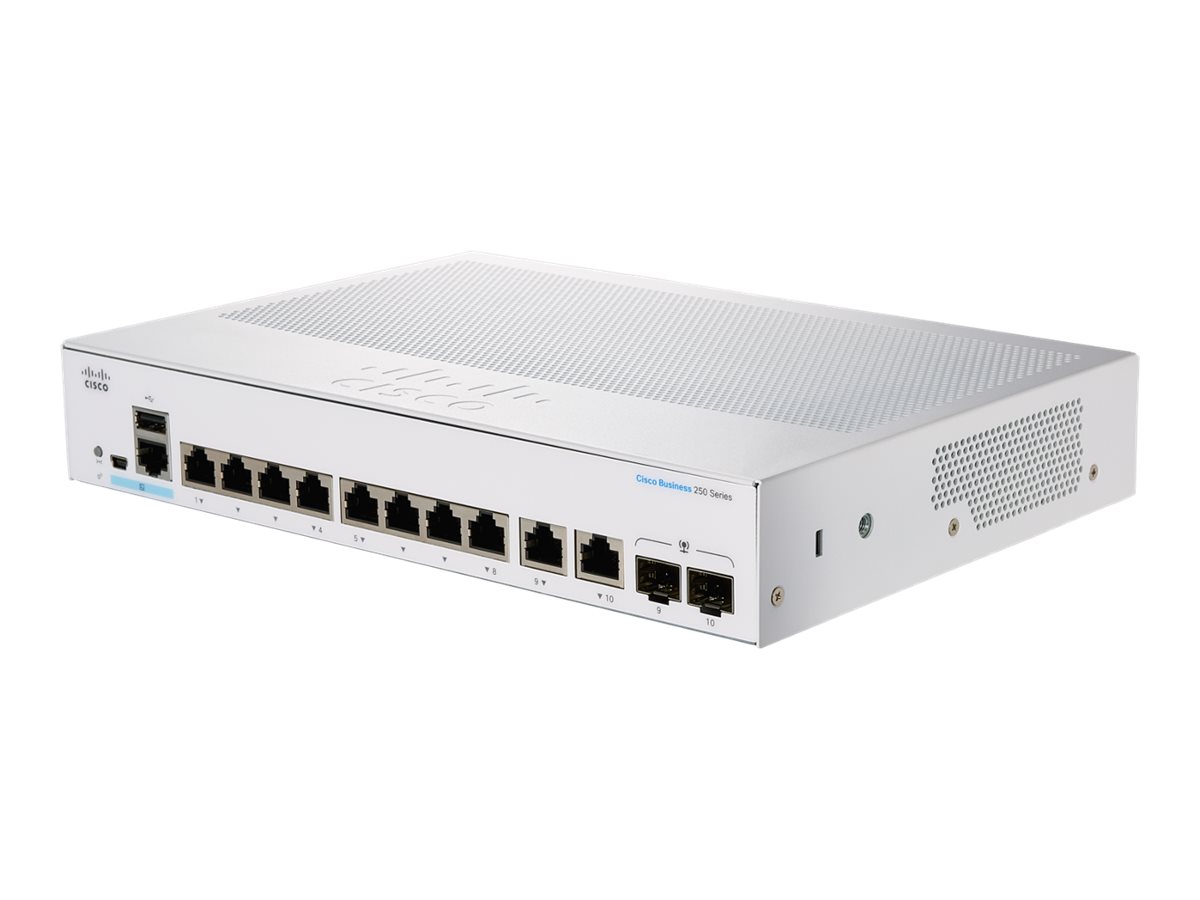

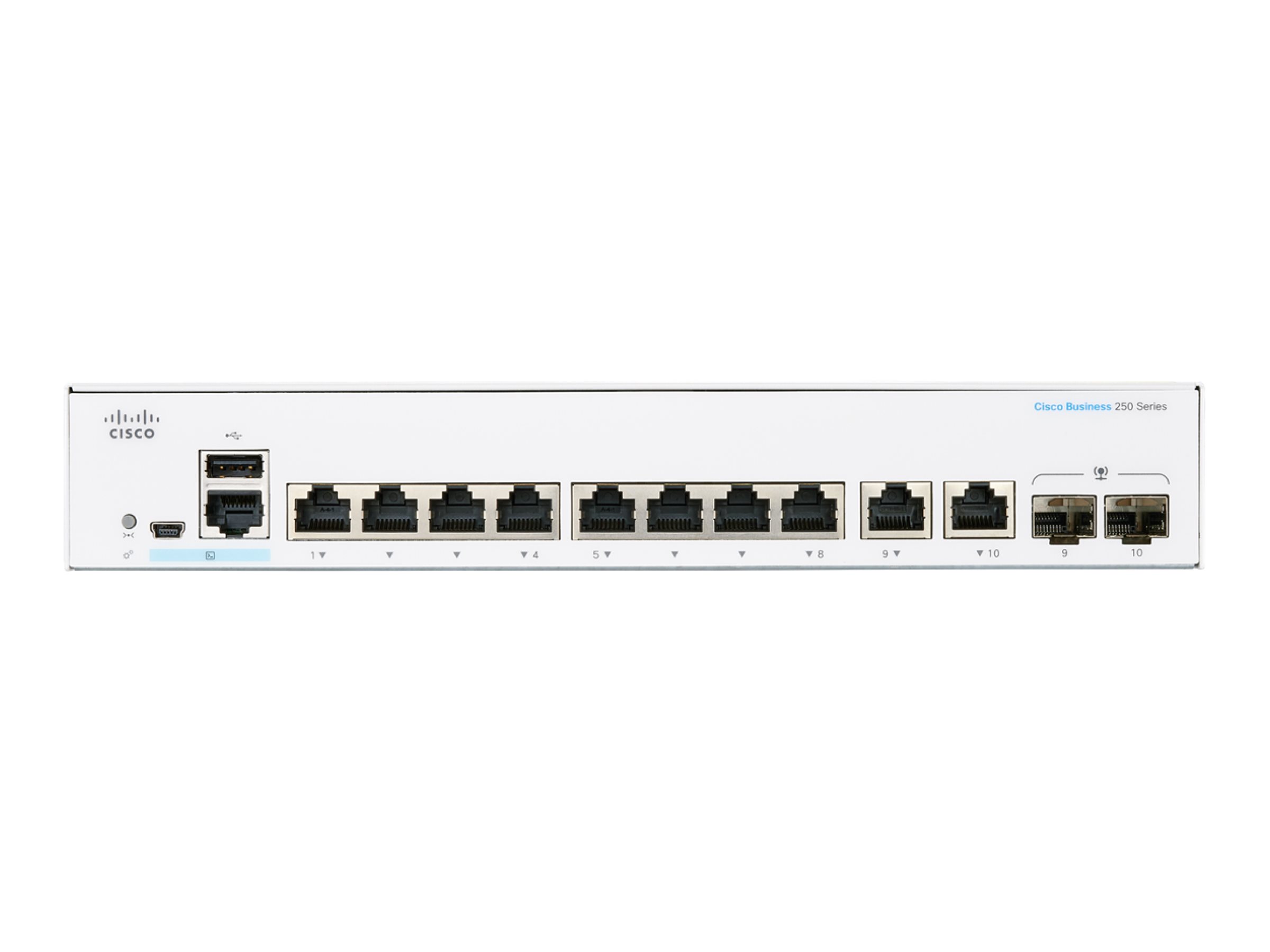

Cisco Business 250 Series 250-8T-E-2G
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Cisco Business 250 Series 250-8T-E-2G
- Switch
- L3
- smart
- 8 x 10/100/1000 + 2 x combo SFP
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | CBS250-8T-E-2G-NA |
| SHI Part #: | 40716106 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Cisco Business 250 Series 250-8T-E-2G - Switch - L3 - smart - 8 x 10/100/1000 + 2 x combo SFP - rack-mountable |
| Manufacturer | Cisco Systems |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.5 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 1.7 kg |
| Dimensions & Weight / Width | 26.8 cm |
| Header / Brand | Cisco |
| Header / Country Kits |
|
| Miscellaneous / Product Color | White |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 10 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 18.5 cm |
| Height | 4.4 cm |
| Weight | 1.7 kg |
| Width | 26.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), Secure Shell v.2 (SSH2), RADIUS |
| Capacity |
|
| Compliant Standards | IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Device Type | Switch - 10 ports - L3 - smart |
| Enclosure Type | Rack-mountable |
| Encryption Algorithm | SSL |
| Features | QoS, VLAN support, 802.1x authentication, DDos attack prevention, IPv6 support, LLDP support, LLDP-MED, VSDP, Energy Efficient Ethernet, fanless, PVST+, RPVST+, LACP support, LAG, GVRP, GARP, HOL blocking, loopback detection, UDP, STP loop guard, SCT, SSD, Port Security, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, DoS protection, DSCP support, WRR, ToS, flow control, NDP, Duplicated Address Detection, ISATAP tunnel support, SNTP support, Syslog support, DNS client, DHCP client, MIB, port mirroring, firmware upgradable, dual image support, VLAN mirroring, DHCP relay, DHCP server, reset button, BOOTP support, SmartPort technology |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 2KB |
| MAC Address Table Size | 8K entries |
| Performance |
|
| Ports | 8 x 10/100/1000 + 2 x combo SFP |
| Processor | X ARM: 800 MHz |
| RAM | 512 MB |
| Remote Management Protocol | RSTP, DHCP, HTTPS, SSH, SSH-2, SCP, RADIUS, CLI, ICMP, TFTP, HTTP, SNMP 1, SNMP 2c, SNMP 3, RMON, Telnet |
| Routing Protocol | STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, MLD, MLDv2 |
| Status Indicators | Status, PoE, link/activity/speed |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | USGv6, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
| Localization | United States, Canada, Mexico, Colombia, Chile, Latin America |
| MTBF | 2,171,669 hours |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 12.56 Watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
