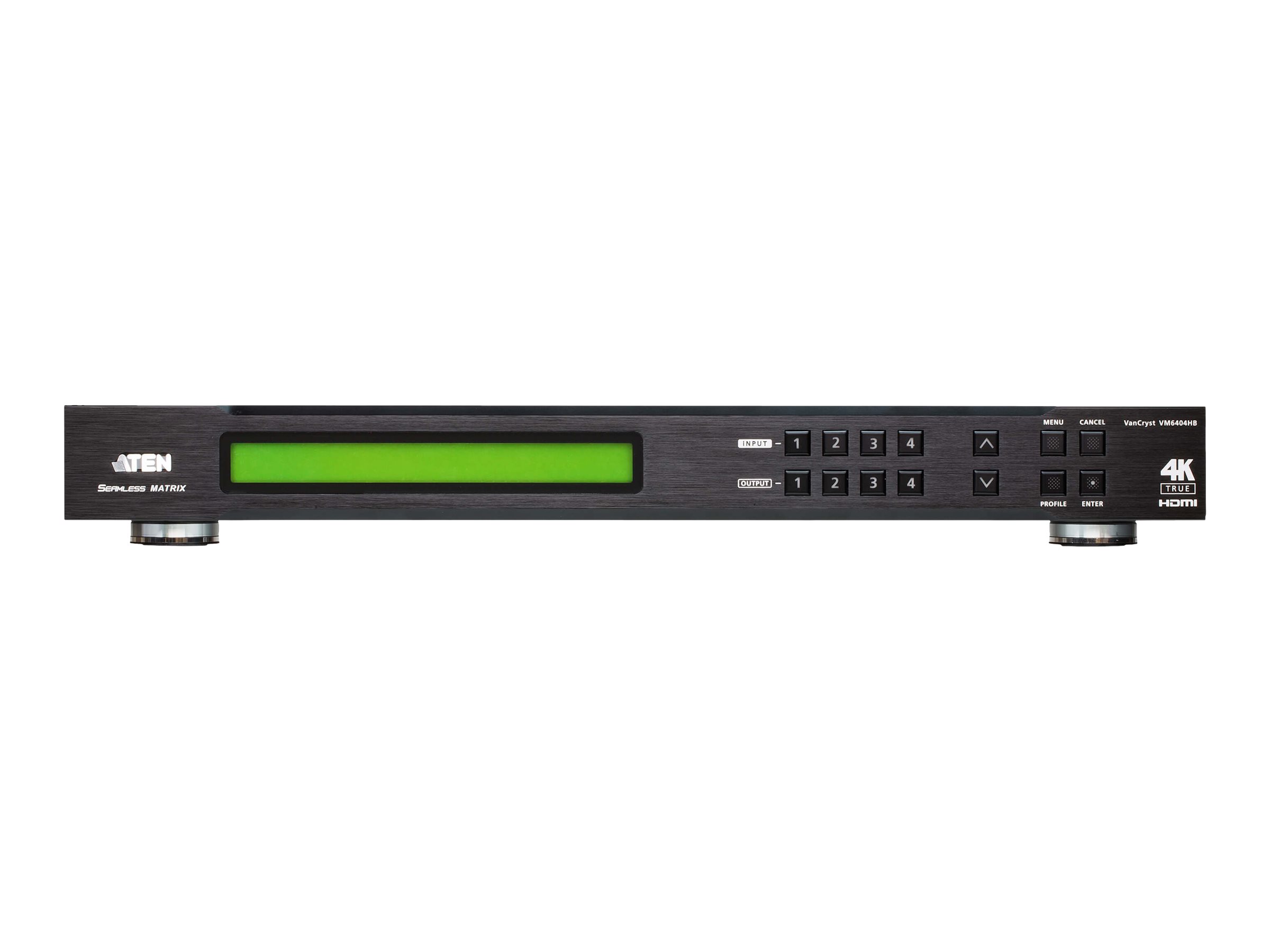

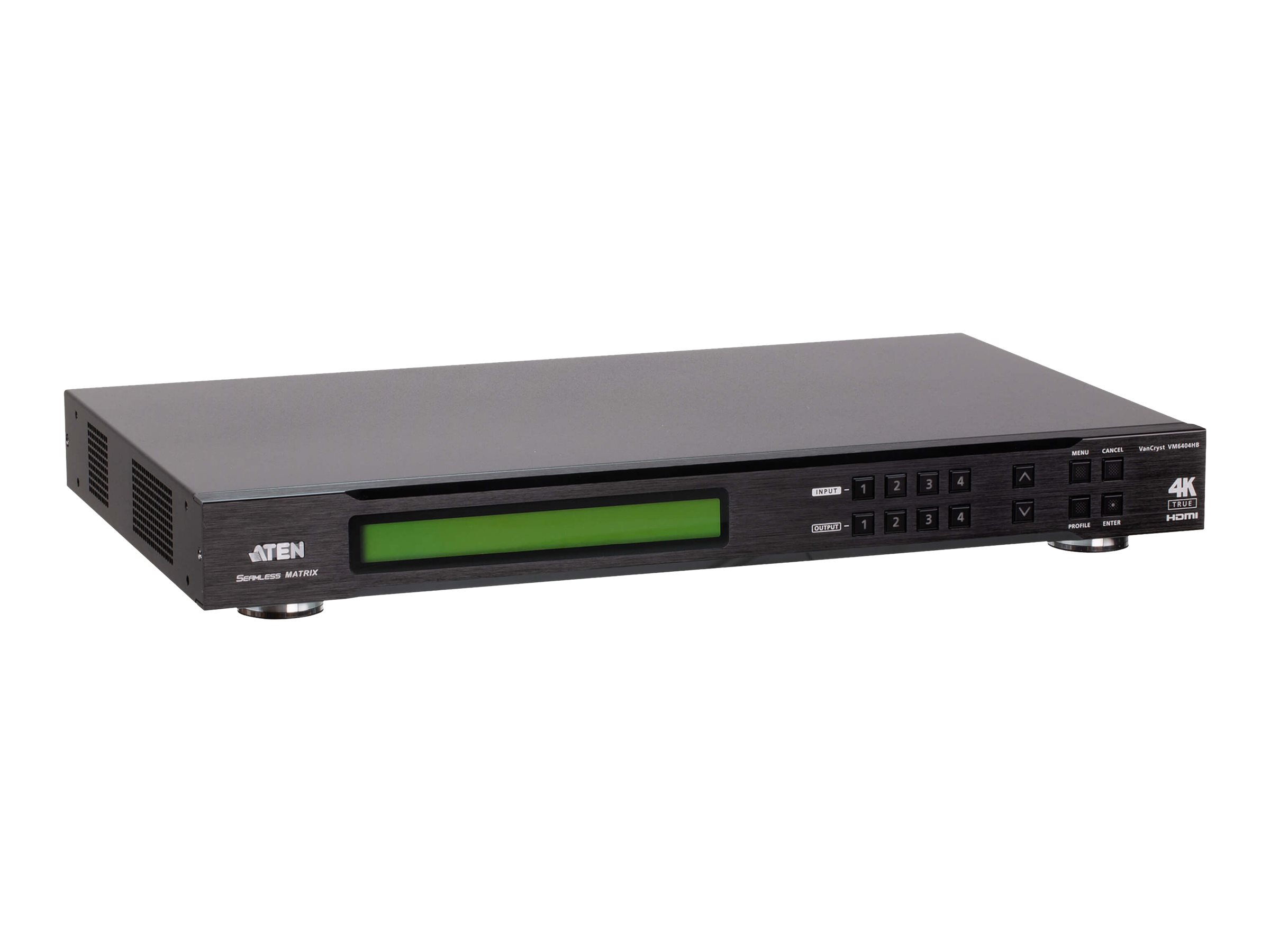

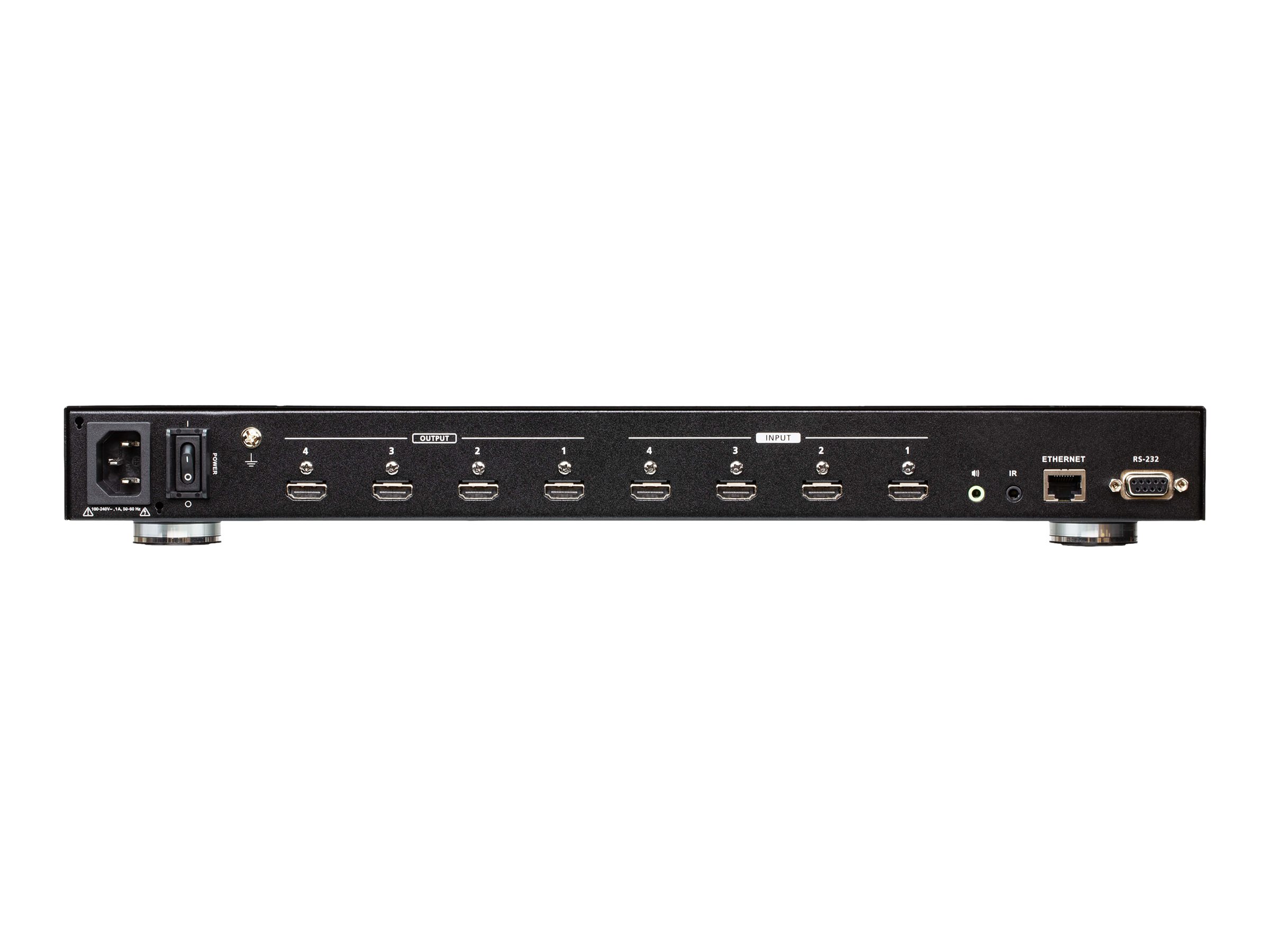

ATEN VanCryst VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN VanCryst VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler
- Video/audio switch
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VM6404HB |
| SHI Part #: | 40029296 |
| Category: | Peripheral switch boxes |
| UNSPSC: | 43211604 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Peripheral switch boxes |
| Description | ATEN VanCryst VM6404HB 4 x 4 True 4K HDMI Matrix Switch with Scaler - Video/audio switch - rack-mountable |
| Manufacturer | ATEN |
| MSRP | $5,649.14 |
| UNSPSC | 43211604 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26.23 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 5.52 kg |
| Dimensions & Weight / Width | 43.24 cm |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Video/audio switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 26.23 cm |
| Height | 4.4 cm |
| Weight | 5.52 kg |
| Width | 43.24 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Built-in Devices | Status LCD |
| Compliant Standards | HDCP 2.2 |
| Device Type | Video/audio switch |
| Enclosure Type | Rack-mountable 1U |
| Features | Firmware upgradable, HDCP compliant, 3D support, 4K resolution support, EDID Expert, HDTV support |
| Max Resolution | 4096 x 2160 |
| Max Video Bandwidth | 600 MHz |
| Status Indicators | Port status |
| Subtype | HDMI |
| Miscellaneous | |
| Compliant Standards | RoHS, CEC |
| Included Accessories | Remote control, IR receiver |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 43.7 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
