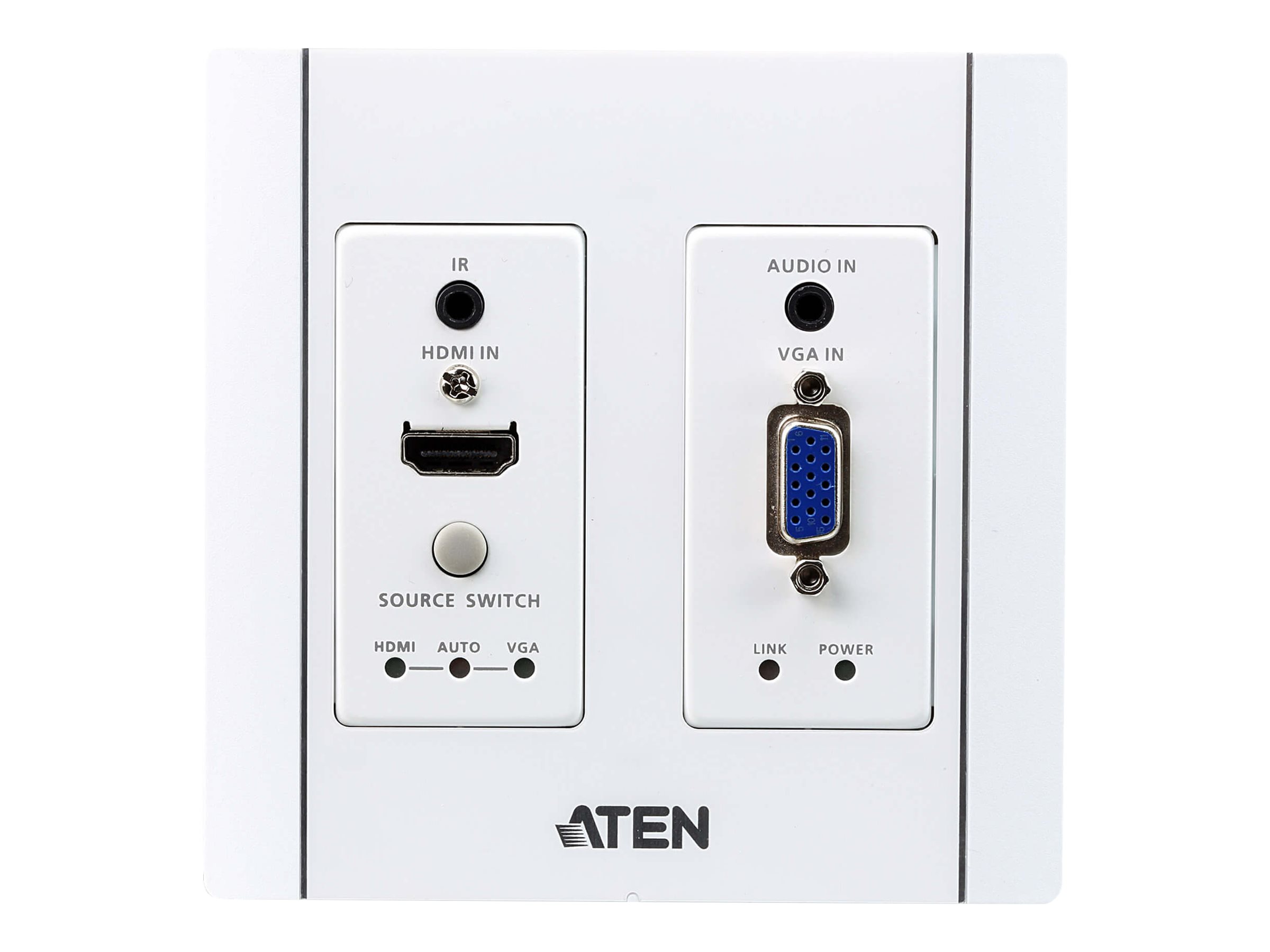

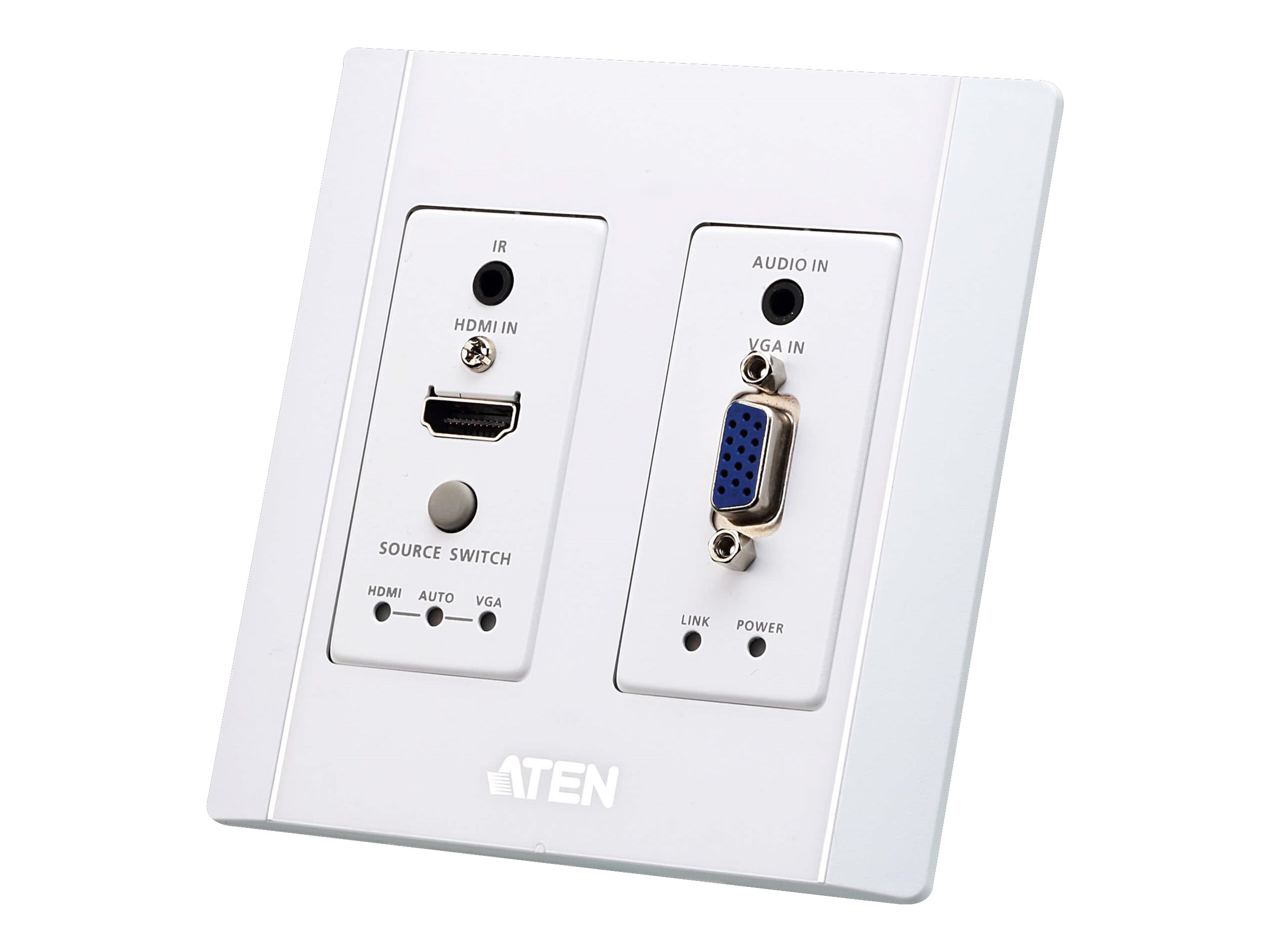

ATEN VE2812AUST - Video/audio/infrared/serial extender
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN VE2812AUST - Video/audio/infrared/serial extender
- HDBaseT
- up to 150 m
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VE2812AUST |
| SHI Part #: | 40029294 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN VE2812AUST - Video/audio/infrared/serial extender - HDBaseT - up to 150 m |
| Manufacturer | ATEN |
| MSRP | $608.15 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.79 cm |
| Dimensions & Weight / Height | 11.43 cm |
| Dimensions & Weight / Weight | 210 g |
| Dimensions & Weight / Width | 11.43 cm |
| Header / Brand | ATEN |
| Header / Country Kits | United States |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDBaseT |
| Networking / Data Transfer Rate | 10.2 Gbps |
| Networking / Form Factor | In-wall mountable |
| Networking / Type | Video/audio/infrared/serial extender |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 8.79 cm |
| Height | 11.43 cm |
| Weight | 210 g |
| Width | 11.43 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared/serial extender |
| Form Factor | In-wall mountable |
| Localization | United States |
| Miscellaneous | |
| Compliant Standards | CEC, Plug and Play, RoHS |
| Included Accessories | RS-232 terminal block, 2-pin power terminal block, faceplate |
| Networking | |
| Compliant Standards | HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Data Transfer Rate | 10.2 Gbps |
| Features | Auto-switching, 3D support, 4K resolution support, metal housing |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 150 m |
| Max Video Bandwidth | 340 MHz |
| Status Indicators | HDMI, VGA, auto, power, link OK |
| Power | |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoH |
