ATEN VanCryst VE2812AT
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

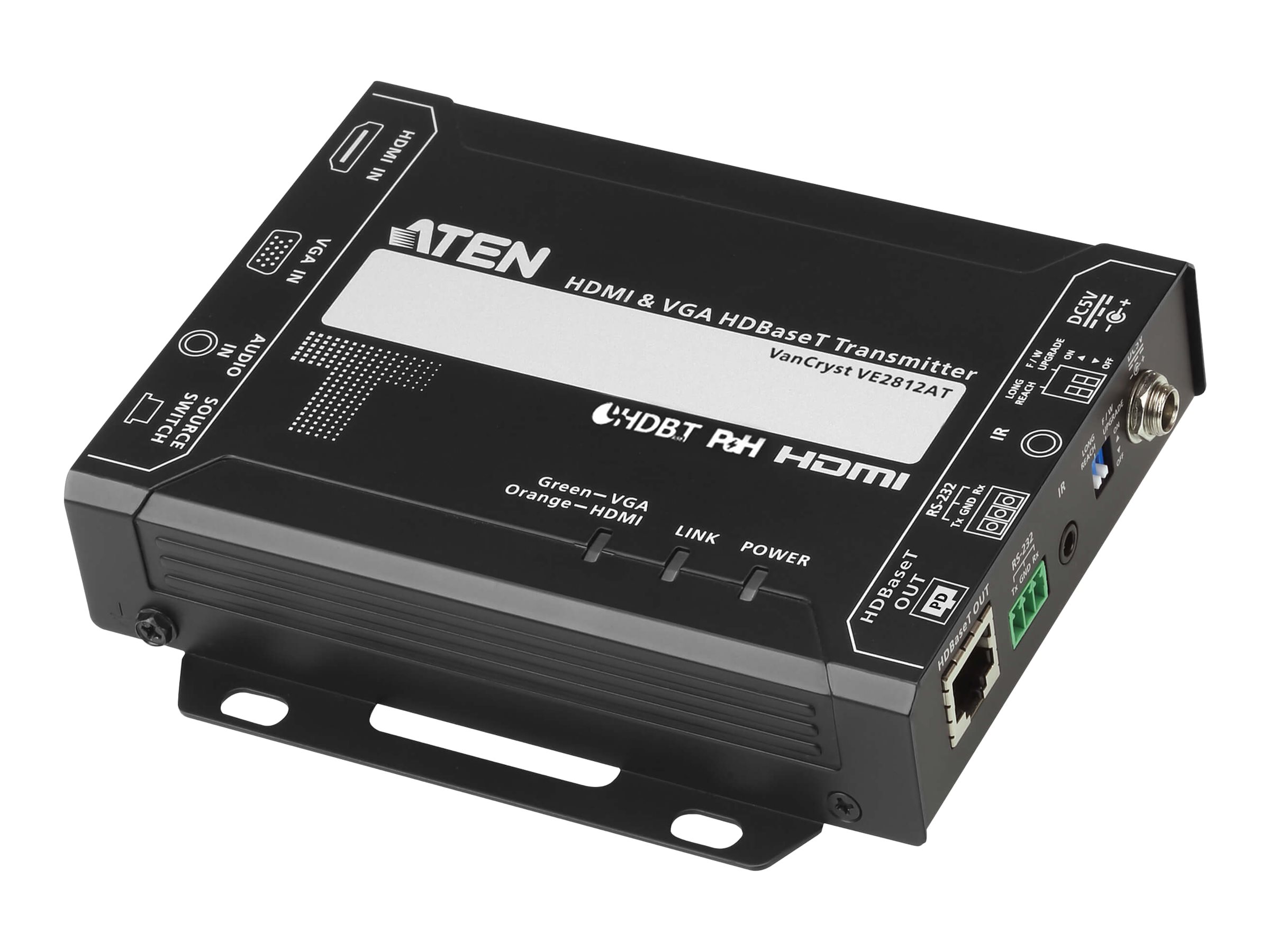

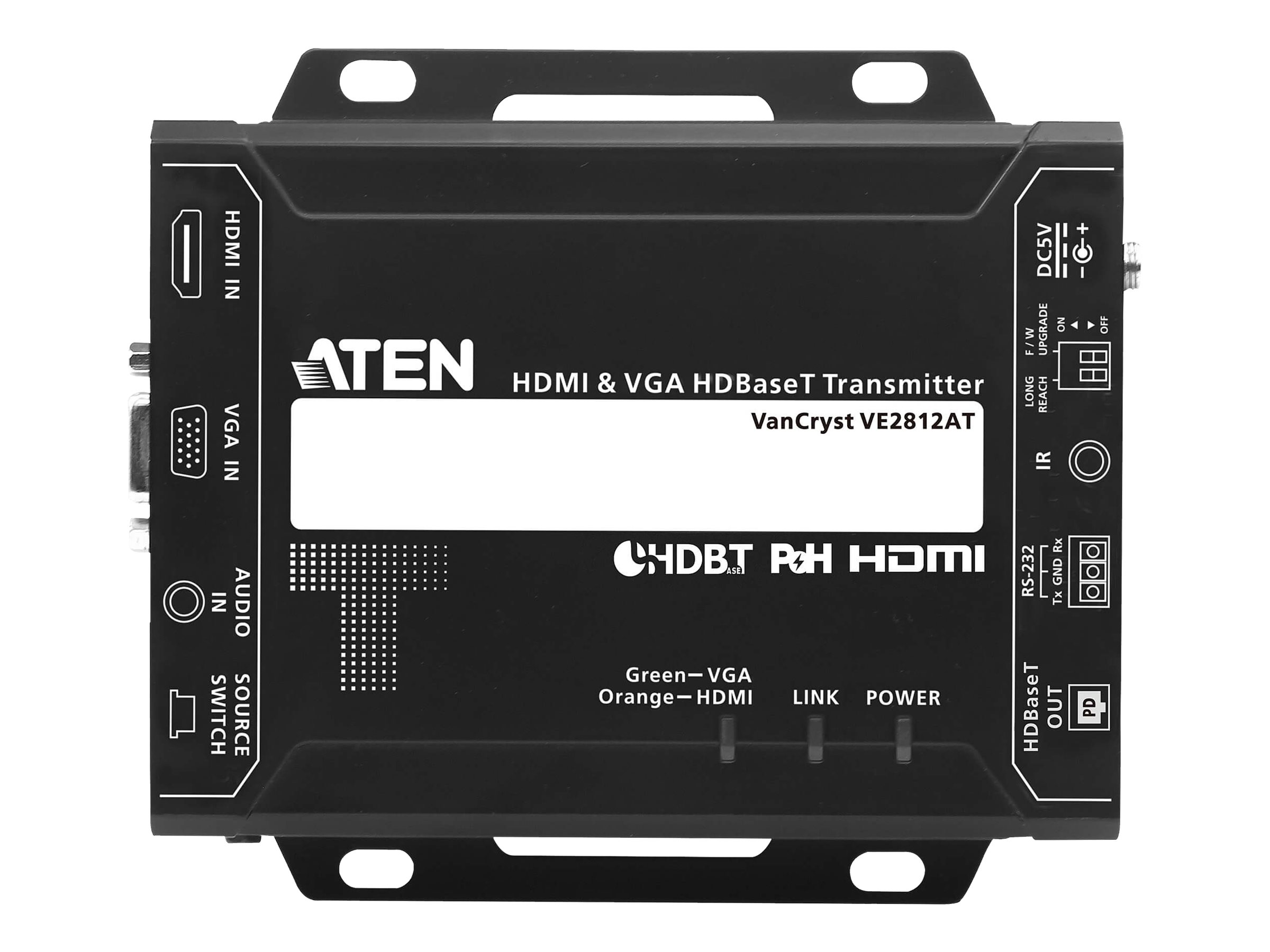

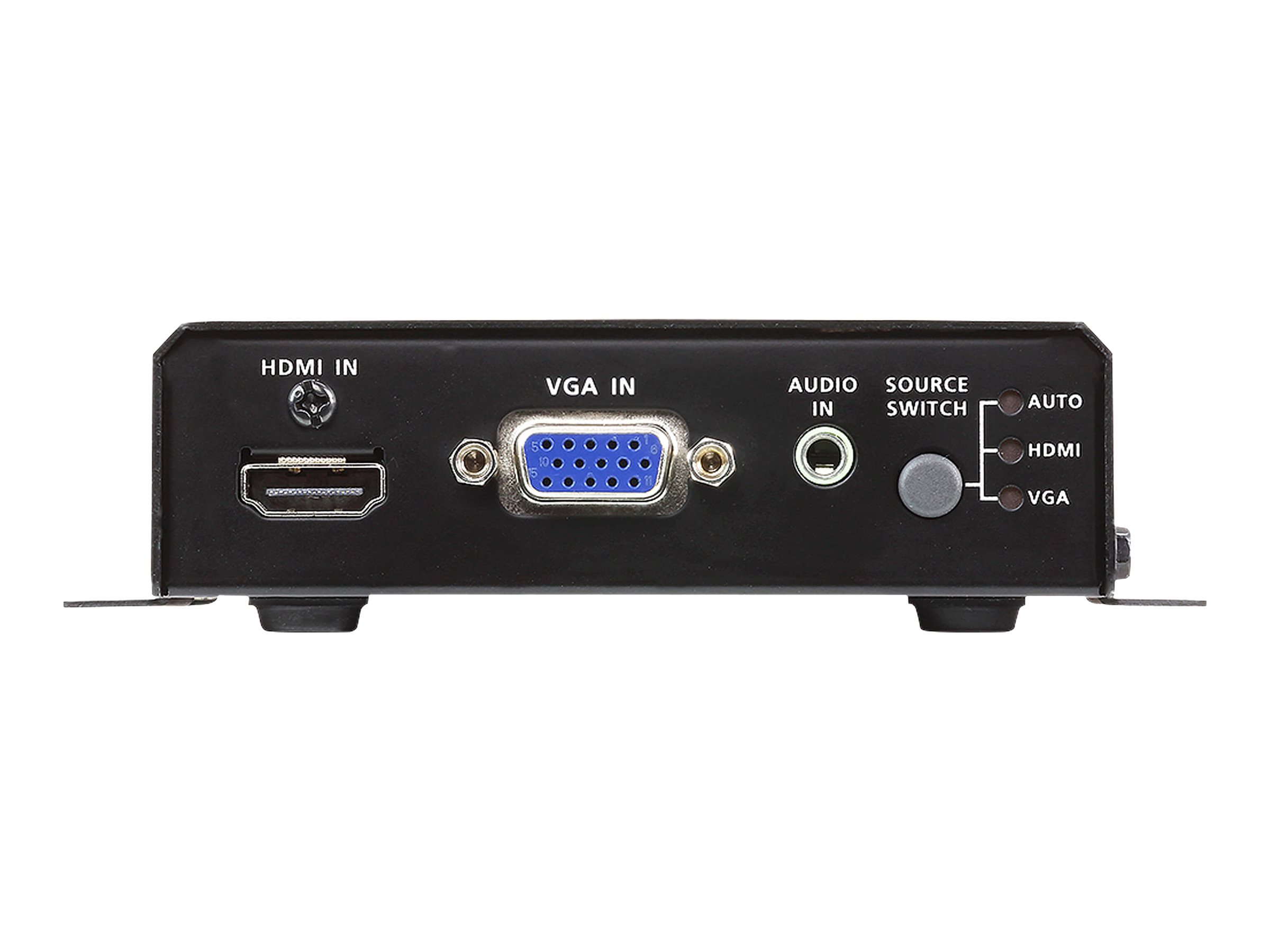

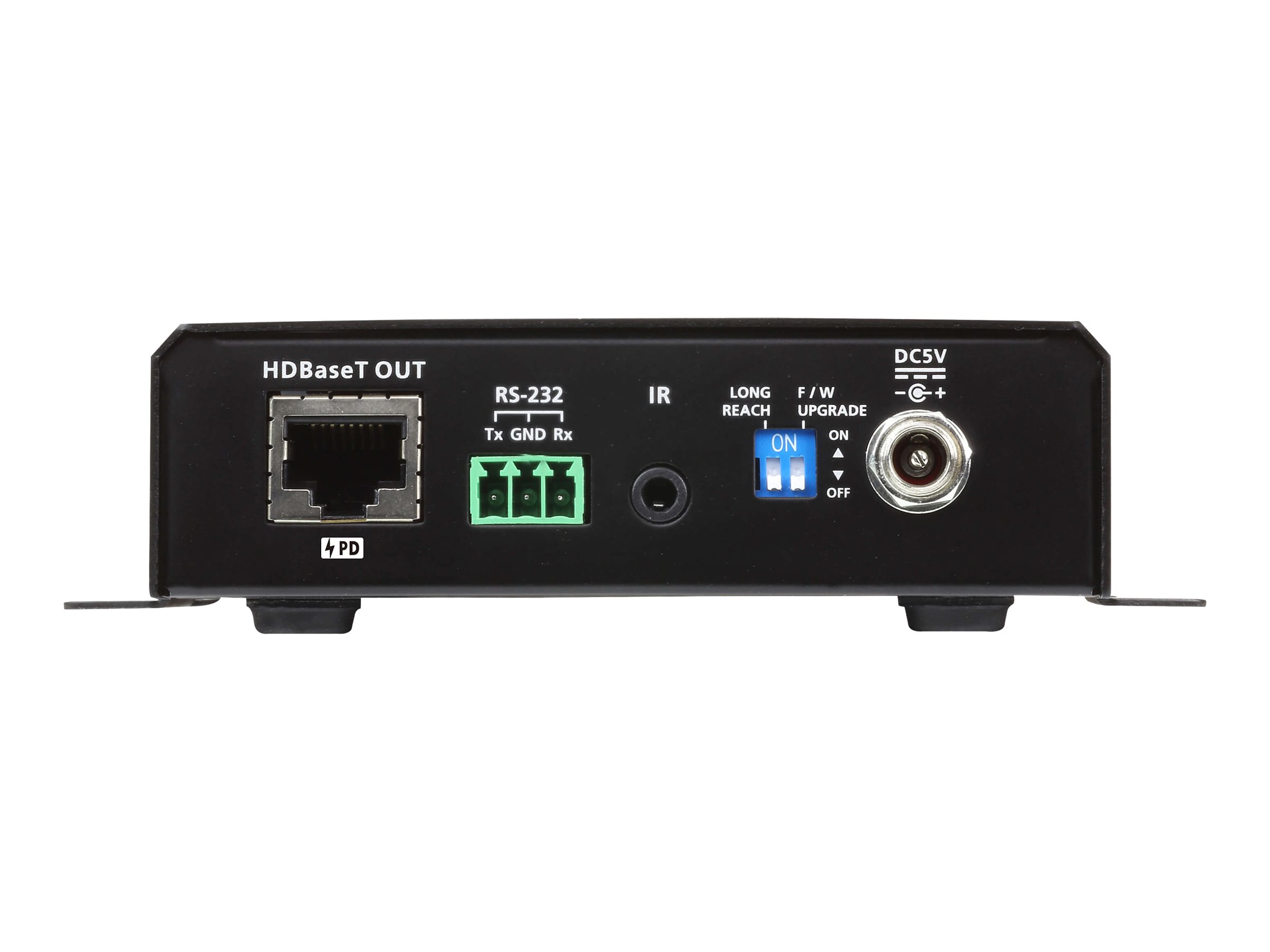

ATEN VanCryst VE2812AT
- Video/audio/infrared/serial extender
- transmitter
- HDBaseT
- up to 150 m
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VE2812AT |
| SHI Part #: | 40029293 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN VanCryst VE2812AT - Video/audio/infrared/serial extender - transmitter - HDBaseT - up to 150 m |
| Manufacturer | ATEN |
| MSRP | $547.19 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13.6 cm |
| Dimensions & Weight / Height | 2.9 cm |
| Dimensions & Weight / Weight | 470 g |
| Dimensions & Weight / Width | 10.1 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDBaseT |
| Networking / Data Transfer Rate | 10.2 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Video/audio/infrared/serial extender |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 13.6 cm |
| Height | 2.9 cm |
| Weight | 470 g |
| Width | 10.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared/serial extender (transmitter) |
| Form Factor | External |
| Miscellaneous | |
| Compliant Standards | RoHS, CEC |
| Included Accessories | 4 foot pads, RS-232 terminal block |
| Rack Mounting Kit | Optional |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Data Transfer Rate | 10.2 Gbps |
| Features | Firmware upgradable, HDCP compliant, 3D support, built-in DIP switch, 4K resolution support, 15KV ESD Protector, metal housing, Push Button Configuration (PBC), power over HDBaseT (PoH), HDBaseT Long Reach Mode, auto-switching, HDBaseT Class A technology |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 150 m |
| Max Video Bandwidth | 340 MHz |
| Status Indicators | Power, link/activity, VGA, HDMI |
| Power | |
| Power Consumption Operational | 3.93 Watt |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoH |
