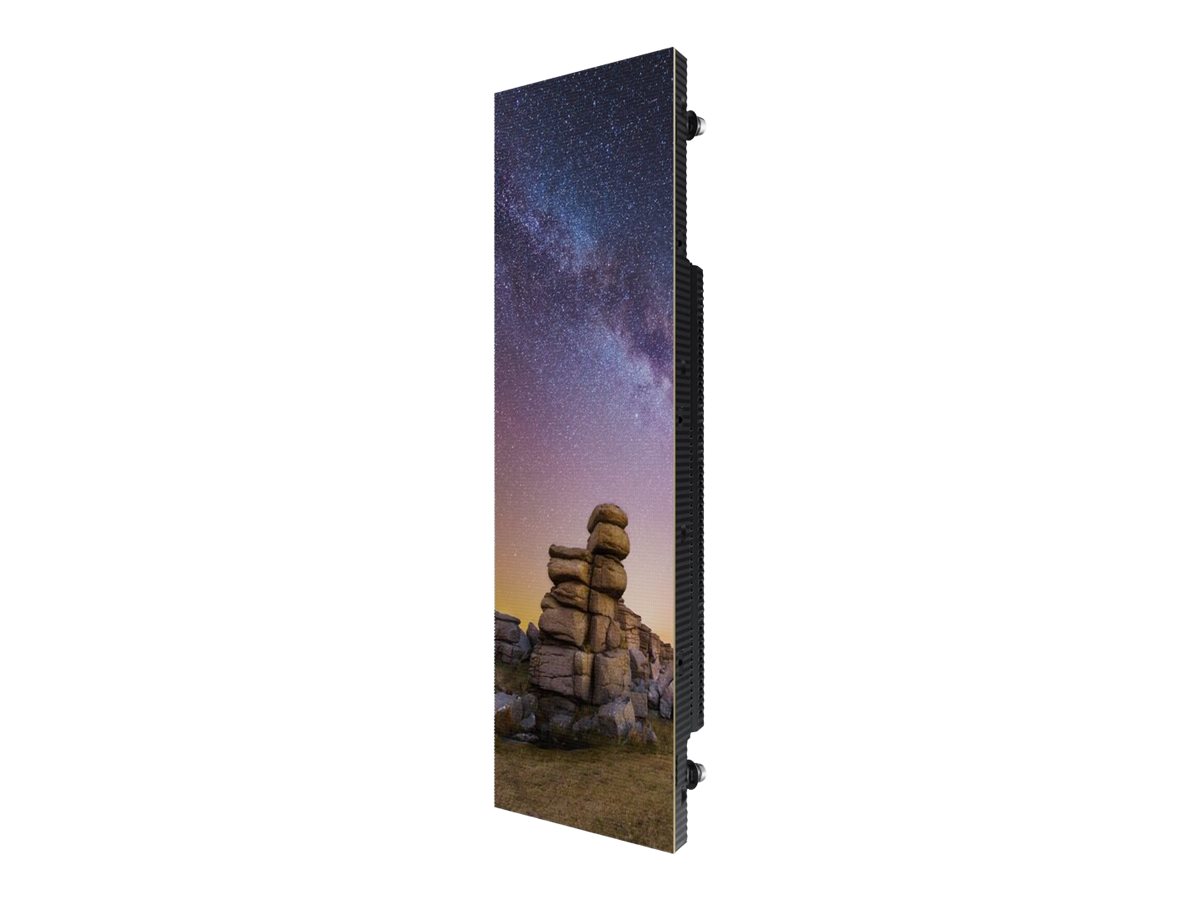

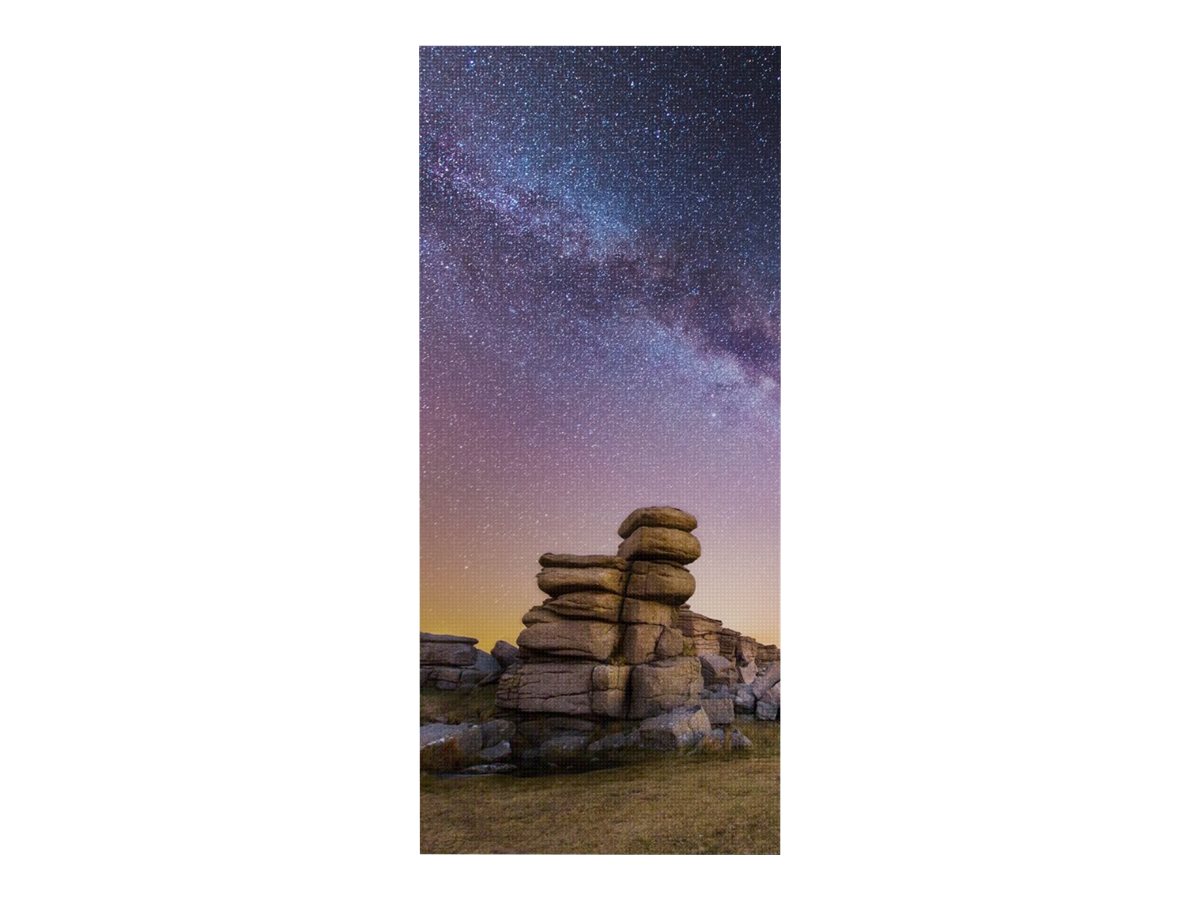

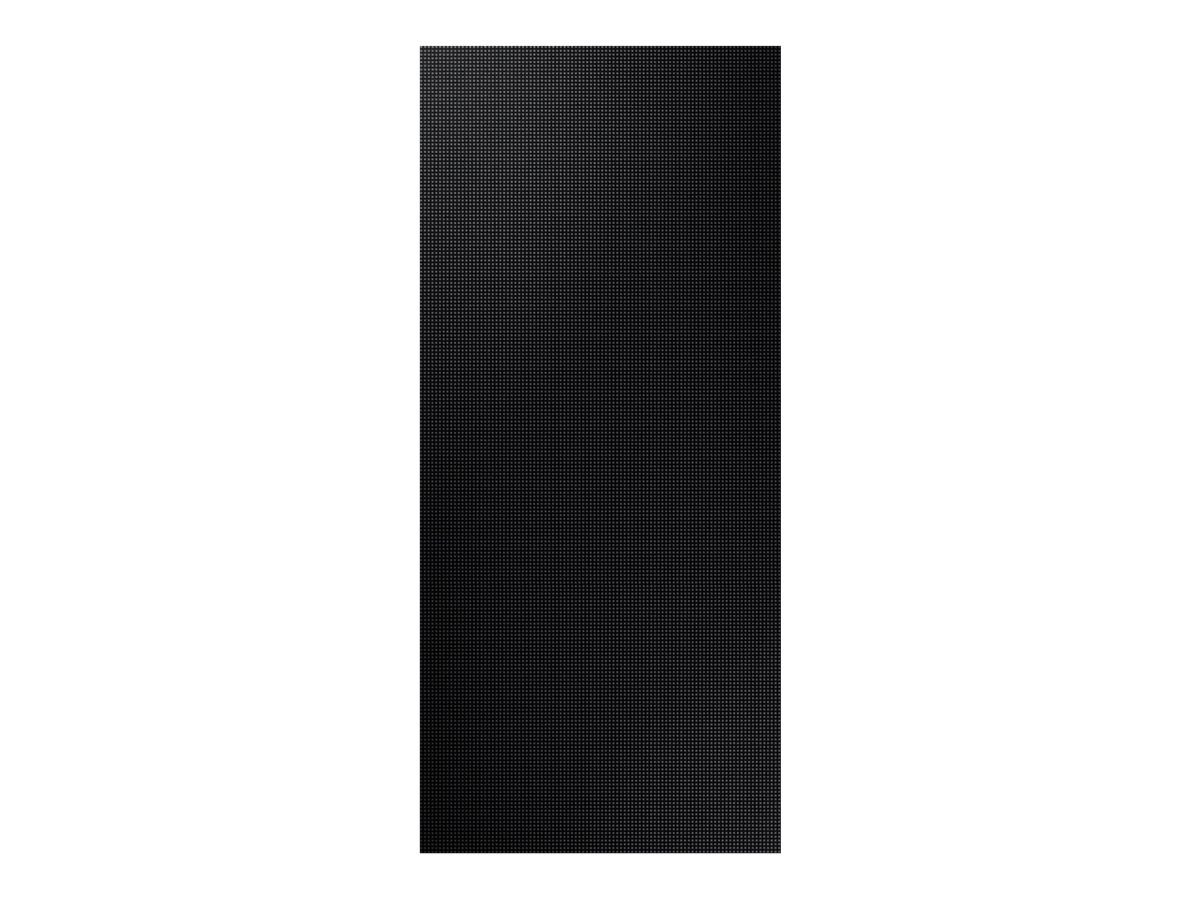

Samsung IE025R-F - IER-F Series LED display unit
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Samsung IE025R-F - IER-F Series LED display unit
- digital signage 23.3" 96 x 216 per unit
- SMD
- HDR
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | LH025IERKFS/GO |
| SHI Part #: | 39635084 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | Samsung IE025R-F - IER-F Series LED display unit - digital signage 23.3" 96 x 216 per unit - SMD - HDR |
| Manufacturer | Samsung |
| MSRP | $899.99 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Weight | 3.2 kg |
| Header / Brand | Samsung |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 1200 cd/m² |
| Television / Image Contrast Ratio | 6000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 160° |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 14.8 cm |
| Height (Shipping) | 35.4 cm |
| Weight (Shipping) | 4.9 kg |
| Width (Shipping) | 65.3 cm |
| Display | |
| Additional Features | Direct-View LED Technology, 16-bit support |
| Brightness | 1200 cd/m² |
| Color Temperature | 2800 - 10000K |
| Frame Rate & Enhancement Technology | 3840 Hz Refresh Rate |
| Image Contrast Ratio | 6000:1 |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 160° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Design | Flexible design |
| Dimensions | Panel |
| HDR Capable | Yes |
| HDR Technology | LED HDR |
| Modes | Portrait mode, landscape mode |
| Product Type | LED display unit |
| Series | IER-F Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Weight | 3.2 kg |
| Miscellaneous | |
| Compliant Standards | UL, CB, FCC, RoHS, KCC, EMC Class A, IP20, Safety 60950-1 |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Device | Power supply |
| Video Wall Display Unit Power Consumption (Max) | 50 W |
| Video Wall Display Unit Power Consumption (Typical) | 17 W |
| Video Wall Power Consumption (Max) | 386 W/m² |
| Video Wall Power Consumption (Typical) | 128 W/m² |
| Video Wall Display Unit | |
| Cabinet Diagonal Size | 23.3" |
| LED Lifetime | 100000 hours |
| LED Type | SMD |
| Maintenance | Front |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Pixel Pitch | 2.5 mm |
| Resolution | 96 x 216 |
