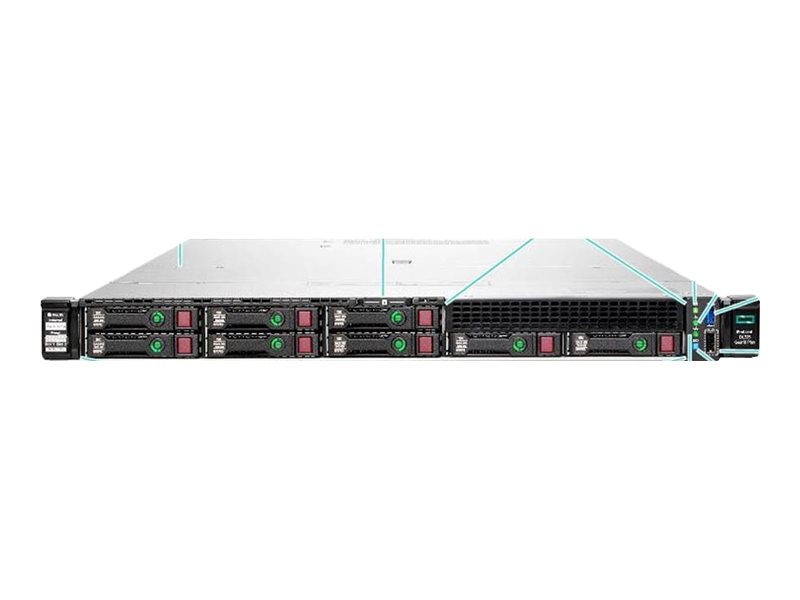

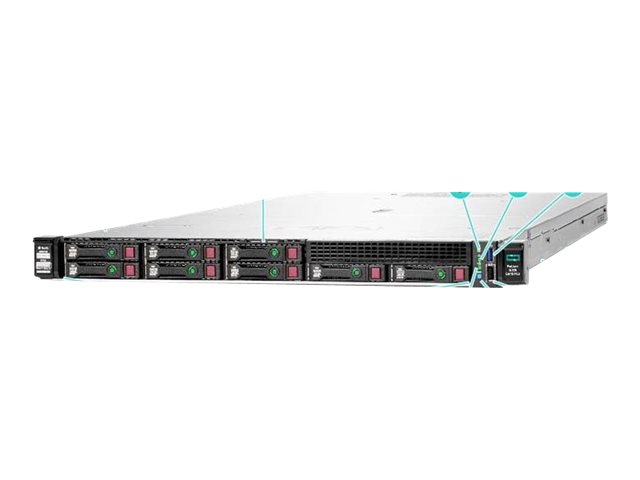

HPE ProLiant DL325 Gen10 Plus
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE ProLiant DL325 Gen10 Plus
- Server
- rack-mountable 1U
- 1-way
- 1 x EPYC 7302P / up to 3.3 GHz
- RAM 32 GB
- SAS
- hot-swap 2.5" bay(s)
- no HDD
- Gigabit Ethernet
- monitor: none
| Additional Details | |
|---|---|
| Mfr Part #: | P18604-291 |
| SHI Part #: | 39400311 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | HPE ProLiant DL325 Gen10 Plus - Server - rack-mountable 1U - 1-way - 1 x EPYC 7302P / up to 3.3 GHz - RAM 32 GB - SAS - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - monitor: none |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SAS |
| Dimensions & Weight / Depth | 61.49 cm |
| Dimensions & Weight / Height | 4.29 cm |
| Dimensions & Weight / Weight | 17 kg |
| Dimensions & Weight / Width | 43.46 cm |
| Display / Type | None. |
| Header / Brand | HPE |
| Header / Country Kits | Japan |
| Header / Localization | Japanese |
| Mainboard / Processor Socket | Socket SP3 |
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | 16-core |
| Processor / Processor Number | 7302P |
| Processor / Type | EPYC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Memory Speed | 2666 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Cache Memory | |
| Cache Per Processor | 128 MB |
| Installed Size | L3 cache - 128 MB |
| Card Reader | |
| Supported Flash Memory Cards | microSD |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 61.49 cm |
| Height | 4.29 cm |
| Weight | 17 kg |
| Width | 43.46 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays |
|
| Interfaces |
|
| Slots |
|
| General | |
| Built-in Devices | LED panel, battery |
| Hot-Swap Bays Qty | 8 |
| Localization | Language: Japanese / region: Japan |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Type | Server |
| Graphics Controller | |
| Video Interfaces | VGA |
| Video Memory | 16 MB |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Compliant Standards | AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1 |
| Included Accessories | 7 x standard hot plug fans |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | Intel I350-T4 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Remote Management Controller | Integrated Lights-Out 5 |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Operating System / Software | |
| OS Certified | CentOS, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, SuSE Linux Enterprise Server 12 SP3, ClearOS, Red Hat Enterprise Linux 7.4, Red Hat Enterprise Linux 7.5, VMware ESXi 6.5 update 2, VMware ESXi 6.7 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Provided | 500 watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 3 GHz |
| CPU | AMD EPYC 7302P |
| CPU Qty | 1 |
| CPU Socket | Socket SP3 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3.3 GHz |
| Number of Cores | 16-core |
| RAM | |
| Configuration Features | 2 x 16 GB |
| Effective Memory Speed | 2666 MHz |
| Features | Registered, dual rank |
| Form Factor | DIMM 288-pin |
| Installed Size | 32 GB (installed) / 1 TB (max) |
| RAM Supported |
|
| Rated Memory Speed | 2666 MHz |
| Slots | 16 (total) / 14 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Buffer Size | 2 GB |
| Channel Qty | 8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Storage Controller Name | HPE Smart Array P408i-a SR Gen10 |
| Type | 1 x RAID |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Bronze |
