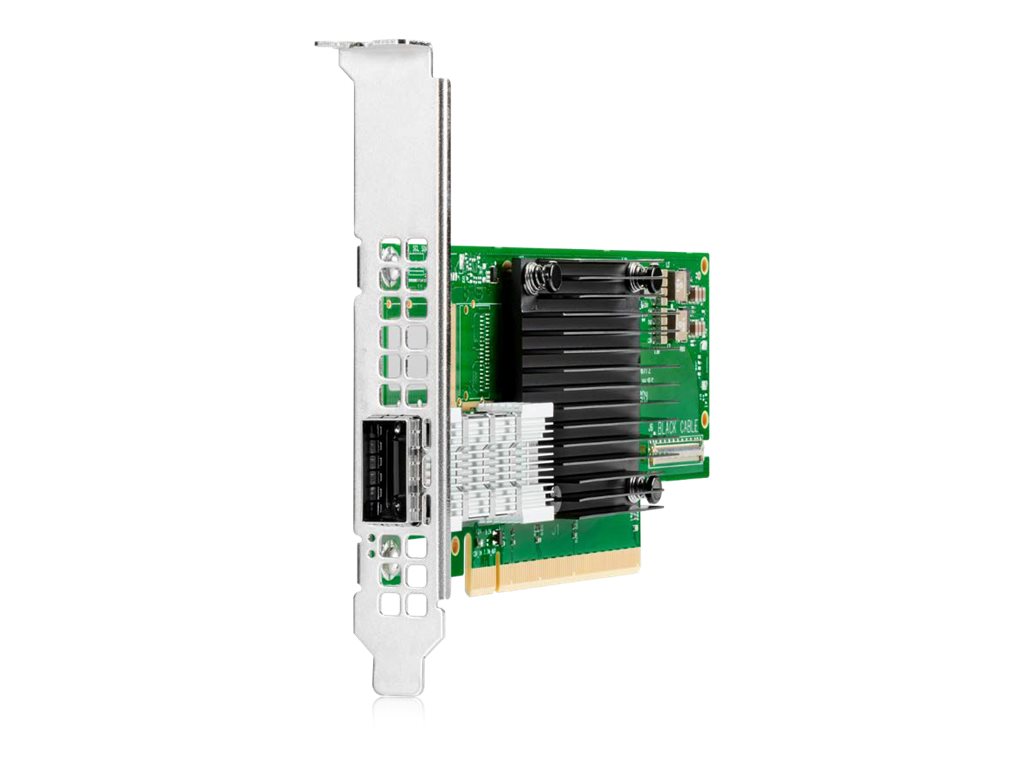

HPE InfiniBand HDR100 MCX653105A-ECAT

$4,455.00
HPE InfiniBand HDR100 MCX653105A-ECAT
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network adapter
  • PCIe 4.0 x16 low profile
  • 100Gb Ethernet / 100Gb Infiniband QSFP28 x 1
  • for ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DL380 Gen10
HPE InfiniBand HDR100 MCX653105A-ECAT
  • Network adapter
  • PCIe 4.0 x16 low profile
  • 100Gb Ethernet / 100Gb Infiniband QSFP28 x 1
  • for ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DL380 Gen10
  Additional Details
Price: $4,455.00
Mfr Part #: P23665-B21
SHI Part #: 39332497
Category: Network interface cards
UNSPSC: 43201404
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Network Cables

HPE - 200GBase direct attach splitter
HPE - 200GBase direct attach splitter
  • QSFP56 to QSFP56
  • 15 m
  • fiber optic
  • Active Optical Cable (AOC)
  • for P/N: P23666-B21, P31323-B21, P31323-H21, P31324-B21, P31324-H21, P31348-B21, P31348-H21
$9,897.00
HPE - 200GBase direct attach splitter
HPE - 200GBase direct attach splitter
  • QSFP56 to QSFP56
  • 20 m
  • fiber optic
  • Active Optical Cable (AOC)
  • for P/N: P23666-B21, P31323-B21, P31323-H21, P31324-B21, P31324-H21, P31348-B21, P31348-H21
$9,944.00
HPE - 200GBase direct attach splitter
HPE - 200GBase direct attach splitter
  • QSFP56 to QSFP56
  • 30 m
  • fiber optic
  • Active Optical Cable (AOC)
  • for P/N: P23666-B21, P31323-B21, P31323-H21, P31324-B21, P31324-H21, P31348-B21, P31348-H21
$10,019.00
General Information
CategoryNetwork interface cards
DescriptionHPE InfiniBand HDR100 MCX653105A-ECAT - Network adapter - PCIe 4.0 x16 low profile - 100Gb Ethernet / 100Gb Infiniband QSFP28 x 1 - for ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DL380 Gen10
ManufacturerHewlett Packard Enterprise
MSRP$3,947.00
UNSPSC43201404
Main Specifications
Header / BrandHPE
Miscellaneous / Product Color
  • Green
  • Silver
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • 10 Gigabit Ethernet
  • 100 Gigabit Ethernet
  • 100 Gigabit InfiniBand
  • 25 Gigabit Ethernet
  • 40 Gigabit Ethernet
  • 50 Gigabit Ethernet
  • Gigabit Ethernet
Networking / Data Transfer Rate100 Gbps
Networking / TypeNetwork adapter
Packaged Quantity1
System Requirements / OS Required
  • CentOS
  • FreeBSD
  • Microsoft Windows
  • Red Hat Enterprise Linux
Compatibility Information
Designed For
  • HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus
  • HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka BAse Tracking, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature55 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces1 x 100Gb Ethernet / 100Gb Infiniband - QSFP28
General
Device TypeNetwork adapter
Form FactorPlug-in card - low profile
Interface (Bus) TypePCI Express 4.0 x16
PCI Specification RevisionPCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0
Miscellaneous
Compliant StandardsRoHS, FCC CFR47 Part 15 A, ICES-003 Class A, EN 55022 Class A, CISPR 22 Class A, AS/NZS CISPR 22, RCM Class A, VCCI Class A, EN55024, KC, UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, IEC 60068-2-64, IEC 60068-2-29, IEC 60068-2-32
Networking
Compliant StandardsIBTA 1.3, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ap, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1p, IEEE 1588v2, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg
Connectivity TechnologyWired
Data Link Protocol100 Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet, 100 Gigabit InfiniBand
Data Transfer Rate100 Gbps
FeaturesVPI, TPH, AER, MSI-X, MSI, InfiniBand DDR Link support, InfiniBand EDR Link support, InfiniBand FDR Link support, InfiniBand QDR Link support, InfiniBand SDR Link support, congestion control, VLAN support, auto-negotiation, XRC transport, DCT, UMR, ODP, RoCE, LRO, LSO, TSS, HDS, PXE support, UEFI support, QoS, Jumbo Frames support, RSS, MPLS support, InfiniBand HDR100 Link support
Network / Transport ProtocolTCP/IP, UDP/IP, iSCSI
Ports100Gb Ethernet / 100Gb Infiniband QSFP28 x 1
Power
Power Consumption Operational15.6 Watt
Processor / Memory
Processor1 x Mellanox ConnectX-6
Software / System Requirements
OS RequiredCentOS, FreeBSD, Microsoft Windows, Red Hat Enterprise Linux
