Hardware Networking and Security Hubs and Switches
Add to My Favorites
Hubs and Switches

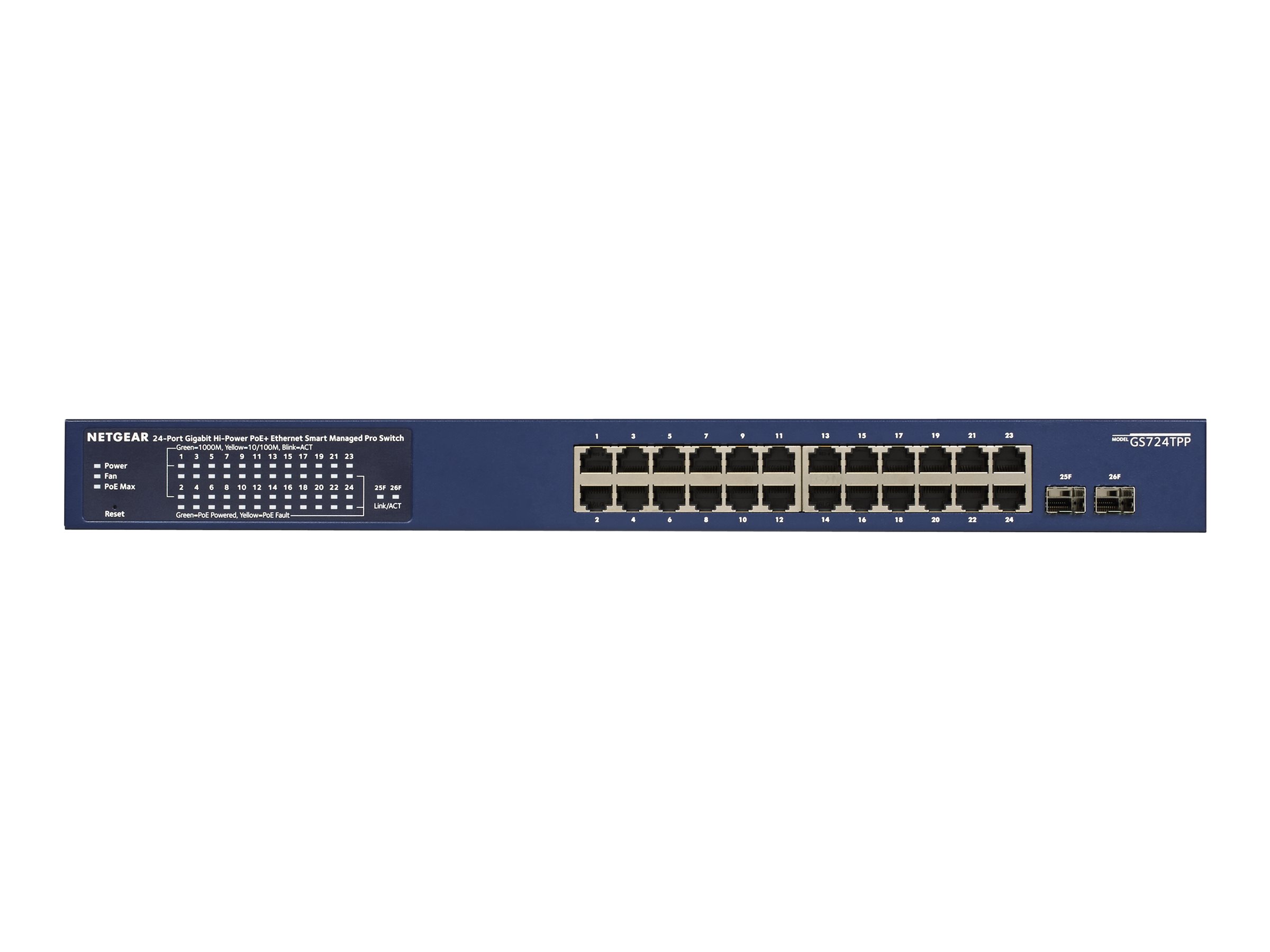

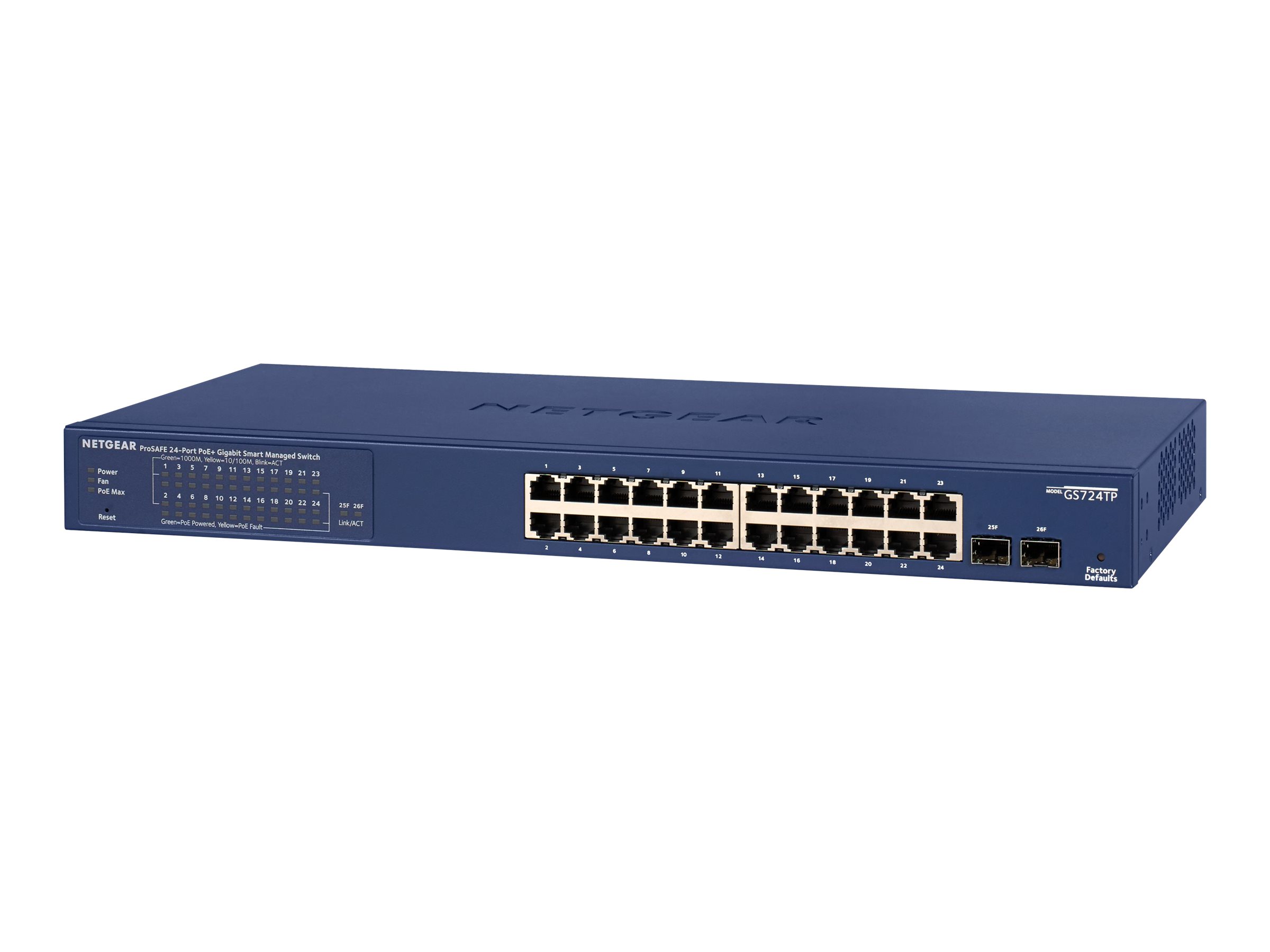

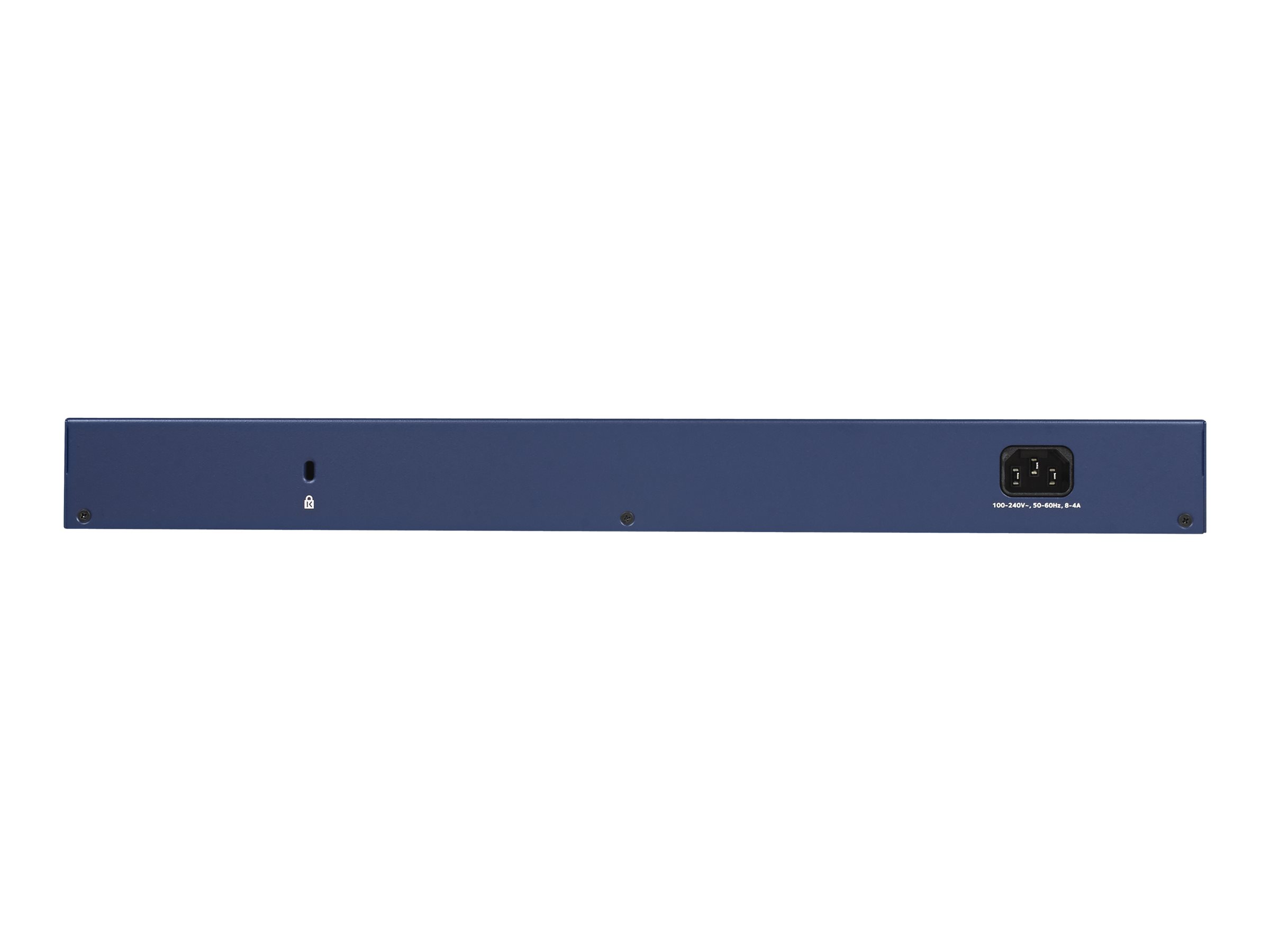

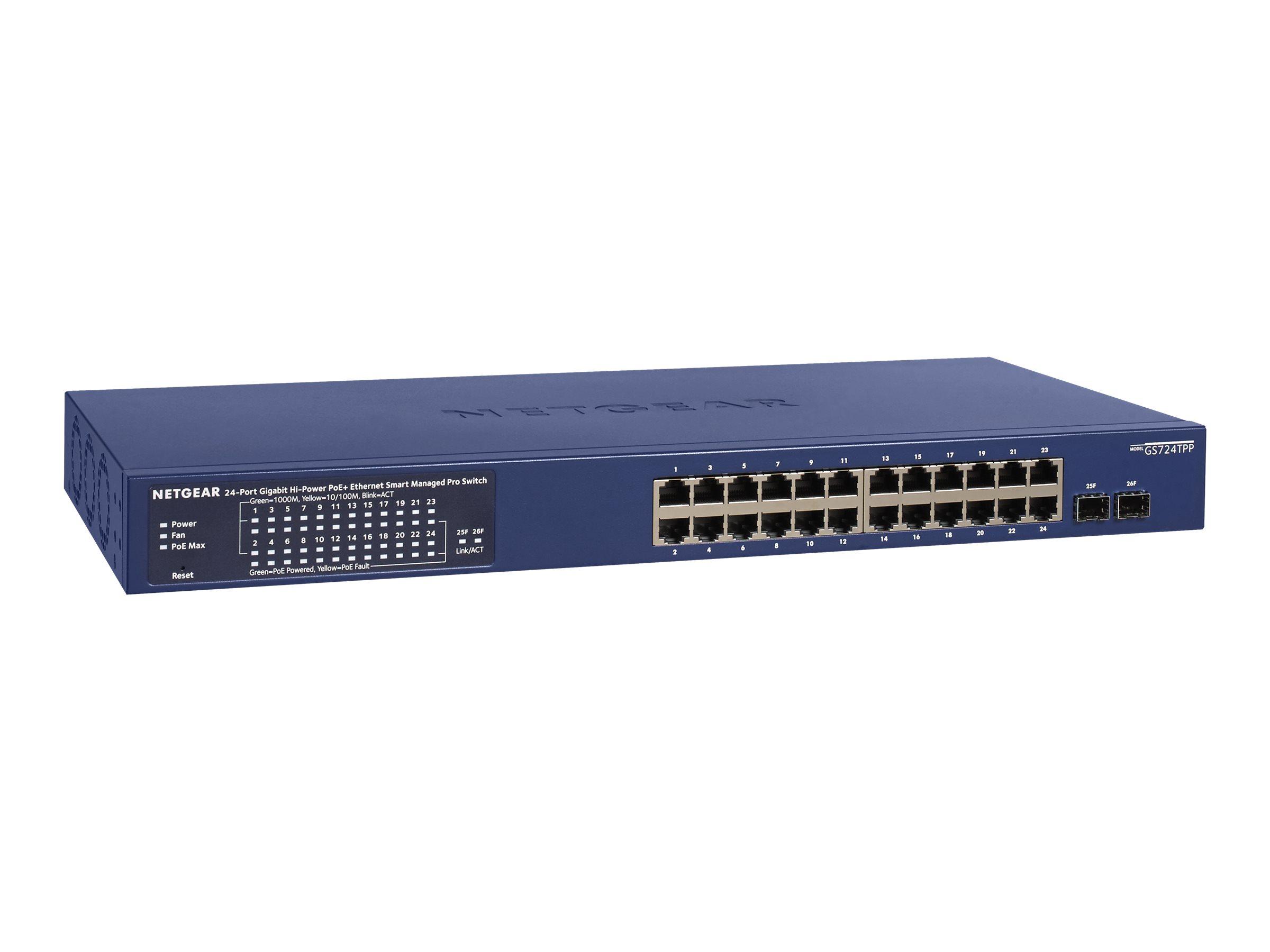

NETGEAR Smart GS724TPP

$780.00
NETGEAR Smart GS724TPP
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3 Lite
  • smart
  • 24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink)
  • rack-mountable
NETGEAR Smart GS724TPP
  • Switch
  • L3 Lite
  • smart
  • 24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink)
  • rack-mountable
  • PoE+ (380 W)
  Additional Details
Price: $780.00
Mfr Part #: GS724TPP-100NAS
SHI Part #: 39292438
Category: Network switches
UNSPSC: 43222612
Manufacturer: NETGEAR
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionNETGEAR Smart GS724TPP - Switch - L3 Lite - smart - 24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) - rack-mountable - PoE+ (380 W)
ManufacturerNETGEAR
MSRP$649.99
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth20.4 cm
Dimensions & Weight / Height4.3 cm
Dimensions & Weight / Weight3.7 kg
Dimensions & Weight / Width44 cm
Header / BrandNETGEAR
Header / Country Kits
  • Latin America
  • North America
Miscellaneous / Product ColorBlue
Networking / Form FactorRack-mountable
Networking / Ports Qty24
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeNETGEAR lifetime warranty
Dimensions & Weight
Depth20.4 cm
Height4.3 cm
Weight3.7 kg
Width44 cm
Environmental Parameters
Humidity Range Operating95% (non-condensing)
Humidity Range Storage95% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-20 °C
Expansion / Connectivity
Interfaces
  • 24 x 10/100/1000 Base-T RJ-45 PoE+
  • 2 x 1000Base-X SFP uplink
General
Authentication MethodRADIUS, TACACS+, Extensible Authentication Protocol (EAP)
Capacity
  • Priority queues: 8
  • Multicast groups: 128
  • VLANs supported: 64
  • DHCP snooping entries: 256
  • ACL: 100
  • IGMP multicast groups: 128
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Device TypeSwitch - 24 ports - L3 Lite - smart
Enclosure TypeRack-mountable
Encryption AlgorithmTLS 1.2
FeaturesFlow control, IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, MLD snooping, IPv4 support, LACP, DHCP client, 512KB packet buffer, GVRP, dual firmware images, loop prevention, static routing, CoS, SP, cloud managed, DSCP support, 3 fans, Protocol-based VLANs support, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, DNS client, Voice VLAN, ZTP, EEE, WRR, Auto VoIP, VLAN Tagging, port trunking, Advanced QoS, LAG, security slot (Kensington security lock compatible)
Flash Memory32 MB
Jumbo Frame Support9216 bytes
MAC Address Table Size8K entries
Performance
  • Bandwidth (full duplex): 52 Gbps
  • Forwarding performance (64-byte packet size): 38.6 Mpps
  • 1 Gbps copper latency (64-byte packets): 3.563
  • 1 Gbps copper latency (1518-byte packets): 3.717
  • 1 Gbps copper latency (9216-byte packets): 3.464
PoE Budget380 W
Ports24 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink)
Power Over Ethernet (PoE)PoE+
Processor1: 500 MHz
RAM128 MB
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP
Routing ProtocolIGMP, static IP routing, MLDv2, MLD
Status IndicatorsPort transmission speed, PoE, link/activity
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & Support
  • Limited warranty - replacement - lifetime - response time: next business day
  • Technical support - phone consulting - 90 days
Miscellaneous
Included AccessoriesFoot pad set
LocalizationLatin America, North America
MTBF634,966 hours
Rack Mounting KitIncluded
Power
Installed Qty1
Power Consumption Operational446.7 Watt
Power Consumption Stand by24.7 Watt
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V (50/60 Hz)
