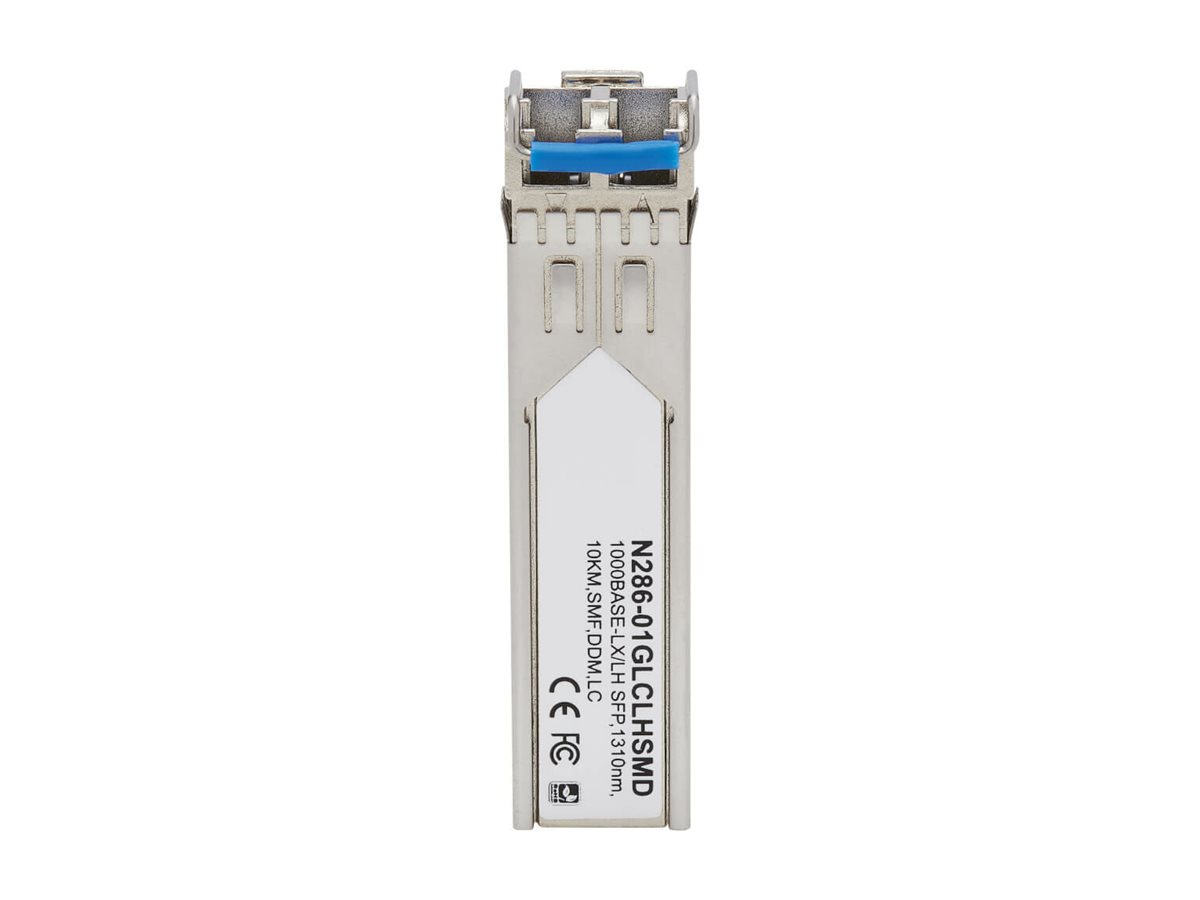

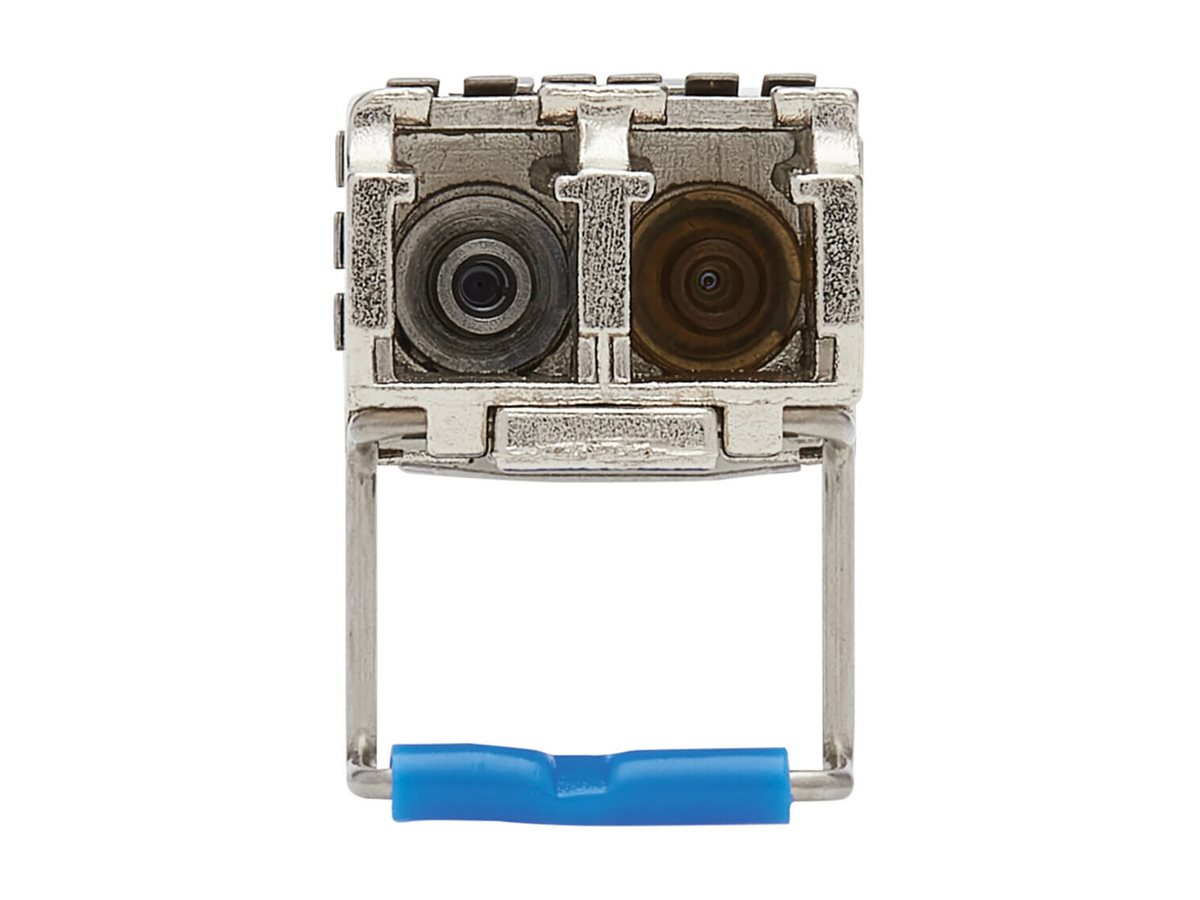

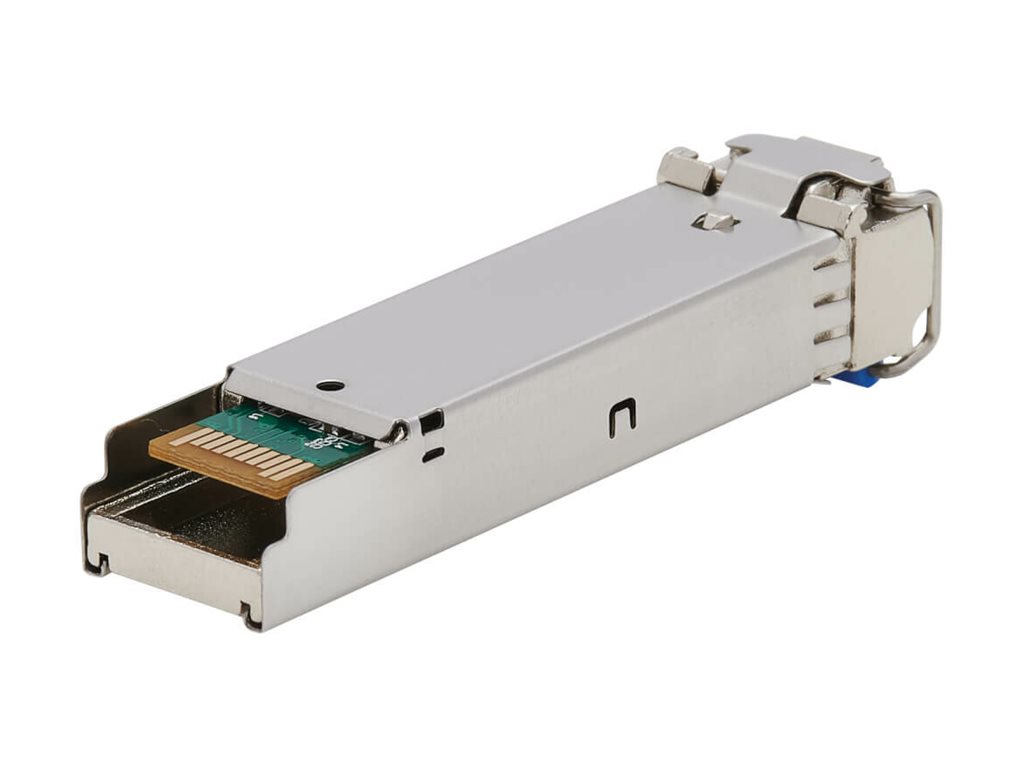

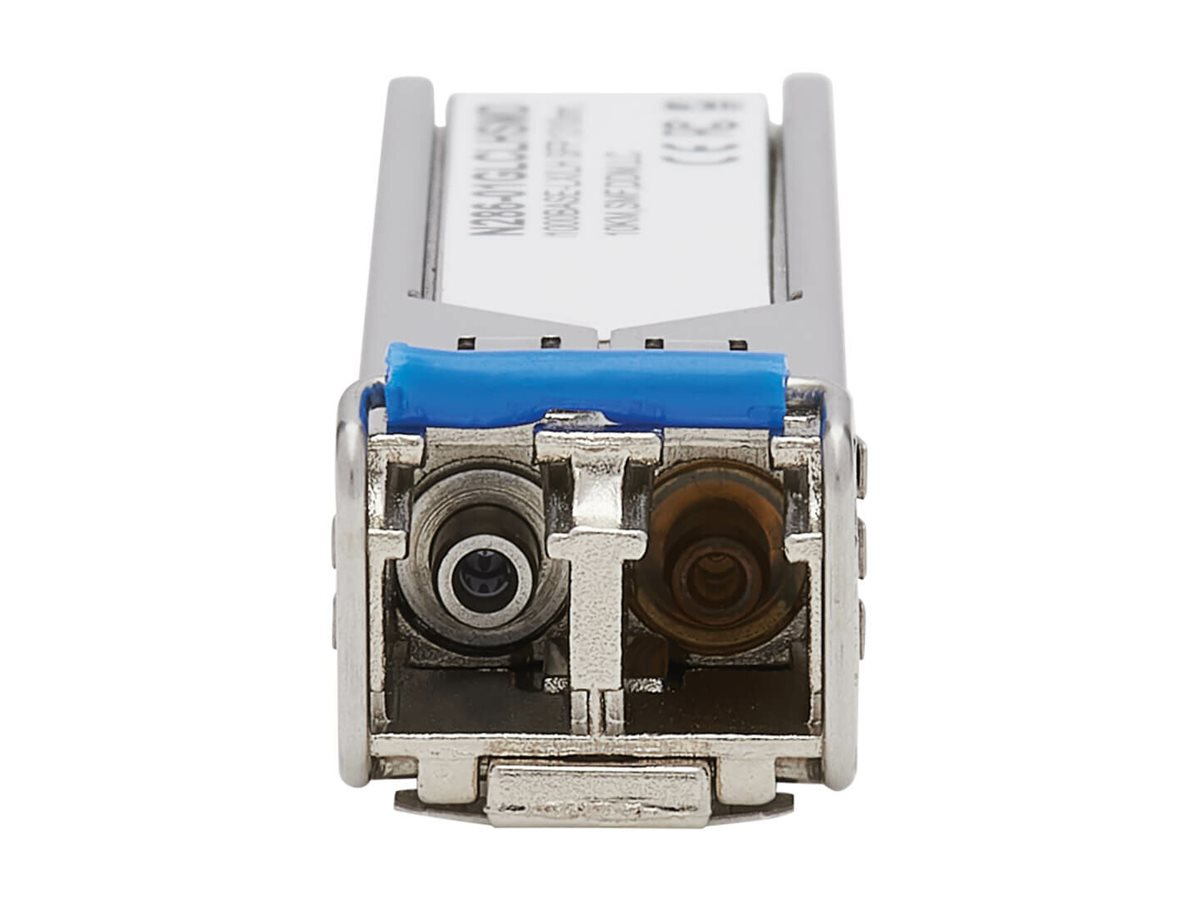

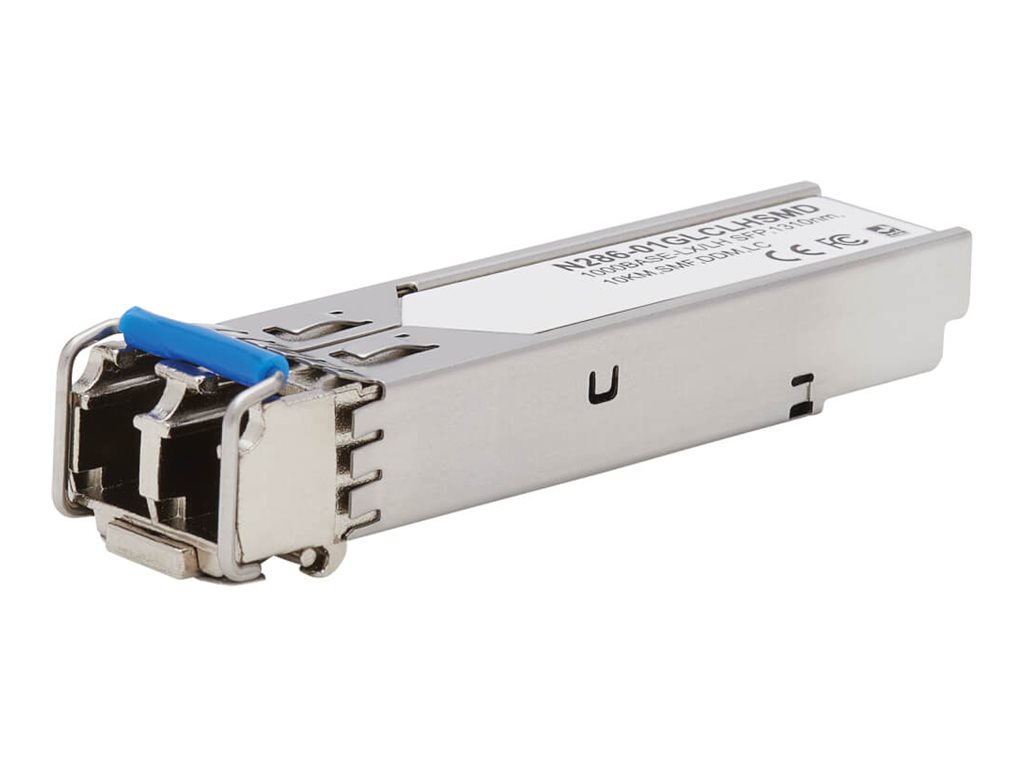

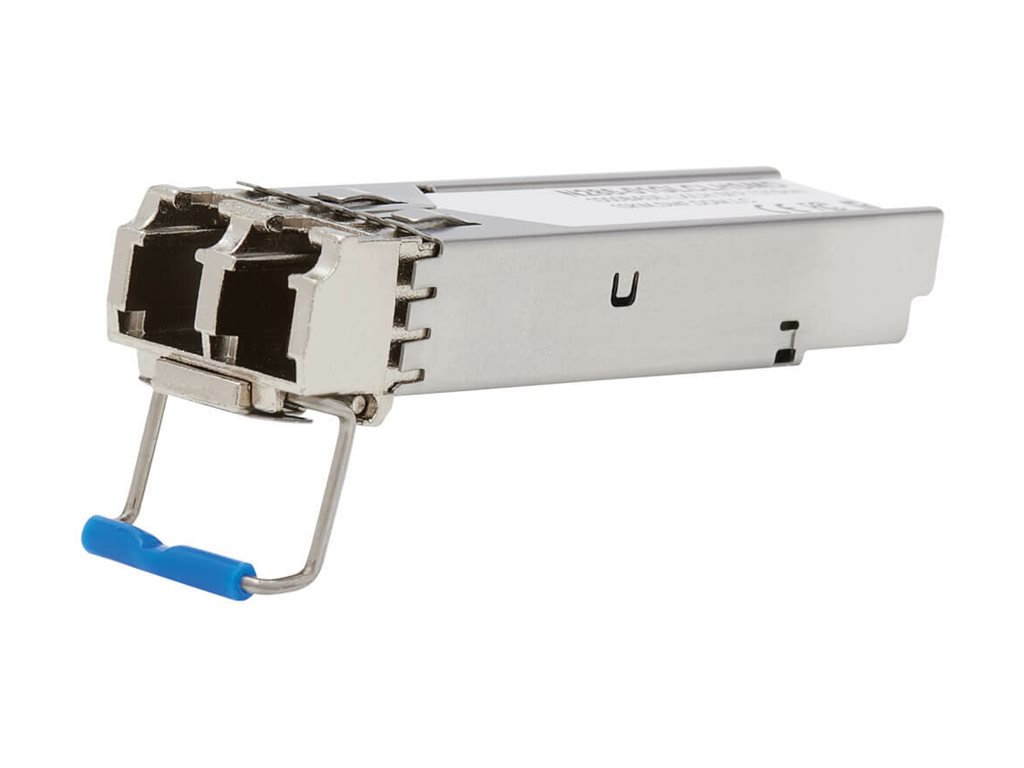

Tripp Lite Cisco-Compatible GLC-LH-SMD SFP Transceiver
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Tripp Lite Cisco-Compatible GLC-LH-SMD SFP Transceiver
- 10/100/1000Base-LX/LH, DDM, SMF, LC, 1310 nm, 10 km
- SFP (mini-GBIC) transceiver module (equivalent to: Cisco GLC-LH-SMD)
- GigE
- 1000Base-LX, 1000Base-LH
- LC single-mode
- up to 10 km
- 1310 nm
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | N286-01GLCLHSMD |
| SHI Part #: | 39164231 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
Audio/Video Cables
- Patch cable
- LC single-mode (M) to LC single-mode (M)
- 50 m
- fiber optic
- duplex
- 9 / 125 micron
- Patch cable
- LC single-mode (M) to LC single-mode (M)
- 20 m
- fiber optic
- duplex
- 9 / 125 micron
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Tripp Lite Cisco-Compatible GLC-LH-SMD SFP Transceiver - 10/100/1000Base-LX/LH, DDM, SMF, LC, 1310 nm, 10 km - SFP (mini-GBIC) transceiver module (equivalent to: Cisco GLC-LH-SMD) - GigE - 1000Base-LX, 1000Base-LH - LC single-mode - up to 10 km - 1310 nm |
| Manufacturer | Eaton |
| MSRP | $211.14 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.54 cm |
| Dimensions & Weight / Height | 0.84 cm |
| Dimensions & Weight / Weight | 30 g |
| Dimensions & Weight / Width | 1.35 cm |
| Header / Brand | Eaton |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | SFP (mini-GBIC) transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Compatibility Information | |
| Designed For | P/N: P999-000 |
| Dimensions & Weight | |
| Depth | 5.54 cm |
| Height | 0.84 cm |
| Weight | 30 g |
| Width | 1.35 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 85% RH (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-LX/1000Base-LH - LC single-mode female x 2 |
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS, FCC, MSA |
| Networking | |
| Cabling Type | 1000Base-LH, 1000Base-LX |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Digital Diagnostics Monitoring (DDM), Cisco compatible, hot swappable, bi-directional communication, metal housing |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1310 nm |
